Stanley DST370/8/100-3 - Electric Air Compressor - SXCMS3013E Wheeled 100 L

Add a question
ID: K601544

EAN: 8016738771534

MPN: B2FC504STN709

7,0/10
After-sales assistance & Spare parts
Stanley DST370/8/100-3 - Electric Air Compressor - SXCMS3013E  Wheeled 100 L
FREE
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
100 L
Max. operating pressure
8 bar
Air intake flow
315 L/min
Cylinder head rpm
1450 RPM
Lubrication
Oil-less
Pump type
Single-stage
Silenced
Yes
Nominal power
3 HP
Operating mode
Single-phase 230 V
Manufacturing country
Italy
Product Features
Model:
SXCMS30103E
Air compressor type 2:
Coaxial
Air compressor type:
Horizontal
Operating mode:
Single-phase 230 V
Operating mode:
Electric 230 V
Max. operating pressure:
8 bar
Number of tanks:
1
Air compressor tank:
100 L
Noise level:
72 dBA
Manufacturing country:
Italy
Motor data
Motor type:
Electric single-phase
Nominal power:
3 HP
Silenced:
Yes
Power supply:
220 V electric
Tank capacity:
100 L
Manufacturing country:
Italy
Pump data
Pump brand:
Stanley
Model:
VDC
Air intake flow:
315 L/min
Pump type:
Single-stage
Lubrication:
Oil-less
No. of cylinders:
1
Cooling manifold:
No
Nominal power:
2200 W
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
1450 RPM
Equipment
No. of outlet couplings:
2
Front handle:
Yes
Rubber-coated soft grip:
Yes
Lifting handle:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
98x45x80 cm
Net weight:
61.20 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
102X39X82 cm
Gross weight (packaging included) :
65 Kg
Assembly time:
15 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 11/04/2025 - 15/04/2025
€ 852,13
Vat included

You're viewing:
Customers also viewed:
Description

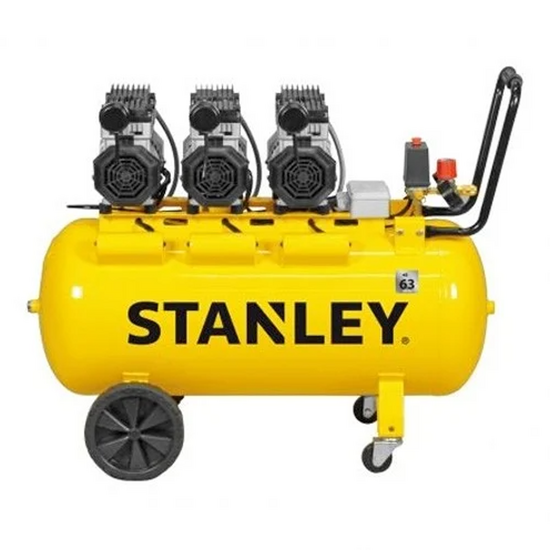

Stanley DST370/8/100 Electric Air Compressor

The STANLEY DST 370/8 / 100-3 SXCMS3013E Wheeled Silenced Air Compressor is a very innovative product. It is the first silenced oilless electric 100 L air compressor that features 3 pumping cylinder heads.


The STANLEY DST 370/8 / 100-3 SXCMS3013E air compressor, thanks to its 3 powerful cylinder heads, can be used for a variety of applications. It is the ideal product for all semi-professional works and for professionals who want a powerful and reliable equipment.

Its large capacity (100 L) allows to use it even for longer periods of time.

Equipped with 3 silenced pumping cylinder heads with a power of 3 Hp, it features a compressed air suction capacity of 314 L/min and can reach a maximum pressure of 8 bar. The peculiar structure of this air compressor makes it possible to operate it without oil (oilless).

It comes with a large 100 L compressed air storage tank. It weighs 61 kg and can be easily transported thanks to its large wheels and to the upper handle.
It also features practical swivelling wheels at the front for easy movement.

Suitable for a number of applications:

  • Air blowing
  • Inflation
  • Air brushing
  • Nailing - Stapling
  • Spraying treatments
  • Painting
  • Professional painting
  • Screw driving
  • Washing operations
  • Chiselling
  • Polishing
  • Grinding

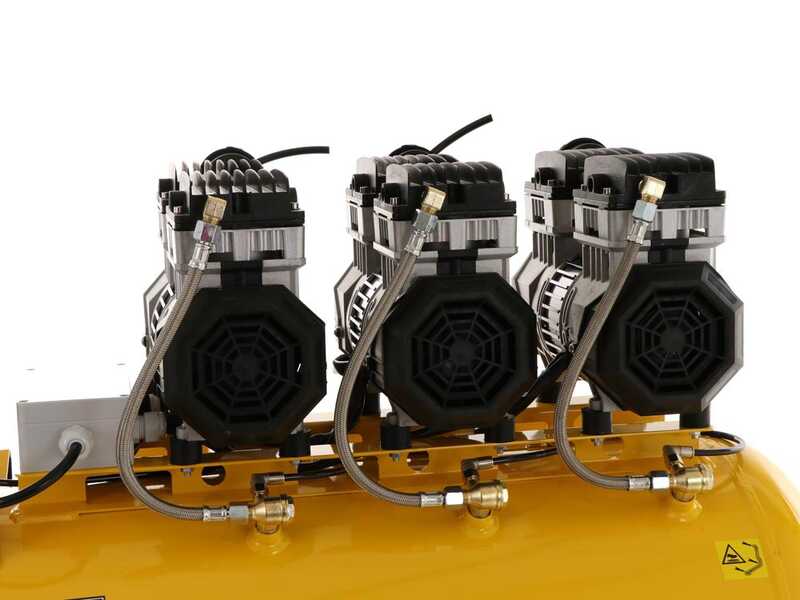

Technical features

The Stanley DST370/8/100-3 SXCMS3013E air compressor

while remaining compact in size, it offers high performance thanks to the 3 pumping units


Pumping unit type: coaxial

Air intake flow: 315 L/min


Pressure: 8 bar

Electric motor power: 3 Hp

Tank: 100 L

Noise emissions at 7 m: 63 dB

Noise emissions in close proximity: 83 dB

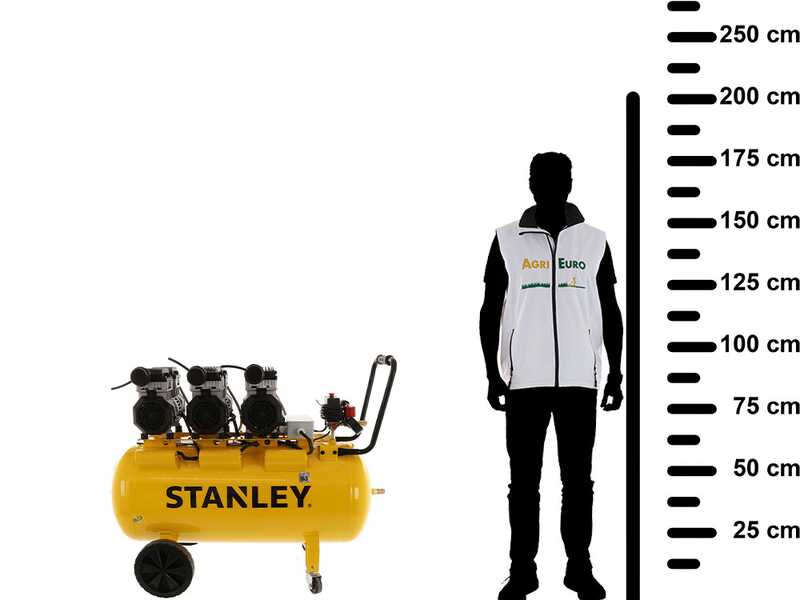

Dimensions:

- Length: 98 cm
- Height: 80 cm
- Depth (or thickness): 45 cm

Weight: 61 kg

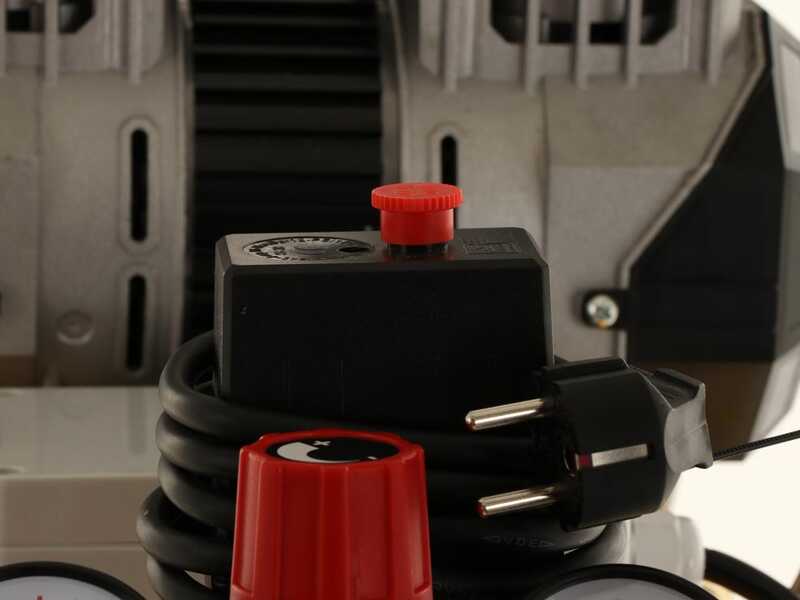

Controls

The Stanley DST370/8/100-3 SXCMS3013E air compressor features easy and user-friendly controls, which are divided into:

Output air pressure gauge

Tank air pressure gauge

Air compressor female outlet fitting

Pressure adjusting knob

Power switch

Other features

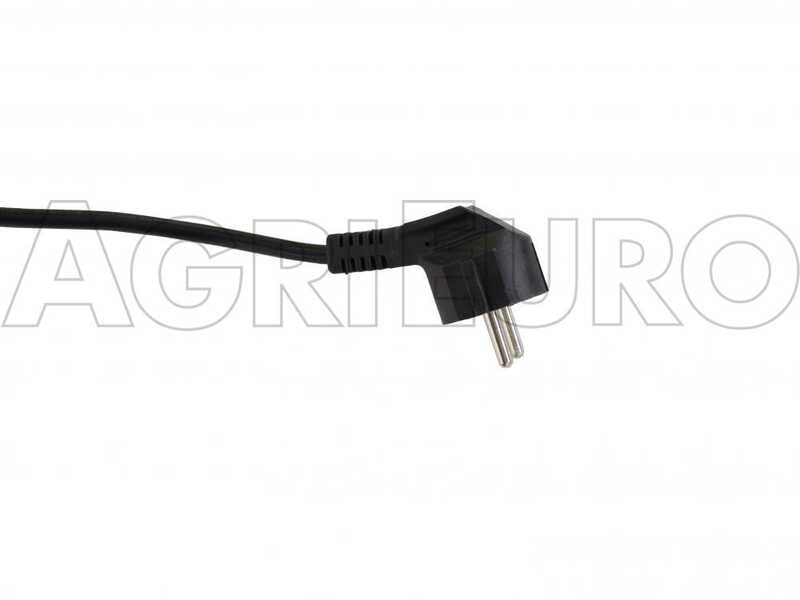

Schuko plug

Ergonomic handle for easy transportation

Large sturdy plastic wheels

Front wheels with swivel castors

Air drain valve

Free items & Standard equipment

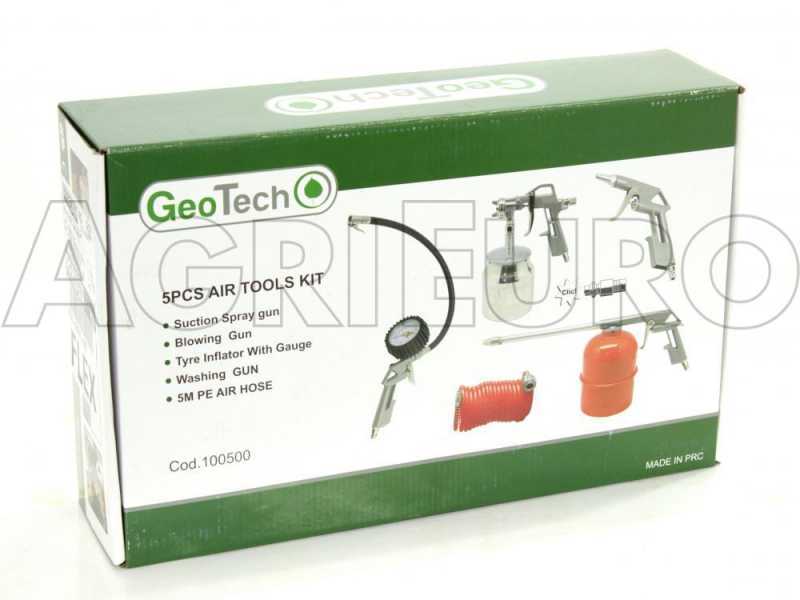

COMPLIMENTARY: Oilless Air Compressor Maintenance Kit

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet coupling. It allows easily connecting the units to hoses with female quick joint.

  • Quick male joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (it also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
