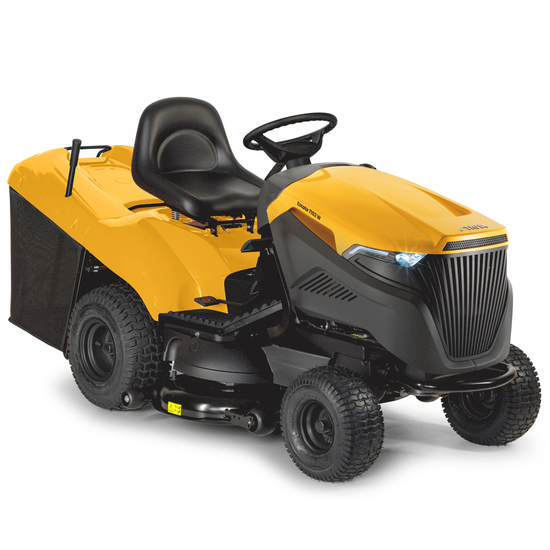

Stiga Estate 7102 W SE 90 - Lawn Tractor - Hydrostatic Transmission - Collection Bag - Mulching

The petrol lawn tractor Stiga Estate 7102 W SE 90 is a machine designed for professional cutting on large areas, up to 7500 m².

Equipped with a twin-cylinder engine ST 600 Twin with 586 cm³, it develops a net power of 10.2 kW at 2400 rpm. The petrol fuel system and air cooling system ensure reliability and durability over time. The hydrostatic transmission, controlled via pedal, allows for smooth and precise driving.

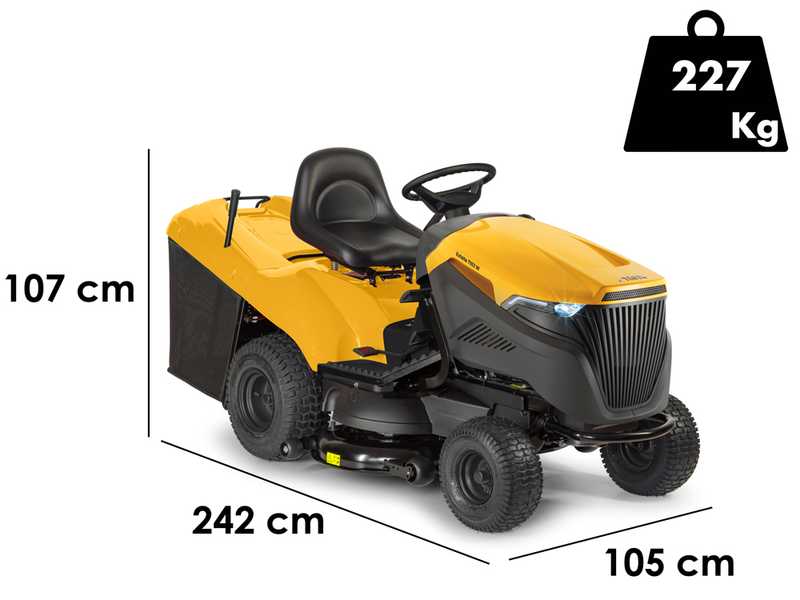

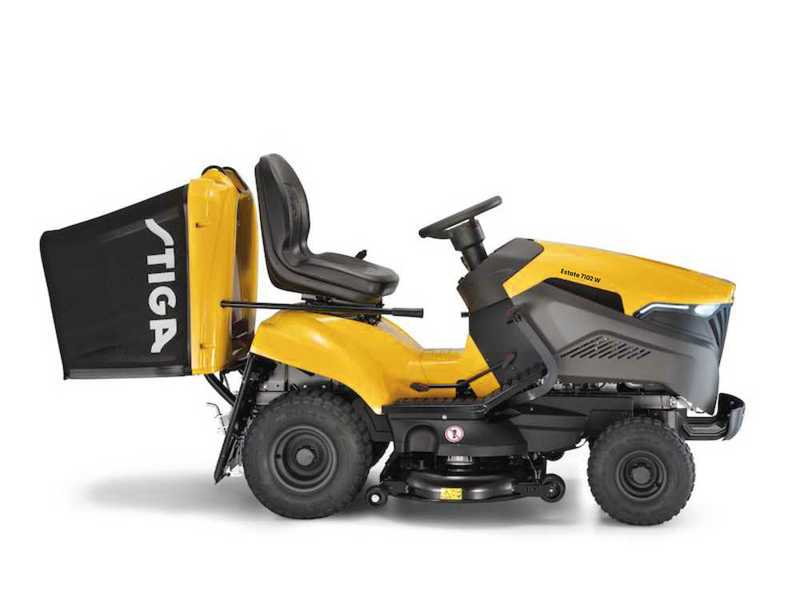

The petrol lawn tractor Stiga Estate 7102 W SE 90 features a solid structure and functional design, with a glossy yellow body and black details.

The 102 cm cutting deck, equipped with dual blades, allows for wide coverage. The cutting height adjustment is done manually via a lever with 7 positions, from 30 to 90 mm. The rear collection system includes a large 300-litre fabric bag, with manual emptying.

The Stiga tractor is equipped with advanced LED front headlights, LED dashboard, and a reinforced bumper for added protection. It includes 4 anti-scalp wheels, a standard adjustable seat with screws, and an ergonomic steering wheel.

Distinctive features of the Stiga Estate 7102 W SE 90 lawn tractor:

• STIGA ST 600 Twin twin-cylinder engine: ensures high power and low consumption on large surfaces.

• Pedal-operated hydrostatic transmission: allows easy management of speed and manoeuvres.

• 102 cm cutting deck: ideal for covering large areas with two efficient blades.

• 300-litre collection bag: allows long work intervals without frequent emptying.

• LED lighting system: improves visibility in low light conditions.

The Stiga Estate 7102 W SE 90 tractor is a robust and reliable machine, designed to ensure maximum cutting efficiency and comfort during use on large surfaces.

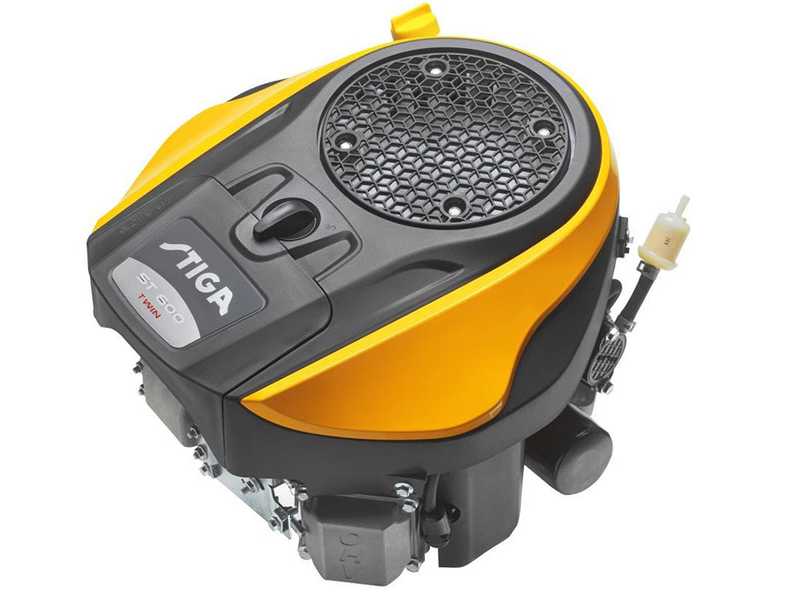

This Stiga tractor is equipped with the Stiga St 600 Twin Twin-Cylinder engine, a twin-cylinder engine with a displacement of 586 cc that develops a nominal power of 13.67 Hp at 2400 rpm.

The St 600 Twin engine is powerful, reliable, and generates low noise and emissions.

It has an 8-litre tank!

Features:

Nominal Power: 20 HP
The most correct term would be "Commercial" Power, meaning the classic standard of power definition officially used until a few years ago by all the most renowned engine manufacturers.

* This data is still the most widespread and advertised in the main sales channels, although it is an increased figure compared to the actual power.

Effective Power: 13.67 HP (at a rotation speed of 2400 rpm)
Corresponds to the actual power expressed at the crankshaft. It is the one indicated as official in the engine manufacturer's manual or technical data.

* This is a figure that can vary for the same engine model depending on the rotation speed that the equipment manufacturer has decided to have the engine deliver.

1- COLLECTION WITH BAG (standard):

Brand new and spacious collection bag with a capacity of 300 litres, among the largest in its category.

The bag emptying system is very simple: it is done through a very effective system, leveraging the removable handle. This way, you can empty the bag at the desired point without any effort.

The bag can be removed in an instant: just lift it upwards to remove it from its "bridge" housing where it is located.

2- MULCHING (free of charge):

A cutting system that shreds the cut grass, leaving it on the lawn, pulverizing it to the point that it almost seems collected. This eliminates the problem of its disposal (reducing effort and drastically shortening the time spent cutting) and, as it decomposes, it will later turn into a nutrient for the lawn itself and into water (grass is made up of 80% water), thus ensuring a perfectly balanced biological cycle. However, it is useful to remember that, to ensure the absolute efficiency of the system, the lawn must still be irrigated, and the grass cut very often. Switching from one system to another is very easy.

Conversion: remove the collection bag and insert the mulching plug into the central tunnel.

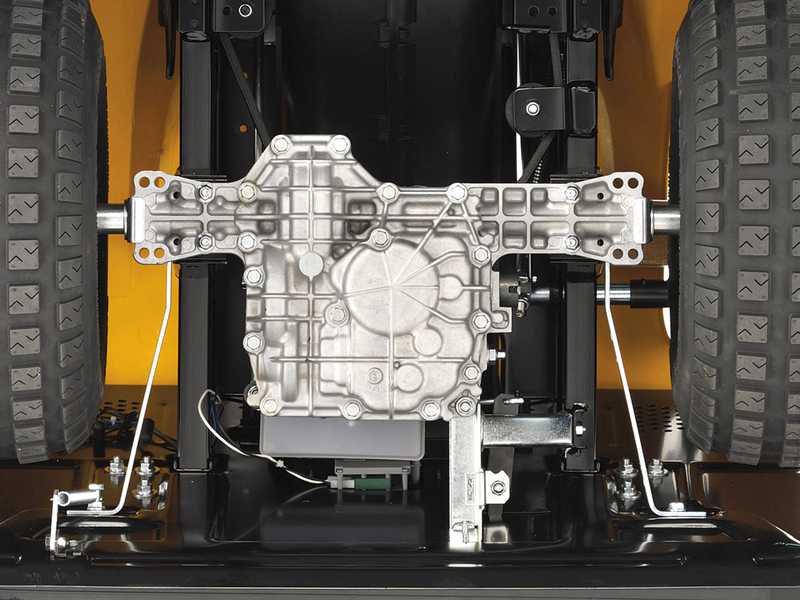

Thanks to the new hydrostatic transmission with 2 pedals, driving the tractor will be easy and intuitive. Everything can be controlled simply with the right foot resting on the pedal.

The operation is very simple: to move forward, just push the pedal with the tip of the foot. The tractor will move forward based on the pressure applied. To engage reverse, just push with the heel on the other end of the pedal.

As soon as you release the pedal, the machine stops and allows you to operate in complete safety.

Robust gears make the transmission difficult to break. The hydrostatic transmission is by nature much more modern and functional (although more expensive) than the traditional manual gear transmission. The latter, whenever the speed needs to be changed, forces the operator to stop, change gear (because all tractors with manual or mechanical transmission require gear changes to be made from a standstill), release the clutch, and restart at the desired speed. Certainly, if the speed needs to be changed several times (for example, in all those gardens where there are trees, pots, or any other kind of obstacle), the traditional gear transmission would be decidedly impractical. The hydrostatic transmission, on the other hand, allows immediate speed changes, without ever stopping, in the utmost practicality, in a completely automatic manner, simply by varying the pressure on the pedal that operates this transmission.

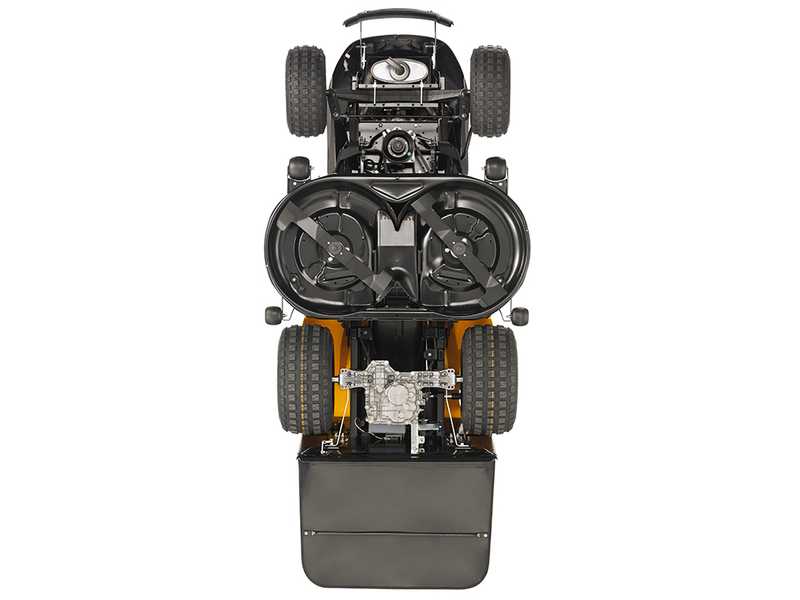

The Stiga Estate lawn tractor is equipped with a 2-blade deck.

The tractor comes standard with collection blades

Cutting deck width 102 cm.

Reverse cutting function.

The deck of the lawn tractor is floating: it easily adapts to the undulations of the terrain (as long as they are not excessively harsh).

The blade engagement is electromagnetic and is controlled via the yellow button to the right of the steering wheel. This system avoids manual engagement via the classic lever found on many types of tractors and works thanks to an electromagnetic clutch that allows easy and quick blade engagement.

The cutting deck height adjustment is done via a lever.

The available cutting positions are 7 and can be varied from a maximum of 90 mm to a minimum of 30 mm.

Detail of the cutting deck with the mulching cutting system engaged.

The cutting deck is equipped with 4 anti-scalp wheels and a double washing connection.

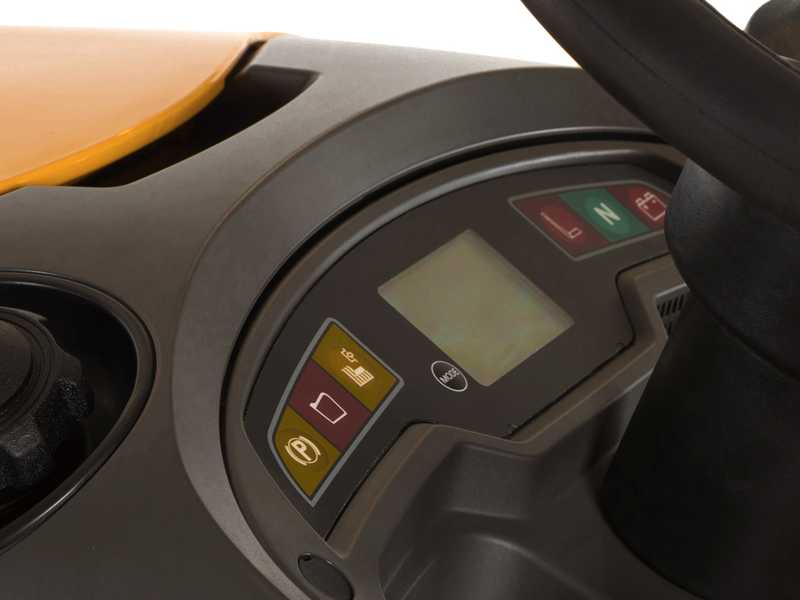

The controls and adjustments of the Stiga Estate lawn tractor are easy and intuitive. This model is equipped with a wide control instrumentation

• Blade rotation speed regulator
• Pedal brake
• Electromagnetic blade engagement with yellow button to the right of the steering wheel
• Lever for adjusting cutting height
• Pedal-operated hydrostatic transmission
• Control lights that indicate the machine's operating status and alert in case of malfunctions

Other features of the Stiga Estate lawn tractor:

• Engine bonnet can be opened to allow cleaning and maintenance operations
• Stiga smart seat with medium backrest for maximum comfort during use

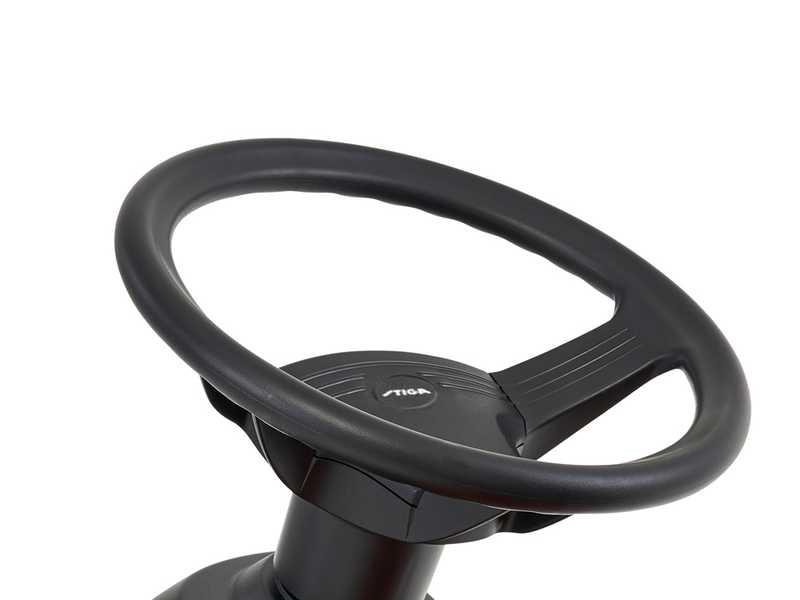

• Ergonomic steering wheel
• Robust front bull bar: prevents frontal impacts and protects the machine
• Huge rear wheels with dimensions 18 x 8.50-8
• Front wheels: wheel dimensions are 15 x 6.00-6
• Pivoting front axle: ensures excellent balance, stability, and driving comfort even on uneven terrain.
• Detail of the front LED headlights
• Detail of the battery hidden under the seat
