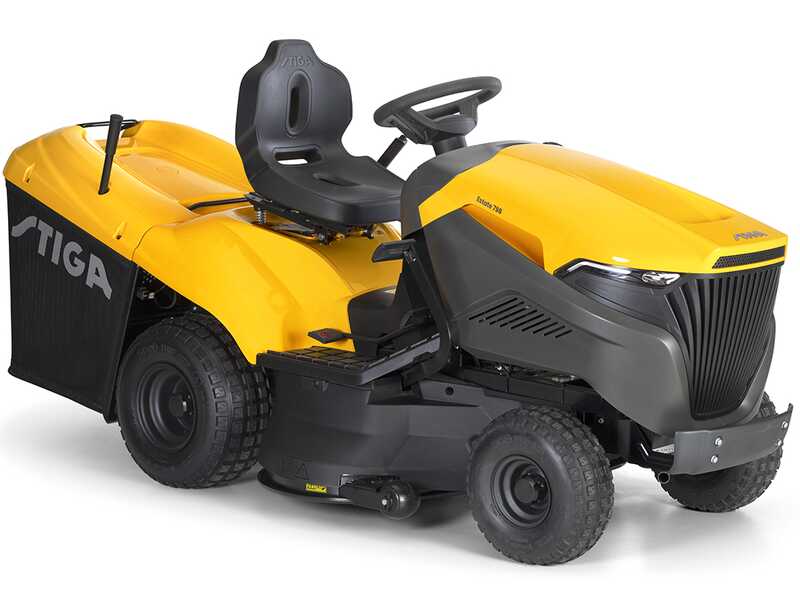

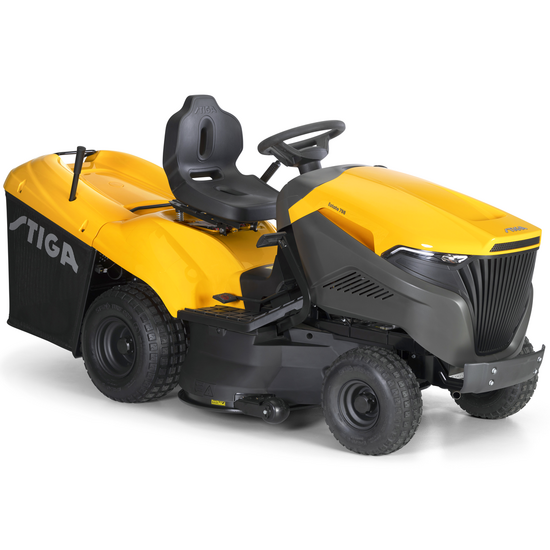

Stiga Estate 798 - Lawn tractor - hydrostatic transmission - collection box - mulching

The Stiga Estate 798 lawn mower tractor is designed for the efficient care of large areas up to 6,500 m².

The STIGA ST 500 single-cylinder 452cc engine delivers high performance, low vibration and improved fuel economy.

The 98 cm cutting deck with double winged rotating blade guarantees even mowing and optimum harvesting. The deck washing system facilitates maintenance by quickly eliminating grass residues.

The hydrostatic transmission offers a smooth and jolt-free ride, improving manoeuvrability around obstacles. The 300-litre collection bag allows you to extend your working sessions without interruption.

The instrument panel with 6 LEDs and multi-function display provides essential machine status information.

Ergonomics are optimized with an adjustable seat and soft-grip steering wheel, which increase operator comfort.

The machine is equipped with included accessories, such as the mulching cap, tow hook and battery charger, for greater versatility of use.

Key features:

• 452cc ST 500 engine – High power, economy and low emissions for efficient use.
• 98 cm cutting deck, Double winged rotating blade for precise and even mowing.
• Hydrostatic Transmission – smooth, uninterrupted ride, ideal for wide surfaces and obstacles.
• 300L collecting bag – High capacity for long working sessions without frequent emptying.
• Multifunctional LED dashboard - Clear display of operational information for optimal monitoring

The Stiga Estate 798 lawn mower tractor is the ideal solution for those who need precise cutting, high harvesting capacity and superior driving comfort, ensuring efficiency and reliability in every working session.

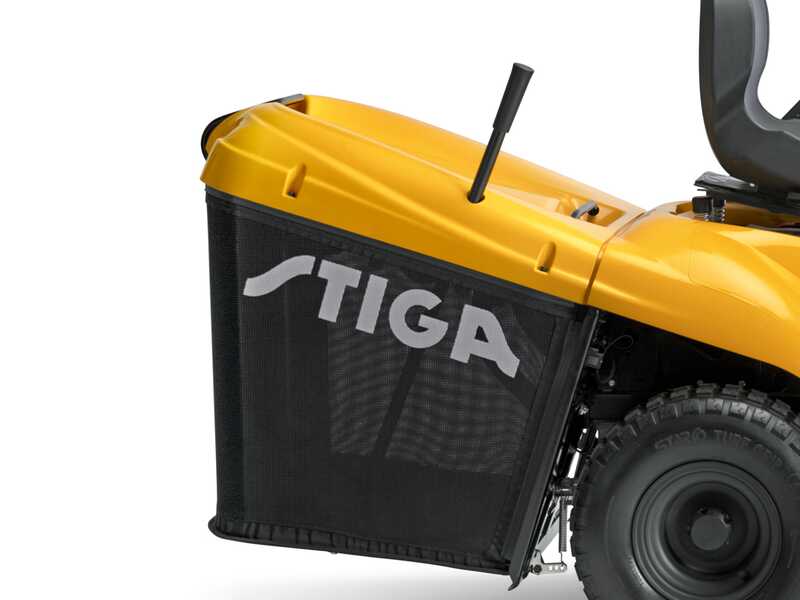

1- GRASS COLLECTION SYSTEM (on standard equipment):

Large collection basket with a capacity of no less than 300 litres.

Emptying the bag is very easy: it is done by levering the pull-out handle. You can then empty the bag wherever you want, without any effort.

The bag can be disassembled in an instant: simply lift it upwards to remove it from its 'bridge' housing where it is housed

2- MULCHING CUTTING SYSTEM (on standard equipment):

this grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week. Converting the machine from a cutting system to the other one is very easy.

Conversion: remove the collection bag and insert the mulching plug in the centre tunnel.

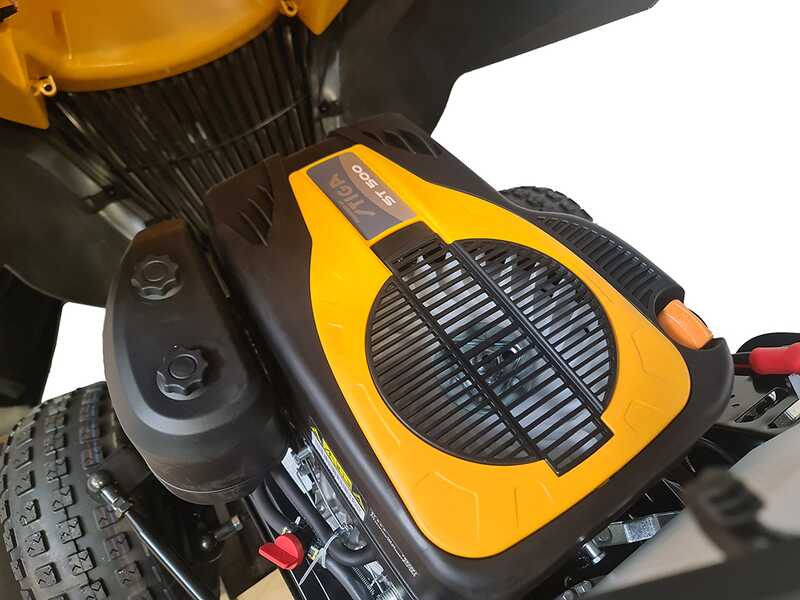

This Stiga lawn tractor is fitted with the Stiga ST 500 engine, a single-cylinder 452 cc engine that develops an effective power output of 10.99 Hp at 2700 rpm.

Features:

Cutting edge 4-stroke petrol engine with ‘OHV’ overhead valve shaft and anti-vibration system.

Engine equipped with electric key start

Capacious 8-litre tank.

Nominal Power: 17 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Effective power: 10.99 Hp (at 2700 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

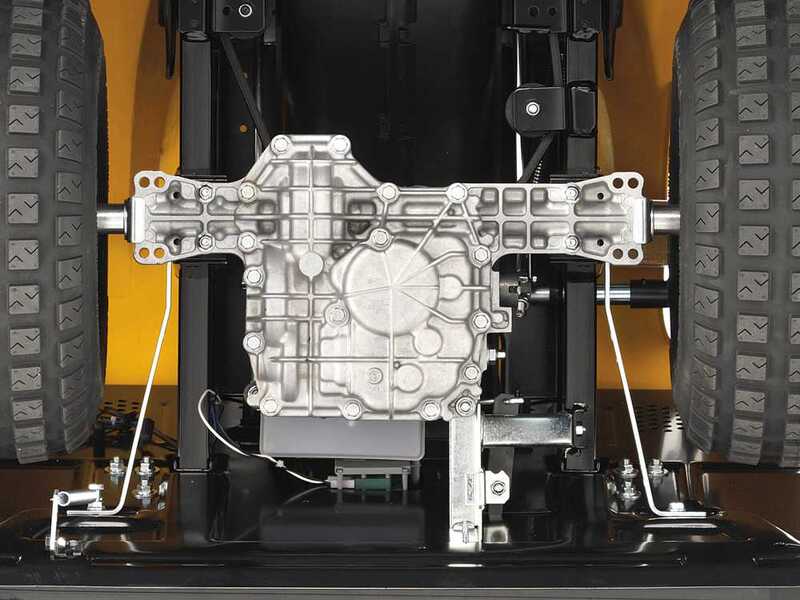

Thanks to the new hydrostatic 2-pedal gearbox, driving the tractor will be easy and intuitive. Everything can be controlled simply with your right foot resting on the pedal.

The operation is very simple: all you have to do to move forward us push the pedal with your toe. The riding-on mower will move forward according to the pressure on the pedal. Simply push the other end of the pedal with your heel for moving in reverse.

As soon as the pedal is released, the machine stops and allows safe operation.

Sturdy gears make the gearbox difficult to break. The hydrostatic transmission is, by its nature, much more modern and functional (although more expensive) compared to traditional manual gearbox. The latter model, whenever it is necessary to adjust the speed, obliges the Operator to stop, change gear (because in all the riding-on mowers with a manual or mechanical gearbox the gear change takes place when the machine is stationary), leaving the clutch and then restart at the desired speed. In case of frequent speed variations (e.g. in gardens with trees, vases or other types of obstacles) the standard gear transmission wouldn’t be practical at all. The hydrostatic transmission, on the other hand, allows immediate speed changes, without ever stopping, in absolute convenience, in a totally automatic way, simply by varying the pressure on the accelerator pedal.

Cutting plate with 2 blades, with a cutting width of 98 cm.

Cutting height is adjustable in 7 positions, using a lever , to vary from 30 to 90 mm.

Reverse cutting function.

The electromagnetic blade engagement is operated via the yellow button on the right side of the steering wheel. This system avoids the manual engagement by means of the standard lever which many models of riding-on mowers are equipped with and works thanks to an electromagnetic clutch that allows easy and quick engagement of the blades.

The cutting deck height can be adjusted through a lever.

2 Anti-skid wheels, for greater grip on the ground, so that the lawn is not ruined when the tractor passes.

Flushing connection , which allows easy cleaning of the cutting deck, simply by means of the water pipe.

The controls for the Stiga Estate 798 lawnmower tractor are as follows:

• Speed regulator
• Parking brake
• Ignition lock with key
• Braking pedal
• Hydrostatic pedal-operated gearbox
• Electromagnetic blade engagement by means of the yellow button on the right side of the steering wheel.
• Cutting height adjustment lever

Other features of the Estate 798 lawn tractor:

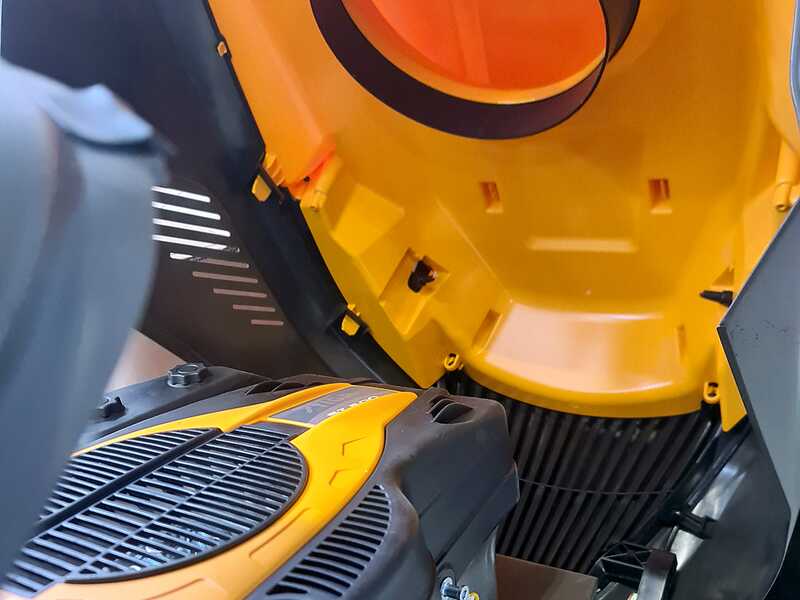

• Opening engine bonnet for cleaning and maintenance operations
• Adjustable STIGA new comfort seat
• Ergonomic STIGA steering wheel
• Front bull bar : to resist shocks and protect the tractor from any obstacles
• Rear wheels: 18x8.50-8
• Front wheels: 15x6.00-6
• Focus on the battery
• Detail of LED headlights
• Tank plug
