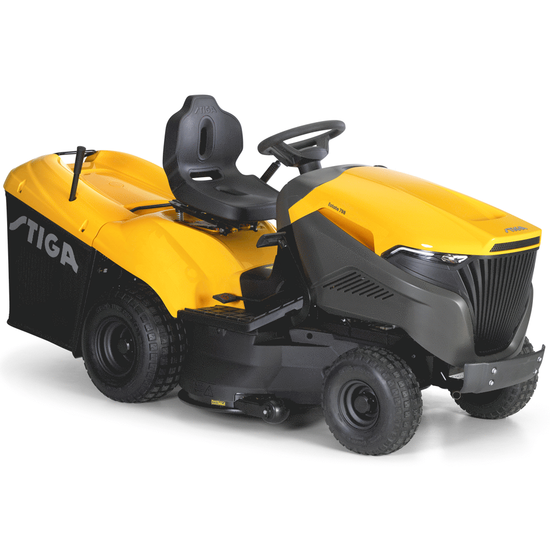

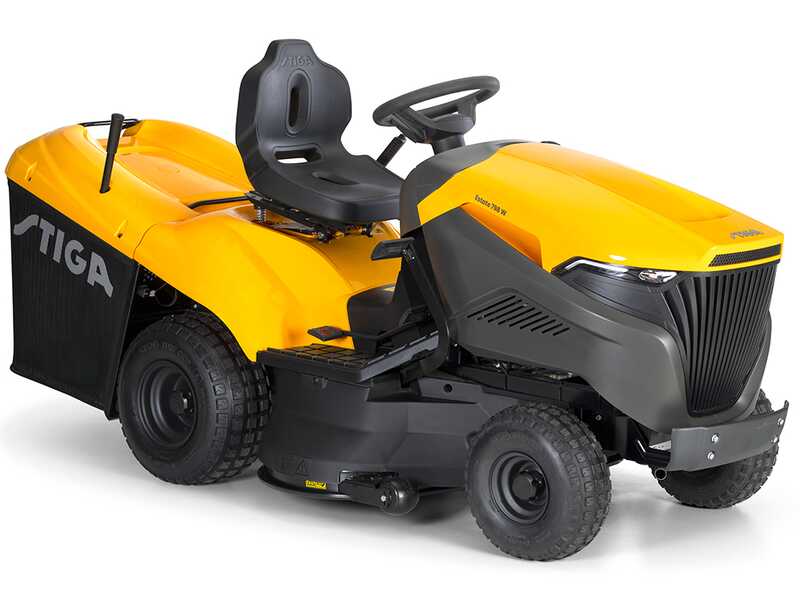

Stiga Estate 798 W - lawn tractor - hydrostatic transmission - collection box - mulching

The Stiga Estate 798 W petrol lawn tractor is designed for high performance in the care of large green spaces up to 7000 m².

Equipped with a powerful 586cc twin-cylinder ST 600 Twin STIGA engine, it ensures power, reliability and efficient operation with low vibration and optimized fuel consumption. The hydrostatic transmission provides a smooth ride, allowing continuous speed adjustments without changing gears, ideal for manoeuvring around obstacles with ease.

The 98 cm cutting deck with double rotating blade ensures even and efficient mowing. The collection system with a large 300 litre bag allows long working sessions without frequent emptying. You can choose between collection, rear discharge or mulching mode, offering maximum versatility in handling grass cuttings. The deck washing system facilitates maintenance, preventing residue build-up and maintaining high performance over time.

Driving comfort is provided by the adjustable seat and the soft-grip steering wheel, reducing operator fatigue during long periods of use. The dashboard with LED display provides clear information on the status of the machine, enhancing control while working. The robust construction ensures strength and durability even on challenging terrain.

Main features:

• ST 600 Twin Powered by STIGA 586 cc engine: high power, reduced vibrations and optimized fuel consumption.
• 98 cm cutting deck with double blade: efficient and even cutting for large surfaces.
• The 300-litre collection bag allows you to extend your working sessions without interruption.
• Hydrostatic transmission : infinitely adjustable speed without changing gear.
• LED dashboard and adjustable seat: more comfort and operational control.

The Stiga Estate 798 W tractor is the ideal solution for those looking for a high-performance, reliable and versatile machine for the maintenance of large green areas with maximum comfort and ease of use.

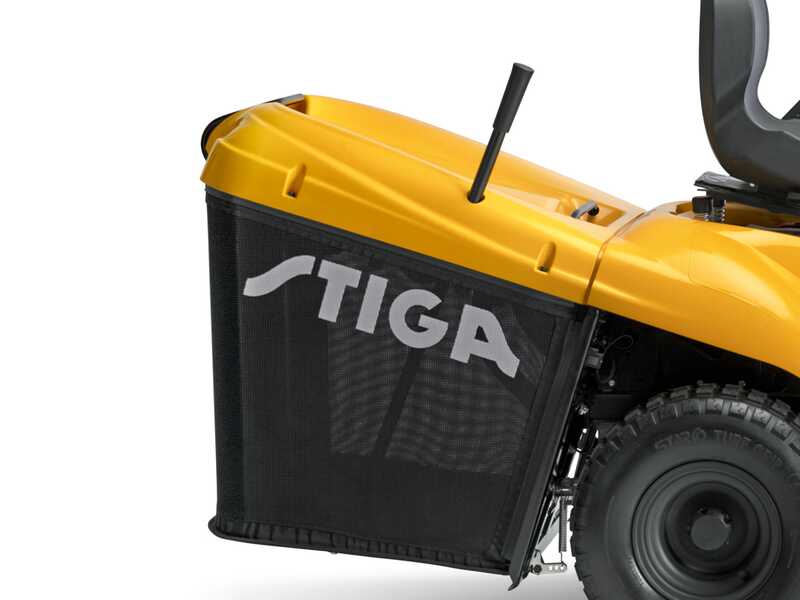

1- GRASS COLLECTION SYSTEM (on standard equipment):

Large collection basket with a capacity of no less than 300 litres.

Emptying the bag is very easy: it is done by levering the pull-out handle. You can then empty the bag wherever you want, without any effort.

The bag can be disassembled in an instant: simply lift it upwards to remove it from its 'bridge' housing where it is housed

2- MULCHING CUTTING SYSTEM (on standard equipment):

this grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated, and the grass needs cutting at least once a week. Converting the machine from a cutting system to the other one is very easy.

Conversion: remove the collection bag and insert the mulching plug in the centre tunnel.

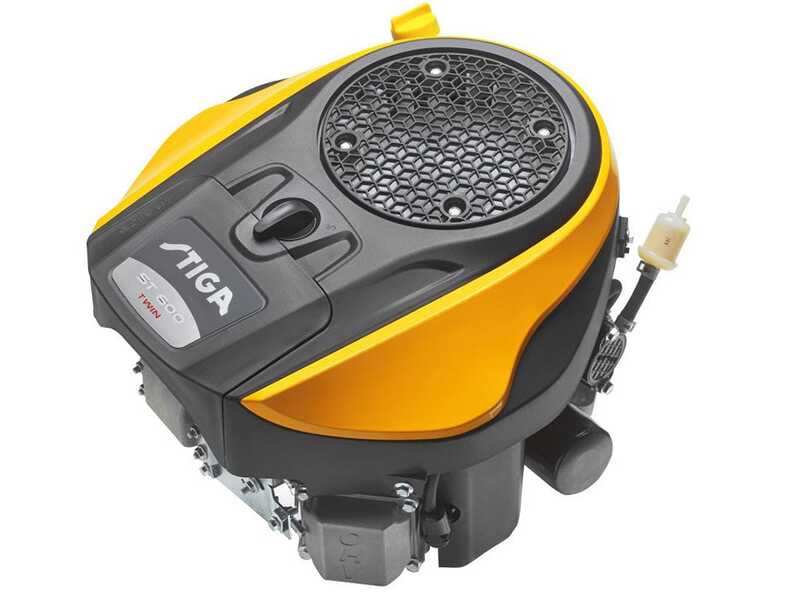

This Stiga lawn tractor is fitted with the Stiga St 600 Twin engine, a 586 cc twin-cylinder engine that develops a rated power of 14.5 Hp at 2600 rpm.

The St 600 Twin engine is powerful, reliable and generates low noise and emissions.

It has an 8-litre tank!

Features:

Nominal Power: 20 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 14.5 Hp (at 2600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

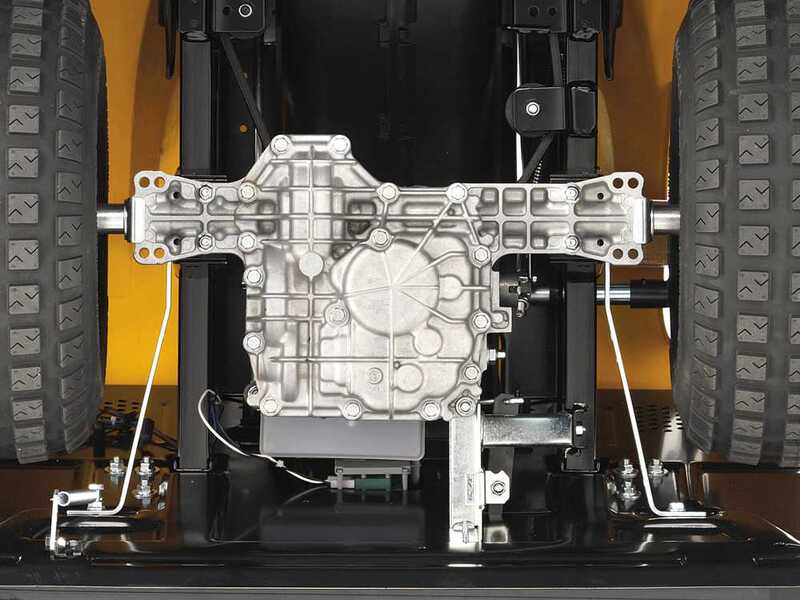

Thanks to the new hydrostatic 2-pedal gearbox, driving the tractor will be easy and intuitive. Everything can be controlled simply with your right foot resting on the pedal.

The operation is very simple: all you have to do to move forward us push the pedal with your toe. The riding-on mower will move forward according to the pressure on the pedal. Simply push the other end of the pedal with your heel for moving in reverse.

As soon as the pedal is released, the machine stops and allows safe operation.

Sturdy gears make the gearbox difficult to break. The hydrostatic transmission is, by its nature, much more modern and functional (although more expensive) compared to traditional manual gearbox. The latter model, whenever it is necessary to adjust the speed, obliges the Operator to stop, change gear (because in all the riding-on mowers with a manual or mechanical gearbox the gear change takes place when the machine is stationary), leaving the clutch and then restart at the desired speed. In case of frequent speed variations (e.g. in gardens with trees, vases or other types of obstacles) the standard gear transmission wouldn’t be practical at all. The hydrostatic transmission, on the other hand, allows immediate speed changes, without ever stopping, in absolute convenience, in a totally automatic way, simply by varying the pressure on the accelerator pedal.

Cutting plate with 2 blades, with a cutting width of 98 cm.

Cutting height is adjustable in 7 positions, using a lever , to vary from 30 to 90 mm.

Reverse cutting function.

The electromagnetic blade engagement is operated via the yellow button on the right side of the steering wheel. This system avoids the manual engagement by means of the standard lever which many models of riding-on mowers are equipped with and works thanks to an electromagnetic clutch that allows easy and quick engagement of the blades.

The cutting deck height can be adjusted through a lever.

2 Anti-skid wheels, for greater grip on the ground, so that the lawn is not ruined when the tractor passes.

Flushing connection , which allows easy cleaning of the cutting deck, simply by means of the water pipe.

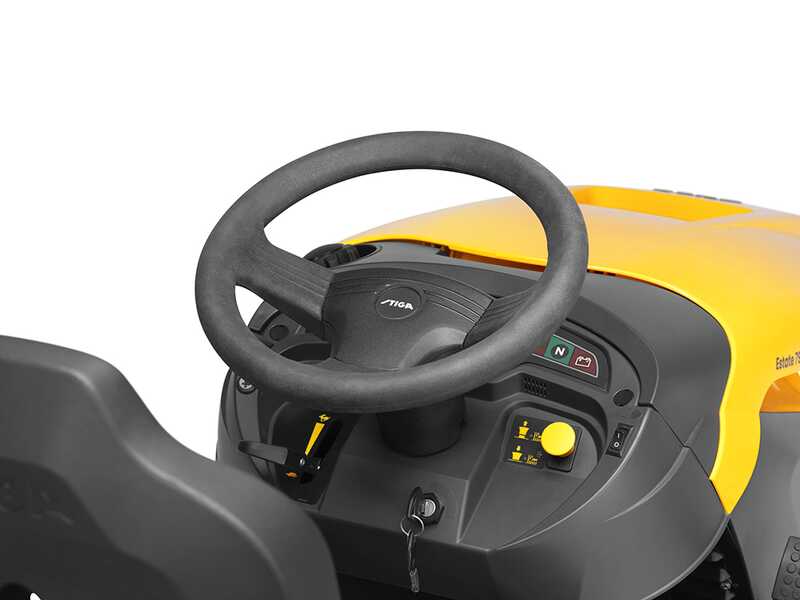

The controls for the Stiga Estate 798 W lawnmower tractor are as follows:

• Speed regulator
• Parking brake
• Ignition lock with key
• Braking pedal
• Hydrostatic pedal-operated gearbox
• Electromagnetic blade engagement by means of the yellow button on the right side of the steering wheel.
• Cutting height adjustment lever

Other features of the Estate 798 W lawn mower tractor:

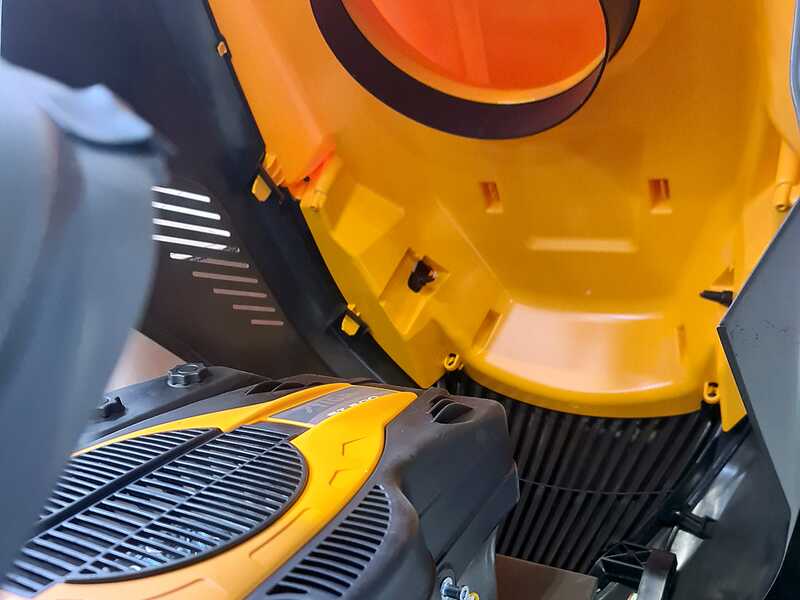

• Opening engine bonnet for cleaning and maintenance operations
• Adjustable STIGA new comfort seat
• Ergonomic STIGA steering wheel
• Front bull bar : to resist shocks and protect the tractor from any obstacles
• Rear wheels: 18x8.50-8
• Front wheels: 15x6.00-6
• Focus on the battery
• Detail of LED headlights
• Tank plug
