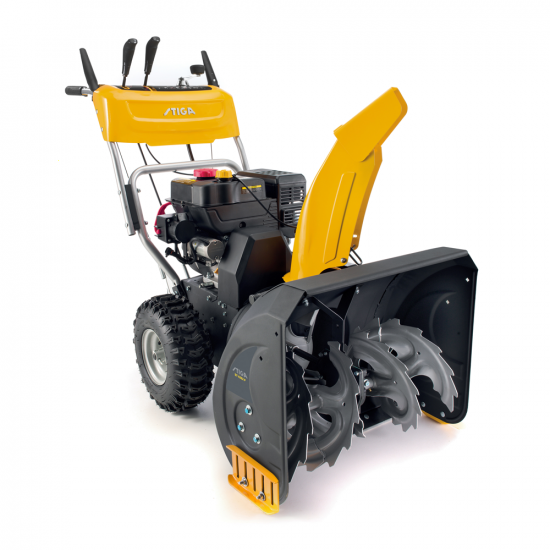

Stiga ST 4262 P - Petrol Snowplough - WS210

The STIGA ST 4262 P snow plough is the ideal solution for easily removing snow up to 50 cm high in large areas such as driveways, pavements and car parks.

This powerful and reliable two-stage snow plough, with a robust 212 cc WS 210 engine and a 62 cm turbine with steel blades, is designed to effortlessly handle snow in all conditions, including ice.

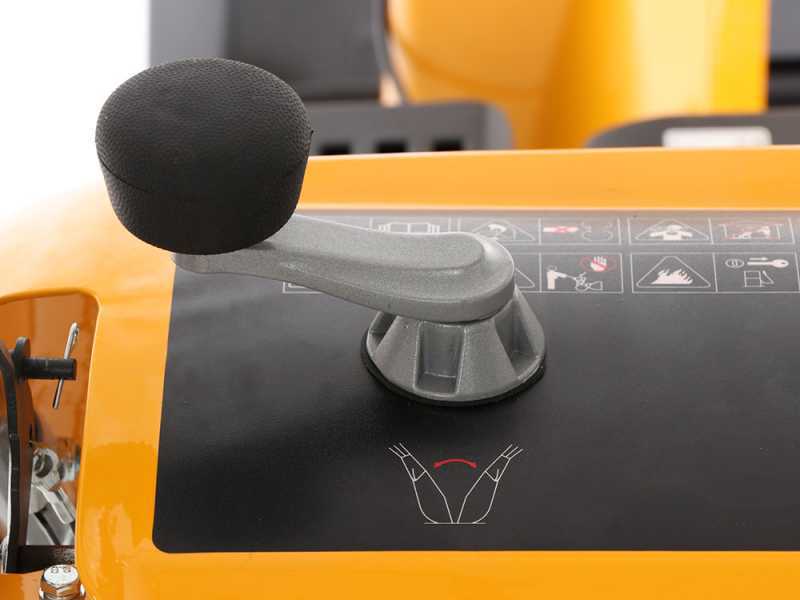

Thanks to the crank handle that directly controls the snow output, the flow can be directed as required up to a distance of 8 metres, with a chute rotation of 190°.

Practicality is further ensured by the adjustment levers on the panel, which allow control of the chimney, baffle and speed.

The 14-inch Snow Hog tyres provide excellent traction, while the reversible dual-slide skids, made of metal and HDPE, ensure effective work on all kinds of surfaces, protecting the most delicate ones.

In addition, the adjustable speed, with 6 forward and 2 reverse gears, offers flexibility and control for an optimal snow clearing experience.

The 212 cc WS 210 engine on the snow plough is capable of delivering a net power of 4.4 kW at 3600 rpm.

Features:

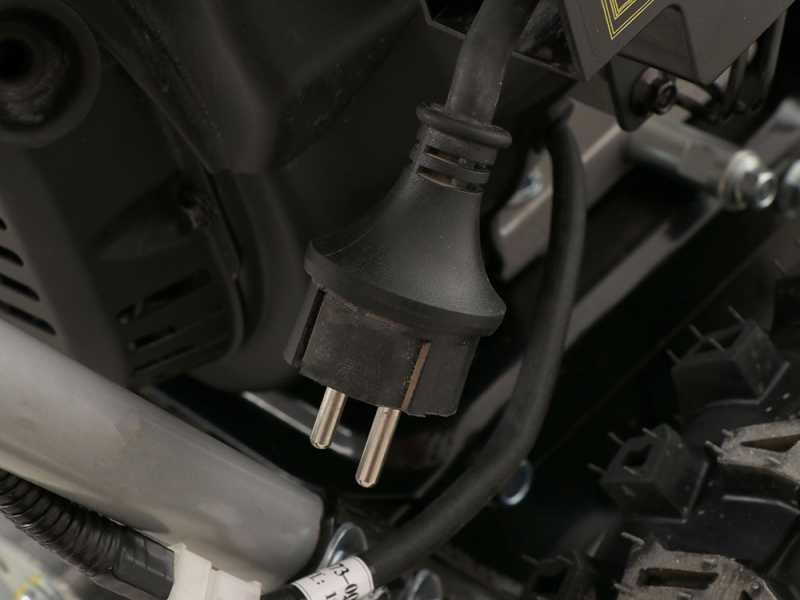

Schuko socket for electric starter

The engine of this snowplough is also equipped with an electric starter. This system is provided with battery. Indeed, this allows starting the snow thrower directly connecting it to the electrical socket. This is because batteries, when subjected to sudden temperature changes, tend to run out quickly. And more, they can hardly stand sporadic use.

WARNING

Winterised engines such as this are without an air filter because working at low temperatures and with snow, the latter could create moisture that would then freeze, ruining the filter and creating problems for the machine's operation.

The engine is PROVIDED WITHOUT OIL.
Please read carefully the instructions manual before starting the unit.

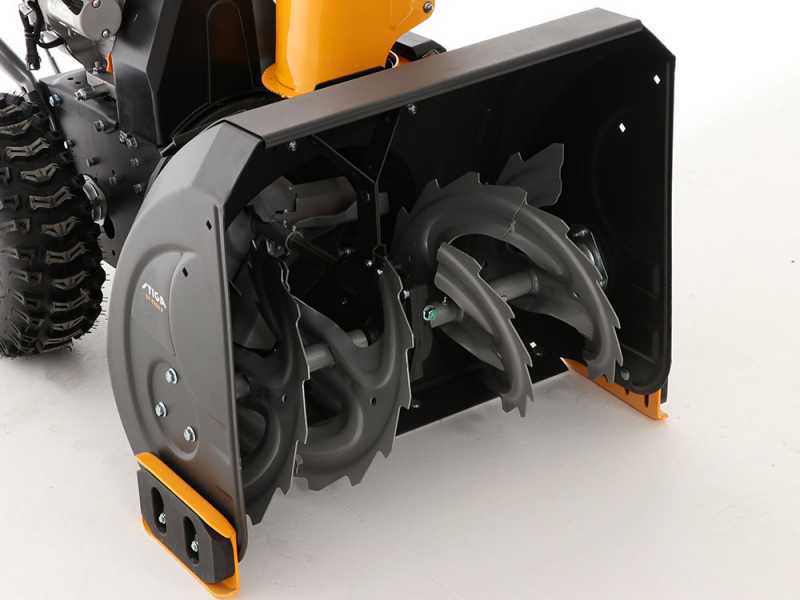

The tiller compartment is 62 cm wide and 51 cm high.

• Turbine diameter: 30 cm
• Impeller diameter: 30 cm

The snowplough tiller is a professional type with a 3-blade steel spiral with a serrated edge.
This, together with its optimised profile, guarantees the crumbling and shaping of even the hardest snow.

Two-stage system

The snow is efficiently conveyed into the machine by means of the tiller, and then thrown away through the discharging chute by means of an internal high-speed centrifugal fan.

The safety bolts protect the integrity of the gearbox. They are designed to give way if the blade runs into a stone or obstacle, thus preventing damage to the blade.

Metal/HDPE side skids.
They enable this snowplough to work on all types of terrain, from the smoothest to the not-so-smooth, without scratching it.

The snow discharge chute can be swivelled via the controls on the dashboard and the endless screw at its base.

The deflector, a snow ejection distance regulator, is controlled via the lever on the control panel.

Snow throw distance: 8 m

The rotation angle of the chimney is190°: in relation to the direction of travel, the chimney rotates 95° on both sides

• Detail of the chimney oriented completely to the left
• Detail of the chimney oriented completely to the right
• Deflector placed fully up for maximum ejection distance.
• Deflector placed all the way down.

The chute is also equipped with a grid that prevents foreign objects to enter into it.

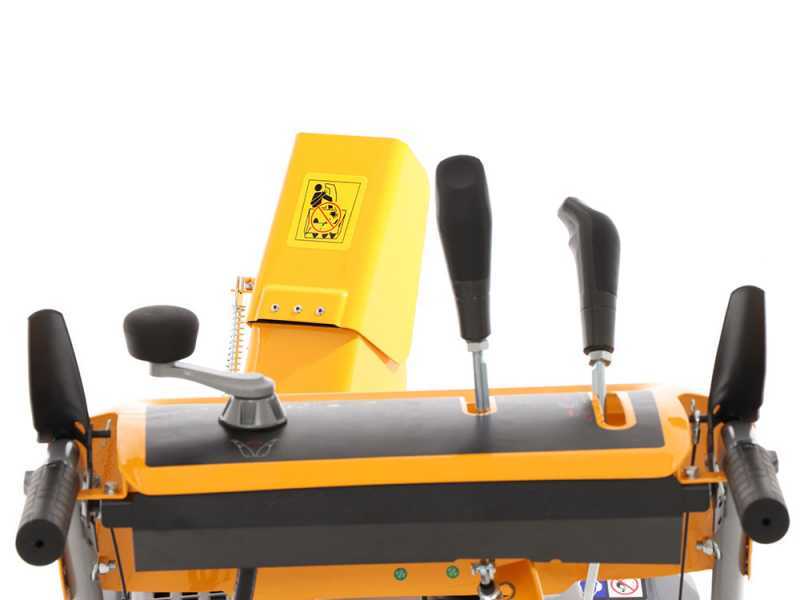

The control panel is simple, complete and intuitive.

• Gear lever: 6 forward gears plus 2 reverse gears
• Lever on top of the right handle: engages and disengages the forward and reverse gears (whatever speed is selected on the gearbox, both forwards and backwards). Releasing this lever causes the machine to stop instantly, for safety reasons
• Lever on top of the left handle: engages and disengages both the auger and the high-speed fan (engages and disengages both stages simultaneously)
• Expulsion stack orientation lever

Discharge chute deflector direction: it can be adjusted via the control on the dashboard.

Tool for unclogging: if the discharge chute clogs, it can be easily cleared with the proper tool.

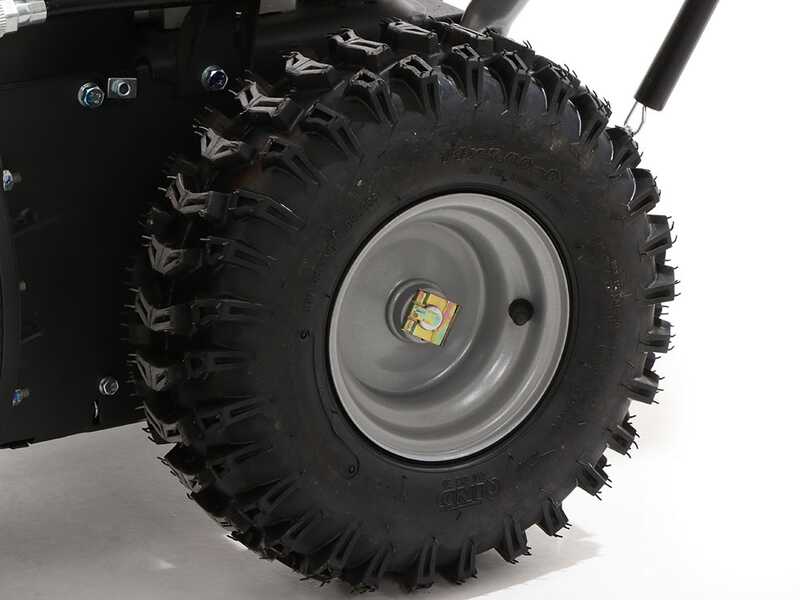

Snow Hog model wheels 14 x 5.00–6 that provide enormous grip on the ground, making the most of the engine's power.
