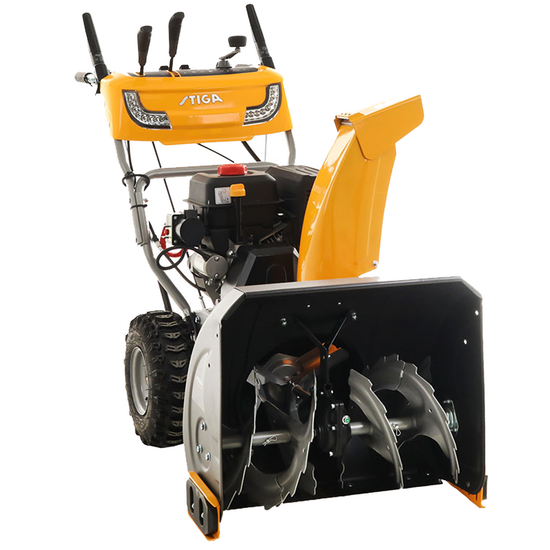

Stiga ST 5262 P - Petrol Snowplough - WS250

Designed for those who need a reliable and robust two-stage snow thrower for home use, the STIGA ST 5262 P snow thrower can tackle snow up to 50 cm high in medium to large areas such as driveways, pavements and car parks.

Reversible non-slip skids and 14’ treaded tyres Snow hog offer high traction at 6 different speeds (+2 reverse). Equipped with a 252cc engine and a 61cm wide toothed turbine, this snow thrower can tackle virtually any snow, ejecting it up to 11 meters.

The new transmission with Easy turn technology for automatic release of the differential lock makes the ST 5262 P highly manoeuvrable, while LED headlights, heated handle and 230V electric start allow the machine to be operated in the toughest conditions

The large 61x54 cm front cutter is a professional type with a steel spiral with an optimised profile and serrated edge. This cutter shreds the snow and discharges it many metres away via the discharge chute, which can be swivelled and adjusted via appropriate controls on the control panel.

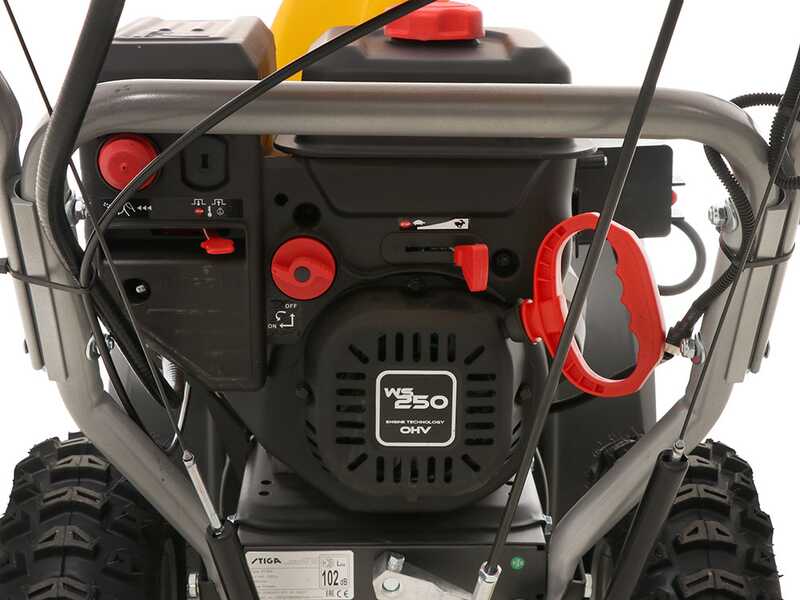

The WS250 engine delivers 5.2 kW at 3600 and a 61 cm auger means that this device is also capable of tackling snow with impact and launching it with a simple crank that directly drives the chute.

Features:

The engine of this snow blower is equipped with electric start. This system is provided with battery. Indeed, this allows starting the snow thrower directly, connecting it to the electrical socket. This solution was devised because batteries, subjected to sudden changes in temperature, tend not to retain their charge, in fact, to take it completely. And more, they can hardly stand sporadic use. Winterised engines such as this one are not provided with an air filter because working at low temperatures and with snow could create moisture that would then freeze, ruining the filter and creating problems for the operation of the machine.

WARNING!

The engine is PROVIDED WITHOUT OIL.
Read the instruction manual carefully before start-up.

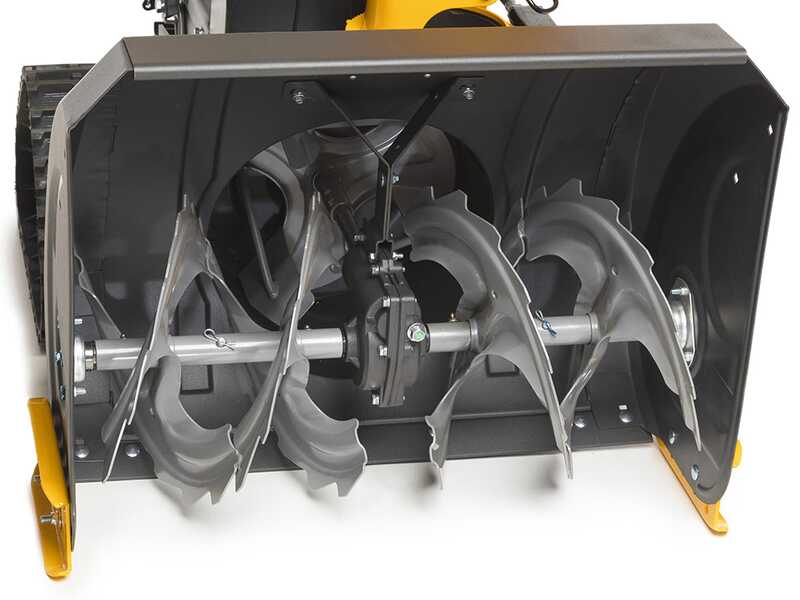

The tiller compartment is 61 cm wide and 54 cm high.

The snow plough cutter is a professional type with a steel spiral with a serrated edge.
This, together with its optimised profile, guarantees the crumbling and shaping of even the hardest snow.

Two-stage system

The snow is efficiently conveyed into the machine by means of the auger, and then thrown away through the discharging chute by means of an internal high-speed centrifugal fan.

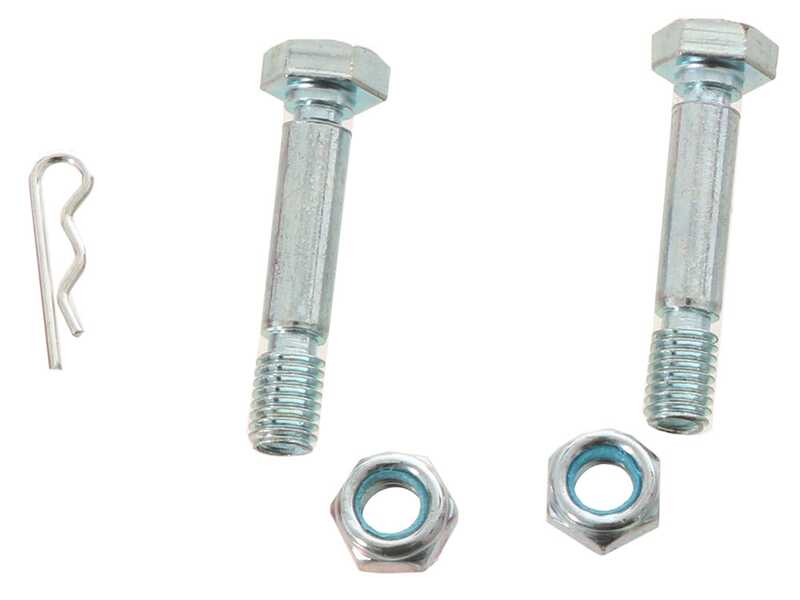

The safety bolts protect the integrity of the gearbox. They are designed to give way if the blade runs into a stone or obstacle, thus preventing damage to the blade.

Metal/HDPE side skids.
They enable this snowplough to work on all types of terrain, from the smoothest to the not-so-smooth, without scratching it.

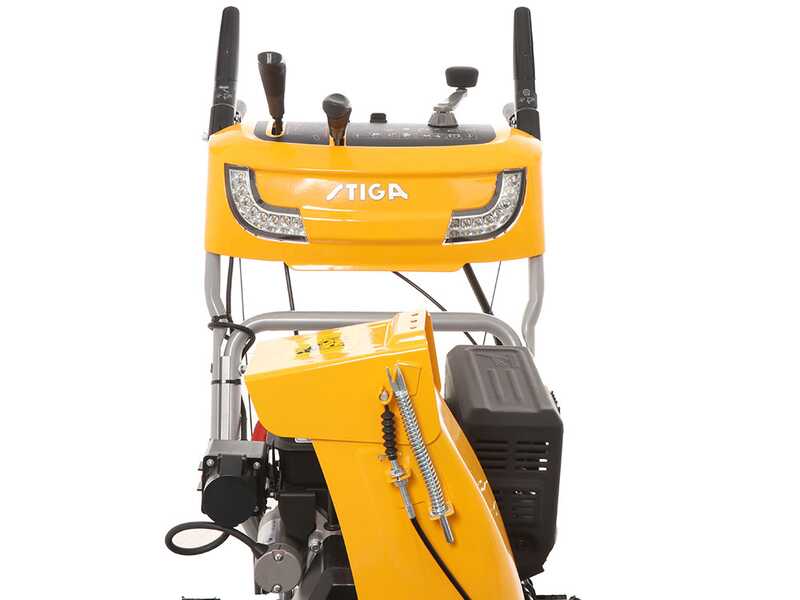

The snow ejection chimney is adjustable and via the controls located on the dashboard and by the worm screw at its base.

The deflector, snow ejection distance control, is controlled by a lever on the control panel.

The rotation angle of the chute is 190°: in relation to the direction of travel, the chute rotates 95° on both sides.

Detail of the chute oriented completely to the left

Detail of the chute, completely oriented to the right

Deflector placed fully up for maximum ejection distance.

Deflector placed completely at the bottom.

The fireplace is also equipped with an anti-intruder safety grid.

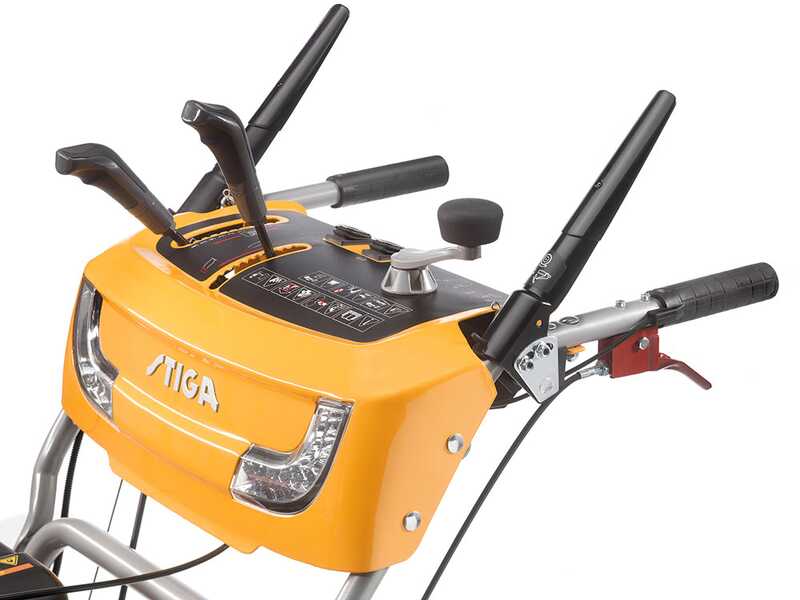

The control panel is user-friendly, complete and intuitive.

Gear lever: 6 forward plus 2 reverse gears

Switches for the LED headlamp and heated handles

Lever on top of the right handle: activates and deactivates the feed (whatever speed is selected on the gearbox, either forwards or backwards). Releasing this lever stops the machine instantly, for safety reasons.

Assisted Steer
It allows the traction of one of the 2 tracks to be unlocked by means of the lever at the bottom.

It makes manoeuvring or reversing considerably easier. It is operated via the small red lever below the handle.

Lever on top of the left handle: activates and deactivates both the milling cutter and the high-speed chimney expulsion fan (activates and deactivates both stages simultaneously).

Discharge chute deflector direction: it can be adjusted via the control on the dashboard.

Expulsion chimney orientation knob.

Tool for unclogging.

If the exhaust chute becomes clogged, it is easy to clear it with the clog removal rod.

Powerful and precise lighting thanks to LED spotlights in front of the control panel.

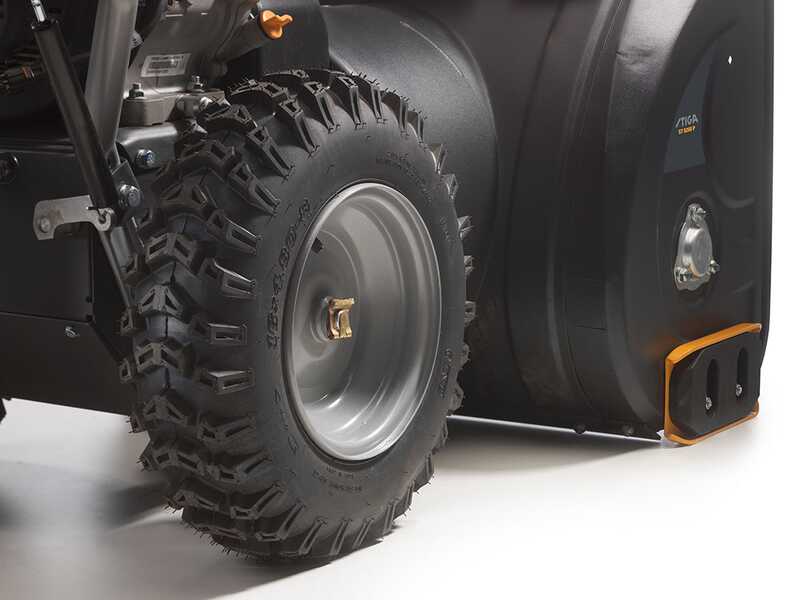

Traktor model wheels that provide enormous grip on the ground, exploiting the power of the engine to the full. The dimensions are 14x 4.60 - 6
