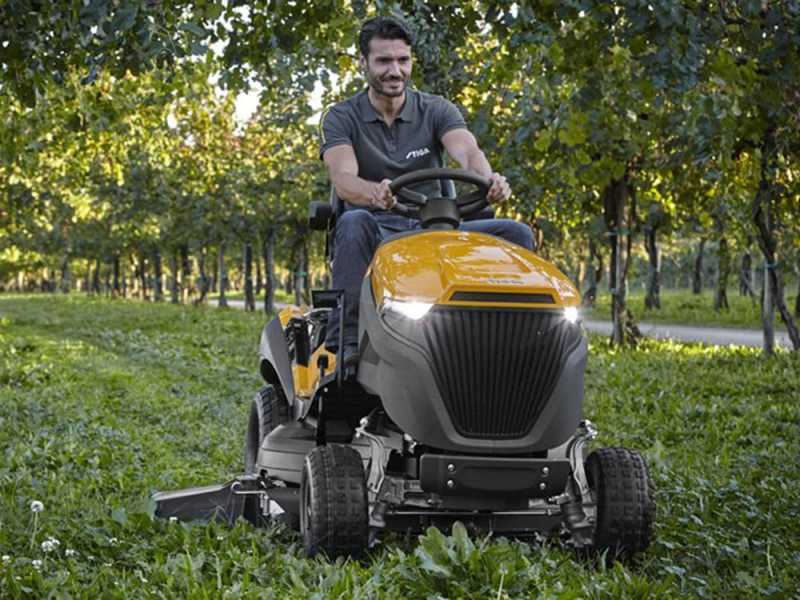

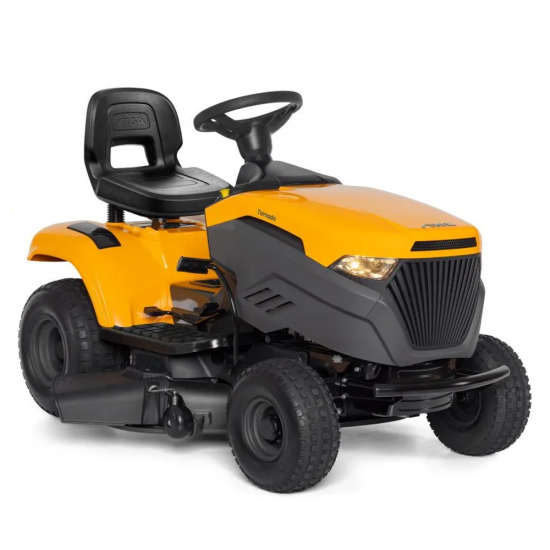

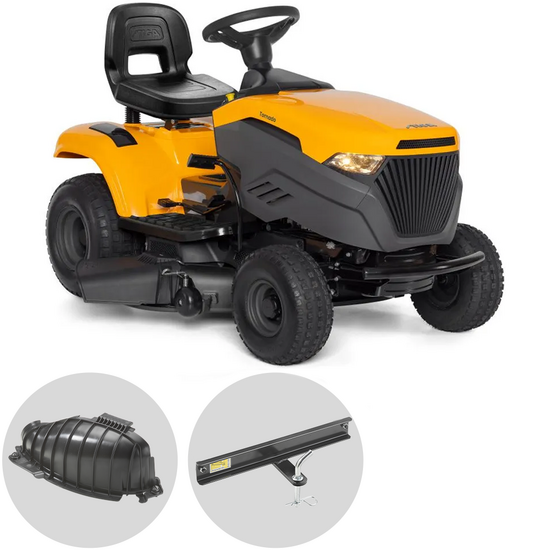

Stiga Tornado 398 lawn tractor with side discharge

The Stiga TORNADO 398 lawn tractor will be the ideal solution for cutting tall, wild grass that has grown in low-maintenance soils. Thanks to the side discharge, all freshly cut grass is discharged to the side.

Equipped with an ST 450 petrol engine powered by STIGA, which delivers a power output of 7.5 kW. Maximum cutting area: 5000 s.q. m.

The 98 cm cutting deck makes it perfect for cutting over large areas for optimum performance at all times.

Height adjustable to 7 positions ranging from 25 to 80 mm.

Pedal-operated hydrostatic transmission, which makes work much easier and immediate. With this transmission, you can vary the speed simply by pressing the pedal.

Another important feature of this attractive tractor is the reverse cutting, a function that is increasingly requested by users due to its great convenience.

The equipment consists of a STIGA Classic steering wheel and seat, a robust front bumper, storage compartments and cupholders, and convenient front lights, which will allow you to work even in low-light conditions.

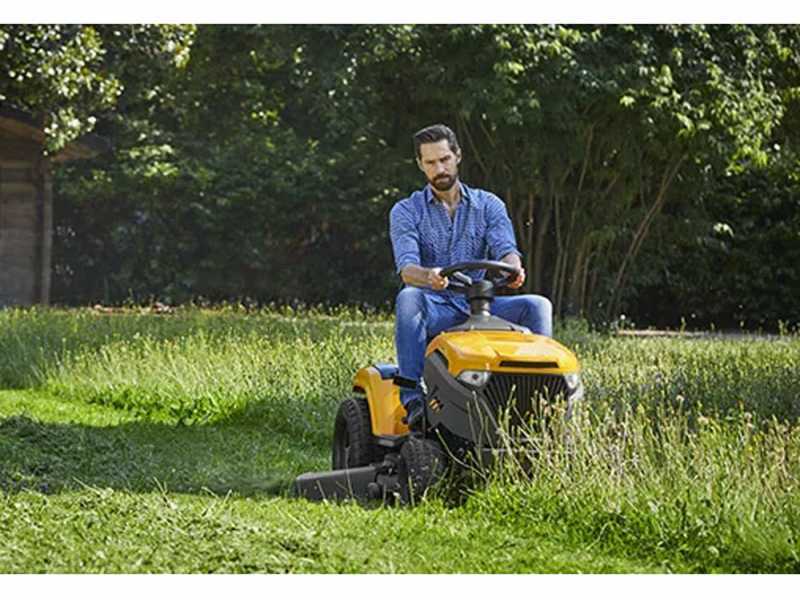

1- SIDE DISCHARGE (standard equipment): the most traditional, the lawn tractor cuts, leaving the grass on the lawn. System recommended for: large expanses for those who do not need to harvest for those who do not mow frequently and need to cut overgrown grass for which the collection system or mulching is no longer effective.

2- MULCHING (optional):a cutting system that shreds the cut grass, leaving it on the lawn, pulverising it to such an extent that it looks as if it has been harvested. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated, and the grass needs cutting at least once a week. Converting the machine from a cutting system to the other one is very easy.

Conversion: simply place the cap in the grass outlet below the deflector to activate mulching in no time at all

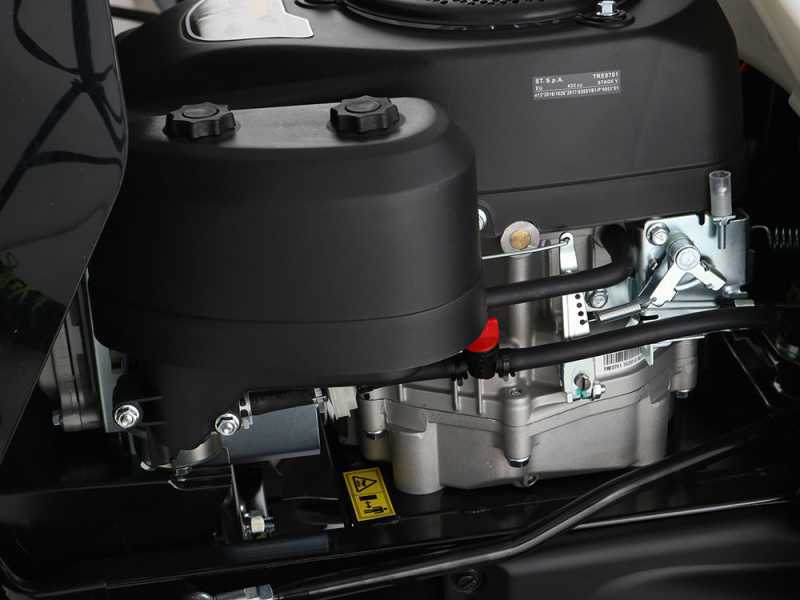

The ST 450 engine is high-performing, suitable for jobs which require high working power.

Single-cylinder, 432 cc, 4-stroke petrol engine of the latest generation with 'OHV' overhead valve shaft.

It develops a rated power of 10.05 Hp at 2800 rpm.

The engine is equipped with a starter motor with key.

Nominal Power: 16 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 10.05 Hp (at 2800 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

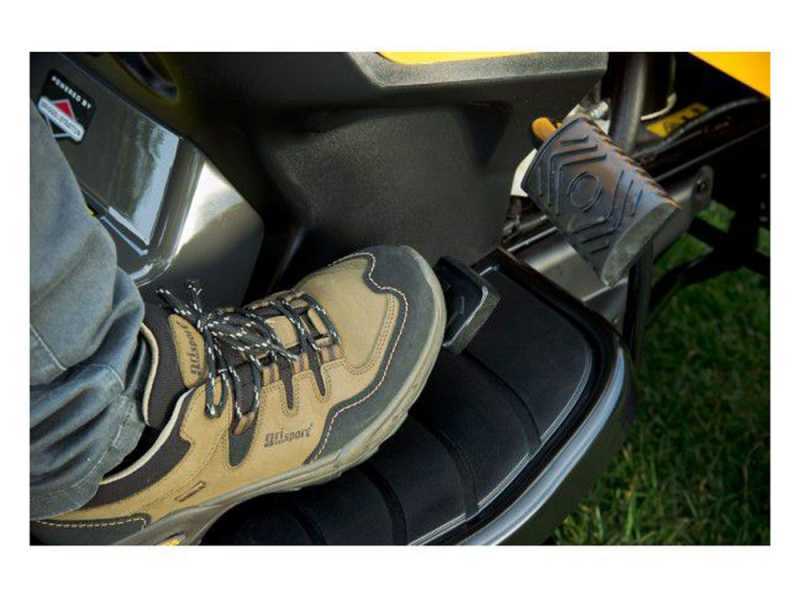

Driving the tractor with this type of gearbox will be really easy. Everything can be controlled via the hydrostatic platform and with the sole use of the foot.

Operation: to move forward, simply push the pedal with your toe. The tractor will advance according to the pressure exerted. Simply push the other end of the pedal with your heel for moving in reverse.

As soon as the pedal is released, the machine stops and allows safe operation

This is an extremely convenient and extremely practical feature that will make it very easy to get around obstacles. This gearbox is definitely more modern and functional (although more expensive) than the traditional manual gearbox, because it allows you to vary the gear speed without stopping, unlike the manual gearbox, where you have to stop, change the gear and release the clutch to start again. This type of gearbox is therefore particularly suitable for terrain where it is necessary to change speed very often.

- Detail of the hydrostatic platform

- Details of the braking pedal

Cutting deck consisting of two blades with a cutting width of 98 cm. The rotation of the blades is asynchronous, for a clean and precise cut of the grass.

Tilting mower deck: easily adapts to undulating terrain (as long as it is not excessively rough).

The engagement of the blades is electromagnetic and is controlled via the button next to the steering wheel. This system avoids manual engagement, and works thanks to an electromagnetic clutch that allows easy and fast engagement of the blades.

The cutting height is adjusted by means of a simple lever. There are 7 cutting positions, ranging from a minimum of 25 to a maximum of 80 mm.

Two anti-skid wheels are also mounted on the cutting deck for smooth and precise ground following.

- Detail of the washing connection

- Cutting height adjustment lever

- Detail of the anti-scalp wheels

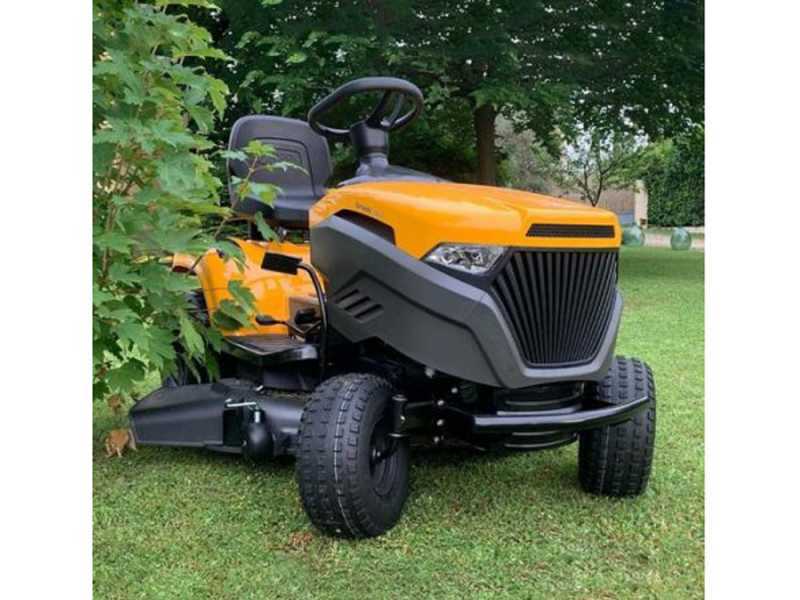

The controls and adjustments of the Stiga Tornado 398 lawn tractor are easy and intuitive

• Speed variator
• Parking brake
• Ignition lock with key
• Braking pedal
• Reverse cutting button
• Cutting height adjustment lever
• Hydrostatic pedal-operated gearbox for forward and reverse
• Electromagnetic blade engagement by means of the yellow button on the right side of the steering wheel.

Other features of the Stiga Tornado 398 lawn tractor:

• Openable engine cover for cleaning and maintenance operations.
• Adjustable Comfort seat for maximum comfort during use
• Ergonomic steering wheel
• Sturdy front bull bar: it prevents from frontal impacts and protects the machine.
• Rear wheels size: 18 x 8.5–8
• Front wheels: 15 x 6.00–6
• Pivoting front axle ensures excellent balance, stability and driving comfort even on uneven terrain.
• Can holder compartment

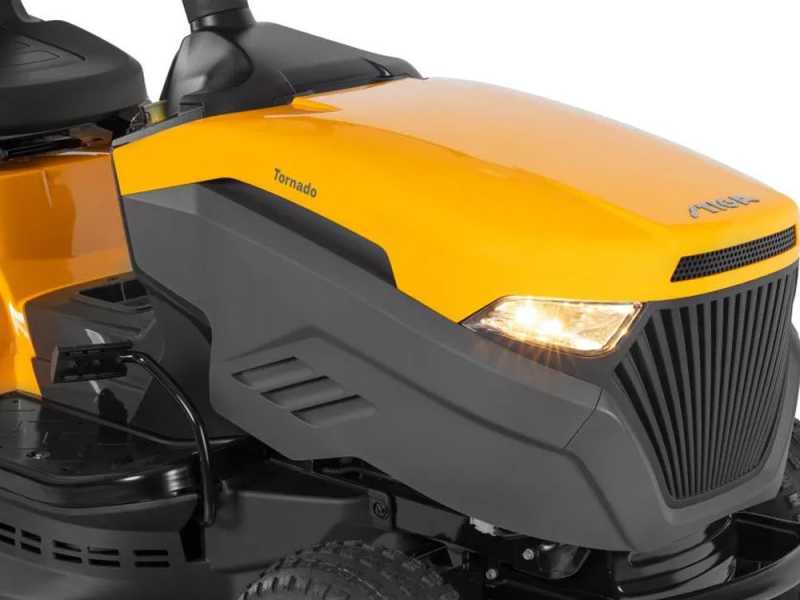

• Halogen headlights
• Glove box
