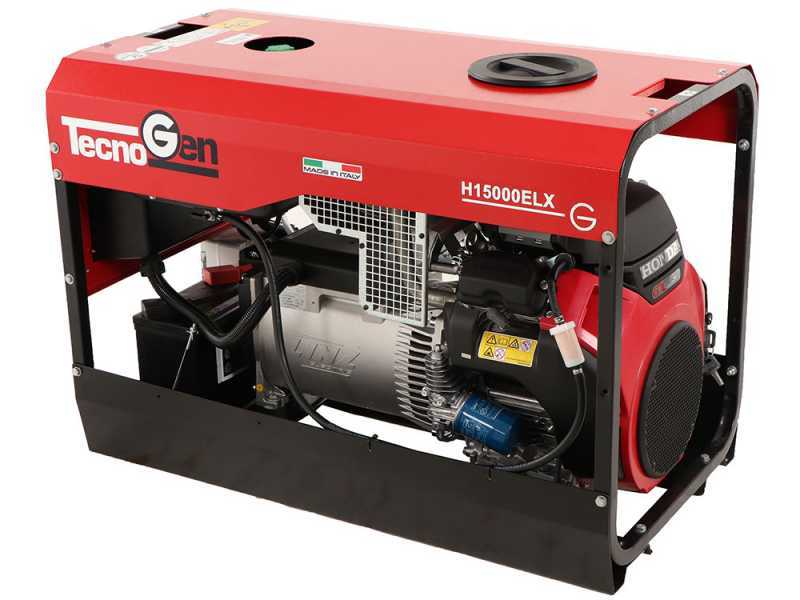

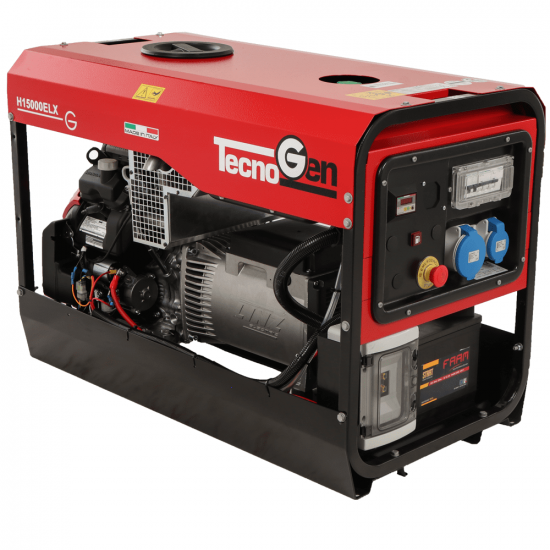

TecnoGen H15000ELX - 10.4 kW Petrol Power Generator - DC 9.4 kW Single phase

The TecnoGen H15000ELX single-phase generator is powered by a Honda GX690 engine with electric start.

The engine generates a rated power of 22.1 HP and has a displacement of 688 cc. A very reliable and safe engine that always delivers high performance.

It is able to generate a single-phase-phase nominal power of 10.4 kW and a continuous power of 9.4 kW.

On the control panel there are two professional sockets, both industrial, one 16 A and one 32 A. It is also possible to draw all the power by connecting cables to the Gewiss terminal block next to the battery.

Thus, in addition to the main switch, there is also a practical display showing the voltage, frequency and also the hours of use of the generator.

Thus, the Linz-branded E1C11M C alternator with copper winding, manufactured in Italy. This company is among the best in the field of alternators, thus always providing elements of the highest quality.

The oversized tank can hold as much as 20 L of petrol.

Thanks to its components of the highest-quality it can also be used for work of any kind, even heavy-duty. Petrol-powered, it is very compact and easy to use with simple, intuitive controls.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

Maximum single-phase power output: 10.4 KW

Nominal power in continuous running (COP) Single-phase: 9.4 KW

This is the data that should be taken into consideration as an effective and constant data for the generator output (it guarantees the product an infinite duration)

Voltage: 230 V

Operating frequency: 50 Hz

Fuel tank capacity: 20 L

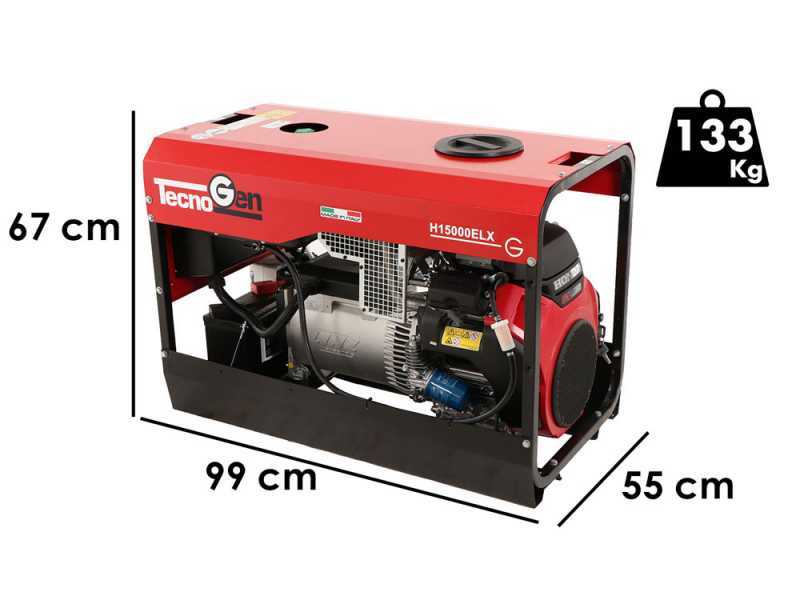

Dimensions: 99x55x67 cm

Weight: 133 kg

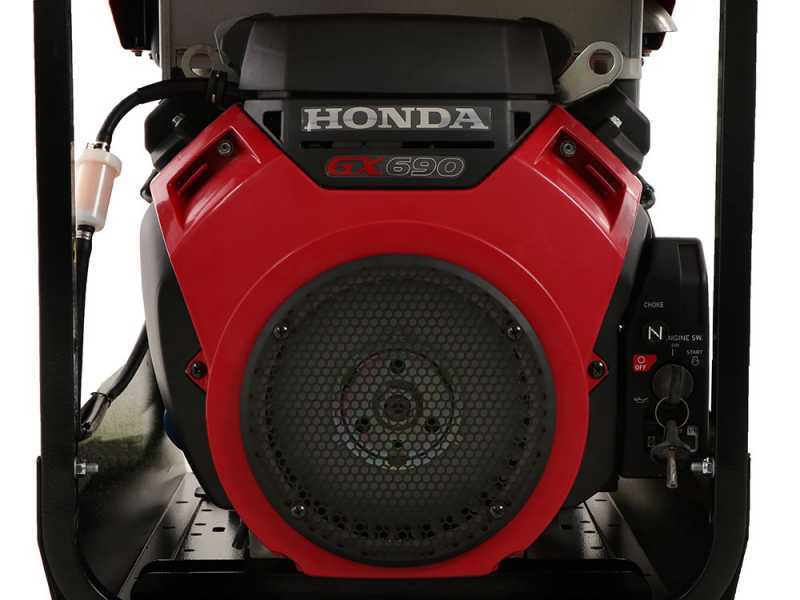

The Honda GX 690 engine is one of the most powerful engines on the market; the latest generation of technology OHV head valve , 4-stroke twin-cylinder.

Features:

Electronic motor (With electronic ignition). This will allow you to operate the electronic control unit. The battery will be holding charge of the engine by the alternator.

The Honda GX series is highly professional and developed for heavy duty jobs in building and agricultural field for generators, welders etc., reliable and long life.

This model, from the industrial point of view, offers excellent performance that can last in time.

Fuel feed tap

Focus on air button, speed control and hour counter (once the engine has started, the elapsed running time will be counted)

WARNING!

The engine is PROVIDED WITHOUT OIL. Make sure to carefully read the instructions manual before starting the machine

Nominal Power: 22.1 HP
* Also referred to as 'Commercial' power, we mean the classic power definition standard that was also officially used until a few years ago by all well-known engine manufacturers. This figure is the one that is most widely used and publicised in the main sales channels.

Real power: 17.4 HP
* It corresponds to the real power expressed cutting organ in working phase. This is the power indicated as official in the engine instructions manual.

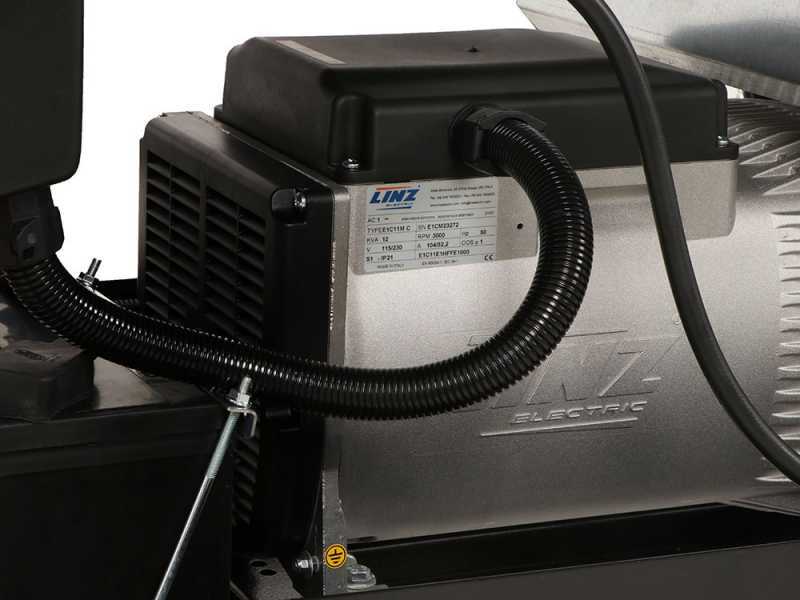

Alternator type: E1C11M

Linz is a long-established manufacturer of alternators that supplies top-quality and reliable Made in Italy products.

This alternator is a very high-quality product with a copper winding.

3000 rpm

Voltage: 230 V

Operating frequency: 50 Hz

Focus on the anti vibration pads

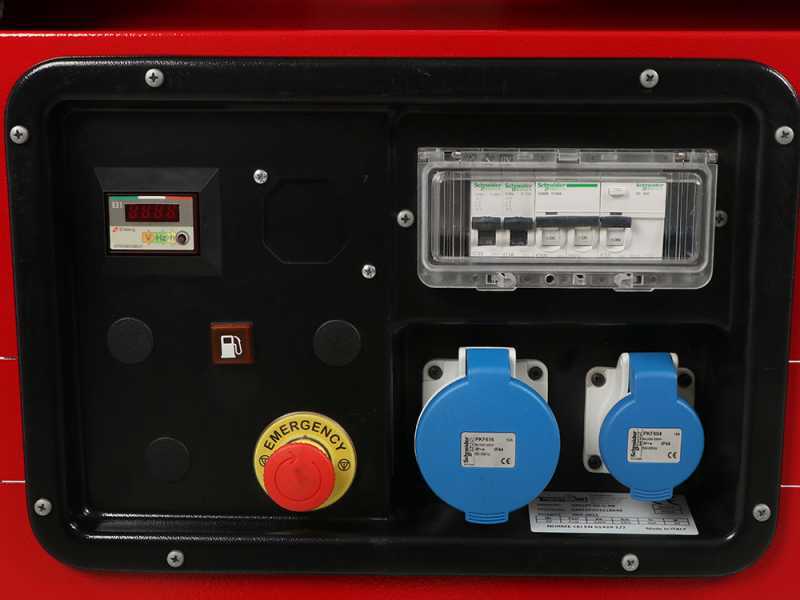

Below is a detailed overview of the control panel:

• no. 1 CEE industrial socket 230 V 16A IP44
• mo. 1 CEE industrial socket 230 V 32A IP44
• Digital display with voltmeter, frequency meter and hour meter
• Emergency switch
• Light indicator in case of low fuel
• Circuit breaker
• Gewiss terminal block for direct withdrawal of full power by connecting the various cables directly.

Other engine features include:

• Practical side lifting handles

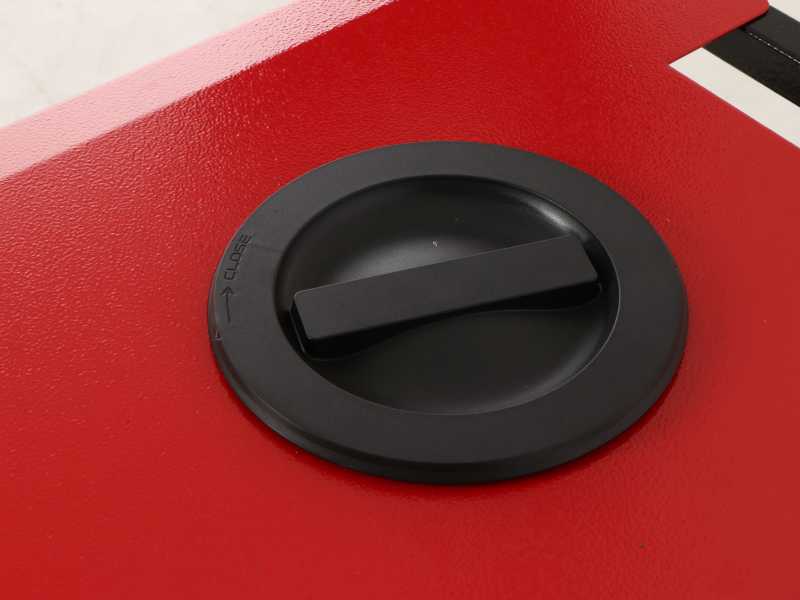

• Fuel tank plug
• Plug for easy access to the air filter
• Battery for electric start
• Focus on the muffler

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

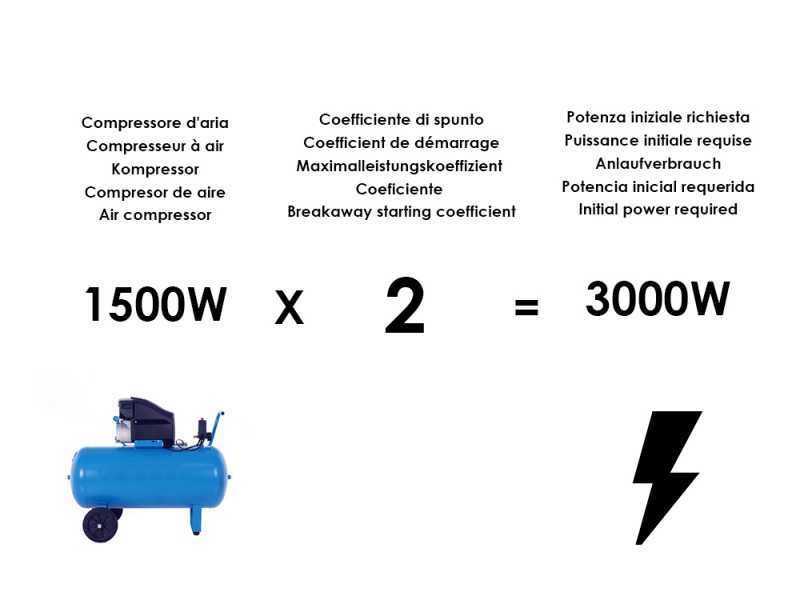

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs. And remember that to operate the electronic equipment (computers, televisions and all the equipment equipped with an electronic card) must purchase a current with "inverter" generator (which stabilizes the output current).
