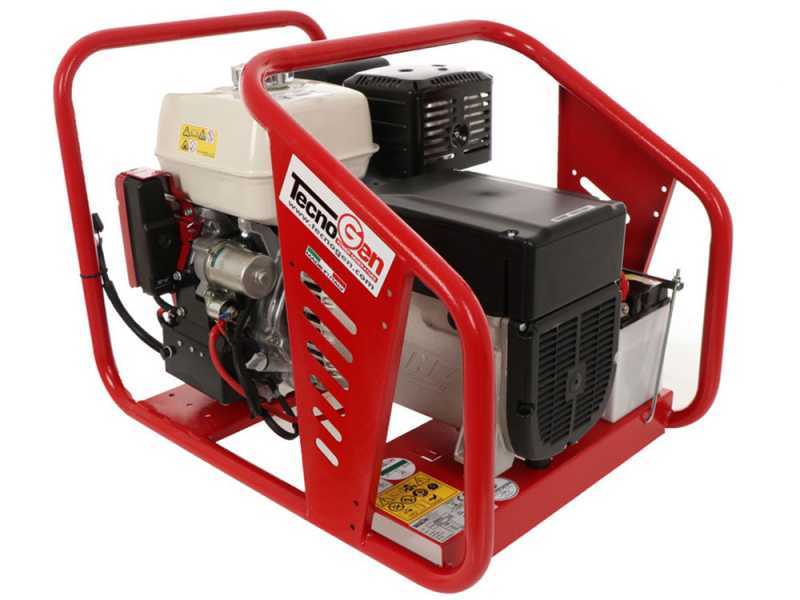

TecnoGen H8000 E/A - 5.8 kW Petrol Power Generator - DC 5.2 kW Single-phase + ATS

The TecnoGen H8000 E/A generator set is a top quality product thanks to its main components, alternator and engine, branded Linz and Honda respectively.

The generator emits a maximum power of 5.8 kW and is also equipped with AVR.

It has a Honda GX390 engine 389 cc with a rated power of 13 HP.

The Honda engine and the Made in Italy alternator make the TecnoGen H8000 E/A a product that is at the top of its category, making it a professional and powerful product ideal for bringing electrical energy wherever needed.

The alternator is manufactured by LINZ, a well-known Italian company that produces high-quality alternators.

The Honda engine and the Made in Italy alternator make the TecnoGen H8000 E/A a product that is at the top of its category, making it a professional and powerful product ideal for bringing electrical energy wherever required.

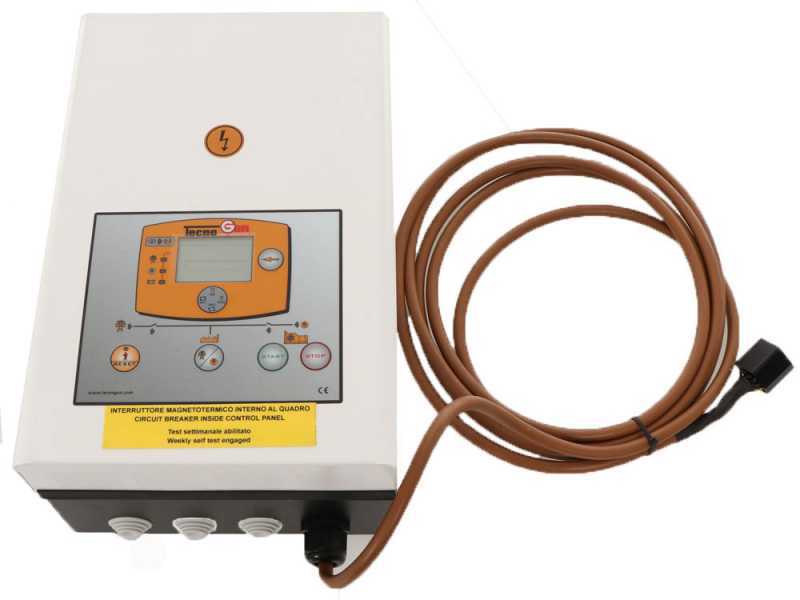

It is equipped with a practical TecnoGen ACP0411 automatic start-up control panel (ATS) Automatic Transfer Switch, which enables the current generator to start up in the event of a power failure.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

Maximum single-phase power output: 5.8 KW

Power in continuous running (COP) Single-phase: 5.2 KW

This is the data that should be taken into consideration as an effective and constant data for the generator output (it guarantees the product an infinite duration)

Voltage: 230V

Operating frequency: 50 Hz

Fuel tank capacity: 6.1L

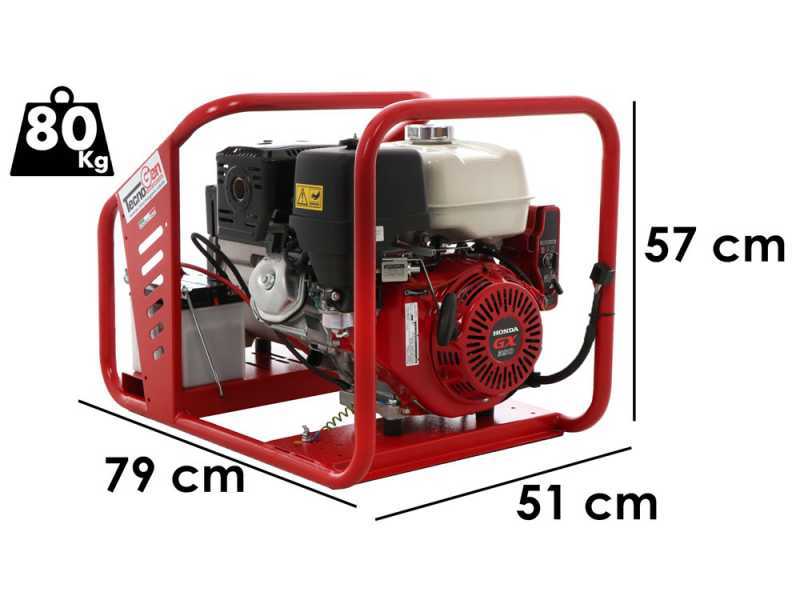

Dimensions: 79 x 51 x 57 cm

Weight: 80 kg

Noise level: 96 dB

The ATS board is compatible with the TecnoGen H8000 E/A single-phase generator.

The ATS board must be connected to the mains supply and to the generator.

This allows to compensate immediately when there is a power outage.

This feature is necessary for all those cases in which, a black-out for example, could create economic, material damages or major inconveniences.

It is recommended that any connection of the AUTOMATIC SWITCHBOARD to your domestic supply or to any machines is carried out by your electrician.

The control panel allows the power source to be changed in just a few seconds in the event of a blackout (about 15 seconds).

The panel is equipped with a digital display that shows some useful advice for the management of the generator.

The following information can be found on the display:

• Voltmeter
• Frequency meter
• Hour meter
• Fuel level
• Battery Volt

The panel has an automatic status diagnosis setting.

Security systems include:

• Error signal
• High temperature
• High frequency
• Low oil pressure level
• Low battery
• Low fuel level

The manual also indicates all the meanings of the relative alarms and signal LEDs.

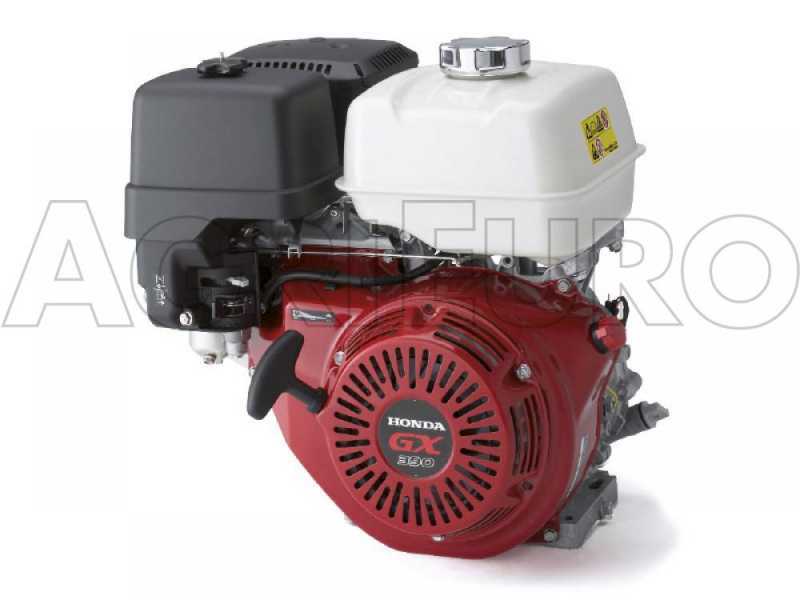

The Honda GX 390 engine is
powerful and professional, with the latest OHV overhead valve technology.

Features:

The Honda “GX” series is highly professional and was developed for heavy-duty jobs in building and agricultural field for generators, welders etc. It’s characterized by great durability and reliability

Many other Honda engines on the market mount the "GP" series which was developed for limited and domestic use and is qualitatively lower than the first and with a lower cost.

WARNING
The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

Nominal Power: 13 HP (3600 rpm)

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers. This technical detail is even more widespread and advertised in the leading commercial channels, although it is a matter that it is higher than the actual power.

Real power: 9.4 HP (3600 rpm)

* It corresponds to the real power expressed on the cutting organ in working phase. This is the power indicated as official in the engine instructions manual.

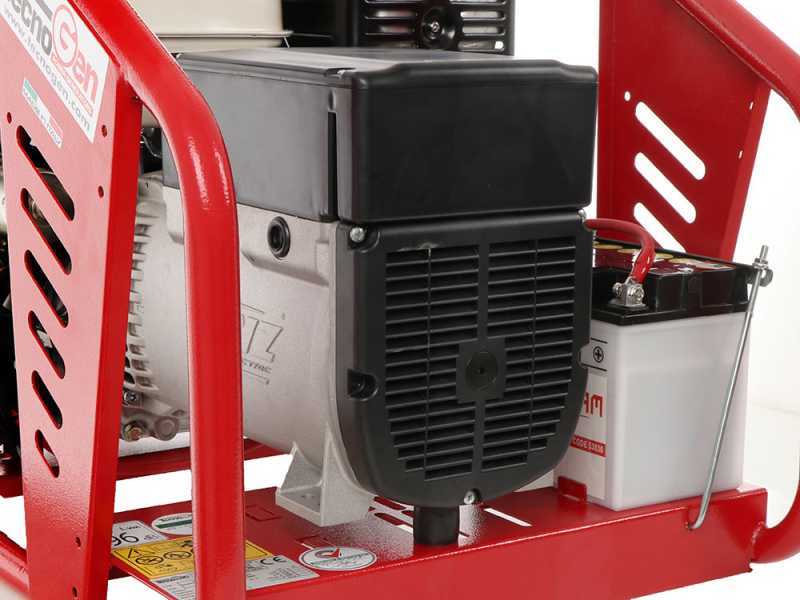

Alternator type: Linz E1E10M H

Linz is a long-established manufacturer of alternators that supplies top-quality and reliable Made in Italy products.

This alternator is a very high-quality product with a copper winding.

3000 rpm

Voltage: 230V

Operating frequency: 50 Hz

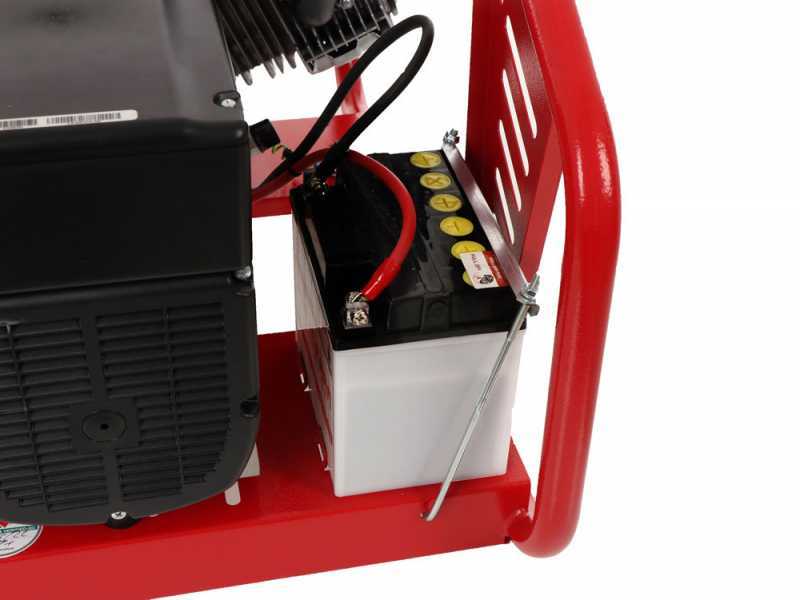

Focus on the battery for electric start

Focus on the fuse

Focus on the anti vibration pads

Focus on the oil tank plug

Focus on the the ATS connection

As regards the power needed referring to the use you will make of your generator, here below an extremely useful table to guide you among consumptions, starting coefficient and watt. Firstly, the highest-quality method is to identify which are the electric appliances we need to power with the generator and then perform a simple calculation to identify the necessary power that the generator must supply, as explained below.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient represents a fundamental feature for all the electric equipment as it indicates how much the consumption of the electric appliance increases. Therefore, it allows to concretely determine how many WATTs are necessary during the start-up operations.

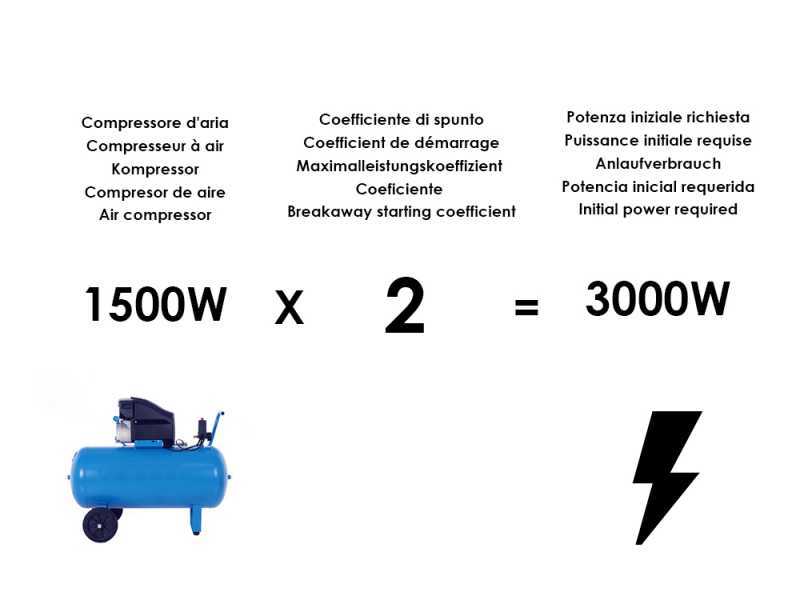

Example: Air compressor ( 1500 Watt ) X Starting coefficient ( 2 ) = 3000 Watt

Hence, it is important to address your choice on a generator featuring equal or higher WATT-rated electric power than the result obtained from the calculation made.

( * ) Check the consumption of the electric appliance on the operator’s use and maintenance manual or on the plate attached to the machine.

WARNING! Purely indicative table. Thanks to the formula indicated above you can easily calculate the electric power that the generator has to supply in order and connect to the generator specific electric appliances and select the model of generator which best suits your needs. We remind you that to operate electric equipment (computers, TVs and all the other electric appliances provided with electronic card) you need to focus the attention on inverter generators (which allows stabilizing the electric current supplied).
