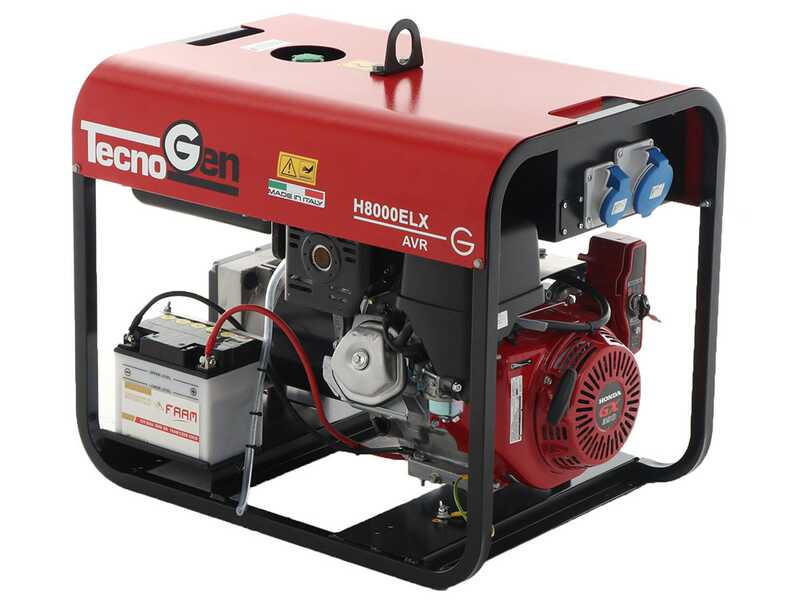

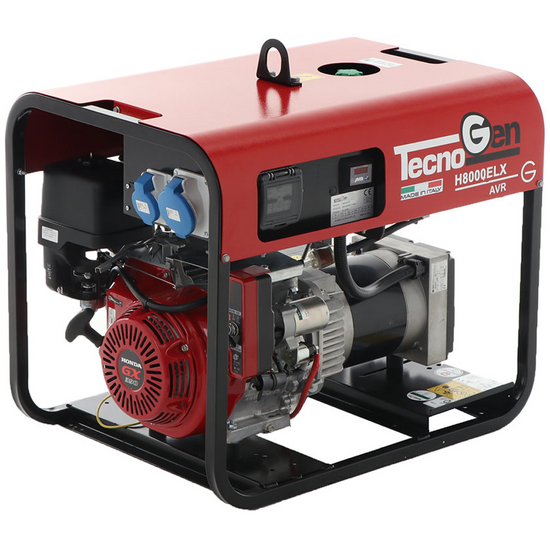

TecnoGen H8000ELX - 5.8 kW Petrol Power Generator with Electric Start - DC 5.2 kW Single-phase

The TecnoGen H8000LX single-phase generator is powered by a Honda GX390 engine with electric start. The engine generates a rated power of 13 HP and has a displacement of 398 cc. A very reliable and safe engine that always delivers high performance.

Additionally, the NSM branded KR100 G alternator with copper winding, manufactured in Italy. This company is among the best in the field of alternators, thus always providing elements of the highest quality.

This generator is also equipped with an AVR card, which automatically regulates the output voltage and keeps it constant.

On the control panel there are two professional sockets, both industrial, one 16 A and one 32 A. Thus, in addition to the main switch, there is also a practical display showing the voltage, frequency and also the hours of use of the generator.

The over-sized 20 L tank gives the generator an autonomy of 10.5 H, which is more than most generators on the market.

Thanks to its components of the highest quality it can also be used for work of any kind, even heavy-duty. Petrol-powered, it is very compact and easy to use with simple, intuitive controls. A lifting hook at the top allows the generator to be moved wherever it is needed.

It is able to generate a single-phase-phase nominal power of 5.8 kW and a a continuous power of 5.2 kW.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

Maximum single- phase power output: 5.8 KW

Nominal power in continuous running (COP) Single-phase: 5.2 KW

This is the data that should be taken into consideration as an effective and constant data for the generator output (it guarantees the product an infinite duration)

Voltage: 230V

Operating frequency: 50 Hz

Fuel tank capacity: 20 L

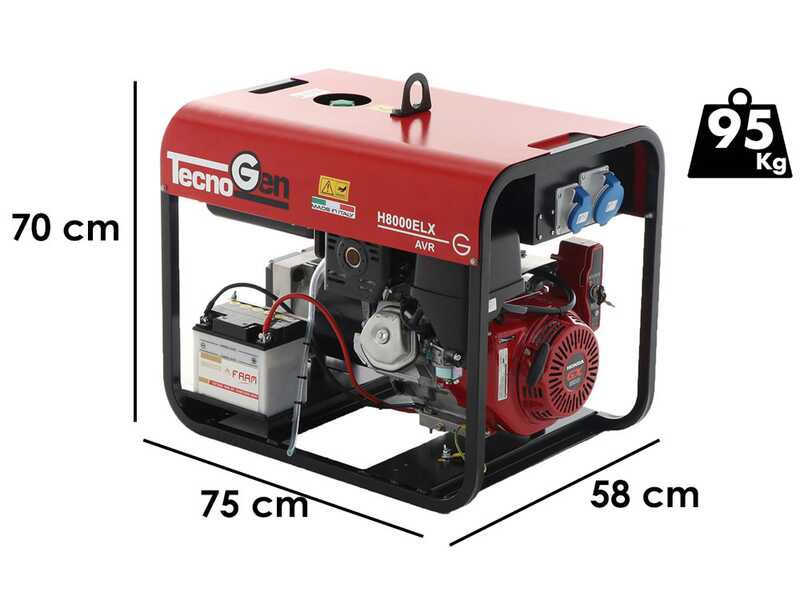

Dimensions: 750x580x700 mm

Weight: 95 kg

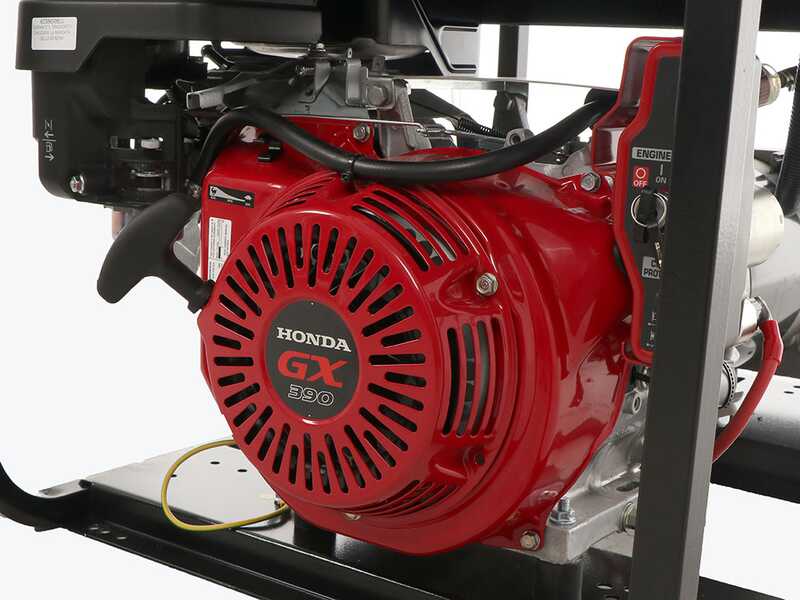

The Honda GX 390 engine is powerful and professional, with the latest OHV overhead valve technology.

Features:

Focus on the air filter.

Focus on the start key

The Honda “GX” series is highly professional and was developed for heavy-duty jobs in building and agricultural field for generators, welders etc. It’s characterized by great durability and reliability

Many other Honda engines on the market mount the "GP" series which was developed for limited and domestic use and is qualitatively lower than the first and with a lower cost.

The HONDA engines of the GX series stand out as the "TOP-QUALITY ENGINES ON THE MARKET”.

WARNING
The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instruction manual before starting the unit.

Nominal Power: 13 HP

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers. This technical detail is even more widespread and advertised in the leading commercial channels, although it is a matter that it is higher than the actual power.

Real power: 9.4 HP

* It corresponds to the real power expressed on the cutting organ in working phase. This is the power indicated as official in the engine instructions manual.

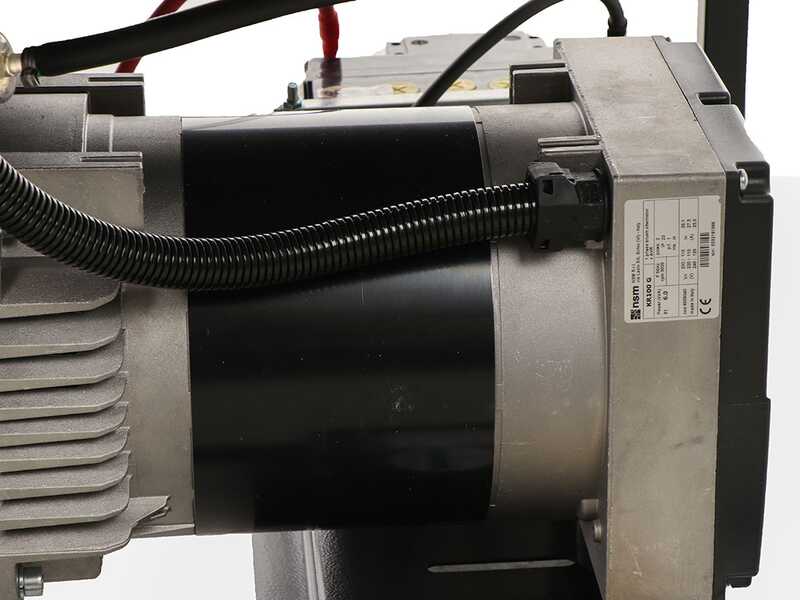

Alternator type: KR100 G

NSM is a long-established manufacturer of alternators that supplies top-quality, reliable Made in Italy products.

This alternator is a very high-quality product with a copper winding.

3000 rpm

Voltage: 230V

Operating frequency: 50 Hz

Other special features of this generator include:

No. 1 CEE industrial socket 230 V 16A

No. 1 CEE industrial socket 230 V 32A

Focus on the fuel tank plug

Focus on the central lifting hook

Practical side lifting handles

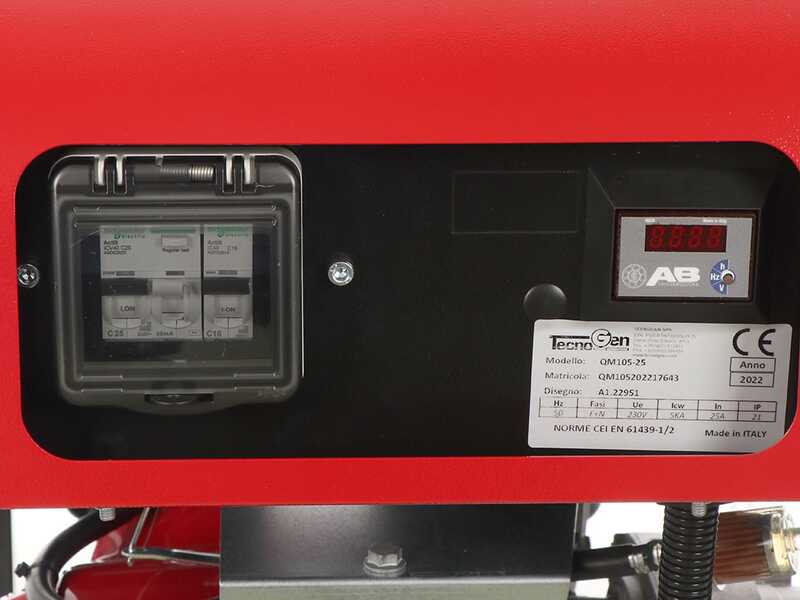

Digital display with voltmeter, frequency meter and hour meter

Circuit breaker

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs. And remember that to operate the electronic equipment (computers, televisions and all the equipment equipped with an electronic card) must purchase a current with "inverter" generator (which stabilizes the output current).
