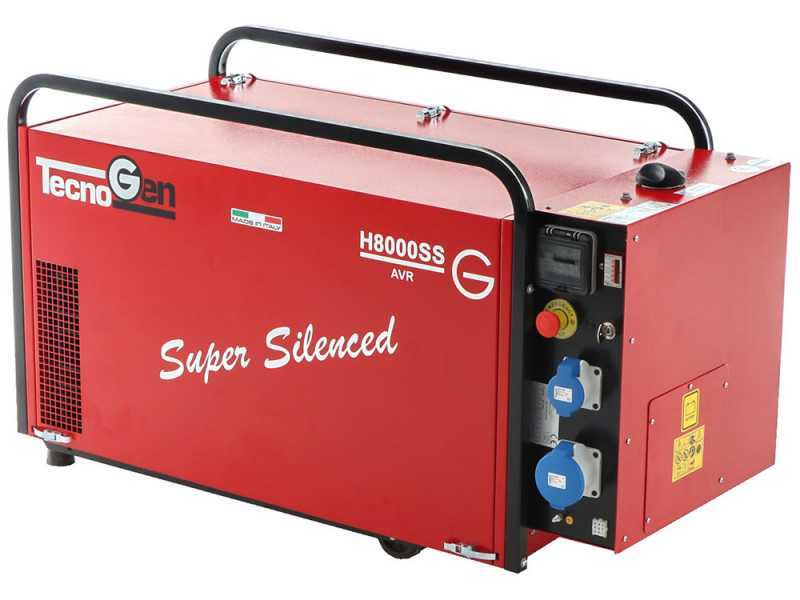

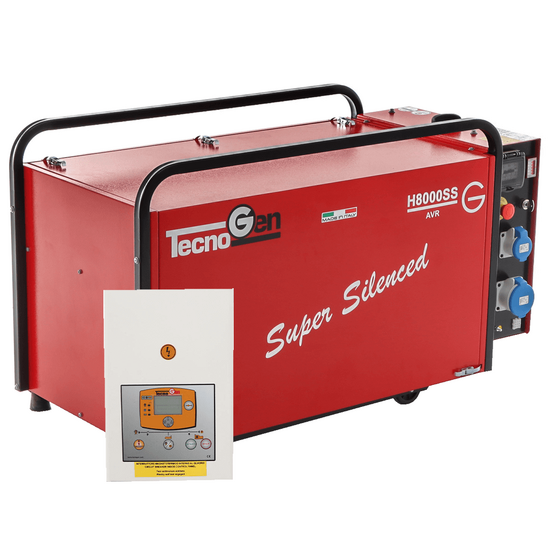

TecnoGen H8000SS/A - 5.8 kW Petrol Silenced Power Generator - DC 5.2 kW Single-phase + ATS

The TecnoGen H8000SS single-phase generator is part of the Sintel Series range, meaning that they are renowned as hulled and soundproofed power generators that produce very low noise levels. It is able to generate a single-phase-phase nominal power of 5.8 kW and a a continuous power of 5.2 kW.

It is equipped with a practical TecnoGen ACP0411 automatic start-up control panel (ATS) Automatic Transfer Switch, which enables the current generator to start up in the event of a power failure.

Generator powered by a Honda GX390 engine with electric key start. The engine generates a rated power of 13 HP and has a displacement of 389 cc. A very reliable and safe engine that always delivers high performance.

The over-sized 15 L tank gives the generator a higher autonomy compared to most of the generators on the market. This generator is also equipped with an AVR card, which automatically regulates the output voltage and keeps it constant.

It is also very easy to move thanks to the two wheels and two side lifting handles placed along the entire length of the machine.

On the control panel there are two professional sockets, both industrial, one 16 A and one 32 A. In addition to the main switch, there is also a practical voltmeter.

The product is also easy to inspect. Simply unhook and slide off one side of the fairing to gain easy access to the internal components such as the engine and alternator.

Additionally, the NSM branded KR100 G alternator with copper winding, manufactured in Italy. This company is among the best in the field of alternators, thus always providing elements of the highest quality.

Thanks to its components of the highest quality it can also be used for work of any kind, even heavy-duty.

Maximum single-phase power output: 5.8 KW

Nominal power in continuous running (COP) Single-phase: 5.2 KW

This is the data that should be taken into consideration as an effective and constant data for the generator output (it guarantees the product an infinite duration)

Voltage: 230 V

Operating frequency: 50 Hz

Fuel tank capacity: 20 L

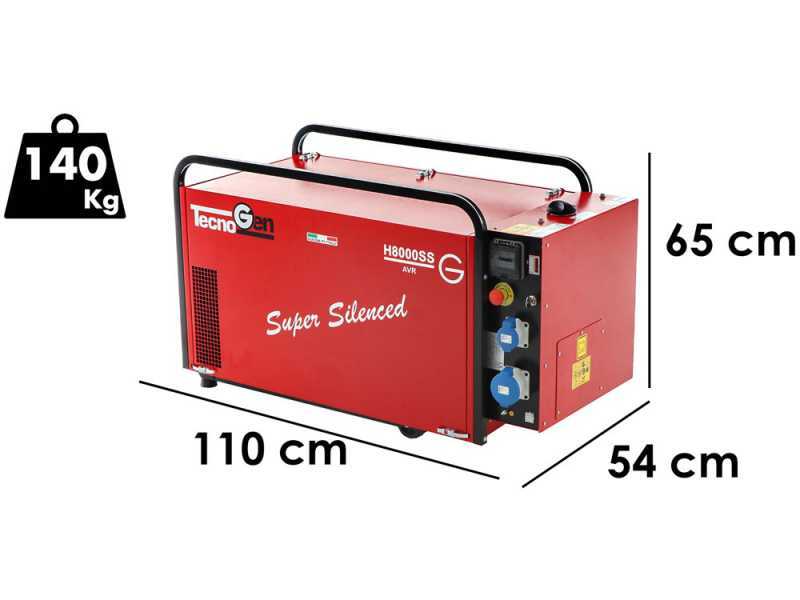

Dimensions: 110x54x65 mm

Weight: 140 kg

Equipped with engine protection device for low oil level

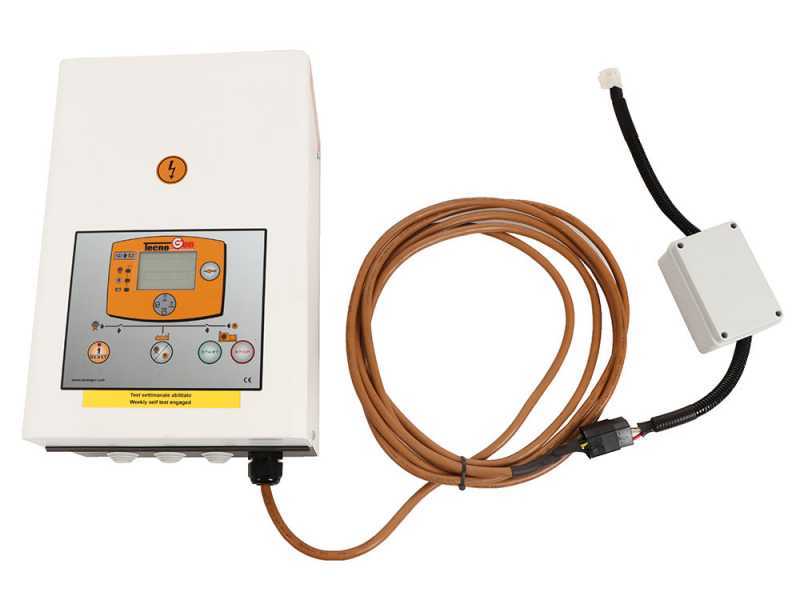

The ATS board is compatible with the TecnoGen H8000 E/A single-phase generator.

The ATS board must be connected to the mains supply and to the generator.

This allows to compensate immediately when there is a power outage.

This features is necessary for all those cases in which, a black out for example, could create economic, material damages or major inconveniences.

It is recommended that any connection of the AUTOMATIC SWITCHBOARD to your domestic supply or to any machines is carried out by your electrician.

The control panel allows the power source to be changed in just a few seconds in the event of a blackout (about 15 seconds).

The panel is equipped with a digital display that shows some useful advice for the management of the generator.

The following information can be found on the display:

• Voltmeter
• Frequency meter
• Hour meter
• Fuel level
• Battery Volt

The panel has an automatic status diagnosis setting.

Security systems include:

• Error signal
• High temperature
• High frequency
• Low oil pressure level
• Low battery
• Low fuel level

The manual also indicates all the meanings of the relative alarms and signal LEDs.

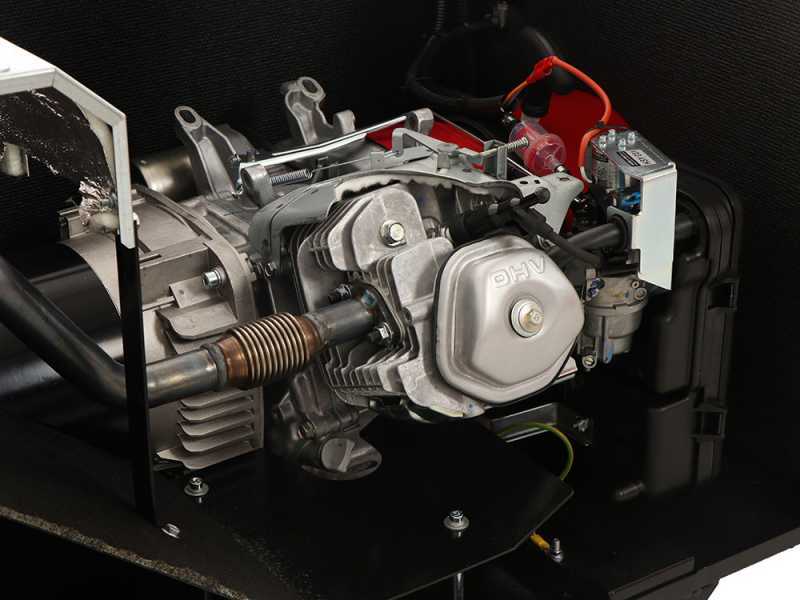

The Honda GX 390 engine is powerful and professional, with the latest OHV overhead valve technology.

Features:

Focus on the air filter

The Honda “GX” series is highly professional and has been developed for heavy-duty work in construction, agriculture, generators, welders, and many others, characterised by great durability and reliability.

Many other Honda engines on the market mount the "GP" series which was developed for limited and domestic use and is qualitatively lower than the first and with a lower cost.

The HONDA engines of the GX series stand out as the "TOP-QUALITY ENGINES ON THE MARKET”.

WARNING
The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instruction manual before starting the unit.

Nominal Power: 13 HP

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers. This technical detail is even more widespread and advertised in the leading commercial channels, although it is a matter that it is higher than the actual power.

Real power: 9.4 HP

* It corresponds to the real power expressed on the cutting organ in working phase. This is the power indicated as official in the engine instructions manual.

Alternator type: KR100

NSM is a long-established manufacturer of alternators that supplies top-quality, reliable Made in Italy products.

This alternator is a very high-quality product with a copper winding.

3000 rpm

Voltage: 230 V

Operating frequency: 50 Hz

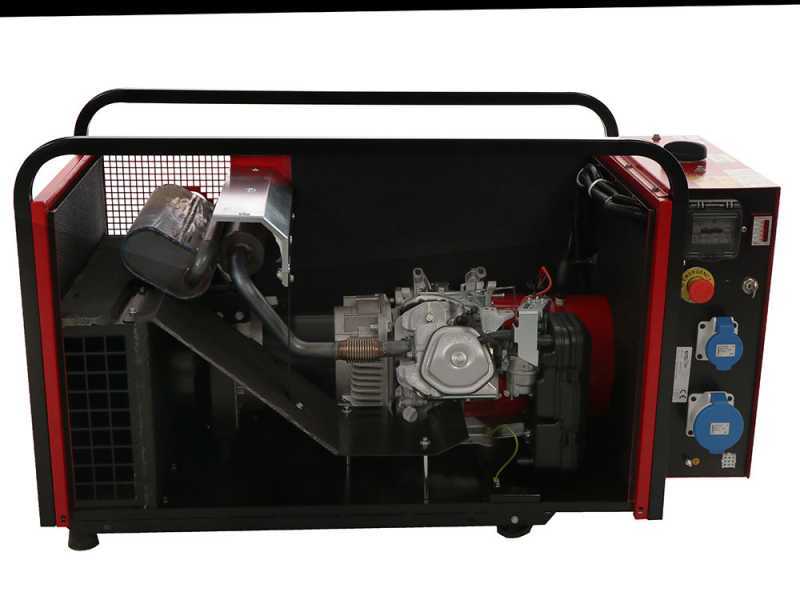

Focus on the inside of the soundproof fairings

Product that can be easily inspected

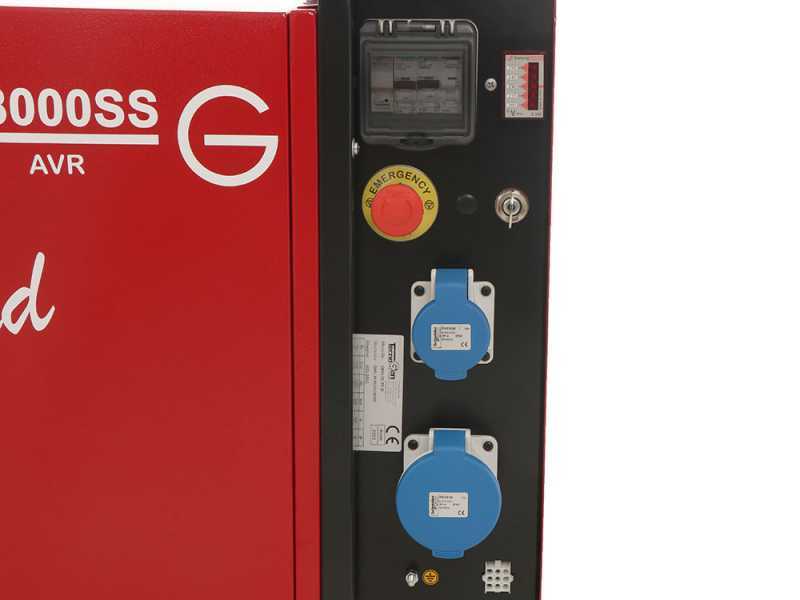

Other special features of this generator include:

No. 1 CEE industrial socket 230 V 16A

No. 1 CEE industrial socket 230 V 32A

Focus on the fuel tank plug

Focus on the hook to inspect the generator

Practical side lifting handles

Digital display with voltmeter

Keys for starting

Supporting foot

Emergency switch

Residual current circuit breaker

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

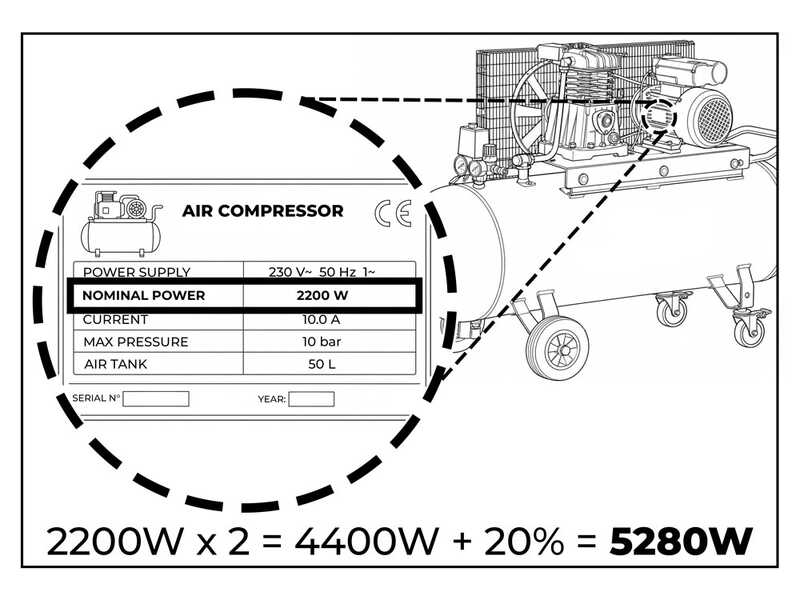

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs. And remember that to operate the electronic equipment (computers, televisions and all the equipment equipped with an electronic card) must purchase a current with "inverter" generator (which stabilizes the output current).
