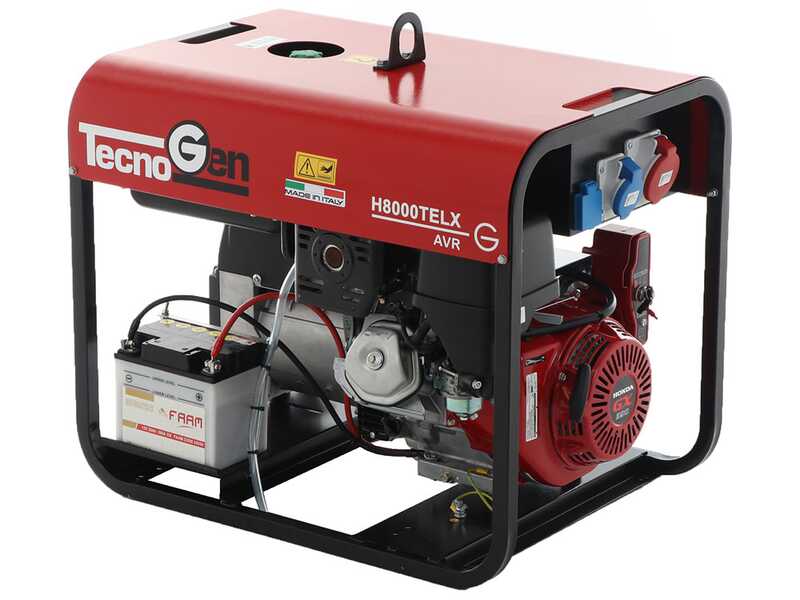

TecnoGen H8000TELX - 6 kW Petrol Power Generator with Electric Start - DC 5.4 kW Three-phase

The TecnoGen H8000TELX three-phase generator has top-quality components: the engine is Honda branded and the alternator NSM (This company is one of the best in the field of alternators, thus always providing top-quality elements.

The ZR100 SC alternator is manufactured in Italy and has a copper winding. It is able to generate a single-phase nominal power of 3 kW and a a three power of 6 kW.

It has a powerful Honda GX390 engine 398 cc with electric start and a maximum power rating of 13 HP. It represents a secure reliable engine and great performance and it is the top of the range between the gasoline engines used for these products. The 20 L fuel tank ensures a higher autonomy than other generators.

Among the main features of the generator, a professional control panel and a practical lifting hook at the top of the generator. This lifting hook makes it very easy to move the machine.

In addition to the main power switch and a display, on the control panel there are located three professional sockets: a three-phase socket, a 16A industrial CEE and a Schuko socket. The display shows the voltage, frequency and also the hours of use of the generator.

Equipped with AVR board: it provides an automatic adjustment of output voltage, making it always perfectly

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

Maximum three-phase power output: 6 KW

Rated power in continuous service (COP) three-phase: 5.4 KW

Maximum single- phase power output: 3 KW

Nominal power in continuous running (COP) Single-phase: 2.6 KW

This is the data that should be taken into consideration as an effective and constant data for the generator output (it guarantees the product an infinite duration)

Voltage: 400V

Operating frequency: 50 Hz

Fuel tank capacity: 20 L

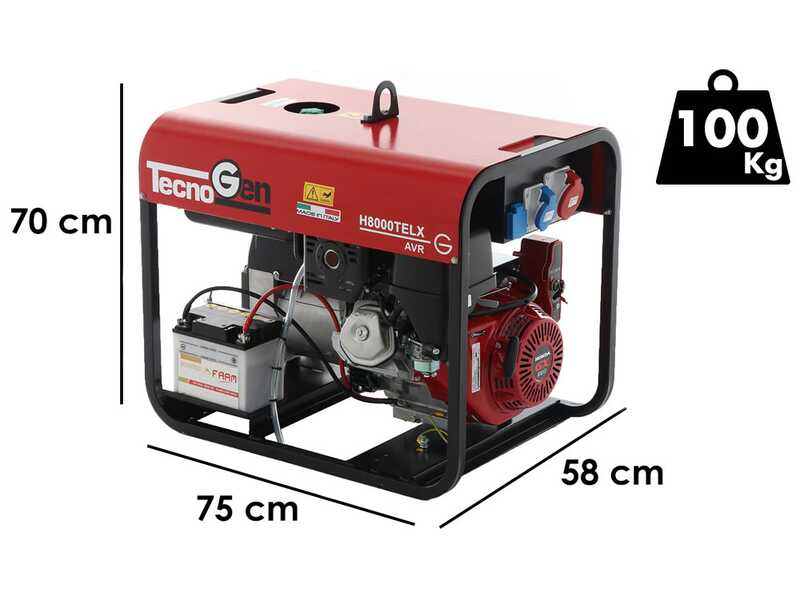

Dimensions: 750x580x700 mm

Weight: 93 kg

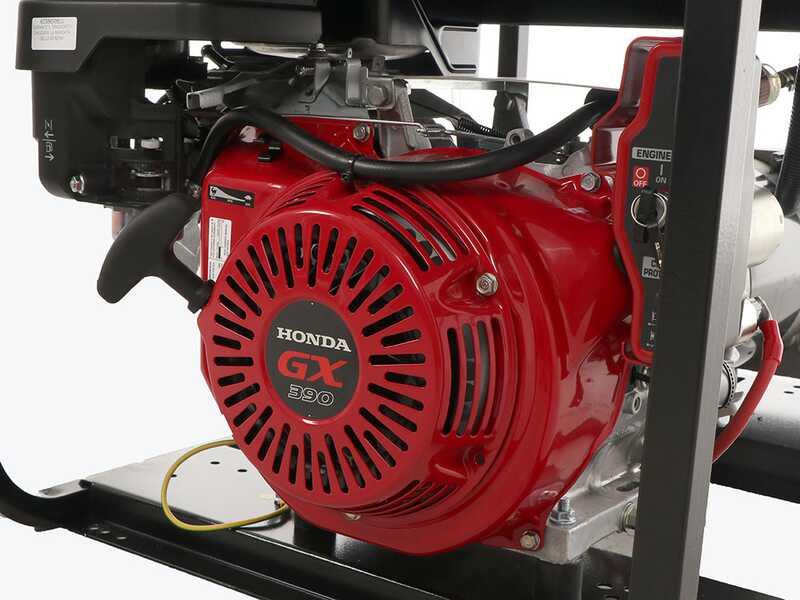

The Honda GX 390 engine is powerful and professional, with the latest OHV overhead valve technology.

Features:

Focus on the air filter.

Focus on the start key

The Honda “GX” series is highly professional and was developed for heavy-duty jobs in building and agricultural field for generators, welders etc. It’s characterized by great durability and reliability

Many other Honda engines on the market mount the "GP" series which was developed for limited and domestic use and is qualitatively lower than the first and with a lower cost.

The HONDA engines of the GX series stand out as the "TOP-QUALITY ENGINES ON THE MARKET”.

WARNING
The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instruction manual before starting the unit.

Nominal Power: 13 HP

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers. This technical detail is even more widespread and advertised in the leading commercial channels, although it is a matter that it is higher than the actual power.

Real power: 9.4 HP

* It corresponds to the real power expressed on the cutting organ in working phase. This is the power indicated as official in the engine instructions manual.

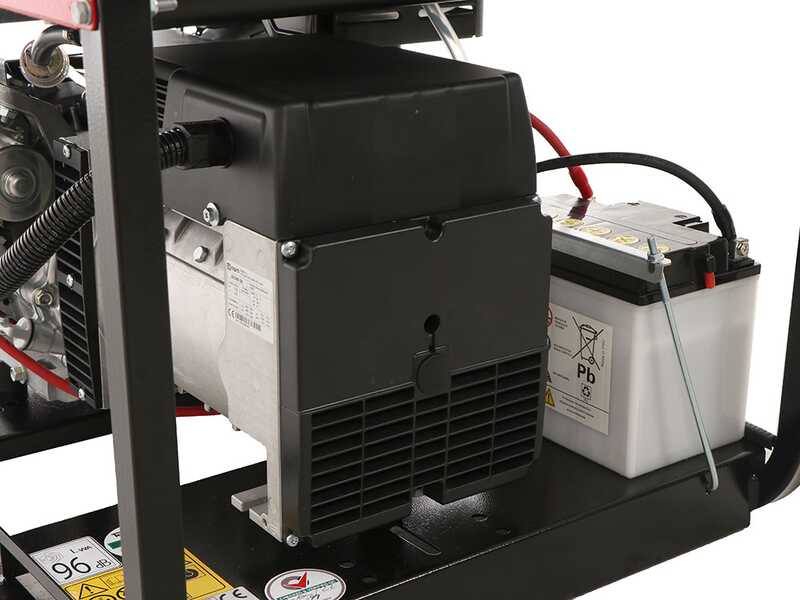

Alternator type: ZR100 SC

NSM is a long-established manufacturer of alternators that supplies top-quality, reliable Made in Italy products.

This alternator is a very high-quality product with a copper winding.

3000 rpm

Voltage: 400V

Operating frequency: 50 Hz

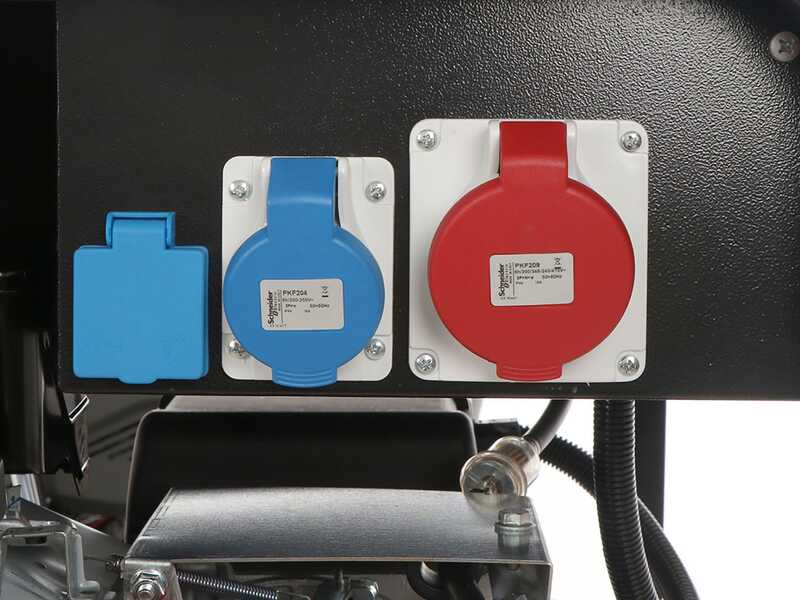

Other special features of this generator include:

1 Schuko socket

No. 1 CEE industrial socket 230 V 16A

1 Three-phase 16A socket

Focus on the fuel tank plug

Focus on the central lifting hook

Practical side lifting handles

Digital display with voltmeter, frequency meter and hour meter

Circuit breaker

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs. And remember that to operate the electronic equipment (computers, televisions and all the equipment equipped with an electronic card) must purchase a current with "inverter" generator (which stabilizes the output current).
