Tellarini EEM 25 - Electric brass transfer pump

Add a question
ID: 113988

EAN: 8051566390021

MPN: 501 E

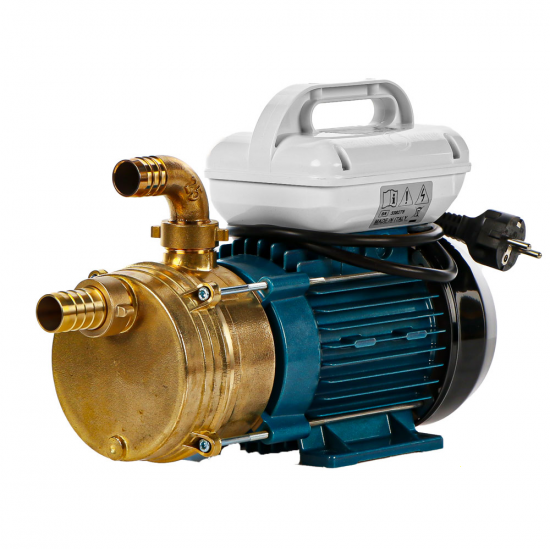

Tellarini EEM 25 - Electric brass transfer pump
Operating mode
Electric 230 V
Flow rate
50 L/min
Nominal power
0.6 HP
Pump material
Brass
Fittings diameter
25 mm
Max. head lift
13 m
Max. suction height
6 m
Manufacturing country
Italy
Product Features
Model:
EEM 25
Type:
autoadescante
Body material:
Ottone
Operating mode:
elettrica - 220 V
Operating mode:
Electric 230 V
Rotation:
Double direction
Flow rate:
50 L/min
Manufacturing country:
Italy
Motor data
Motor type:
Electric single-phase
Nominal power:
0.6 HP
Motor speed:
1400 RPM
Power supply:
220 V electric
Manufacturing country:
Italy
Pump data
Pump material:
Brass
Fittings diameter:
25 mm
Flow rate:
50 lt/min
Max. head lift:
13 m
Max. suction height:
6 m
Manufacturing country:
Italy
Equipment
Lifting handle:
Yes
Free gifts/extra features
Instructions manual:
Yes

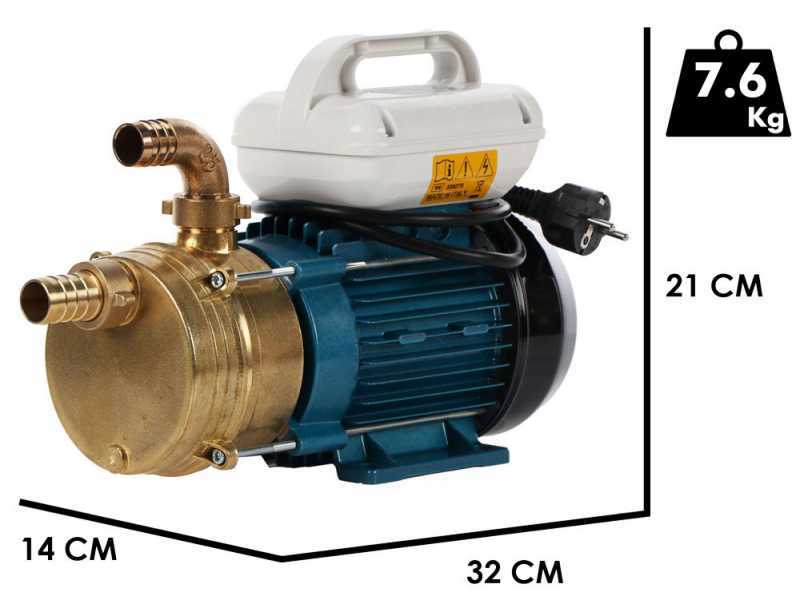

Dimensions and logistics
Product dimensions in cm (L x W x H):
32x14x21 cm
Net weight:
7.6 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
48x34x26 cm
Gross weight (packaging included) :
9.1 Kg
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 09/04/2025 - 11/04/2025
€ 194,01
Vat included
You're viewing:
Customers also viewed:
Description

Tellarini EEM 25 - Electric brass transfer pump

The EEM series pump is the ideal solution for the suction and transfer of liquids, thanks to its excellent self-priming capacity and the possibility to operate even in the discontinuous presence of the liquid in the suction. Its main characteristic is the invertibility of the flow, which further expands its potential, making it suitable for many applications.

Made from CB754S brass , the EEM series combines economy and quality. It is equipped with a high-quality two-phase electric motor and a practical rocking inverter , which guarantee high performance and a long service life. These features make the EEM series pumps extremely versatile and reliable, ideal for solving a wide range of pumping problems.

Thanks to their design, EEM pumps can be used in different situations, ensuring optimal results every time. It is important, however, to carefully assess the suitability of the pump for each specific application, selecting the most suitable seals to optimize the efficiency and lifetime of the device.

The EEM series pumps are particularly suitable for domestic use , such as water treatment , transfer of diesel oil , integration in water systems and irrigation. Their versatility makes them ideal for a variety of domestic needs, ensuring continuous and reliable operation even in the most demanding conditions.

In summary, the EEM series is an excellent choice for those looking for a low cost but high quality pump that can provide superior performance in a wide range of domestic applications. Reliable, robust and efficient, the EEM series can successfully meet the challenges of pumping liquids, offering safety and ease of use.

THIS ELECTRIC PUMP IS NOT SUITABLE FOR FOOD USE!

Technical Features and Details

This hydraulic pump is designed for high performance in applications that require reliability and versatility. With a maximum flow rate of 50 liters per minute and a maximum head of 13 meters, it is able to meet the needs of a wide range of applications, ensuring efficient and safe operation. The construction of high quality materials , such as brass for the pump body and AISI 316 stainless steel for theshaft, ensures strength and durability , even under demanding conditions of use.

This pump is not suitable for use with aggressive liquids or in environments where there is a risk of explosion and fire, such as the transfer of petrol or solvents. However, it offers the ability to reverse the pumping flow and run for short periods with closed lines , making it extremely versatile for specific applications.

Installation is simple, requiring only initial filling of the pump with liquid, once this is done the pump will be ready for operation without further priming. The 230V 50Hz single-phase asynchronous motor, equipped with a 0.6 HP MEC 71 motor, guarantees adequate power for the required performance, while the IP X4 rating and insulation class F offer safety and reliability over time.

Material:

  • Pump body Brass
  • Shaft: AISI 316

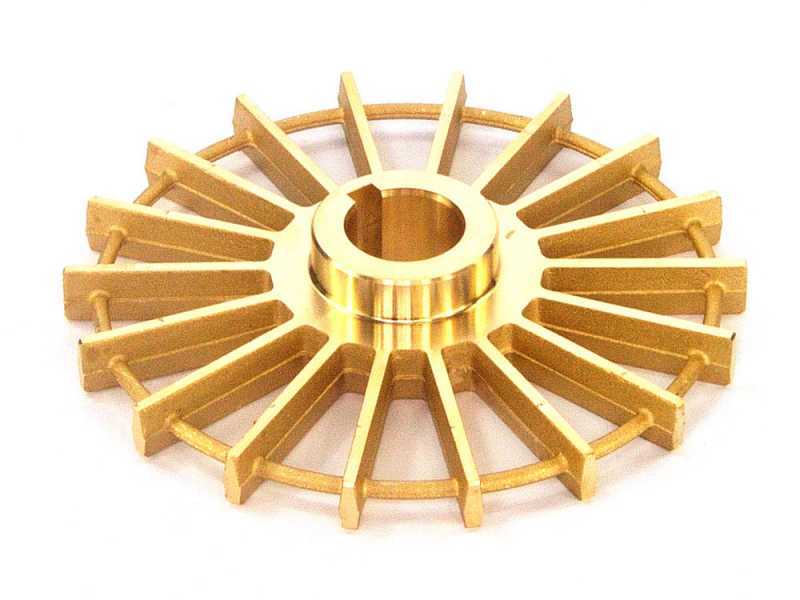

  • Impeller: Brass
  • Gaskets NBR

ENGINE

  • Powered by a 230V 50Hz single phase asynchronous motor
  • Equipped with MEC 71 1400 rpm engine with 0.6 HP/0.4 KW
  • IP X4 rated
  • Insulation class:
  • Power connection via cable with 1m Schuko plug
  • Switching on and reversing the pumping flow via switch inverter

THIS ELECTRIC PUMP IS NOT SUITABLE FOR FOOD USE!

Free items & Standard equipment

Standard Equipment

The product is shipped in its original packaging, together with:

Instruction manual

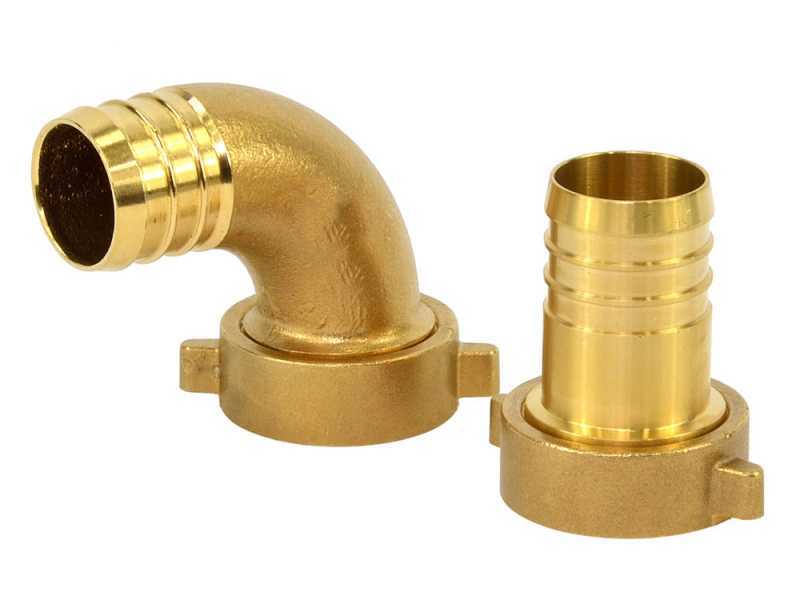

Fittings
