Made of CB754S brass, it combines quality and cost-effectiveness through the inclusion of a high-quality two-phase electric motor and a practical and efficient rocker inverter.

These features make the EEM series extremely versatile and reliable for a wide range of applications.

Designed as true multipurpose devices, EEM pumps can tackle different pumping needs, always ensuring optimal performance in a wide range of application scenarios.

It is essential, however, to carefully assess the compatibility of the pump with the specific application and to select the most suitable seals for maximum efficiency and durability.

Ideal for domestic use, these pumps are perfect for water treatment, diesel transfer, use in water systems and irrigation, thus proving their versatility in meeting a variety of household needs.

All in all, the EEM series is an excellent choice for those looking for a quality pump at an affordable price, able to offer high performance in a wide range of domestic applications.

With the EEM series, users can count on a strong, efficient and versatile product that is ready to meet the challenges of pumping liquids safely and reliably.

The EEM series pump is designed to offer high efficiency and versatility in pumping liquids, making it the ideal choice for a variety of applications. Thanks to its powerful 1.0 HP single-phase asynchronous motor and durable brass frame, it guarantees excellent liquid intake and transfer capacity, even in the most demanding operating conditions.

One of the most interesting features of the EEM pump is its excellent self-priming ability, which allows pumping even with patchy liquid flow. Furthermore, the reversible flow allows the pumping direction to be easily adjusted as required, thus offering greater flexibility of use. The pump is equipped with a switch inverter to facilitate start-up and flow regulation.

Built with high-quality materials, such as the brass body and AISI 316 stainless steel shaft, the EEM series is strong and durable. Furthermore, thanks to its NBR seals, it can operate with a wide range of liquids, ensuring an efficient seal.

EEM pump main features:

Maximum flow rate: 80 L/ min
Maximum head: 17 m
Maximum suction height: 6 m
Shaft seal: Oil seal for effective sealing
Threaded openings: 1’ ½ for easy and secure connection
Maximum liquid density: 1.1 g/cm3, free from hard particles such as sand
Maximum liquid temperature: 90°C (with optional seals up to 130°C)
Coupling with free impeller on the shaft, ensuring efficient liquid handling
Reversibility of pumping flow, for versatile use

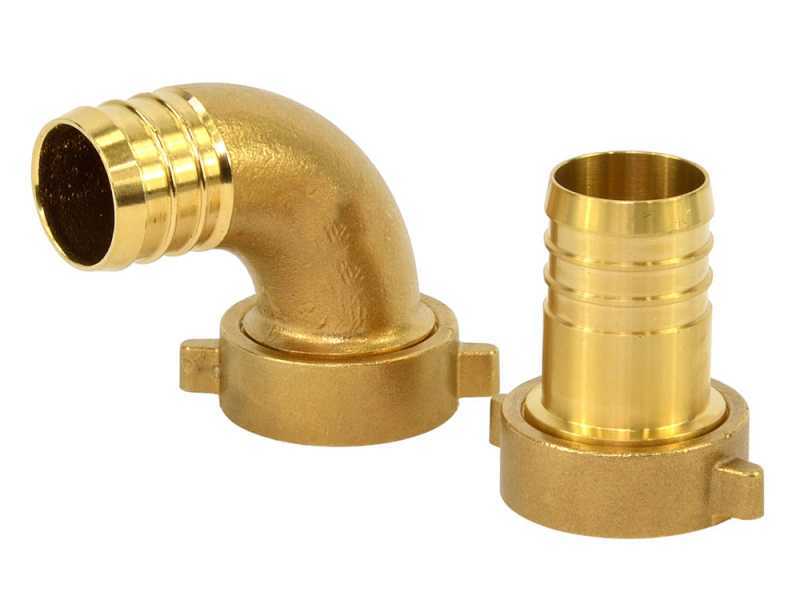

Brass hose connectors included, with option for straight or curved pipes (90°)

Engine specifications:

Engine: Single-phase asynchronous 230V 50Hz
Power: 1.0 HP / 0.7 KW, for an excellent output
Model: MEC 71 at 1400 rpm
Protection rating: IP X4
Insulation class: F, to ensure safe operation
Connection: Cable with 1 m Schuko plug

This pump is perfect for domestic use, but also for more demanding applications, thanks to its ability to maintain high performance in all circumstances. It is important to remember that the pump is not suitable for corrosive liquids, such as petrol or solvents, and must not be used in areas with a fire or explosion hazard.

All in all, the EEM pump is a reliable, sturdy and versatile solution for those who need a pump that guarantees efficiency and durability.

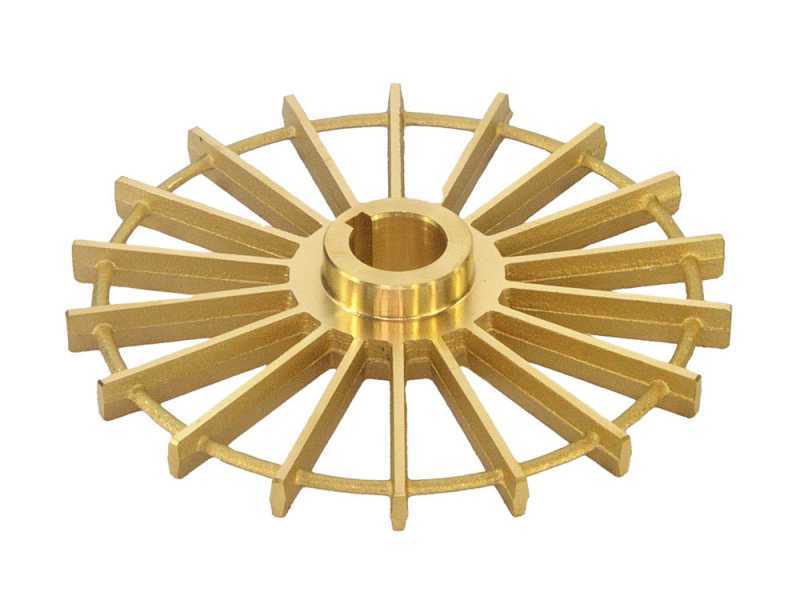

Brass impeller

THIS ELECTRIC PUMP IS NOT SUITABLE FOR FOOD USE!

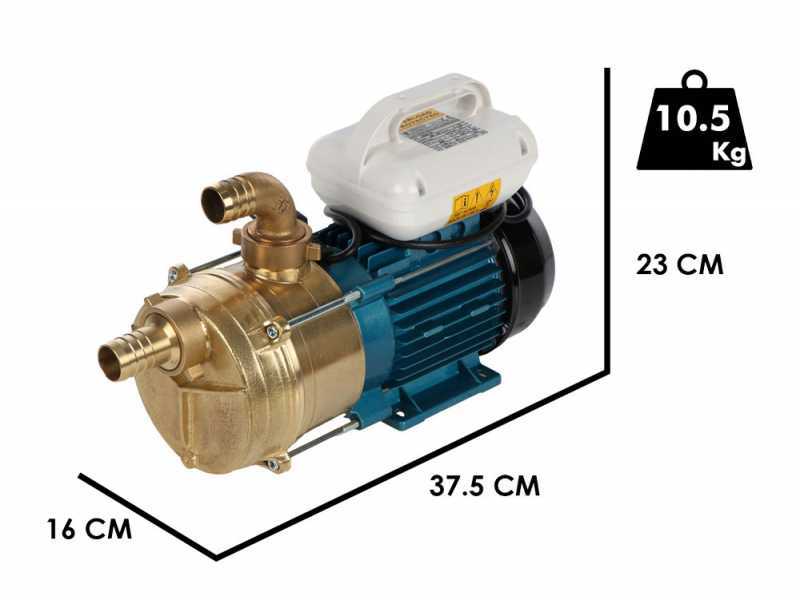

Tellarini EEM 30 - Brass Electric Transfer Pump

EAN: 8051566390038

MPN: 502 E
