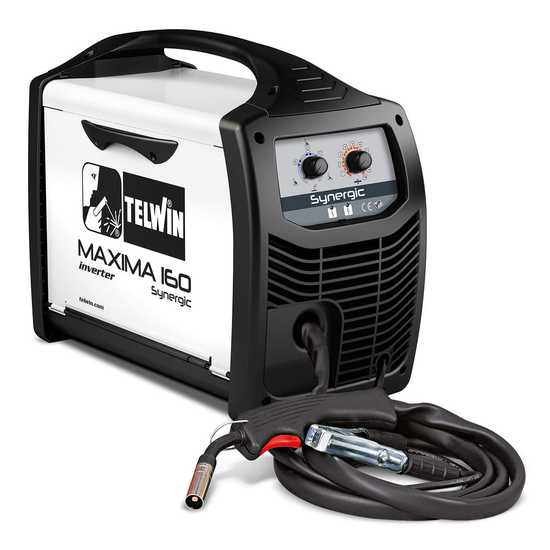

Telwin Maxima 160 Synergic Inverter Wire Welding Machine - for MIG-MAG/FLUX/BRAZING

Questions & Answers (3)
ID: K601177

EAN: 8004897975993

MPN: 816085

7,9/10
After-sales assistance & Spare parts
Telwin Maxima 160 Synergic Inverter Wire Welding Machine - for MIG-MAG/FLUX/BRAZING
FREE
GeoTech Welding gloves provided on standard equipment!GeoTech Welding gloves provided on standard equipment!
Type
Wire feel welder
Gas / no gas wire (MIG-MAG)
Welding current range (A)
20 - 150
Open circuit voltage
52 Volt
40°C duty cycle
20 %
Aluminium Welding (optional)
Yes
Wire welding type
MIG - MAG - NO GAS
Generator +/- 15%
Synergic welding
Yes
Manufacturing country
Italy
Product Features
Model:
Maxima 160 Synergic
Type:
Wire feel welder
Gas / no gas wire (MIG-MAG):
Power supply:
Single-phase electric
Fuse:
18 Amp
IP:
23
Open circuit voltage:
52 Volt
220 V max absorbed power:
2.6 KW
Min. required generator power:
3.9 KW
40°C duty cycle:
20 %
40°C duty cycle:
20%@115
Welding current range (A):
20 - 150
Suitable cored wire:
0.8 - 1.2
Suitable steel wire:
0.6 - 0.8
Suitable stainless steel wire:
0.8
Suitable aluminium wire:
0.8 - 1.0
Wire welding type:
MIG - MAG - NO GAS
Generator +/- 15%:
Aluminium Welding (optional):
Yes
Synergic welding:
Yes
Manufacturing country:
Italy
Free gifts/extra features
Welding machine equipment:
Standard supplied accessories
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
45x23,5x37 cm
Net weight:
21 Kg
Packaging:
Double packaging
Original packaging/s dimensions in cm (L x W x H):
51,5x25x39,5 cm
Gross weight (packaging included) :
25.3 Kg
Assembly time:
Assembled
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 05/05/2025 - 07/05/2025
€ 541,47
Vat included

You're viewing:
Customers also viewed:
Description

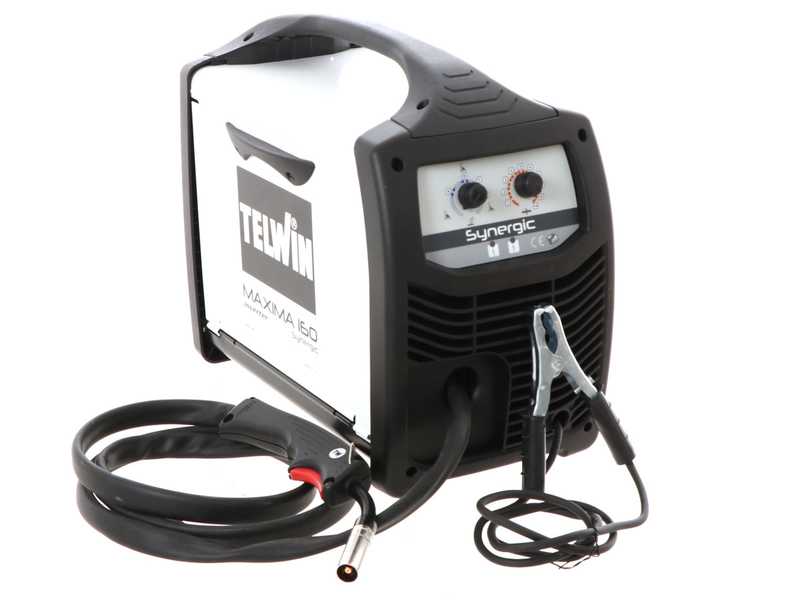

Telwin MAXIMA 160 Synergic Inverter Welding Machine

The Telwin Maxima 160 Synergic is an inverter wire welding machine, microprocessor-controlled. It is a high-level product, suitable for both amateurs and professionals for its versatility and practicality. MADE IN ITALY quality

This welding machine is part of the Elements line, a new range of products created by Telwin for DIY experts, the most demanding DIYers, professionals looking for products that are user-friendly, safe and high-quality. A series of articles with the guarantee of the Italian brand Telwin, which for over 50 years has been one of the world leaders in welding, plasma cutting, charging and starting.

The Maxima 160 Synergic is designed for NO GAS/Flux welding (with cored wire), but can also be transformed into MIG-MAG using a special optional kit.

The synergic adjustment of the welding settings makes it convenient and user-friendly, ensuring excellent results even for beginners. Besides, this welding machine ensures great versatility while using different materials (steel, stainless steel, aluminium) and in its possible applications, from maintenance to installation.

Allows welding with wires from 0.6 to 1.2 mm and a coil of maximum 5 kg.

Its low weight and the handle on the top of the machine make it easy to transport in any workplace.

Equipped with multiple safety systems:

  • thermostatic protection
  • overvoltage
  • undervoltage
  • overcurrent
  • Motor generator (+/-15%)

Other features: polarity change for GAS MIG-MAG/BRAZING welding.

Included: TW 160 torch, ground cable with NO GAS clamp

Technical Features and Details

Focus on the data sheet:

  • Welding type: wire
  • Power supply: 230 Volts
  • Fuse: 16 A
  • Maximum power absorption: 1.2 KW - 2.6 KW
  • Steel wire: 0.6 - 0.8 mm
  • Inox wire: 0.8 mm
  • Aluminium wire: 0.8 - 1 mm
  • Flux cored wire: 0.8 - 1.2 mm
  • Brazing wire: 0.8 mm
  • Open circuit voltage: 50 Volts
  • Power: 20 - 150 A
  • Duty cycle at 40°: 20% at 115A

According to standard CEI EN 60974-1, the technical tests on the welding machine are carried out at a room temperature of 40°C, and when the power supply is at controlled temperature, after working for a certain time. Of course, at lower temperatures or when the machine is cold, the welding cycle increases.

Focus on the control panel

Equipped with two indicator lights which light up to indicate machine operation and maximum temperature reached, then the welding machine stops thanks to the thermostatic protection until it cools down, to continue working.

Focus on the power switch

Handle for easy transport

Free items & Standard equipment

COMPLIMENTARY: heavy-duty welding gloves - Montana model

GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

Free Items Included

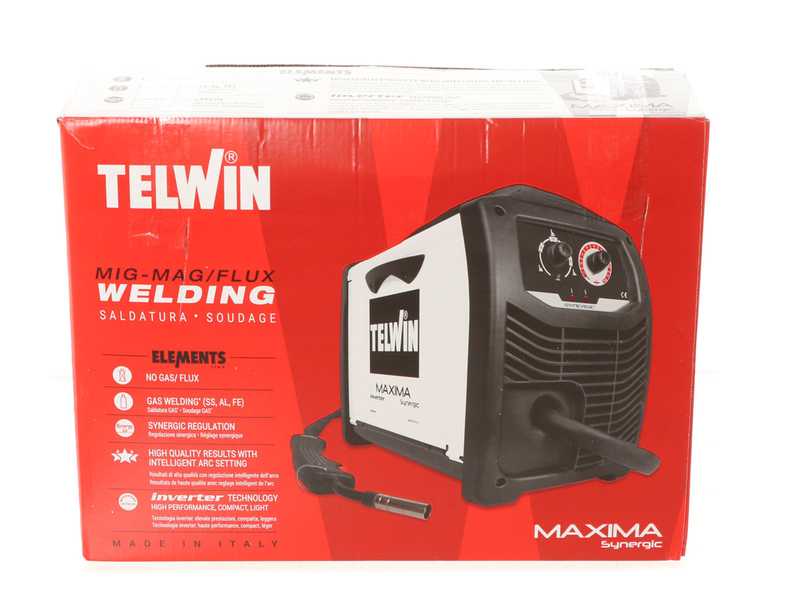

The product is shipped in its original packaging along with the instruction manual.

Included in the packaging:

  • TW 160 torch
  • Ground clamp with cable
  • Wire feeder roller
