Description

Enolmatic counter top wine bottling machine

The Enolmatic electric worktop filling machine is a bottling machine with professional features and performance, capable of bottling wine for about 250 bottle/hour. This machine is small and weighs just 4 kg, making it extremely easy to use. It is built with top quality materials that are perfectly suitable for contact with foodstuffs and alcoholic products up to 20% alcohol content.

The vacuum system with which the bottling machine works guarantees natural filling, without reflux or shaking, and without the liquid coming into contact with moving mechanical parts or transfer pumps.

Enolmatic is very practical to use, as the adjustments with which it is equipped make it possible to:

Decide at will the filling level, which once set becomes automatic to adjust bottling speed
Adjust bottling speed
Use the machine with bottles of any size

The filling machine can be combined with many specific accessories for oil, beer, wine, fruit, for filling small jars or mignon bottles, large demijohns or5/10 litre dames. It can also be combined with Tandem, an external filtering system that allows the machine to perform a truly professional filtration, transforming it from a simple filling machine into a bottling and filtering machine.

Example of machine use in filling a bottle with wine

WARNING:

These filling machines are suitable for glass bottles only

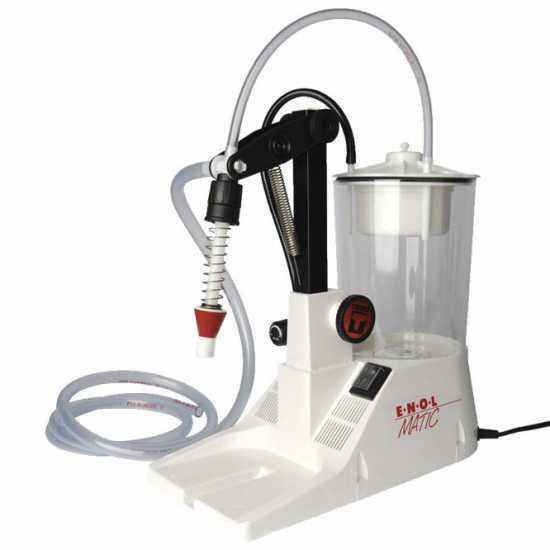

Tenco Enolmatic Vino - Table-top Electric Wine Filling and Bottling Machine

Main specifications

Filling speed adjustment knob: turn the vacuum level knob to maximum for rich and full-bodied wine or non-filtered wine. Set the vacuum level to a minimum for especially sparkling wine to avoid foaming.

Focus on the power switch: featuring a transparent watertight cover

Focus on the adjustable swing arm where the nozzle (spout) is mounted

Focus on the special wine filling nozzle

Focus on the height-adjustment system of the foldable arm: the arm joint can be raised or lowered by turning the knob.

Focus on the bottle sealing system: the spring on the foldable arm enables the nozzle to apply high pressure on the bottle neck, which prevents the liquid from outflowing.

Focus on the adjustable nozzle: the nozzle can be set to establish the liquid filling level by tightening or unscrewing the nut.

Focus on the vacuum chamber

Optional accessories

The bottling machine can be used with many specific accessories for oil, beer, fruit, filling small containers or miniature bottles, large demijohns or 5-10 litres carboys. Moreover, the machine can be used along with the Tandem external filter, which allows for professional filtering, thus turning the Enolmatic filler into a bottling machine as well as a filtering device.

DEMIJOHN KIT: specifically designed to transfer liquid from one demijohn (or other containers) to another demijohn.

5-10 LT CARBOY KIT: for transferring liquid into a 5 or 10-litre carboy.

JAR KIT: jar filling with liquid food products.

KRISTAL KIT: for long and narrow bottlenecks.

MINIATURE KIT: specifically designed to fill mini bottles, small jars or tiny containers.

OIL KIT: suitable for oil as well as for thick liquids.

WINE KIT: designed exclusively for wine or spirits with an alcohol content below 20%.

TANDEM EXTERNAL FILTERING SYSTEM: to be used with various types of filters, made both of fibreglass and stainless steel.
