Top Line Argo 3P - Tractor-mounted shredder - Cutting diameter 100 mm

Questions & Answers (2)
ID: 112845

EAN: 8033424494683

MPN: ARGO3P

9,0/10
After-sales assistance & Spare parts
Top Line Argo 3P - Tractor-mounted shredder - Cutting diameter 100 mm
Operating mode
Tractor-driven PTO
Tractor power
Form 40 to 80 HP
Cutting Rotor Type
Disc
No. of blades
4
Max. Branch Diameter
100 mm
Wood Chip size
3 - 4 cm
N° of hoppers
1
Upper discharge system
Discharge chute rotation
Manual with lever on the chute
Transmission type
Belt
Cardan shaft
Yes
Weight
250 Kg
Manufacturing country
Italy
Product Features
Model:
Argo 3P
Operating mode:
Tractor-driven PTO
Hydraulic self-dragging:
No
Discharge chute:
High - rotating
N° of hoppers :
1
Hopper opening size (height):
50 cm
Hopper opening size (width):
60 cm
Electric start:
No
Min. power:
30 Hp
Max. power:
80 HP
Tractor power:
Form 40 to 80 HP
Manufacturing country:
Italy
Transmission data
Transmission type:
Belt
Cutting data
Body material:
Enamelled steel
Max. Branch Diameter:
100 mm
Cutting Rotor Type:
Disc
No. of blades:
4
Blade movement:
Rotating
Wood Chip size:
3 - 4 cm
Equipment
Discharge chute rotation:
Manual with lever on the chute
Free gifts/extra features
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
172x86x167 cm
Net weight:
250 Kg
Packaging:
Original wooden box
Original packaging/s dimensions in cm (L x W x H):
120x79x124 cm
Gross weight (packaging included) :
250 Kg
Assembly time:
30 minutes
Out of stock
Free Shipping
€ 2.518,55
Vat included
You're viewing:
Customers also viewed:
Description

Top Line Argo 3P tractor-mounted shredder

The Agrieuro Top Line ARGO 3P bio-shredder is a solution for processing large quantities of vegetable waste. Designed for efficiency and practicality, this shaft-driven chipper is perfectly suited to the needs of both the casual user and the professional.

Characterised by a 360° adjustable chipping outlet, the ARGO 3P bio-shredder allows the processed material to be deposited directly into the skips, optimising working time.

Its large loading hopper is designed to facilitate the introduction of branched plant waste, allowing branches up to a maximum diameter of 100 mm to be processed.

The machine is easily connected to the tractor via a three-point hitch plus power take-off, ensuring easy starting and efficient power transmission.

The disc, equipped with four interchangeable blades plus a counter-blade, ensures effective and uniform shredding of the material.

Electronically balanced rotor, mounted on steel supports. Self-powered with ventilation system.


Warning: Like all wood chippers and garden shredders, it is not suited for shredding grass, leaves, pine needles, etc. (it is intended to shred branches, but it can also grind leaves, needles and others)

NOT SUITABLE FOR SMALL AND INSUFFICIENT BRANCHES, ESPECIALLY FOR OLIVE BRANCHES!

Garden shredders intended use:
- The wood chipper must grind only green branches and not dried ones (which would limit its shredding capacity and lead to quick deterioration of the blades);
- The branches must be preferably long, smooth and not knobby (otherwise the cutting diameter would be reduced);
- The branch cutting diameter indicated is the maximum, so it is advised not to shred larger branches. In this case, it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to the amounts of wood (e.g: oak, olive, plum and peach are hardwood and can reduce the cutting capacity of the wood chipper);

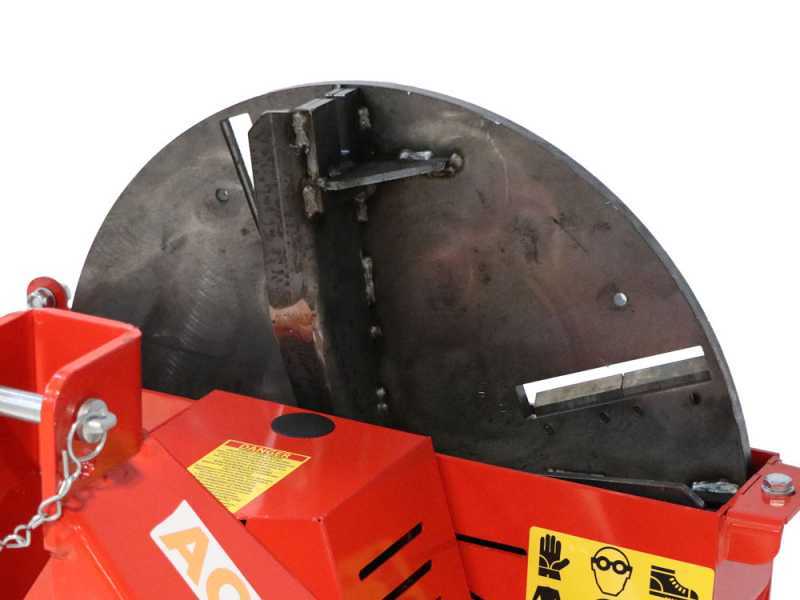

Central rotor and shredding chamber

The shredding system consists of:
- No. 4 large and thick blades, mounted on a swivelling steel plate placed at the end of the hopper.

Equipped with a large and robust grinding chamber. It has a rounded shape that ensures good productivity, as well as the durability of the system.
The counter-blade is mounted directly on the outer side of the grinding chamber.

Rotor mounted on steel supports, self-powered with ventilation system.

Blades divided into two pieces, which makes them much stronger than single-piece blades. These allow a longer service life and more immediate maintenance.



Warning: Before starting the machine, make sure toad just the counter-blade by means of the specific bolts in order to avoid damaging the rotor.

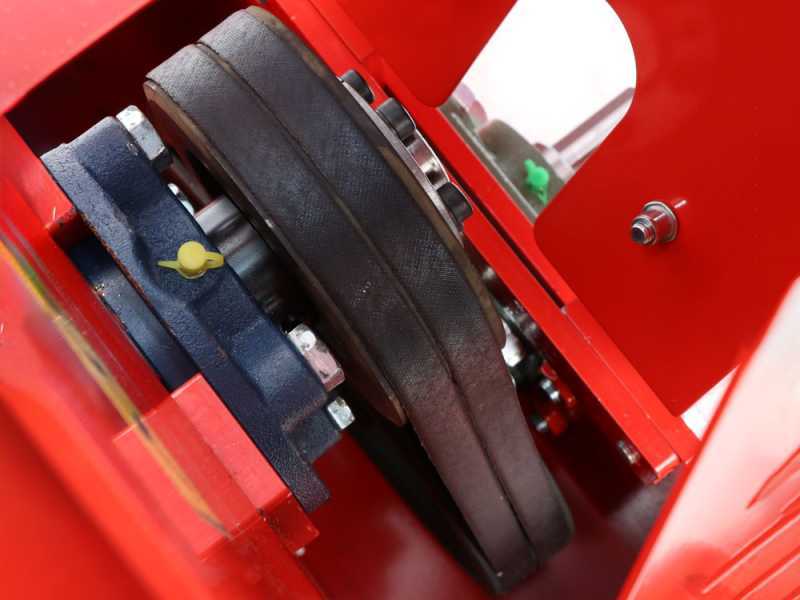

Belt drive

The transmission of the shredder is characterised by a two-belt drive.

This machine is equipped with a freewheel device (or additional joint) built in the gearbox; this ensures a long service life of all the moving parts of the machine, preventing the kickback that would be caused by changing from 540 rpm to 0 rpm and allowing the rotor to turn freely until it stops.

Cardan shaft drive with grease nozzle (standard power take-off 1 3/8 "Z6).

Detail of the protective casing.


ATTENTION!


Read the instruction manual carefully before starting it up.

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

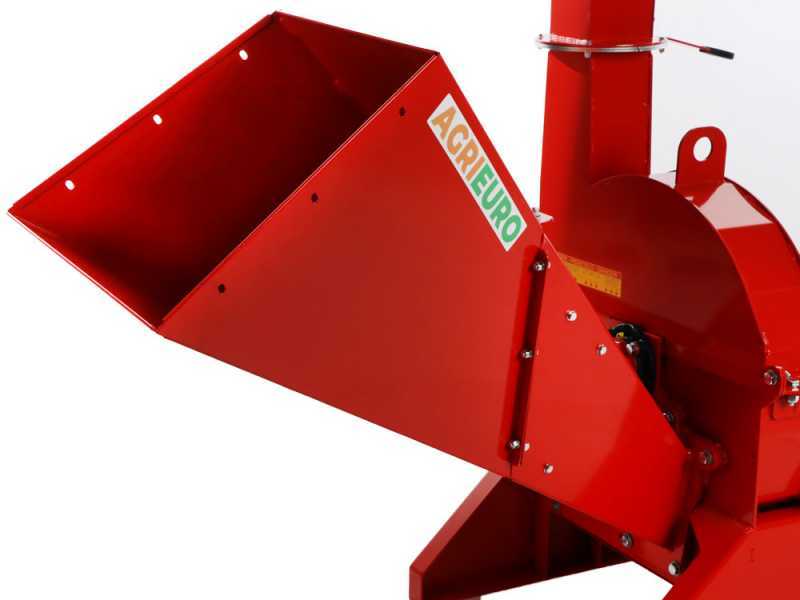

Unified hopper

The steel hopper is large, with a useful opening of no less than 60x50 cm.

The machine is able to process even very bulky branches and leaves, without having to pre-shred them.

Thus, it also features a higher capacity that allows entering a large amount of material at a time.


WARNING!

Warning: Check the machine only when switched off.
Carefully read the instructions manual before starting the unit.

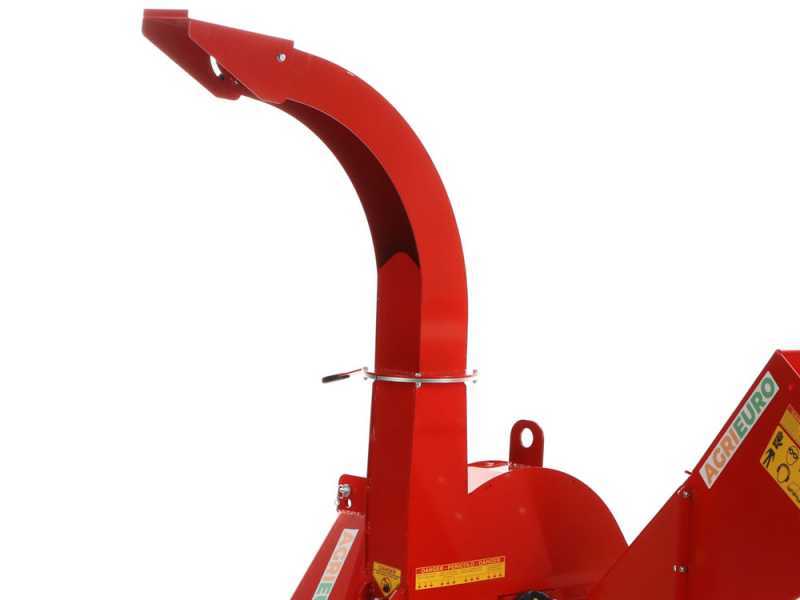

360° rotating discharge chute

The exhaust chute, with which this shredder is equipped, can be rotated 360° and is approximately 1.5 metres high.

Some examples:

  • Position 1
  • Position 2
  • Position 3

You’ll just need to simply press the lever and rotate it to the desired position.

The outlet inclination is adjustable via a thumb wheel.

Examples of positioning to check the woodchip ejection distance:

  • Position 1
  • Position 2
  • Position 3

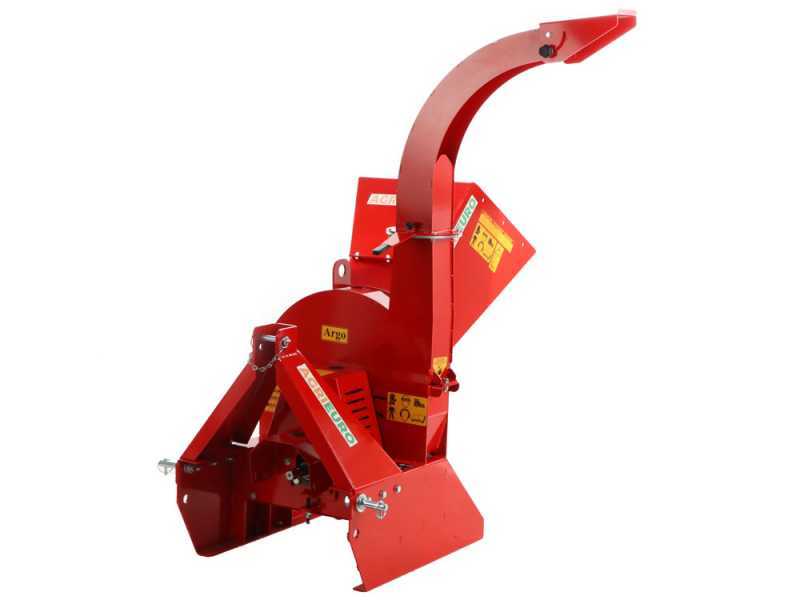

General features

Tractor-mounted PTO socket with protection, allowing the shredder to be operated.

Detail of the robust 4th category 3-point hitch

There is a support at the top of the machine that allows the machine to be hooked and lifted.

Distance between the two points 77 cm, height from ground 30 cm.

Height from ground of upper pivot 75 cm.

The standard-supplied Cardan shaft is equipped with safety bolt.

Free items & Standard equipment

Free items included

The machine is shipped on a pallet.

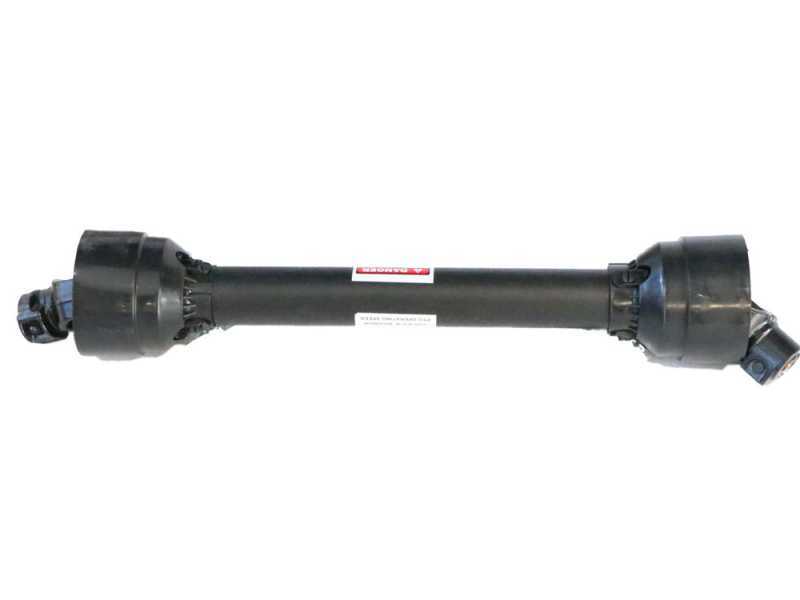

Cardan shaft (4 x 800) and instruction booklet included in the package.
