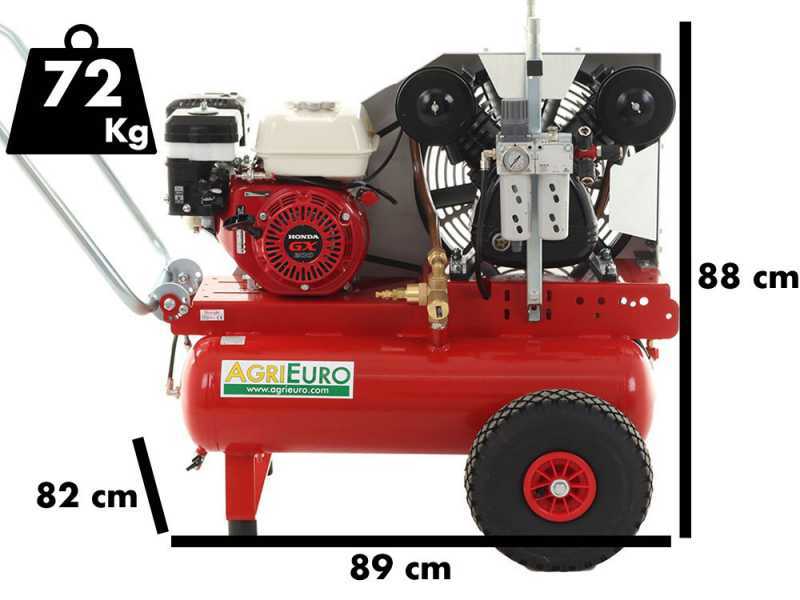

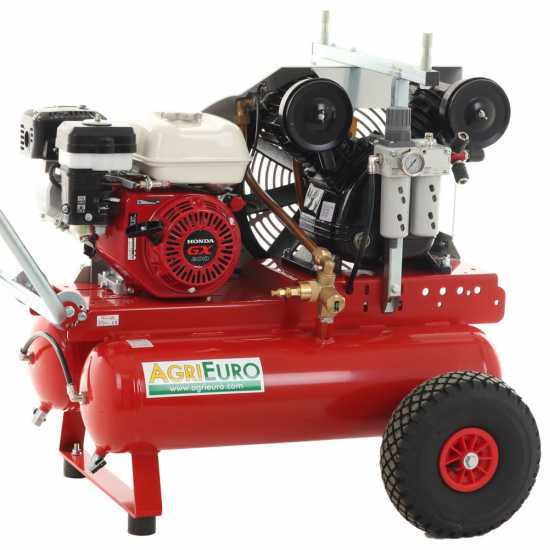

Tornado F 750 Petrol Engine-driven Air Compressor with Honda GX 200 Engine

The AgriEuro Tornado F 750 is a petrol engine-driven air compressor that mounts an engine designed to power and operate pneumatic tools for pruning and harvesting in the agricultural sector.

It boasts the best components on the market by various industry leading manufacturers such as: Honda, Camozzi, Fini.

The pumping unit is driven by a powerful 4-stroke Honda GX200 engine that delivers 6 HP of power.

This air compressor features a smart automatic throttle system, thanks to which, the engine automatically adjusts its acceleration level based on the air intake of the equipment used.

When the other equipment are not used, the engine will have lower rpm, and when they are switched on again, the engine will accelerate to deliver enough air supply for its operation.

The air compressor is mounted on a balanced frame with double tank to reduce the condensate effect. This model is equipped with two tanks with a capacity of 24 L each.

This air compressor supports the simultaneous use of 3 olive harvesters, up to 6 pneumatic pruning shears and 1 pneumatic chainsaw.

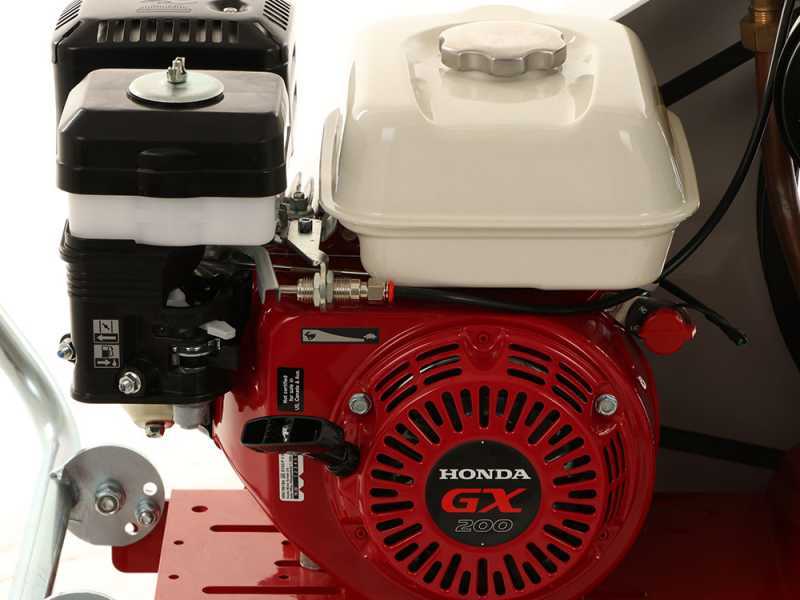

The Tornado F 750 air compressor is equipped with Honda GX 200 engine, one of the best on the market.

Recoil start.

Detail of the automatic throttle.

Detail of the air filter in oil bath.

Detail of the spark plug.

Features:

The Honda “GX” series is highly professional and was developed for heavy-duty jobs in building and agricultural field for generators, welders etc. It is characterised by great durability and reliability.

This petrol engine-driven air compressor is equipped with an automatic throttle, a particular device that adjusts the motor revolutions according to the compressed air supply required by the pumping group.

The HONDA engines of the GX series stand out as the "TOP-QUALITY ENGINES ON THE MARKET”.



The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

Air intake flow: 750 L/min
Cylinder head type: twin-cylinder with cast iron cylinders and aluminium gaskets
Lubrication: oil

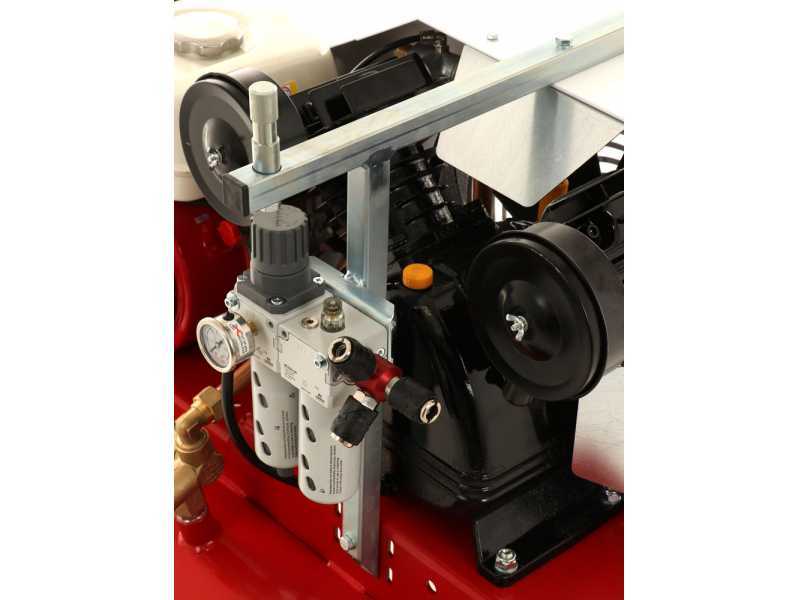

The V-shaped pumping unit fitted on this petrol engine-driven air compressor is the result of high technology and years of experience in the field. This petrol engine-driven air compressor belongs to a professional line and stands out for its exceptional durability and reliability, thanks to the use of components made with top-quality materials:

- shafts and cylinders entirely made in cast iron

- die-cast aluminium cylinder heads

- stainless steel reed valves

Detail of the high performance suction filters with labyrinth air flow pattern for noise reduction

Detail of the oil level indicator in the pumping unit

This AgriEuro petrol engine-driven air compressor features a belt drive.

The use of the transmission belt guarantees a very high level of safety. Combined with the Honda GX 200 petrol engine, the belt drive contributes to the durability of this compressor, drastically reducing the number of revolutions of the cylinder head and reducing wear.

The closed protective housing is made of metal, very solid and sturdy, machined from a single piece. It allows excellent cooling because, thanks to its particular shape, it is able to convey a high amount of air on the head.

Detail of the flywheel for transmission and cooling made of aluminium

The petrol engine-driven air compressor is mounted on 2 48 L tanks to reduce the creation of condensation inside.

Max pressure: 11 bar

Equipped with glycerine filled pressure gauge directly connected to the tank

3-outlet air divider that allows to use of 3 pneumatic olive harvesters at the same time

A direct drive relief valve is installed on the tanks to prevent the maximum pressure from exceeding a certain threshold and to avoid breakage.

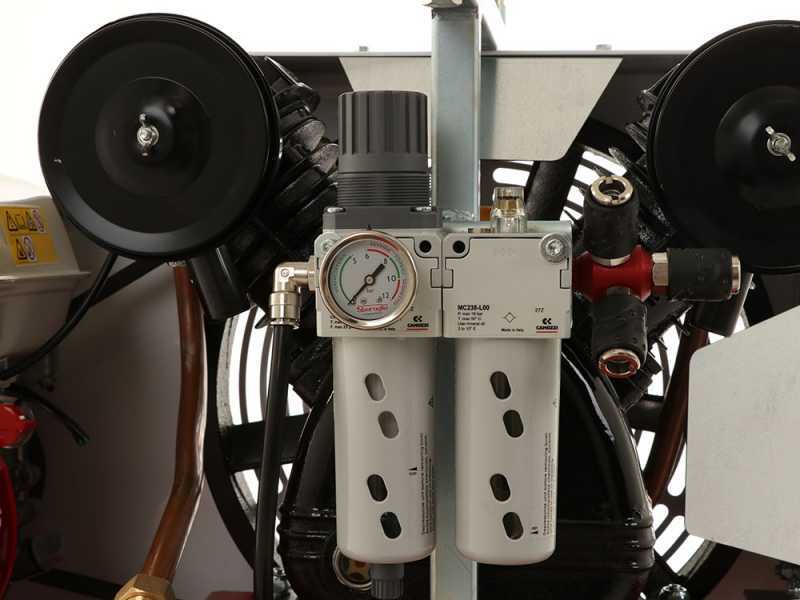

Also equipped with a pressure regulator which adjusts the air outlet pressure for the operation of the tools, lubricator, that atomizes oil in the outlet air to lubricate tools (adjustable lubrication intensity), and drain valve which allows the discharge of condensate. These tools are all included in the Camozzi control panel

No load operation system and maximum pressure control by means of professional pilot check valve.

Equipped with removable double galvanised handlebar for easy grip and storage and also adjustable for inclination.

Large rear tractor wheels

Sturdy anti-vibration front rubber feet directly connected to the tanks.

The main connection hose (cylinder head to pressure valve to tank) is made in copper and not in rubber.

Tank condensate drain valve

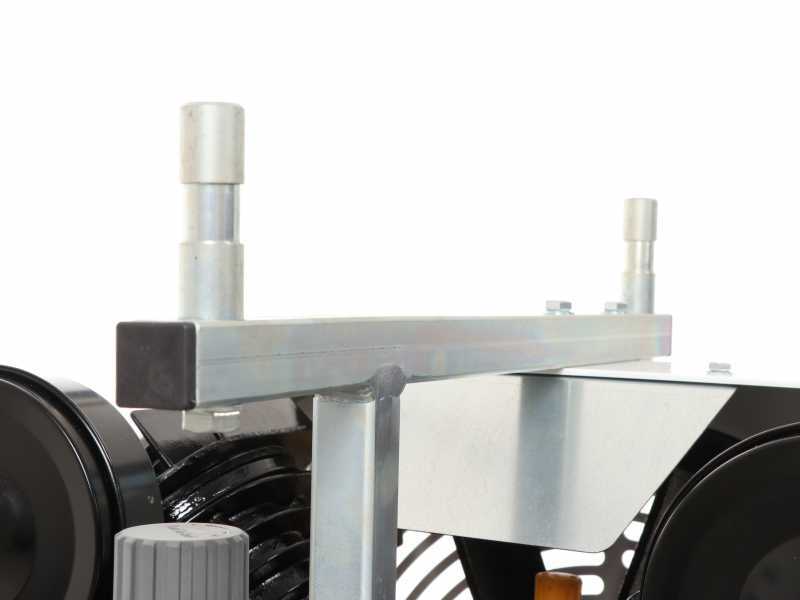

Double hose reel connected directly to the frame and to the carter.
