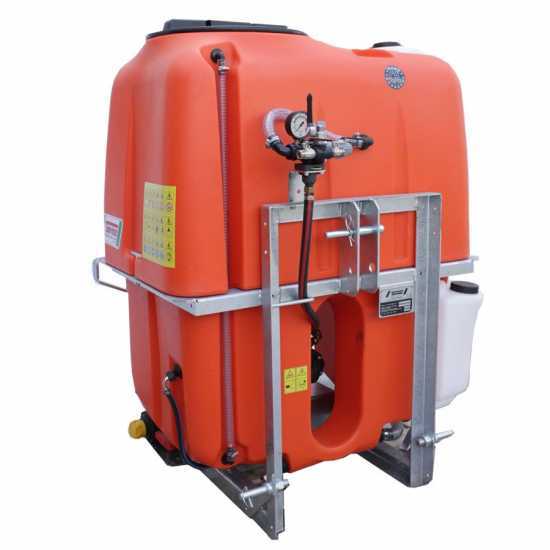

Name: Tornado TOSCANA 400/51 - Tractor-mounted spray unit - 400 l - with tractor
Brand: Tornado
SKU: 3469
Price: 1905.56 EUR
Availability: InStock
Rating: 4.33 (6 reviews)

Description

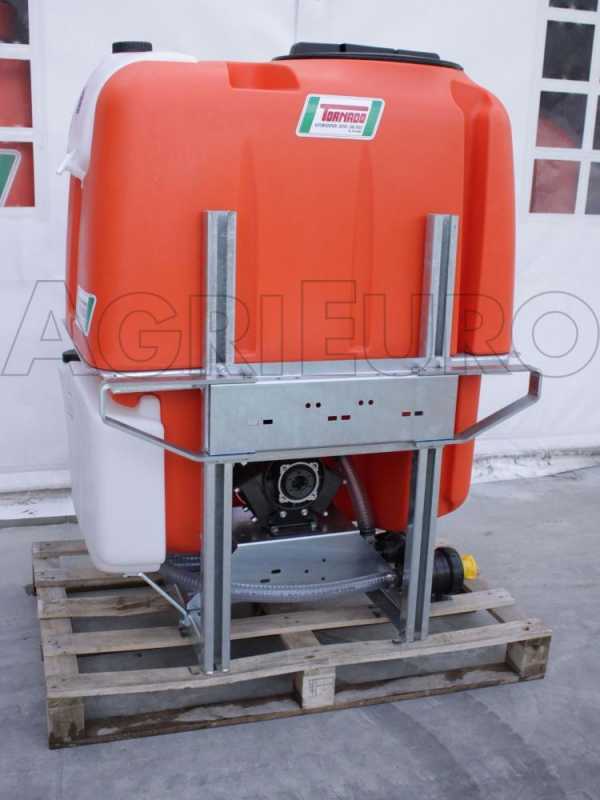

TORNADO Mounted Sprayer for Irrigation - Toscana TO400/51

Mounted sprayer for irrigation for medium and large crops.

Polyethylene full-emptying tank, with a capacity of 400

HEAVY PROFILE hot galvanised steel frame

Tornado TOSCANA 400/51 - Tractor-mounted spray unit - 400 l - with tractor

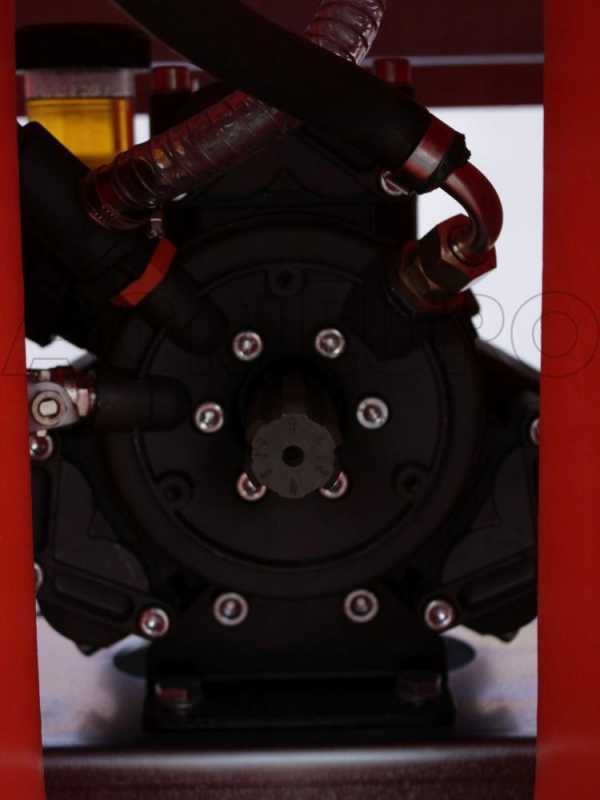

Comet APS 51 Pump

For spraying treatments in medium and large crops.

Suitable for trailed and wheeled sprayers.

The parts directly touching the liquid are made of anodized aluminium, resistant to corrosion.

New three-membrane configuration

Flow rate: 51.0 l/min
Pressure: 40.0 bar

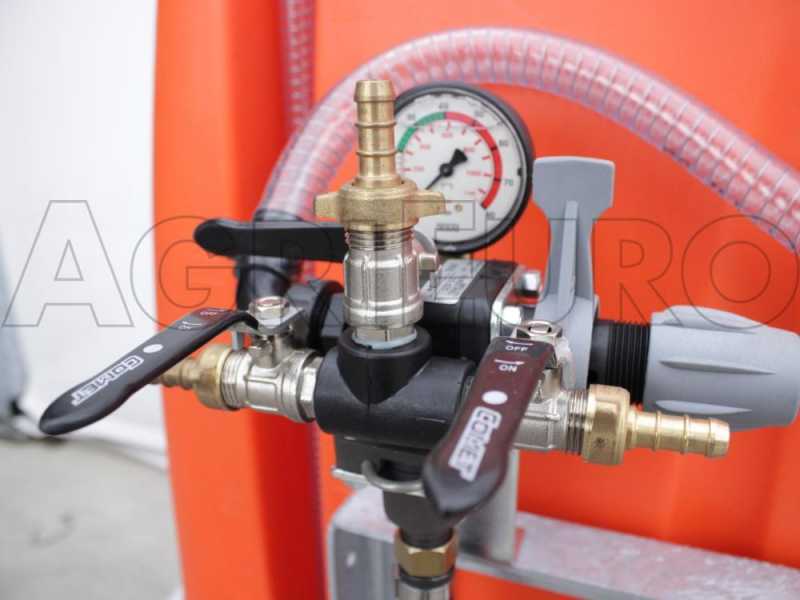

Pressure Regulation Unit

Original Comet production, GCP standard series, 3-way.

It consists of 3 outlets, all available, all equipped with a valve, suitable for many uses.

Usually, the two horizontal outlets are used to connect, for example, a pair of spray guns for orchards/olive groves, or stainless steel booms for vineyards and so on…
Instead, the central upward valve is most often used to connect a hose reel or simply a hose with a lance, or spray guns for spraying directly by hand.

It is also possible to move the entire pressure regulation unit directly into the tractor cabin by purchasing the special kit (which extends the length of the the hoses)

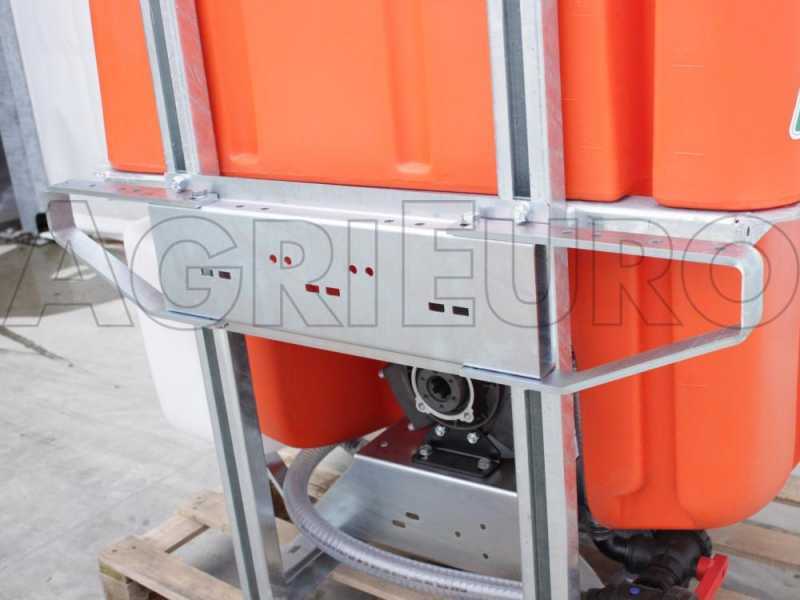

Galvanised Steel Frame

HEAVY PROFILE hot galvanised steel frame + three-point tractor linkage complete with pins.

This mounted weed sprayer is equipped with two special vertical bars specifically designed to mount any spraying device on the market, also allowing height adjustment in the desired position.

The universal multi-tool plate is supplied with this tank.

It is equipped with two supports which allow it to house any tool on the market. The bars can be placed in two positions: completely open and closed, to be suitable for any tool available.

They are also equipped with many holes to house the tools, so you do not have to make new ones.

To make the plate even more versatile, it can be adjusted in height by loosening the bolts and sliding it over the dedicated bars.

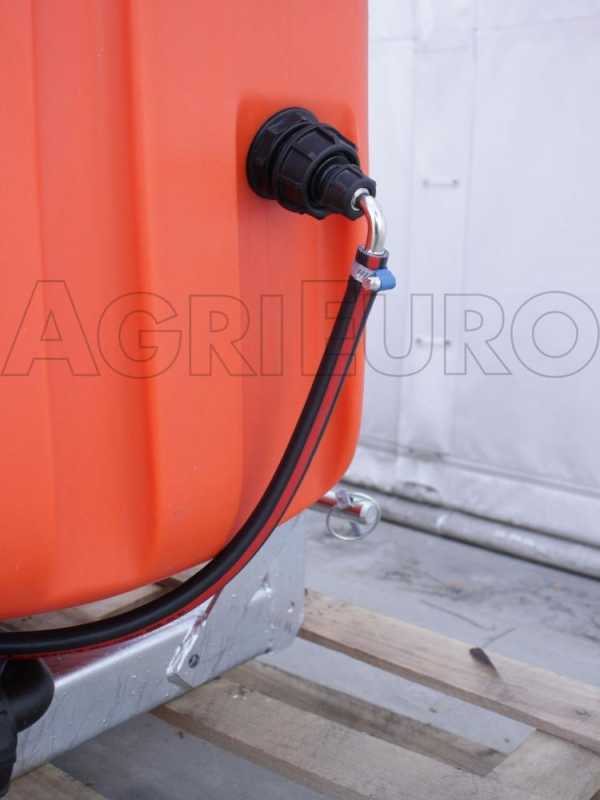

General Features

Polyethylene full-emptying tank, capacity (L) 400.

Additional tank for hand washing

Circuit-washing tank (to wash the inside of the tank, hoses and all the equipment at the end of the treatment, before storage). To activate it, simply open the tap in the cartridge filter.

Focus on the external level with graduated scale.

Hydraulic agitator, to constantly mix the solution within the tank. It has a high-pressure jet in the centre of the tank.

External suction filter equipped with self-filling system (the hose to fill the tank must be purchased separately, you can find it in the related accessories section).

Internal filter to clean the liquid from any possible residue or dirt during the tank filling phase.

Valve to completely empty the tank.

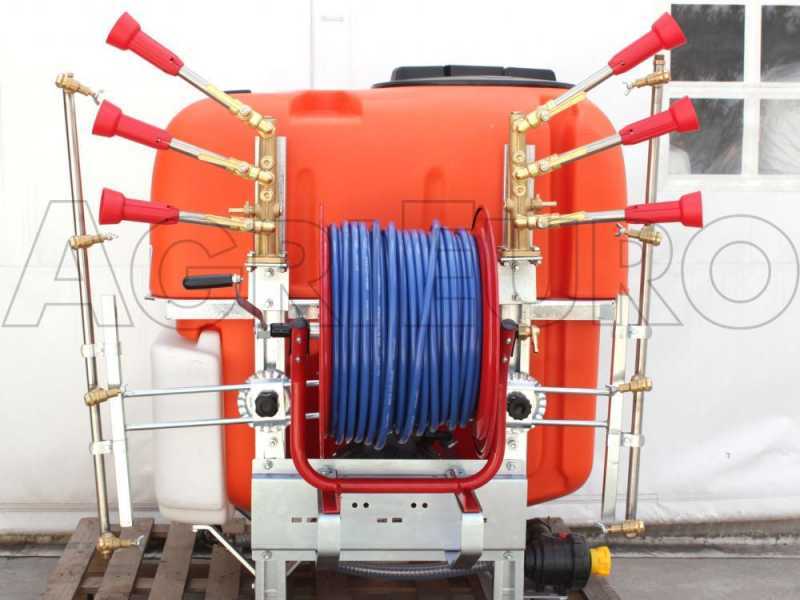

Tank Accessories Sold Separately

Here are some accessories that can be mounted on these tanks.

Here are some examples of single mounting of accessories:

Mechanical inter-row 2-nozzle weeding boom with medium cover
Steel hose reel with 100 m blue netted high-pressure hose (25 bar) and brass lever lance It is also possible to pair the "mitra" lance or the spray gun for tall trees with the steel hose reel.
Stainless steel spray guns with 4+4 brass butterfly nozzles
Spray guns
Stainless steel spray booms with 4+4 brass butterfly nozzles directly mounted on the accessory bar.

Many customization options:

Steel hose reel with 100 m blue netted high-pressure hose (25 bar) and spray guns
Steel hose reel with 100 m blue netted high-pressure hose (25 bar) and stainless steel spray booms with 4+4 brass nozzles
Pair of stainless steel spray booms with 4+4 brass butterfly nozzles and spray guns
There is enough space in the bars to mount all the accessories available, so they are always handy

All the accessories are available in the RELATED PRODUCTS section.

Free items & Standard equipment

Free Items Included

Large metal filter

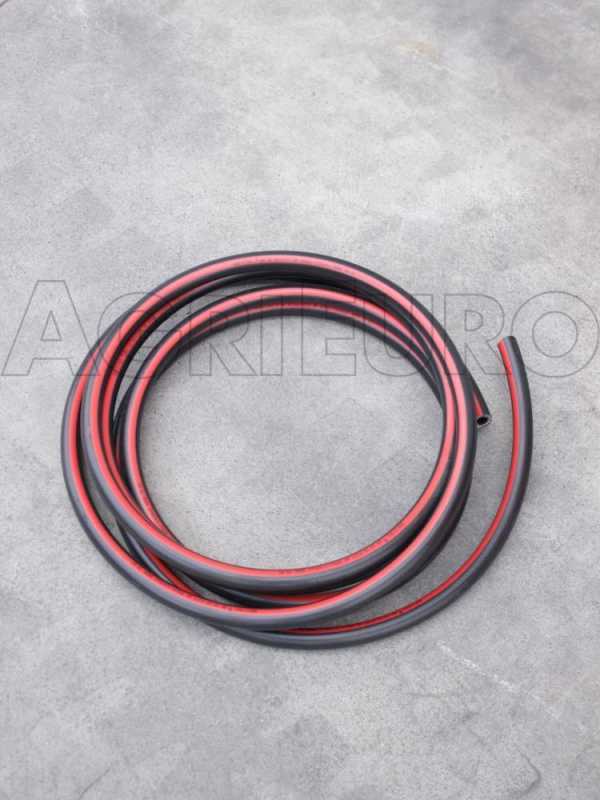

5 m rubber hose, long enough to connect any accessory that might be purchased in addition (hose reels, bars, spray guns, etc.). It connects the pressure regulation unit outlets to the tools; it can be divided into several parts according to the number of tools you need to connect.

Accessories: black fitting to be applied on the lower external filter to activate the self-filling function + various fittings for the pressure regulation unit + valve for the hand washing tank.
