HOME Spraying treatments and weeding – Tractor-mounted agricultural machines Tractor-mounted Sprayers Mounted Sprayers for Irrigation Tornado TO100/252

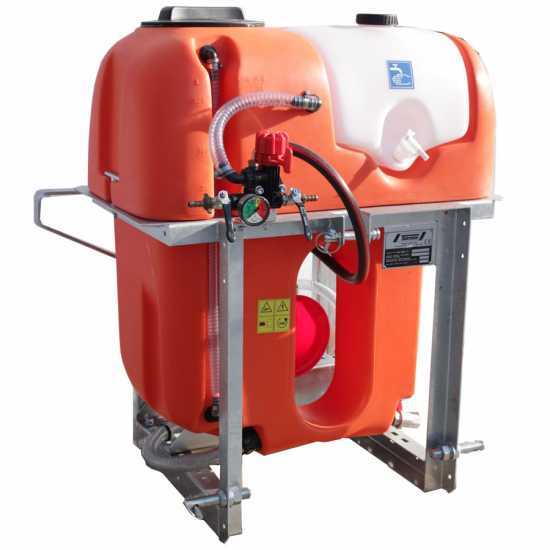

Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying

Semi-Pro
Questions & Answers (5)
ID: 3464

EAN: 9993089176975

MPN: TO100/252

Tornado
Catalog Tornado
8,1/10
After-sales assistance & Spare parts
41Pictures
2Customer pics
Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying
Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying
Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying
Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying
Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying
Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying
+100 sold
Tank capacity
100 l
Pressure regulator
Yes
Pump brand
Annovi&Reverberi
Flow rate
24.6 L/min
Max. operating pressure
20 bar
Tool boom
In steel - universal connection
Hand washing tank
Yes
Tractor power
From 20 HP
Manufacturing country
Italy
Product Features
Model:
TO100/252
Tractor power:
From 20 HP
Type:
For spraying treatments
Operating mode:
tractor mounted
Frame type:
Hot-dip galvanised steel
Flow rate:
24.6 L/min
Max. operating pressure:
20 bar
Tank capacity:
100 l
Tank capacity:
100 L
Manufacturing country:
Italy
Pump data
Pump brand:
Annovi & Reverberi
Pump brand:
Annovi&Reverberi
Model:
APS 252
Pump type:
two membranes
Flow rate:
20 lt/min
Operating pressure:
24,6 bar
Pressure regulator:
Yes
No. of cylinder heads:
2
Manufacturing country:
Italy
Equipment
Equipment:
Optional accessories
Tool boom:
In steel - universal connection
Distributor:
Standard
Hand washing tank:
Yes
Removable cartridge filter:
Yes
Free gifts/extra features
High-pressure hose for spray gun:
5 mt.
Kit for bracket assembly:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
700 x 700 x 1000 mm
Net weight:
90 Kg
Packaging:
Thermoplastic packaging
Gross weight (packaging included) :
90 Kg
Assembly time:
5 minutes
Prompt Delivery
7 items in stock
Free Shipping
Estimated delivery: 14/02/2025 - 18/02/2025
Free returns (up to 30 days after receipt) *
€ 1.138,95
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
You're viewing:
Customers also viewed:
Description

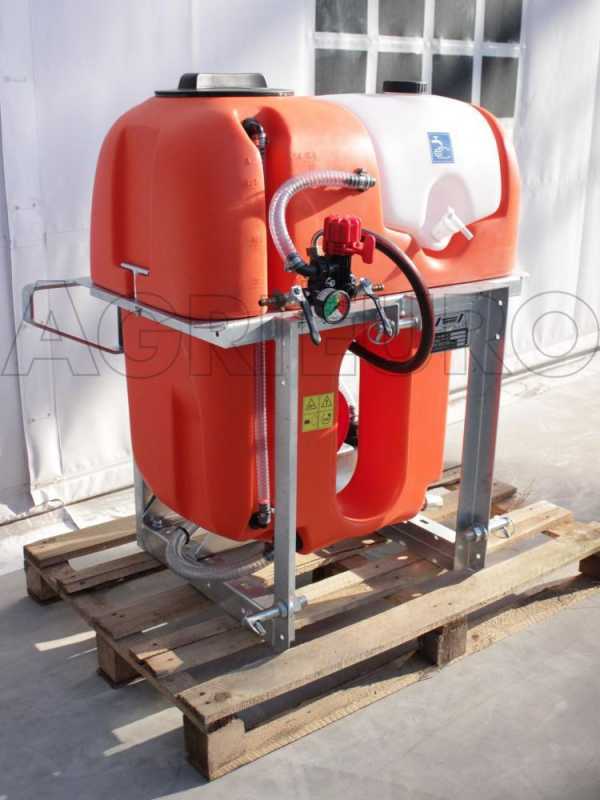

TORNADO Mounted Sprayer for Irrigation - Toscana TO100/252

Mounted sprayer for irrigation for medium and large crops.

Polyethylene full-emptying tank, with a capacity of 100

HEAVY PROFILE hot galvanised steel frame

Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying
Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying

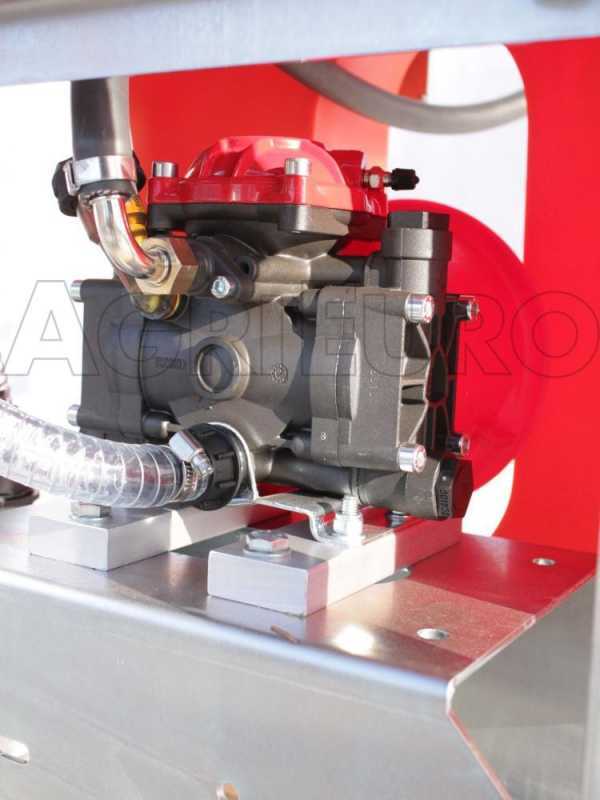

Annovi e Reverberi AR 252 Pump

For spraying treatments in medium and large crops.

The parts directly touching the liquid are made of anodized aluminium, resistant to corrosion.

Two-membrane configuration.

Flow rate: 24.6 l/min
Pressure: 25 bar

Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying
Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying

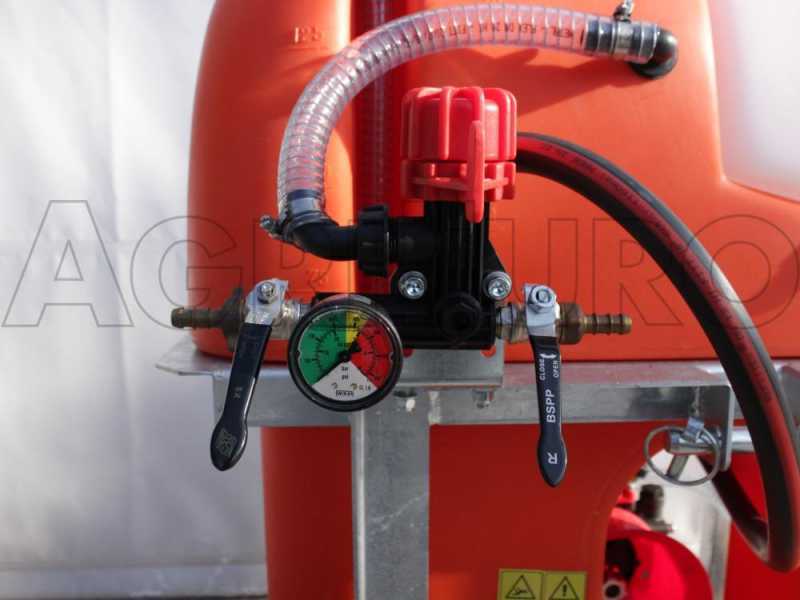

Pressure Regulation Unit

This consists of 2 outputs all available, each fitted with a tap, usable for the most varied uses.

Generally the two horizontal outputs are used to connect, for example, a pair of spray guns for orchards / groves, or of stainless steel bars for vineyard, etc ...

Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying
Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying

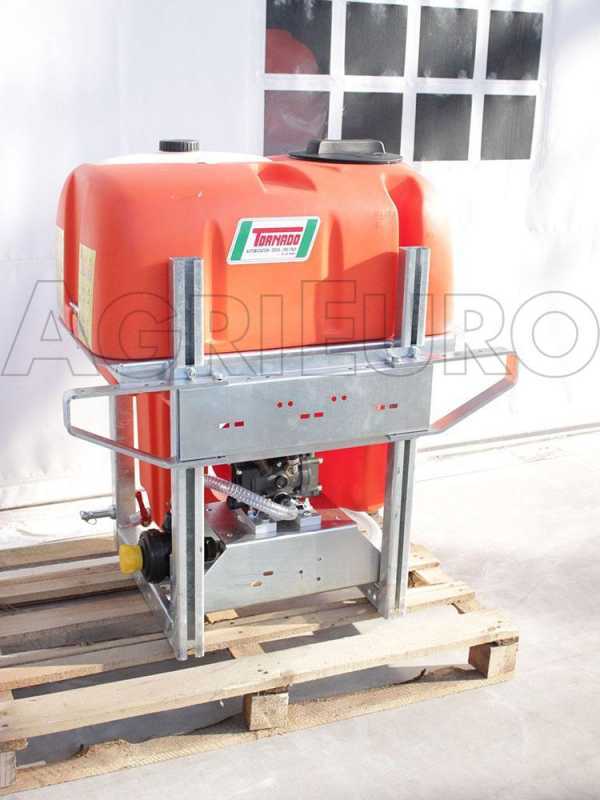

Galvanised Steel Frame

HEAVY PROFILE hot galvanised steel frame + three-point tractor linkage complete with pins.

This spraying tank is equipped with two special vertical bars specifically designed to mount any spraying device on the market, also allowing height adjustment in the desired position.

The universal multi-tool plate is supplied with this tank.

It is equipped with two supports to house any tool on the market. These can also be configured in several positions, for maximum compatibility with the tools available.

There are also many holes to house the tools, so you do not have to make new ones.

For even better versatility of the plate, you can adjust its height by loosening the bolts and sliding it on the appropriate bars.

Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying
Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying

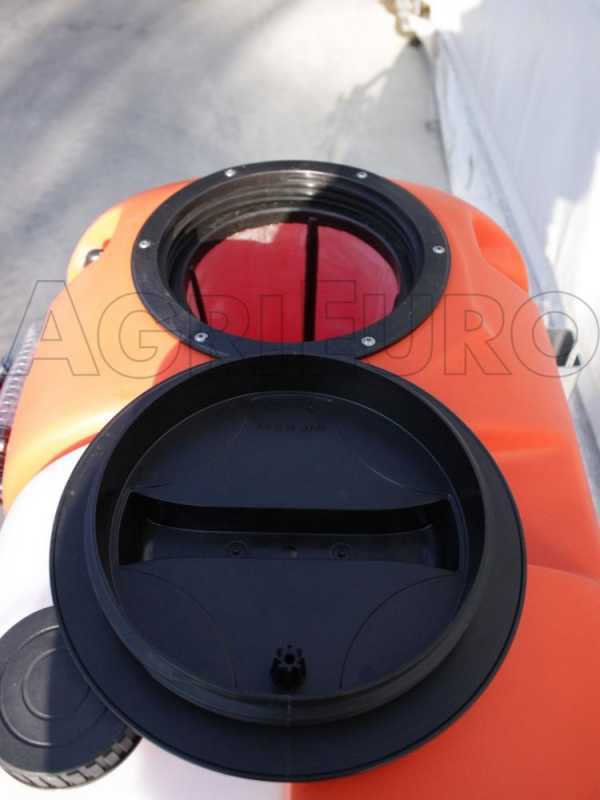

General Features

Polyethylene full-emptying tank, capacity (L) 100.

Additional tank for hand washing

Focus on the external level with graduated scale.

External suction filter equipped with self-filling system (the hose to fill the tank must be purchased separately, you can find it in the related accessories section).

Valve for complete tank emptying.

Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying
Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying

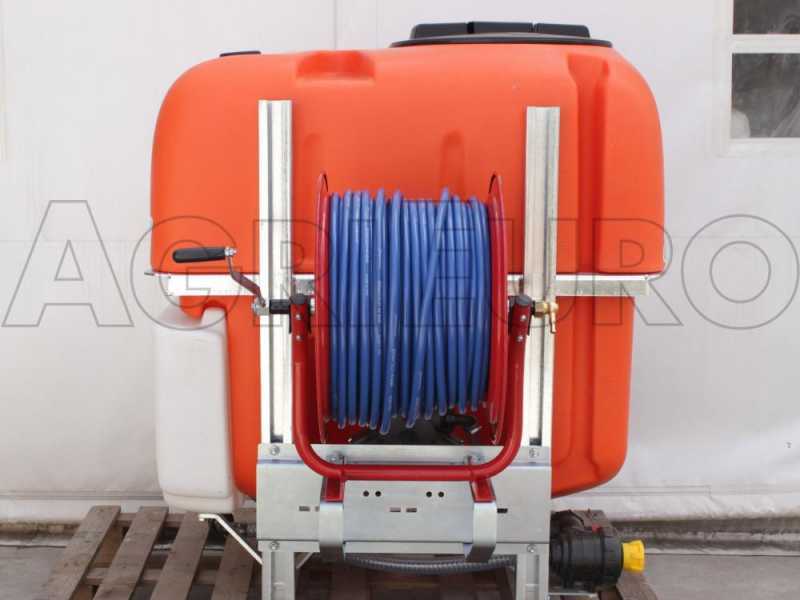

Tank Accessories Sold Separately

Here are some accessories that can be mounted on these tanks.

Here are some examples of single mounting of accessories:

  • Mechanical inter-row 2-nozzle weeding boom with medium cover
  • Steel hose reel with 100 m blue netted high-pressure hose (25 bar) and brass lever lance It is also possible to pair the "mitra" lance or the spray gun for tall trees with the steel hose reel.
  • Stainless steel spray guns with 4+4 brass butterfly nozzles
  • Spray guns
  • Stainless steel spray booms with 4+4 brass butterfly nozzles directly mounted on the accessory bar.

Many customization options:

  • Steel hose reel with 100 m blue netted high-pressure hose (25 bar) and spray guns
  • Steel hose reel with 100 m blue netted high-pressure hose (25 bar) and stainless steel spray booms with 4+4 brass nozzles
  • Pair of stainless steel spray booms with 4+4 brass butterfly nozzles and spray guns
  • There is enough space in the bars to mount all the accessories available, so they are always handy

All the accessories are available in the RELATED PRODUCTS section.

Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying
Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying
Free items & Standard equipment

Free Items Included

Large metal filter

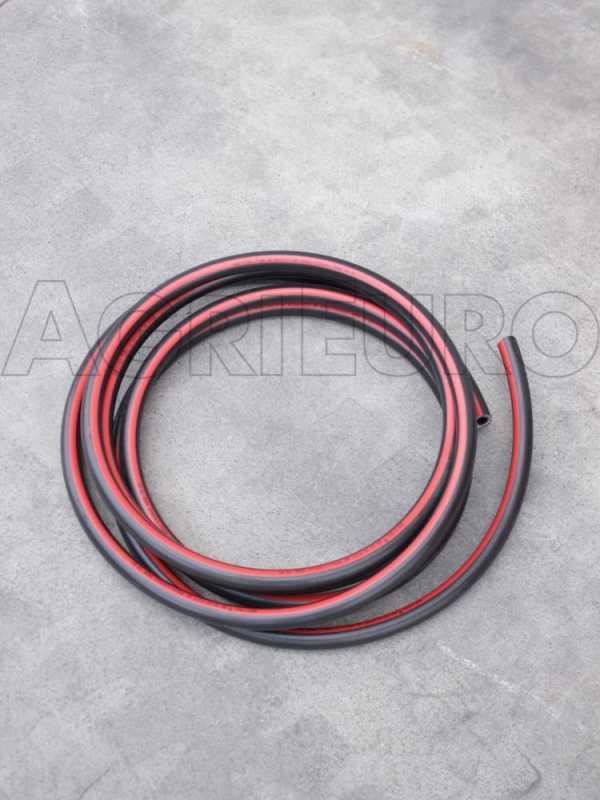

5 m rubber hose, long enough to connect any additional accessory (hose reels, bars, spray guns, etc.). It connects the pressure regulation unit outlets to the tools; it can be divided into several parts according to the number of tools you need to connect.

Accessories: black fitting to be applied on the lower external filter to activate the self-filling function + various fittings for the pressure regulation unit + valve for the hand washing tank.

Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying
Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying Tornado TOSCANA TO100/252 - Tractor-mounted spray unit - 100 litres - for spraying
