Name: Tracked Barrow Blackstone TB-PRO 5500 DLT-Hydro - Dumper hydraulic barrow 500 Kg
Brand: BlackStone
SKU: K601548
Price: 4037.61 EUR
Availability: OutOfStock
Rating: 4.14 (7 reviews)

Description

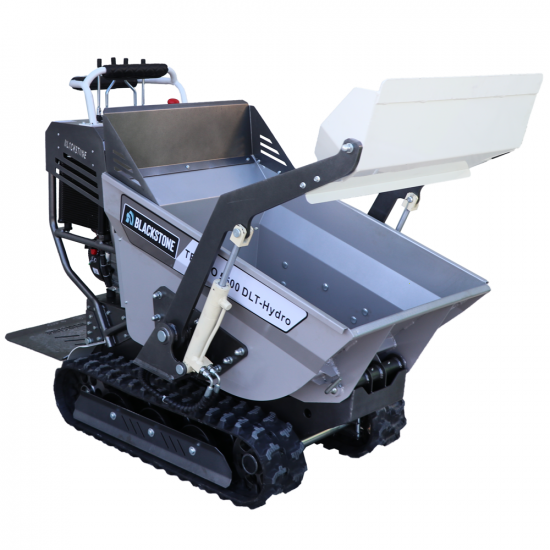

Blackstone TB-PRO 5500 DLT-Hydro Tracked Power Barrow

The tracked wheelbarrow is equipped with an hydraulic system for lifting the dumper barrow with a capacity of 500Kg and by loading shovel. Thanks to its tracks and to the powerful Blackstone engine this wheelbarrow is able to carry loads of 500 Kg also on slops, thus being an indispensable tool for each type of transport.

The controls are simple and intuitive, equipped with levers for the management of the barrow and of the blade, for the management of tracks and also separately for the management of the forward speed.

The hydraulic tilting of the body of which this wheelbarrow is equipped with, facilitates at the maximum each working stage, eliminating the effort to raise the tipping a load time.

The machine is supplied by the manufacturer with transmission oil level. Anyway, oil levels must ALWAYS be checked before operating the unit as specified in the instruction and maintenance manual.

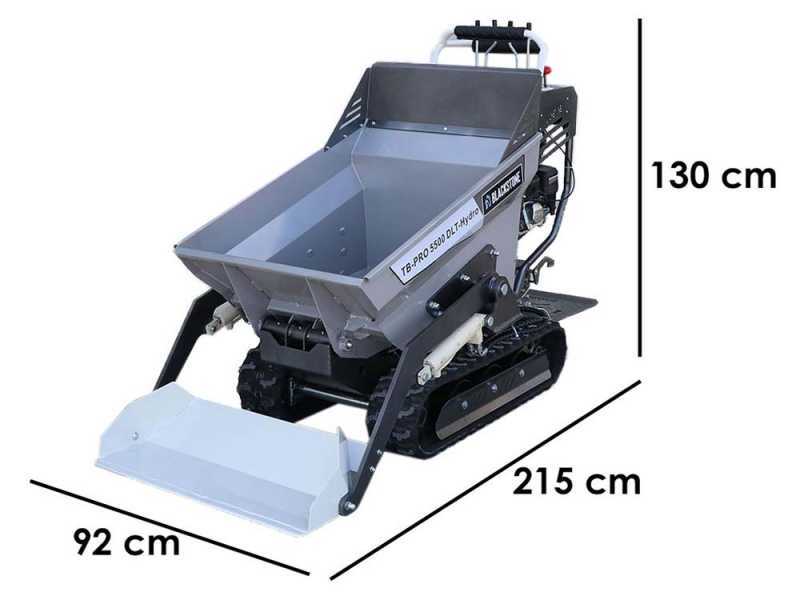

Tracked Barrow Blackstone TB-PRO 5500 DLT-Hydro - Dumper hydraulic barrow 500 Kg

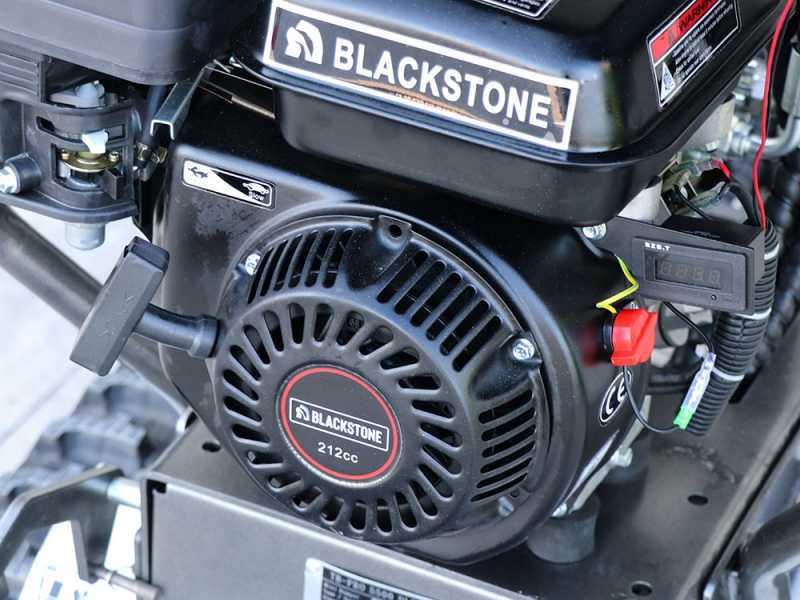

Blackstone Engine 5.6 HP

The Blackstone engine is suitable for works where a great power is required obtained thanks to the high displacement of 212 cc

Features:

Engine type

Single-cylinder 4-stroke - OHV

Cylinder type:

Cast Iron

Cubic Capacity:

212 cm³

Fuel:

Petrol

Power output

4.2 kW

Four-stroke petrol engine belonging to the latest technology with overhead valve system "OHV” and automatic decompresser ignition .

WARNING

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting.

Focus on the rope for the recoil start

Radiator

Display showing the usage time

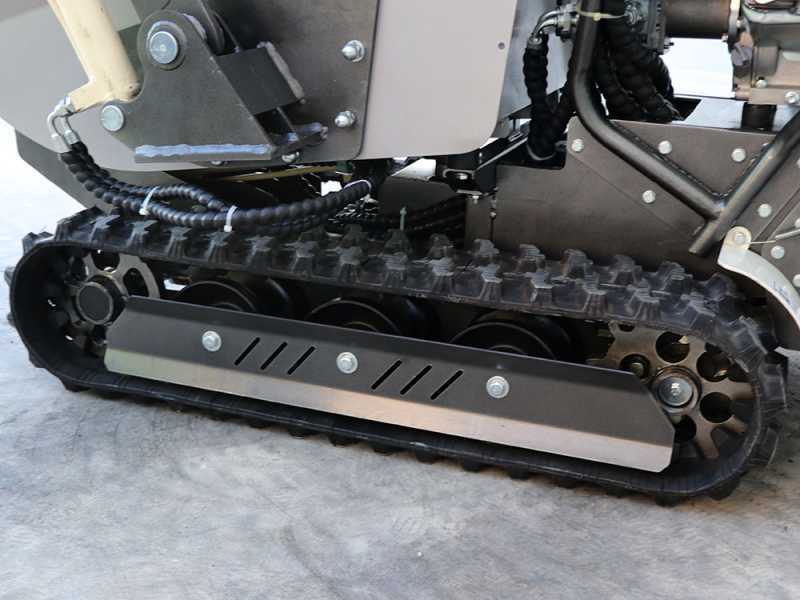

Tracks and tread pattern

Track structure: sturdy and over-sized. Both the height and the length is greater than the average of the wheelbarrows on the market of the same size. The drive wheel is made of cast iron / steel. The perfect front / rear balance ensures the distribution of loads and a perfect adherence to the ground. The rollers are self-cleaning.

The track at rear angle greater pointy "tank type" allowing him to climb easily even on stairs or other types of obstacles.

Track Width: 190 mm

Total track length 105 cm

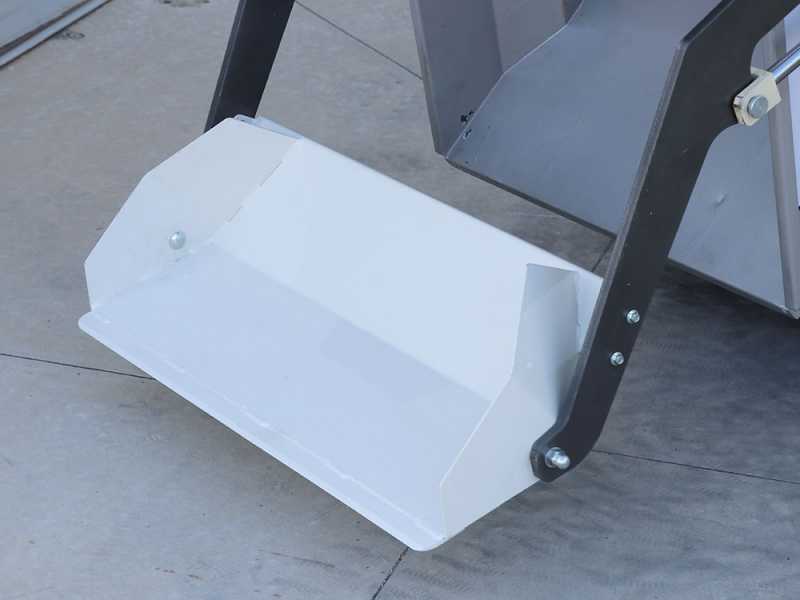

Loading bucket

The wheelbarrow also has a loading shovel that allows to perform operations in a very simple and effective way, especially without any effort. The shift is adjusted by the hydraulic system.

For the movements of the blade, it will suffice to use only the specific lever on the control panel.

Shovel thickness: 4 mm

The blade makes an angle of 100°.

Dumper skip with tipping system

Body in high-strength steel, is reinforced with tubular cross members in the lower part, which make it suitable for any load or stress. The loading platform is at the minimum distance from the ground to facilitate the operations of loading / unloading

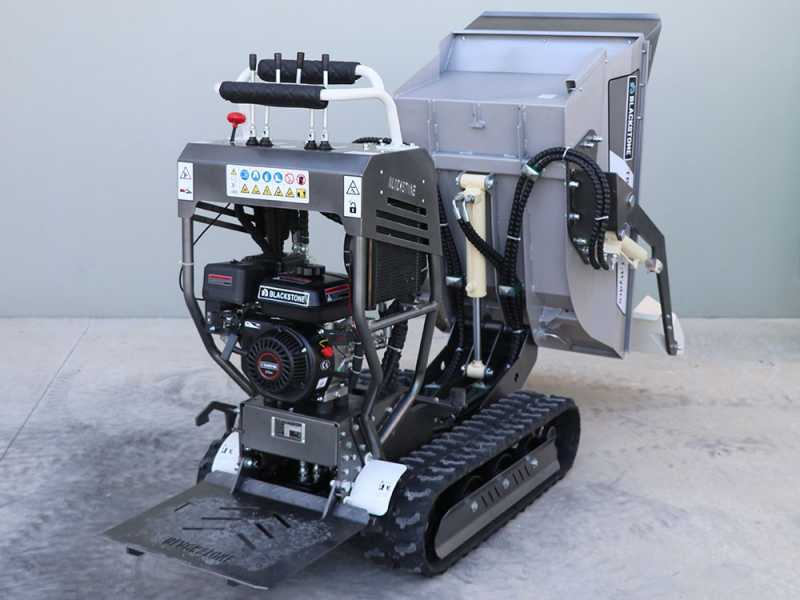

Barrow in the overturning phase

Barrow dimensions 104x72x77 cm

The capacity of the barrow is 500 Kg

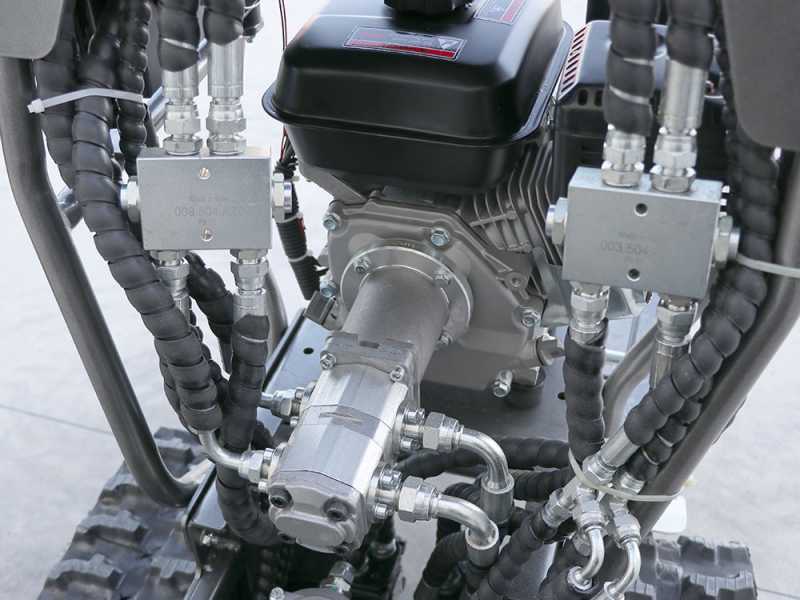

Hydraulic lifting system

Powerful hydraulic circuit that allows the lifting of both the barrow and the shovel through the use of the levers present on the control panel.

It is characterized by:

Hydraulic pump
Distributor equipped with practical actuation lever of the pump positioned under the control panel
Sturdy hydraulic cylinder fitted with a blocking valve that ensures the blocking of the barrow in the case of sudden pressure loss

Maximum tilting angle 80°

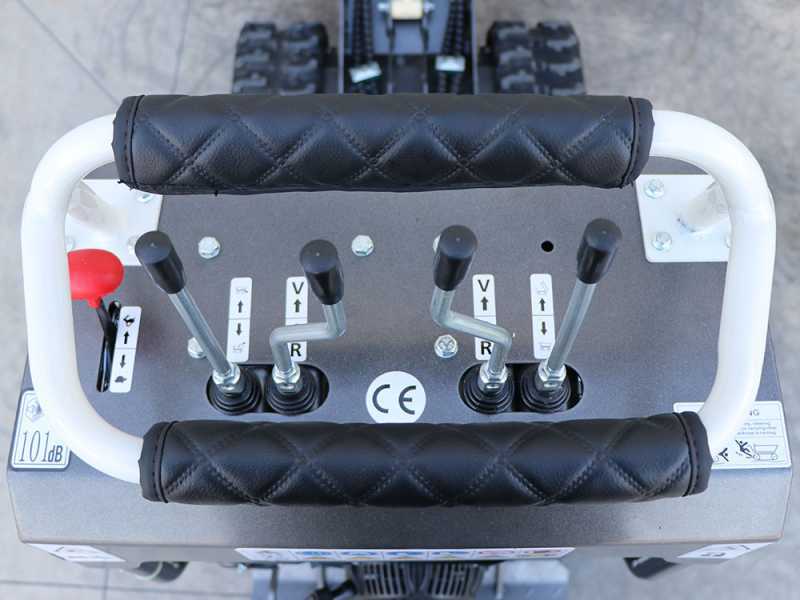

Controls and additional details

The controls are simple and intuitive, there is also a scheme to show how to properly use them.

The side levers are responsible for the barrow and shovel / bucket adjustment.

In the left part there is the lever for adjusting the speed

The two central levers are intended for managing the controls and the wheelbarrow forward motion.

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Free items & Extra features

The wheelbarrow is provided in its original packaging on a pallet.

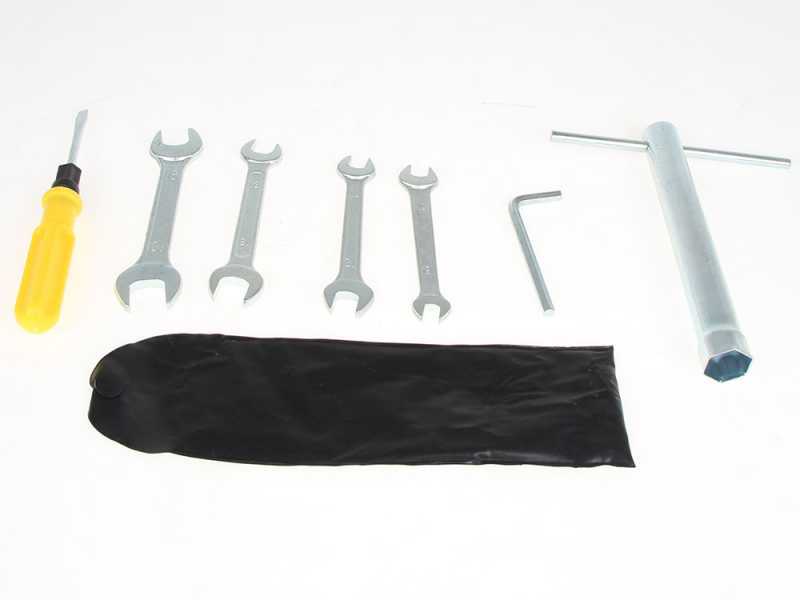

Instructions manual, certifications and set of wrenches for adjusting and assembly

FREE ITEMS:
Two oil bottles for 4-stroke engines

Assembly tools kit
