Tracked Power Barrow Blackstone TB-PRO 5500 FT-Lift - Pantograph lift-up body

The tracked wheelbarrow Blackstone TB-PRO 5500 FT-Lift is equipped with a pantograph tipping body, which allows the Operator to raise the body of the power barrow up to 1.2 m from the ground. The barrow can be also extended by completely lowering the side panels using the hooks that are placed on the side, thus reaching a length of 136 cm and a width of 177 cm. The side rails can be adjusted according to the Operator’s needs.

Thanks to its tracks and to the powerful Blackstone engine, this wheelbarrow is able to carry loads of 500 Kg, thus being an indispensable tool for each type of transport. The controls are simple and intuitive, equipped with levers, designed for controlling the barrow, tracks (even individually) and the forward speed.

Powered by Blackstone engine, which capable of emitting a power of 5.6 HP (4.2 kW) and has a displacement of 212 cc.

The machine is supplied by the manufacturer with transmission oil level. Anyway, oil levels must ALWAYS be checked before operating the unit as specified in the instruction and maintenance manual.

TheBlackstone engine is suitable for works where a great power is required obtained thanks to the high displacement of 212 cc

Features:

Four-stroke petrol engine belonging to the latest technology with overhead valve system "OHV” and automatic decompresser ignition .

WARNING

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting.

Focus on the rope for the recoil start

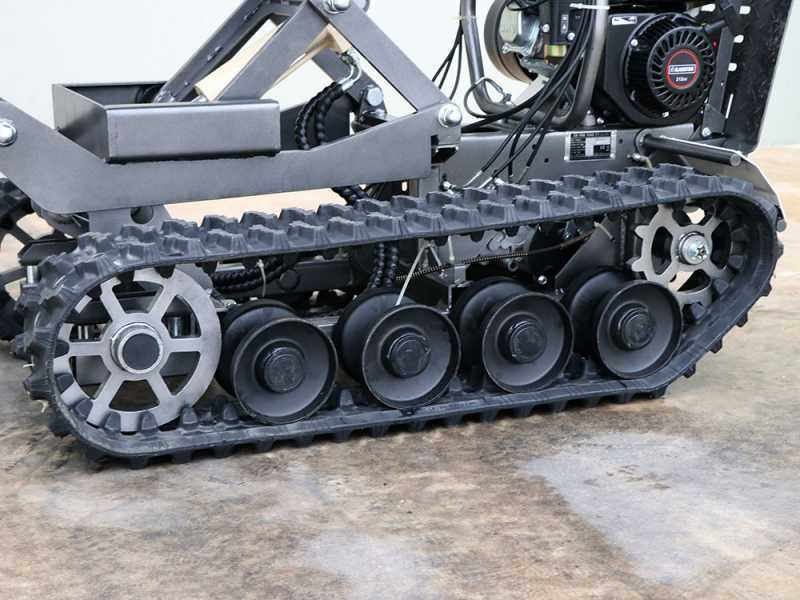

Track structure: sturdy and over-sized. Both the height and the length is greater than the average of the wheelbarrows on the market of the same size. The drive wheel is made of cast iron / steel. The perfect front / rear balance ensures the distribution of loads and a perfect adherence to the ground. The rollers are self-cleaning.

The track at rear angle greater pointy "tank type" allowing him to climb easily even on stairs or other types of obstacles.

Track Width: 180 mm

Total track length 118 cm

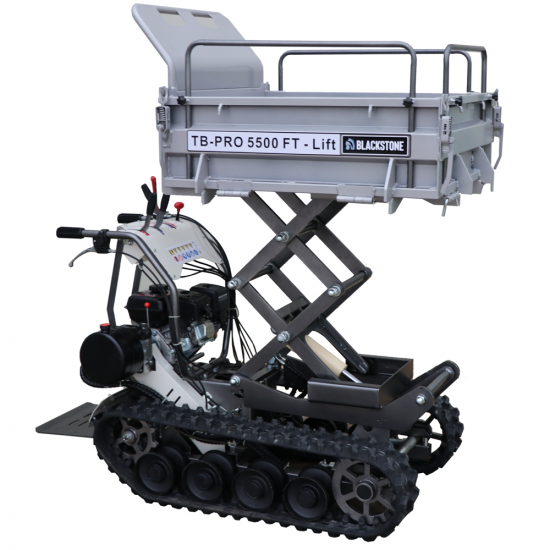

The Blackstone TB-PRO 5500 FT-Lift power barrow is equipped with a liftable double pantograph body, which allows to lift loads up to 500 Kg, allowing each user to carry out even the most demanding jobs easily.

It will be possible to raise and lower the body of the wheelbarrow to allow transporting large loads, even positioned far from the ground.

Body height from the ground: 120 cm

Maximum overall height of the power barrow: 176 cm

Height reached by the side panels (adjusted to the minimum) with high pantograph: 145 cm

THE SKIP MAY ONLY BE USED FOR LIFTING LOADS.

CAUTION: THE LOADING PLATFORM CAN ONLY BE USED WHILE THE ENGINE IS RUNNING. THIS IS TO ENSURE CONSTANT PRESSURE TO THE HYDRAULIC SYSTEM.

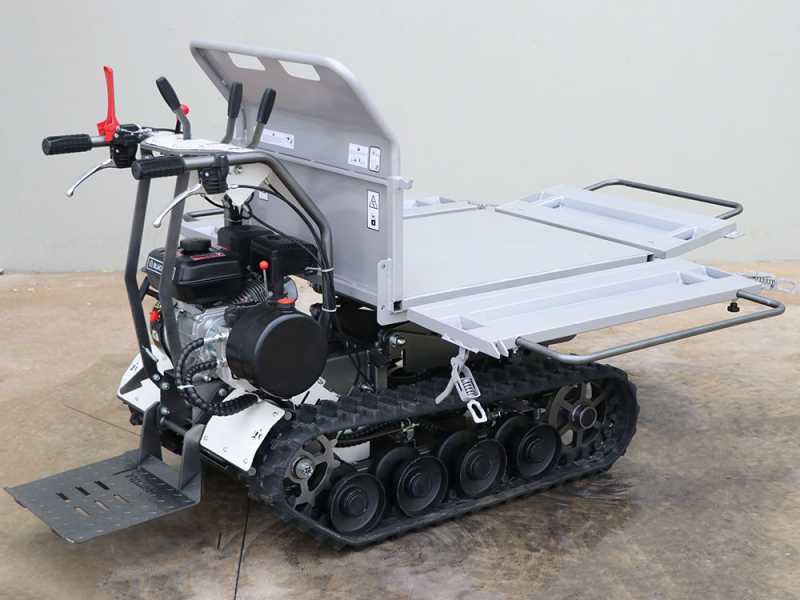

Body in high-strength steel, is reinforced with tubular cross members in the lower part, which make it suitable for any load or stress. The loading surface can be extended using the special hooks placed on the side of the panels so as to be able to carry even larger loads.

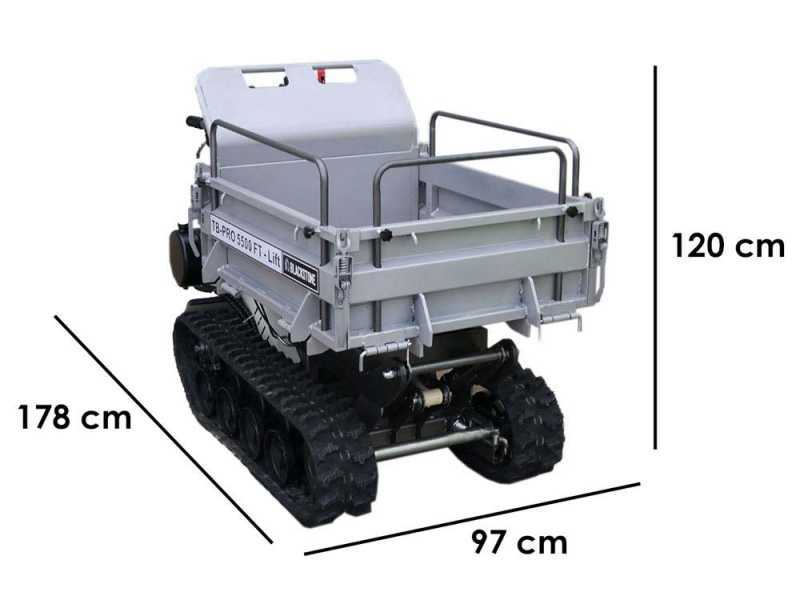

Barrow dimensions 87x74x44 cm

Extended barrow dimensions: 136x177

The capacity of the barrow is 500 Kg

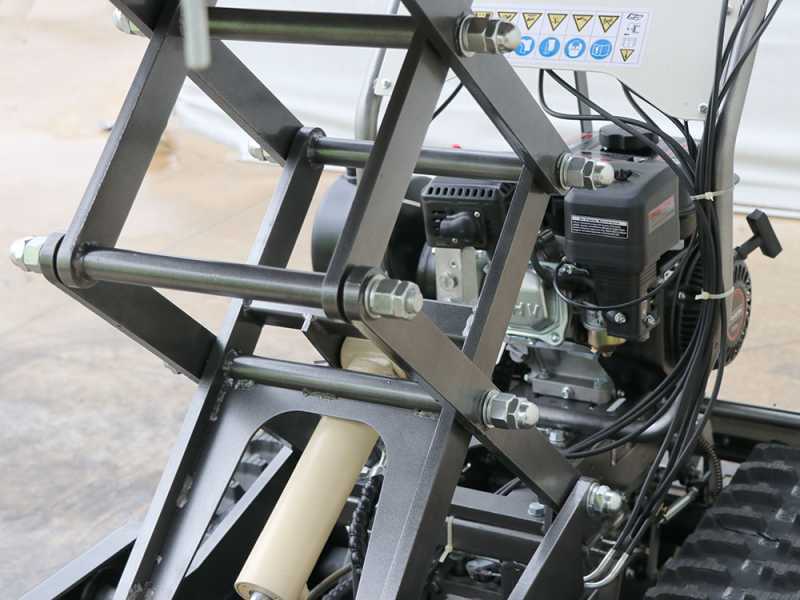

Powerful hydraulic circuit that allows the lifting of both the barrow and the shovel through the use of the levers present on the control panel.

It is characterized by:

• Hydraulic pump
• Distributor equipped with practical actuation lever of the pump positioned under the control panel
• Sturdy hydraulic cylinder fitted with a blocking valve that ensures the blocking of the barrow in the case of sudden pressure loss

Focus on the hydraulic oil tank

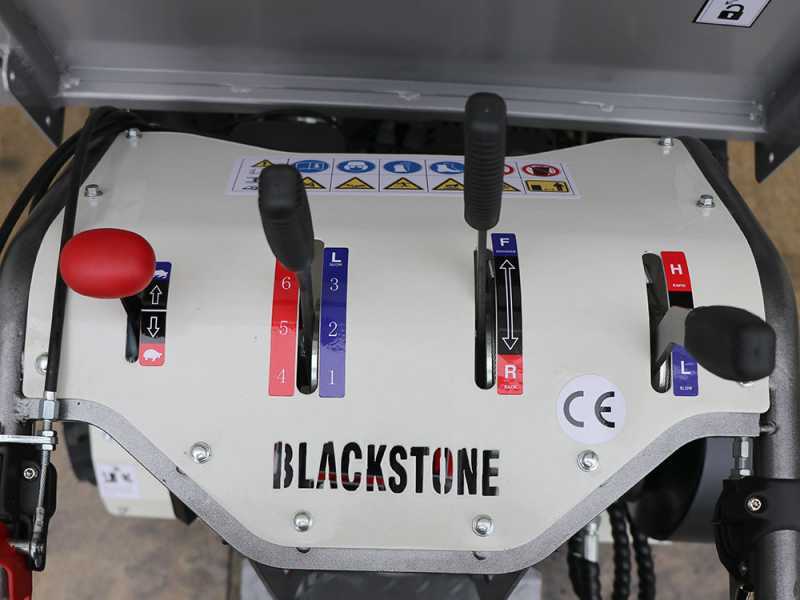

The controls are simple and intuitive, there is also a scheme to show how to properly use them.

The red clutch lever placed on the left side of the power barrow

The two lower levers are intended for managing the steering

Throttle lever

Gear reducer. The gear reducer helps the wheelbarrow to climb uneven slopes, thus slowing down the machine and improving its grip on the ground.

Power barrow gearbox with 6 forward and 6 reverse gears

Lever to set the direction of motion of the wheelbarrow

Lever for lifting the barrow
