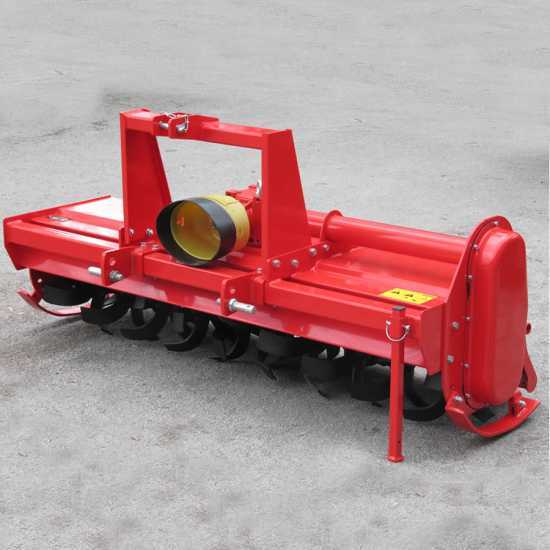

Medium series rotary tiller AgriEuro UR 186 + professional Cardan shaft with clutch - Counterclockwise PTO (left-hand rotation)

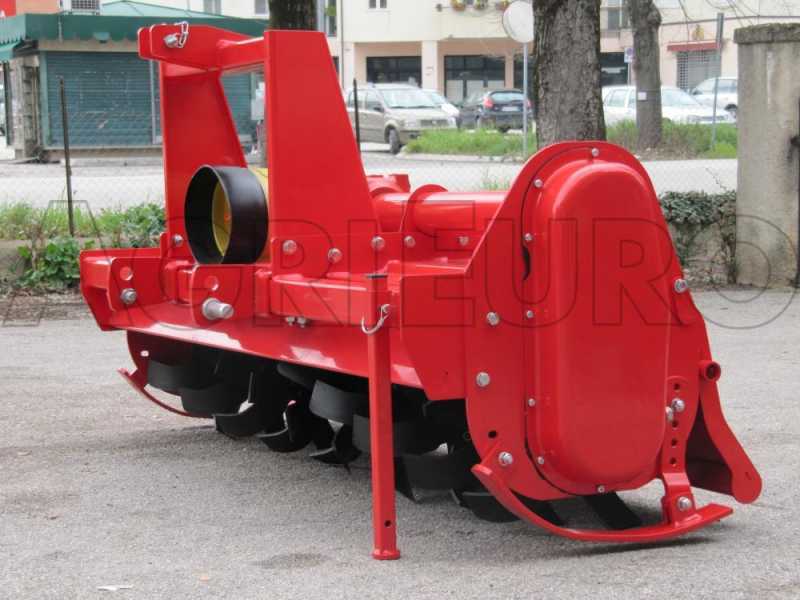

Tractor rotary tiller UR 186

CAUTION: THE MACHINE IS DESIGNED ONLY FOR THOSE TRACTORS HAVING A COUNTERWISE PTO (that rotates left).

Medium series
Useful working width: 186 cm

The new rotary tiller of the UR series is a medium heaviness product, sturdy and semi-professional, studied for the medium and small tractors. It is well structured, light and versatile.

ATTENTION:
Sometimes the Made in China rotary tillers are of unmarked origin on web. We suggest you to check the product’s origin before you purchase

Attention: this product is not available for prompt delivery but will be custom-made according to the order. Therefore, it is excluded from the Right of Withdrawal and the 30-day Return policy, as per Legislative Decree no. 206/2005, Article 59, paragraph 1, letter c.

Medium series rotary tiller AgriEuro UR 186 + professional Cardan shaft with clutch - Counterclockwise PTO (left-hand rotation)

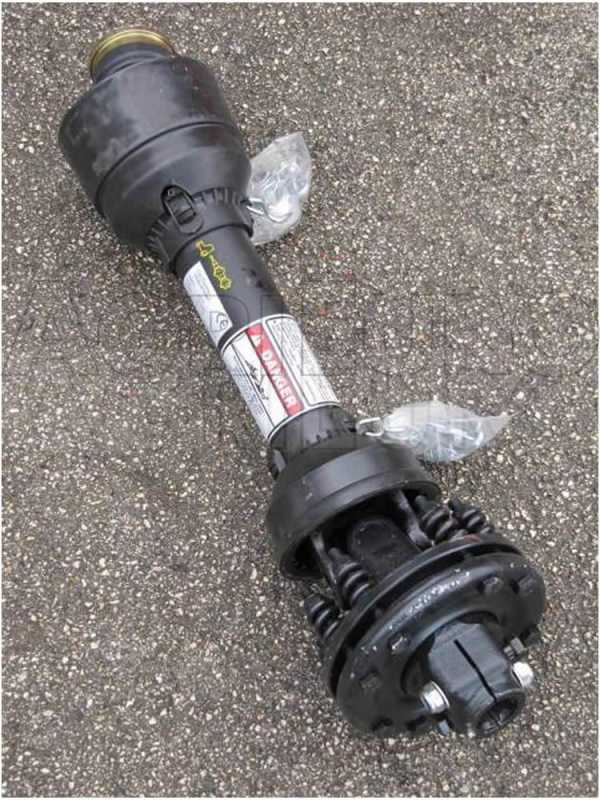

Cardan shaft of standard equipment

With the rotary tiller, for free, a professional Cardan shaft with clutch for tractor linkage (included on price).

This lengthen the rotary tiller’s life, protecting it from any inconvenience as an obstacle on the soil may be.

When the rotary tiller meets a foreign object indeed, clutch will activate to avoid recoils and damages to the rotary tiller.

Focus on the professional clutch device.

ATTENTION: this device is not commonly given with the tractor rotary tillers’ purchase as per its high price

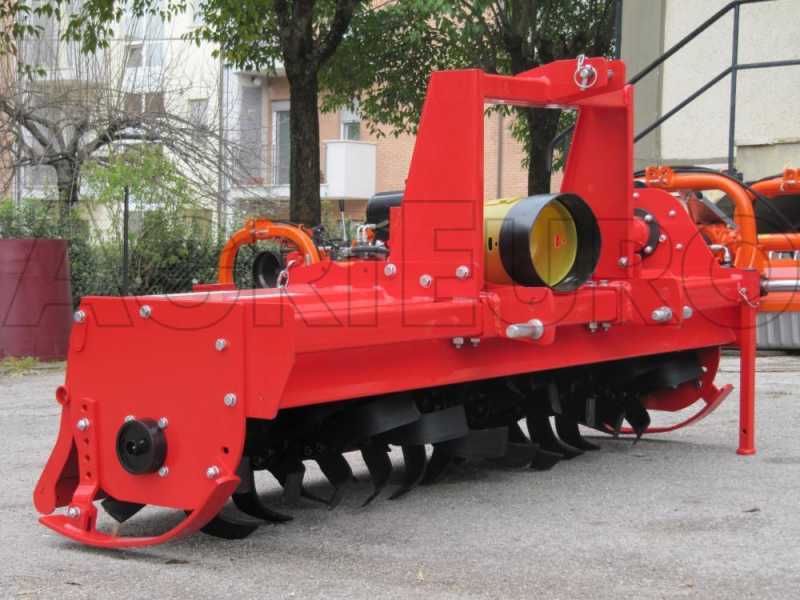

Technical features

Outer width: 201 cm

Real working width: 186 cm

Weight: 340 kg

Working height: 18 - 20 cm

Hoes for flange: 6

Total hoes: 60

Hoes blade supports: 10

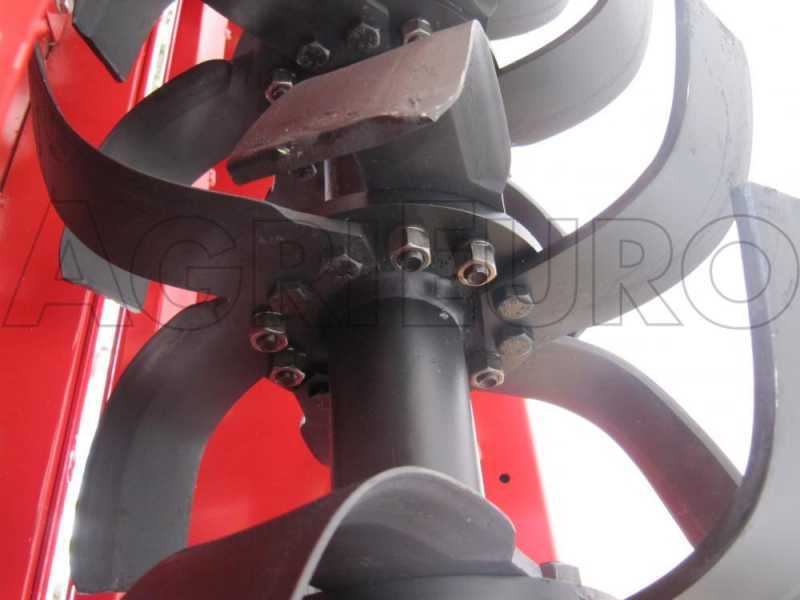

Hoes

Steel hoes: nr. 10 with 6 hoes each (60 hoes in total)
Each flange is equipped with 6 hoes (the other rotary tillers on market are provided with 4 hoes each flange)

Where are the advantages?
They are on the fine crunching of the soil while the power absorption is the same of the ones with a smaller hoes number.

ATTENTION:

All rotary tillers have to work on "clean soil", that is to say without stones and rocks of a size that could damage not only the hoes but in the worst case even the rotor, frame or several transmission components (ball bearings, oil retainers, etc.).

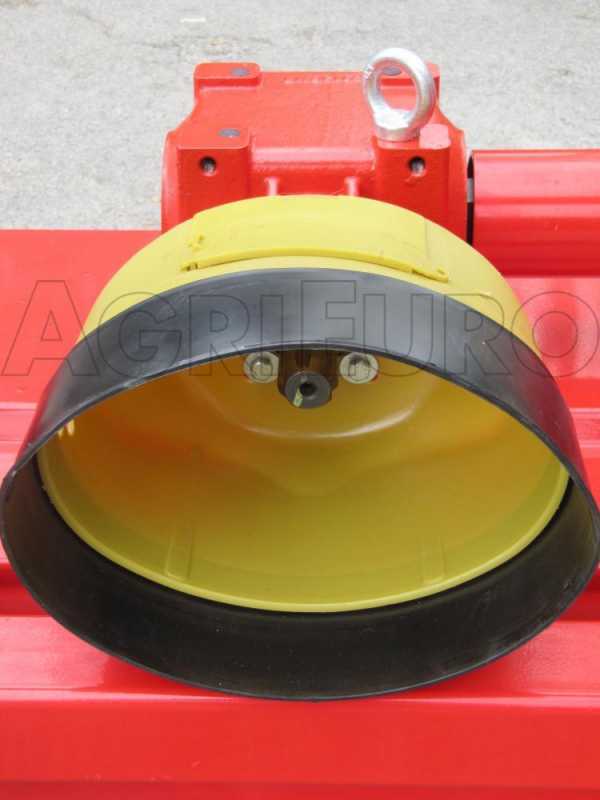

Transmission and other features

Side support and the inner professional rotor ’ s fixing bearing

Side support from the outside for the sturdiness and solidity sight

Height adjustable side skids

Movable rear hood with levelling action on the hoed ground

adjustable hood by means of proper chain

Sturdy oil bath big chain side transmission (ASA 80)

Cast iron oil bath sturdy gear box

Universal standard power take-off ( 1 3/8" Z6 )

Universal lifter linkage pins (with two section’s diameter each, adaptable to any tractor on market)

Medium series rotary tiller AgriEuro UR 186 + professional Cardan shaft with clutch - Counterclockwise PTO (left-hand rotation)

EAN: 8000001172708

MPN: UR186HFSX
