VESCO GALAXY XR14T.1 - Harvester with Lithium-ion Battery - 210-320 cm Telescopic Pole - 14.4V 6Ah

Add a question
ID: K609146

EAN: 8033986145306

MPN: XR14T.1

VESCO GALAXY XR14T.1 - Harvester with Lithium-ion Battery - 210-320 cm Telescopic Pole - 14.4V 6Ah
Special offer
FREE
Multi-purpose Lithium spray grease - 400 mlMulti-purpose Lithium spray grease - 400 ml
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Noise-canceling earmuffsNoise-canceling earmuffs
Head material
Aluminium
Motion
Double side
Max. prongs opening
48 cm
Pole material
Aluminium
Telescopic pole
Max. length
320 cm
Motor type
Induction
Voltage
14.4 V
Motor speed levels
4
Motor type
Battery-powered
Battery type
Li-Ion
Integrated battery
No. of batteries
1
Battery Amperes
6 Ah
Carbon prongs
Manufacturing country
Italy
Product Features
Model:
XR14T.1
Use:
For olive harvester only
Power supply:
Lithium battery
Head material:
Aluminium
Type:
Li-ion battery-powered
Motor position:
Up - on the head
Motion:
Double side
Integrated battery:
"Wave" prongs:
No
No. of prongs:
4+4
Prongs material:
Carbon
Carbon prongs:
Max. prongs opening:
48 cm
Min. length:
210 cm
Max. length:
320 cm
Pole material:
Aluminium
Adjustable head:
no
Removable harvesting head for direct use:
No
Pole type:
Telescopic
Manufacturing country:
Italy
Motor data
Motor position:
On the head
Motor type:
Battery-powered
Motor type :
Induction
Battery type:
Li-Ion
Motor speed levels:
4
Power supply:
Lithium-ion battery-powered
Voltage:
14.4 V
Battery Amperes:
6 Ah
No. of batteries:
1
Working autonomy:
6 h
Manufacturing country:
Italy
Equipment
Extension pole :
210-320 cm
Telescopic pole:
Free gifts/extra features
Ear muffs:
yes
Tool case:
Instructions manual:
Yes
Dimensions and logistics

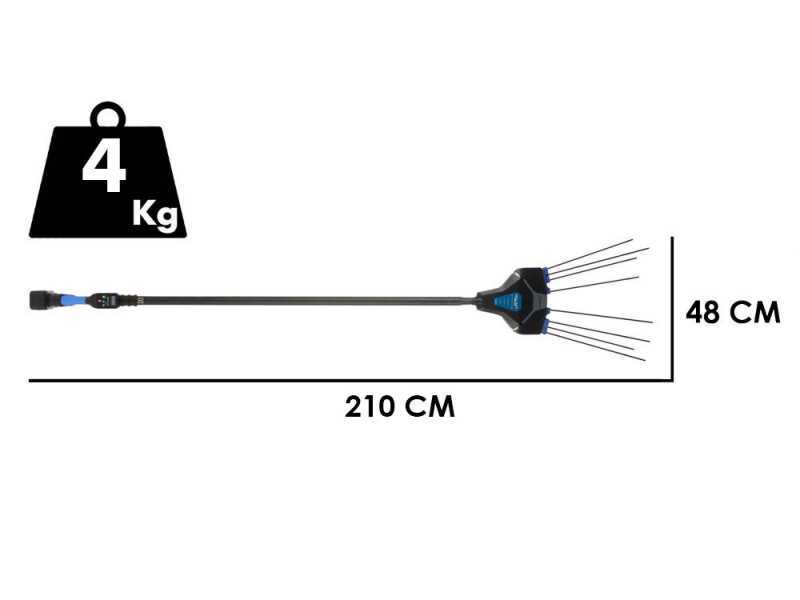

Product dimensions in cm (L x W x H):
210-320X48 cm
Net weight:
4 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
22X30X15 cm
Gross weight (packaging included) :
5.5 Kg
Assembly time:
5 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 14/04/2025 - 16/04/2025
Lowest price:
€ 1.668,56
-50 %
€ 821,59
Vat included
You're viewing:
Customers also viewed:
Description

VESCO GALAXY XR14 - Battery Harvester - Telescopic pole 210-320 cm - 14.4V 6Ah

The GALAXY XR14 Cordless harvester line was developed to meet the needs of operators, offering a cordless tool that allows greater freedom of movement when harvesting olives.

Cordless technology makes work easier, eliminating cable clutter and reducing fatigue, thanks also to the machine's optimal balance.

The GALAXY XR14 has batteries compatible with a wide range of pruning tools, ensuring versatile use.

Harvesting capacity is enhanced by the carbon tines, which provide strength and lightness, in combination with the lateral counter-movement for efficient harvesting even on the most difficult to detach olives.

The ergonomic handle with integrated display allows you to monitor the charge level and adjust the speed on four levels, allowing you to adapt the tool to the different types of olives to be harvested.

This harvester thus offers the possibility of working with precision and continuity throughout the working day.

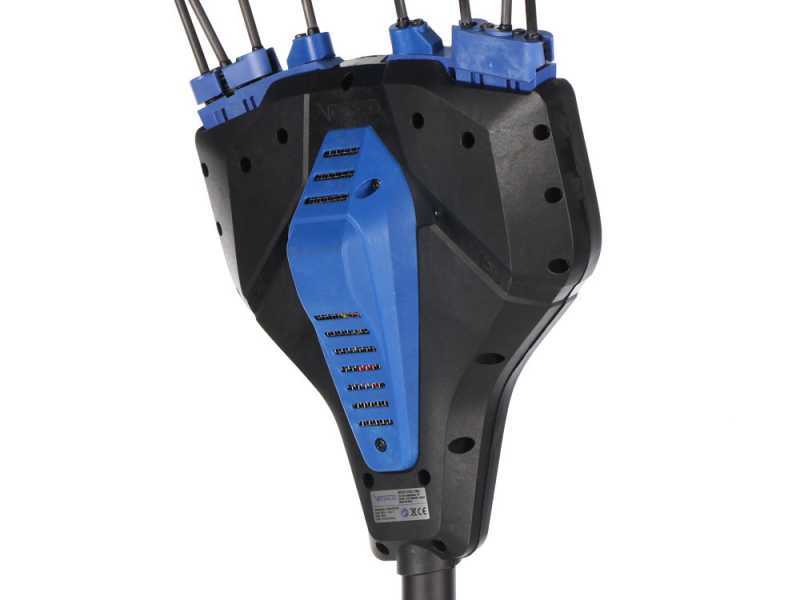

The head and the engine

The Vesco X14 harvester head is designed for high productivity thanks to the 4+4 long carbon tine configuration, which allows efficient and gentle harvesting.

The opposing lateral movement system provides a large working area, reducing operation time and covering a larger area per pass.

Featuring a tapered, lightweight design, the harvester head facilitates prolonged use, reducing operator fatigue.

The high quality carbon tines, with a length of 46 cm, guarantee strength and durability, adapting perfectly to different harvesting needs.

Equipped with a 14.4 volt brushless motor, the Vesco X14 harvester ensures high performance with low maintenance, offering a reliable and technologically advanced solution for olive harvesting.

The tool comes with 8 rods (prongs) in total.

It is recommended using them in 4+4 prong configuration for young, well-pruned plants with sparse vegetation.

It is recommended using them in 3+3 prong configuration for thicker and less pruned plants. The correct machine configuration determines its output and operatio

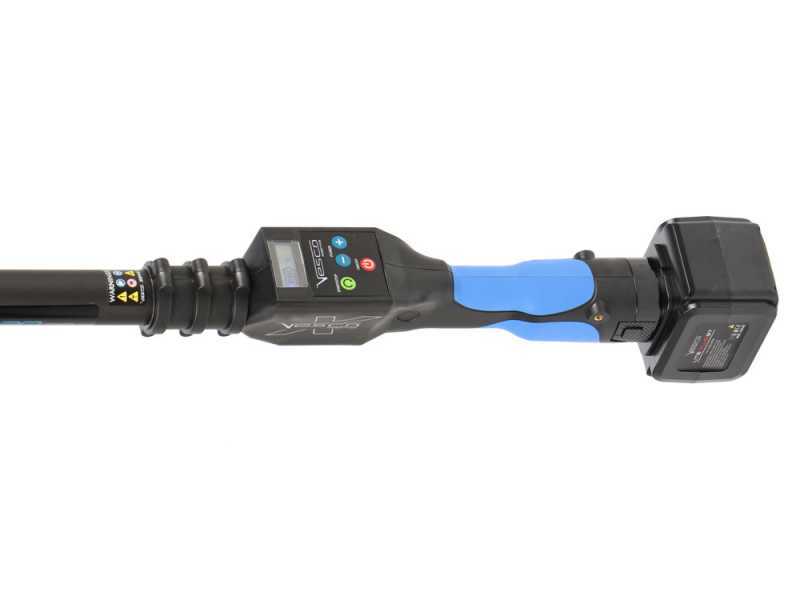

Built-in battery and handle

The handle of the Vesco X14 harvester has been designed for maximum ergonomics and ease of use.
Thanks to its two-component soft-touch design, it ensures a comfortable and secure grip, even during long working sessions.
The cordless system, with battery compatible with all pruning tools in the 14.4 range, ensures maximum versatility.
In addition, the integrated multifunctional display allows real-time monitoring of the battery charge level and easy control of the 4 available speeds, giving total control of the tool.

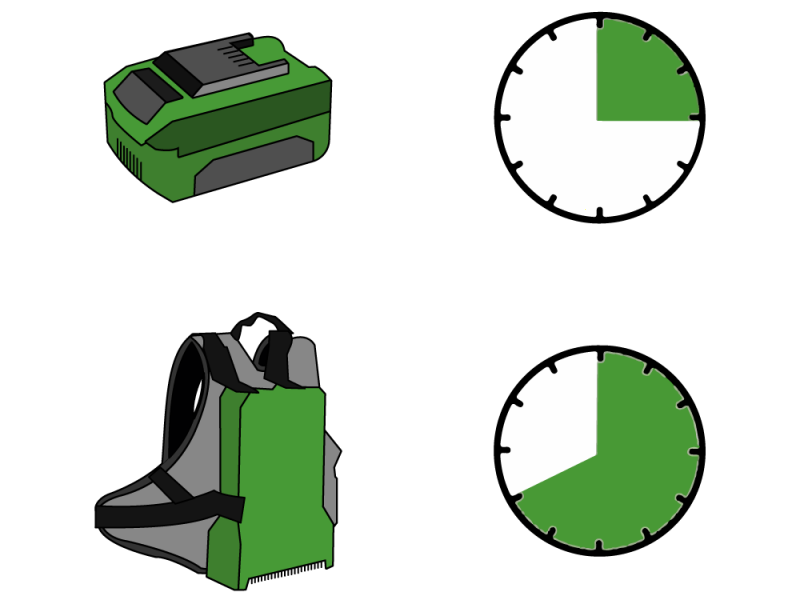

about the autonomy of lithium batteries

When using a harvester, the choice of battery depends on the practical needs of the user. The main differences between a base-mounted battery and a backpack battery concern freedom of movement and autonomy. The base-mounted battery is more manoeuvrable and lighter, but offers reduced autonomy. In contrast, the backpack provides longer working sessions, although it can be bulkier in tight spaces.
Base-mounted lithium-ion batteries offer greater freedom of movement. The lack of cumbersome cables improves agility when working between trees, making the harvester easier to manoeuvre. They are generally lighter than the backpak once, reducing operator fatigue, and make it easier to transport the device. In addition, handling is more intuitive, not requiring additional equipment such as a backpack. On the downside, however, they have a very limited autonomy and often cannot do a full day's work on their own.
On the other hand, lithium backpack batteries, while adding a certain amount of bulk, allow for greater energy capacity, extending the operational life of the harvester without the need for frequent recharging or battery changes. Their higher capacity allows long working sessions without interruption. In addition, shifting the weight of the battery to the back reduces the direct load on the arm and body, better balancing the overall weight of the equipment.
However, backpack batteries can be less ergonomic and uncomfortable in tight spaces or during quick movements between trees, and the presence of the cable can be an obstacle or obstruction during operation. Finally, the constant carrying of the backpack may cause more fatigue in the long run than an integrated solution in the product base.

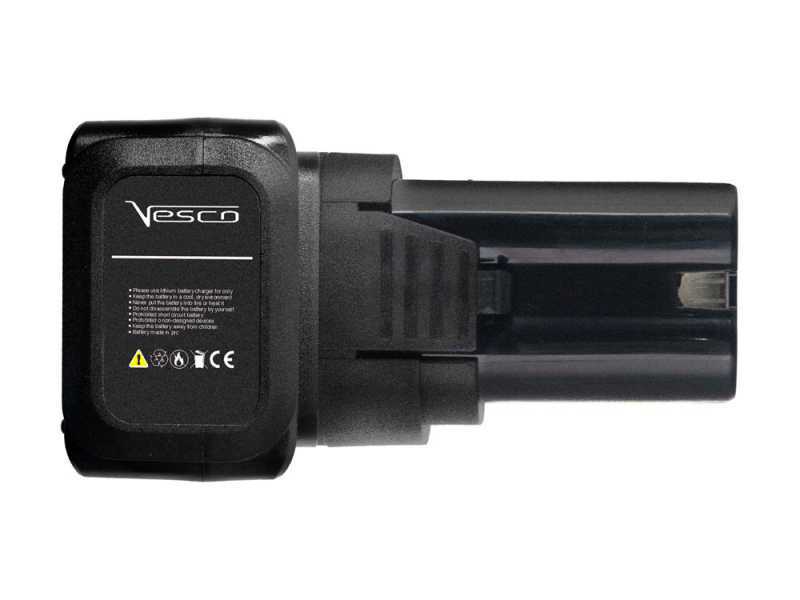

Lithium Battery Advantages

LONGER RUNTIME: up to 3 times longer than conventional nickel–cadmium batteries, reducing the need for recharging during long periods of use.
Ideal for medium to large gardens.

FULL CHARGE FOR THE ENTIRE BATTERY LIFE: the charge of the lithium-ion batteries does not fade. Unlike nickel-cadmium batteries, which power gradually decreases, lithium-ion batteries, cells maintain constant power throughout the entire cycle. There is roughly the same charge for the entire cycle without reducing the motor speed. The battery operates at full
power until it runs down.

LONGER CHARGE DURATION: Lithium batteries boast 3-4 times more charges than conventional nickel-cadmium batteries, while having longer storage periods with less charge loss. With lithium batteries, you can do up to 2,000 charge cycles!

LIGHTWEIGHT: Lithium batteries offer the best power-to-weight ratio. On average, they weigh 1/3 of nickel-cadmium batteries.

ENVIRONMENTALLY FRIENDLY: Lithium-ion battery-powered tools are recyclable and are produced without heavy metals.

NO MEMORY EFFECT: Lithium-ion batteries can be recharged at any time without a negative memory effect; they are able to offer maximum power even after hundreds of charge cycles.
A few minutes of recharging is enough to provide the power needed to complete the job.

LOW DISCHARGE RATE: Low loss of charge rate (up to 5 times lower than nickel-cadmium batteries) so your machine will be ready to use even after months of storage.

BATTERY CHARGER: lithium-ion battery chargers reduce energy consumption by an average of 35%.

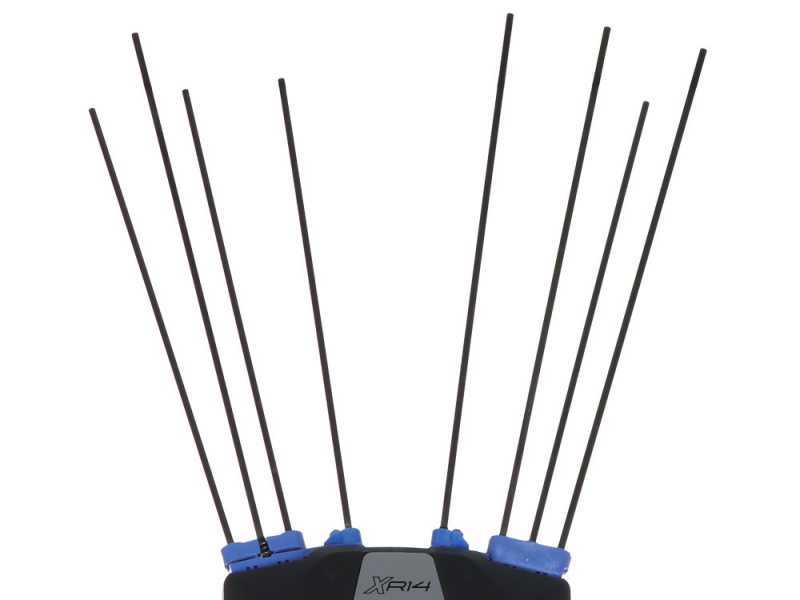

Additional Features

The Vesco XR14 harvester uses cordless technology that eliminates the need for cables, ensuring battery compatibility with the range of secateurs and pruners. Light and balanced, it is made and assembled in Italy.

Opposing side-to-side comb movement with 4+4 interchangeable carbon tines reduces vibration and enables efficient harvesting.

The thin and lightweight techno polymer head allows versatile use.

The two-component soft-touch handle provides comfort, while the display allows monitoring of the 4 rake speeds.

Electronic power and speed management helps reduce maintenance costs .

Technical Specifications:

  • Cordless technology for greater freedom of movement
  • Battery compatibility with the range of scissors/power packs (14.4V - 16.8V MAX)
  • Telescopic aluminium rod adjustable from 210 to 320 cm
  • Interchangeable carbon tines, 8 units of 46 cm
  • Opposing side comb movement for efficient collection
  • Lightweight, thinned head made of techno polymer for easy access to plants
  • Ergonomic 2-component soft touch handle for comfortable handling
  • Multifunction display for managing the 4 constant rake speeds
  • Electronic power and speed management
  • Reduced vibrations for greater comfort during use
  • Lower maintenance costs
Free items & Standard equipment

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.

Free Items Included

The olive harvester is shipped in its original packagings.

package packaging also includes:

  • Instructions manual;
  • 1 x 14.4V - 6Ah batteries
  • Charger
