Volpi Olytech Mondial 755XL - 240/360 Electric Battery-powered Olive Harvester - Telescopic Pole

Questions & Answers (2)
ID: K600066

EAN: 8020581040556

MPN: 755XL

8,0/10
After-sales assistance & Spare parts
Volpi Olytech Mondial 755XL - 240/360 Electric Battery-powered Olive Harvester - Telescopic Pole
+100 sold
FREE
Multi-purpose Lithium spray grease - 400 mlMulti-purpose Lithium spray grease - 400 ml
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Noise-canceling earmuffsNoise-canceling earmuffs
Head material
ABS
Motion
Double side
Speed (bpm)
1050 bpm
Pole material
Aluminium
Telescopic pole
Max. length
360 cm
Motor type
Induction
Voltage
12 V
Nominal power (W)
190 W
Motor speed levels
2
Motor type
Battery-powered
Battery type
Car type
Items included
Battery and battery charger NOT included
Carbon prongs
Manufacturing country
Italy
Product Features
Model:
Olytech Mondial 755XL
Use:
For olive harvester only
Power supply:
Lead-acid battery 12 V
Head material:
ABS
Type:
12 V battery-powered
Operating mode:
12 V battery-powered
Items included:
Battery and battery charger NOT included
Motor position:
Up - on the head
Motion:
Double side
Speed (bpm):
1050 bpm
No. of prongs:
4+4
Prongs length:
32 cm
Prongs material:
Carbon
Carbon prongs:
Min. length:
240 cm
Max. length:
360 cm
Pole material:
Aluminium
Max. power even with low battery:
Yes
Energy Saving System:
Yes
Pole type:
Telescopic
Manufacturing country:
Italy
Motor data
Motor position:
On the head
Motor type:
Battery-powered
Motor type :
Induction
Battery type:
Car type
Motor speed levels:
2
Nominal power (W):
190 W
Power supply:
12 V battery-powered
Fuse:
Yes
Voltage:
12 V
Recommended battery:
70 Ah
Motor power:
12 V
Manufacturing country:
Italy
Equipment
Extension pole :
240 / 360 cm
Telescopic pole:
Extension power cable:
15 m
Control unit with circuit board:
Yes - inside the motor
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
360x52x20 cm
Net weight:
2.7 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
60x26x14 cm
Gross weight (packaging included) :
5.7 Kg
Assembly time:
5 minutes
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 14/04/2025 - 16/04/2025
€ 777,54
Vat included
Available versions
You're viewing:
Customers also viewed:
Description

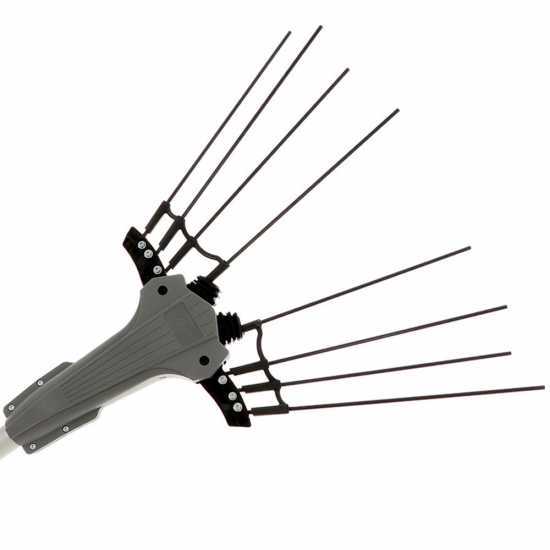

Volpi Olytech Mondial 755XL battery-powered olive harvester

The Giulivo Olytech Mondial 755XL is renowned as the Volpi newest innovation of the season. It is a high-performance olive harvester designed for those who want to achieve efficient harvests with excellent yields in their olive groves, using a lightweight, reliable and also very practical harvester.

Olytech Mondial olive shaker is suitable for all harvesting needs, resulting in a versatile and effective olive harvester in any situation.

Equipped with an ergonomic handle provided with switch, this brand-new olive harvester has an angled head and a quick anti-rotation locking system.

The switch has two buttons for adjusting the speed of the machine (speed control), allowing the operator to choose the desired speed of the prongs.

It is provided with 4+4 carbon fibre prongs, 32 cm long, easy to replace.

Patented OSCILLATORY MOTION:

  • Olytech's two arms perform a high amplitude reciprocating motion, resulting in the oscillation of 8 carbon fibre prongs for improved productivity.

The motor enclosed in the head of the harvester is effectively insulated from the outside to ensure high longevity. It is powered by a 12 V battery (not included) with a motor effort control system. Thanks to Volpi's technology, low power consumption is combined with high performance.

The 12 V brushless motor is driven by mechanically machined helical gears.

This version is very simple and convenient to use and it only weighs 2.7 Kg thanks to the telescopic aluminium pole.

The total length of the olive harvester is 240-360 cm

The Volpi Olytech Mondial 755XL olive harvester comes with the 15 m power cable.

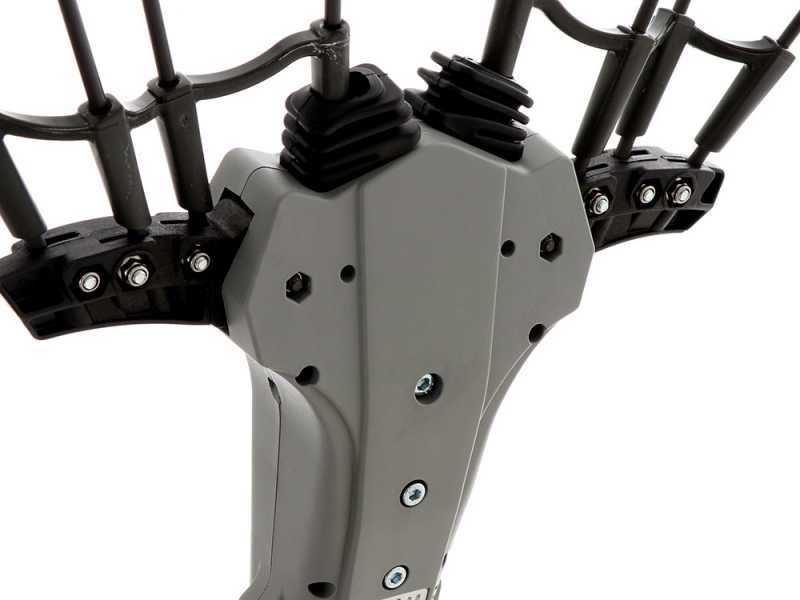

Head and mechanics of the prongs

The Volpi Olytech olive harvester consists of 4+4 carbon prongs on the head that are easy to replace.

The arms therefore carry a total of 8 carbon fibre prongs with easy replacement, the entire propulsion and transmission unit is hermetically sealed, without any possibility of penetration of external agents inside. This ensures continuity of operation and an almost non-existent maintenance. The prongs are more than 32 cm long to allow you to enter deep into the foliage.

The angle of inclination of the head is optimal for easy harvesting action.

Harvester head technical data:

  • Beats: from 950 to 1050 per minute
  • Working width: min 270 mm – max 590 mm.
  • Optimum angle of entry into the tree foliage: 12° – 20° – 28°
  • Hourly production: 80/110 Kg/hour.

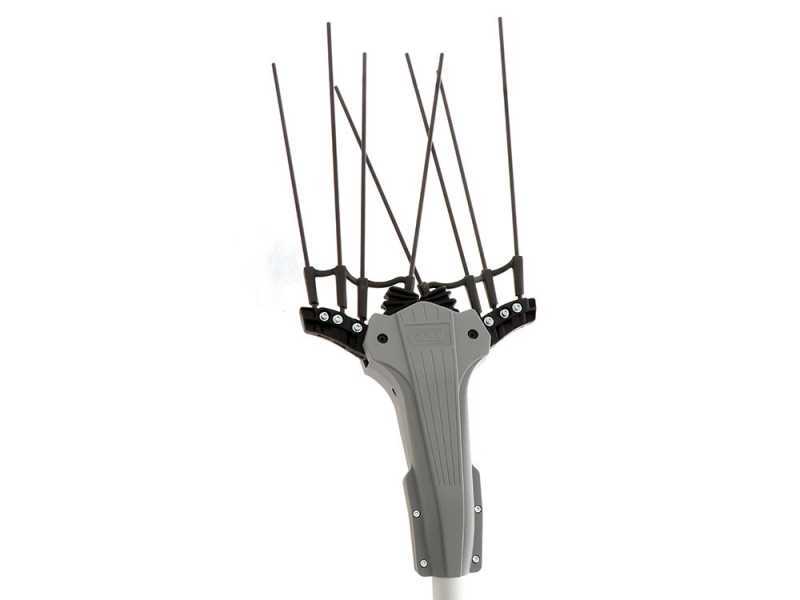

Energy-saving brushless electric motor

The innovative brushless motor inside, powered by 12 V direct current, features a power output of 190W.

The machine is powered by a 12 V cc battery, to which the olive harvester must be connected. The olive harvester comes complete with 15 m power cable, equipped with pliers and connectors.

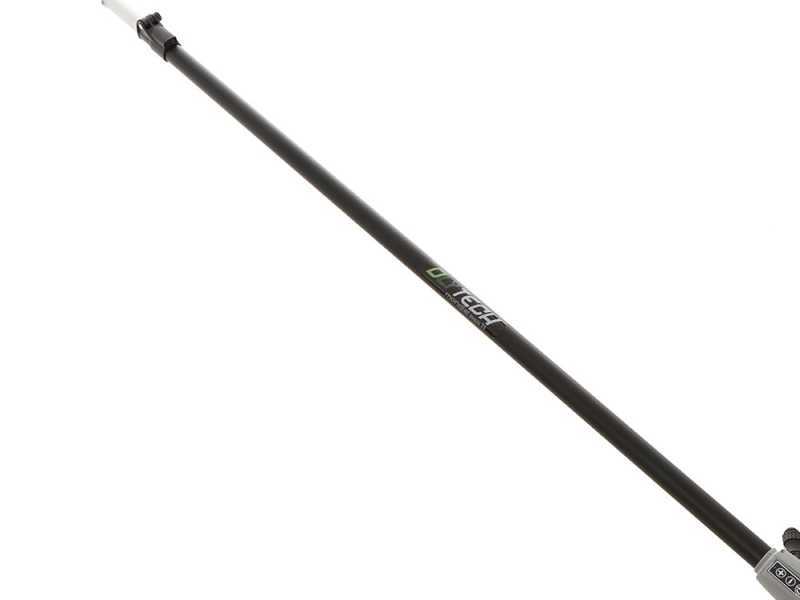

Telescopic pole

The pole is adjustable in any position between the length of 240 and 360 cm (reference to the total length of the harvester)

Thanks to the quick coupling,it will be possible to stretch the harvester pole quickly and at the desired length.

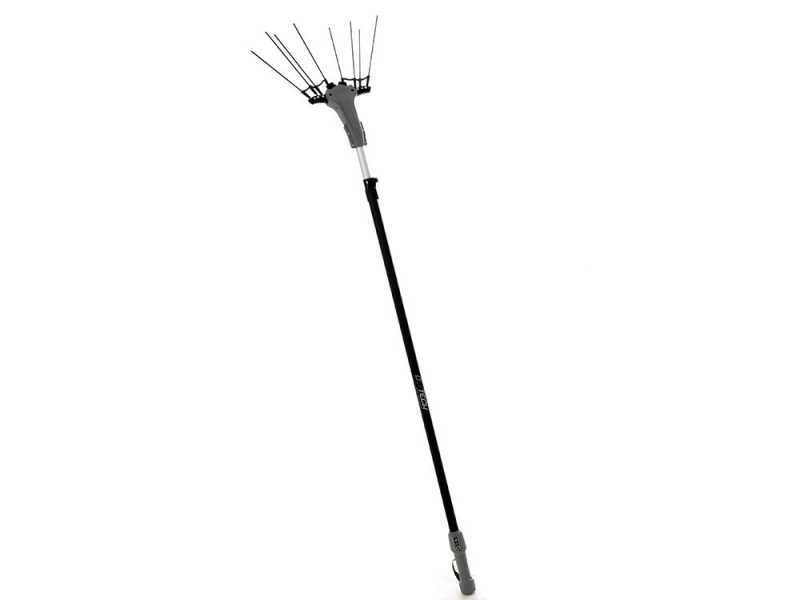

Additional features

Focus on the motor drive switch,

Speed control: it allows adjusting the speed of the prongs

Its main advantages include:

  • Insulation system from the outside of the internal parts of the head.
  • Head components: 4+4 flexible carbon fibre prongs easy and quick to replace.
  • Electric motor: 12 V cc High performance and low power consumption.
  • Motor draft control system
  • Power supply: electric 12 V cc.
  • Direct power supply from the battery
  • Ergonomic handle with switch, cable and anti-bending protection.
  • Hourly production: 80/110 Kg/hour
Free items & Standard equipment

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.

Free items included

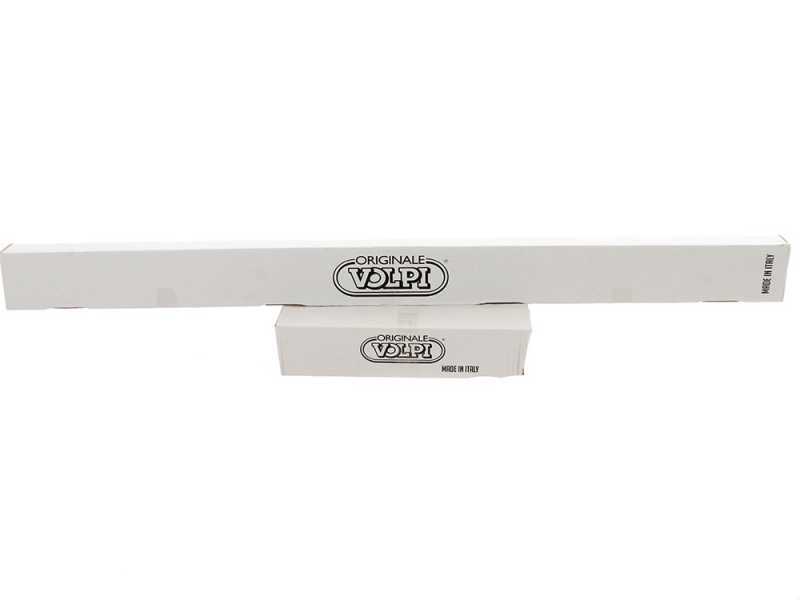

The olive harvester is shipped in its original packagings.

Instructions manual

Connection cable
