Name: Volpi Olytech Super Power 555L - 210/300 Electric Battery-powered Olive Harvester - Backpack Battery Included
Brand: Volpi
SKU: K605750
Price: 1568.87 EUR
Availability: InStock
Rating: 5 (1 reviews)

Description

Volpi Olytech Super Power 555L Battery-operated Olive Harvester

The Olytech Super Power 555L olive harvester is renowned as the Volpi newest product of the season. It is a high-performance, high-powered olive harvester, which, combined with the telescopic pole provided, ensures a large harvesting capacity.

Olytech Super Power olive shaker is suitable for all harvesting needs, resulting in a versatile and effective olive harvester in any situation.

It has 4+4 carbon fiber prongs 32 cm that are easy to replace.

Patented OSCILLATORY MOTION:

Olytech's two arms perform a high amplitude reciprocating motion, resulting in the oscillation of 8 carbon fibre prongs for improved productivity.
The Super Power version allows, thanks to its microprocessor-controlled electronic power supply, a double speed to meet the demands of professional use.

Volpi's newest harvester has the great innovation of dual speed, useful for greater efficiency and productivity.

The olive harvester will be powered by the practical 44 V, 17.5Ah backpack battery kit.

This version is very simple and convenient to use and weighs only 2.4 kg, thanks to the telescopic aluminum pole.

The total length of the olive harvester is 210-300 cm

The Volpi Super Power olive harvester comes with the 20 m power cable.

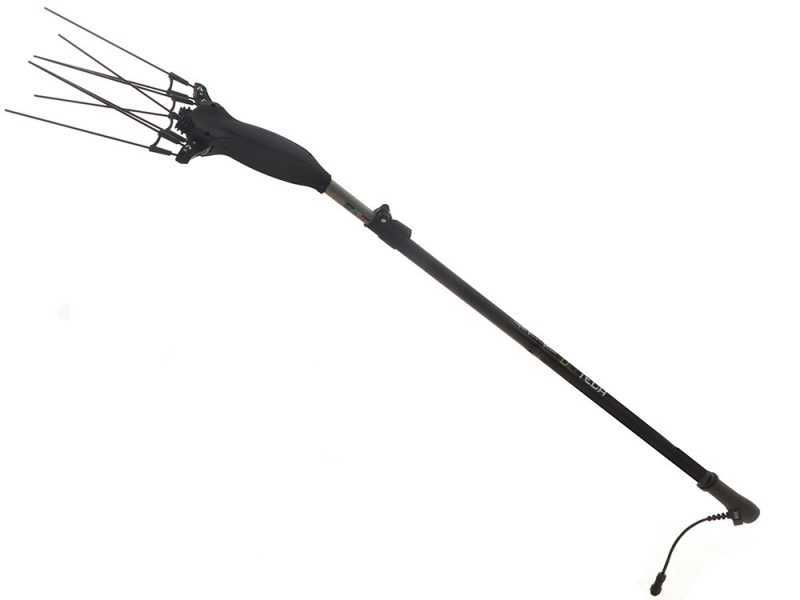

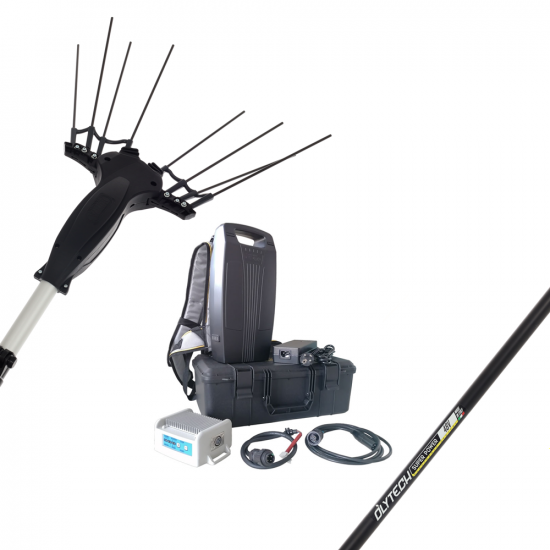

Volpi Olytech Super Power 555L - 210/300 Electric Battery-powered Olive Harvester - Backpack Battery Included

Head and mechanics of the prong motion

The Volpi Olytech olive harvester consists of 4+4 carbon prongs on the head that are easy to replace.

The arms therefore carry a total of 8 carbon fiber rods with easy replacement, the entire propulsion and transmission unit is hermetically sealed, without any possibility of penetration of external agents inside. This ensures continuity of operation and an almost non-existent maintenance. The prongs are more than 32 cm to allow you to enter deep into the plant.

The angle of inclination of the head is optimal for easy harvesting action.

Technical data about the head:

Beats at speed 1: 1000 per minutes
Beats at speed 2: 1100 per minutes
Working width: min 240 mm – max 530 mm.
Optimum angle of entry into the tree canopy: 12° – 20° – 28°
Hourly production: 90/120 kg/hour.

Focus on the power supply connection to the harvester head

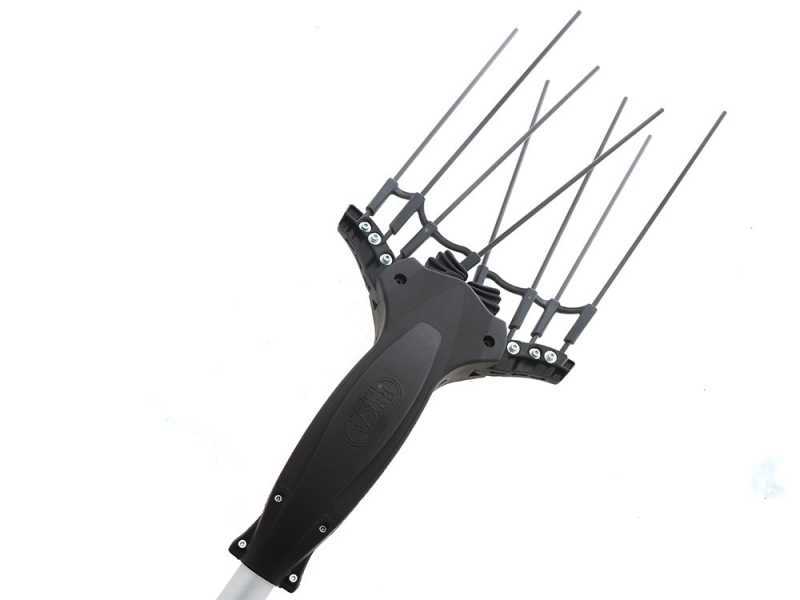

Energy-saving electric motor

Olytech Super Power runs on a 48 V DC electric motor, with microprocessor-controlled electronic power supply.

The olive harvester will be powered by the practical 44 V, 17.5Ah backpack battery kit.

Thanks to the microprocessor-based electronic control, the olive shaker always works at 100% regardless of the battery charge status, without loss of harvesting efficiency: all the high power of the shaker is always available.

Additionally, this harvester is equipped with a 2-speed selectable regulator on the power supply, which further minimises battery consumption.

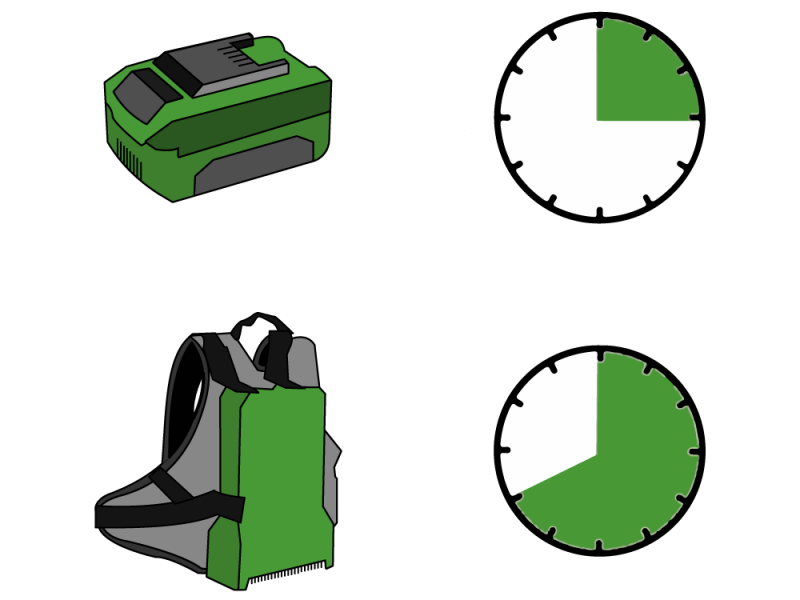

about the autonomy of lithium batteries

When using a harvester, the choice of battery depends on the practical needs of the user. The main differences between a base-mounted battery and a backpack battery concern freedom of movement and autonomy. The base-mounted battery is more manoeuvrable and lighter, but offers reduced autonomy. In contrast, the backpack provides longer working sessions, although it can be bulkier in tight spaces.

Base-mounted lithium-ion batteries offer greater freedom of movement. The lack of cumbersome cables improves agility when working between trees, making the harvester easier to manoeuvre. They are generally lighter than the backpak once, reducing operator fatigue, and make it easier to transport the device. In addition, handling is more intuitive, not requiring additional equipment such as a backpack. On the downside, however, they have a very limited autonomy and often cannot do a full day's work on their own.

On the other hand, lithium backpack batteries, while adding a certain amount of bulk, allow for greater energy capacity, extending the operational life of the harvester without the need for frequent recharging or battery changes. Their higher capacity allows long working sessions without interruption. In addition, shifting the weight of the battery to the back reduces the direct load on the arm and body, better balancing the overall weight of the equipment.

However, backpack batteries can be less ergonomic and uncomfortable in tight spaces or during quick movements between trees, and the presence of the cable can be an obstacle or obstruction during operation. Finally, the constant carrying of the backpack may cause more fatigue in the long run than an integrated solution in the product base.

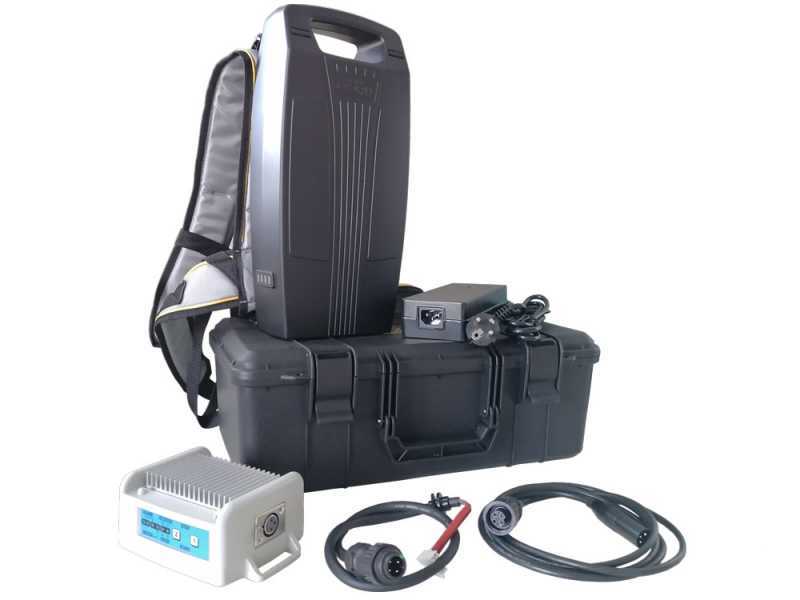

Backpack battery for Super Power Volpi

The backpack battery allows the Volpi Super Power harvester / shaker to be powered alternatively to 12V lead.

It is a compact yet lightweight product, only 6 kg.

The average battery life is 6/7 hours, depending on how it is used. It has a voltage of 44V and 17.5Ah.

It has a voltage of 44 V and 17.5Ah.

Inside is a 44 V to 48 V converter. Through the converter it is also possible to select two speeds and display various indicators and alarms.

These batteries have no memory effect and they can be recharged even if not fully discharged, always maintaining maximum efficiency. No overheating issues, ensuring maximum safety and longer life than standard Lithium batteries.

The li-Ion battery is equipped with a battery holder that is light and strong and ensures maximum freedom of movement during harvesting operations. The weight of the batteries and of the backpack, for a total of about 6 Kg, is distributed in such a way that the operator does not feel any fatigue.

Free items included: with 2.2 m power cable with connectors and a converter with 1 m cable

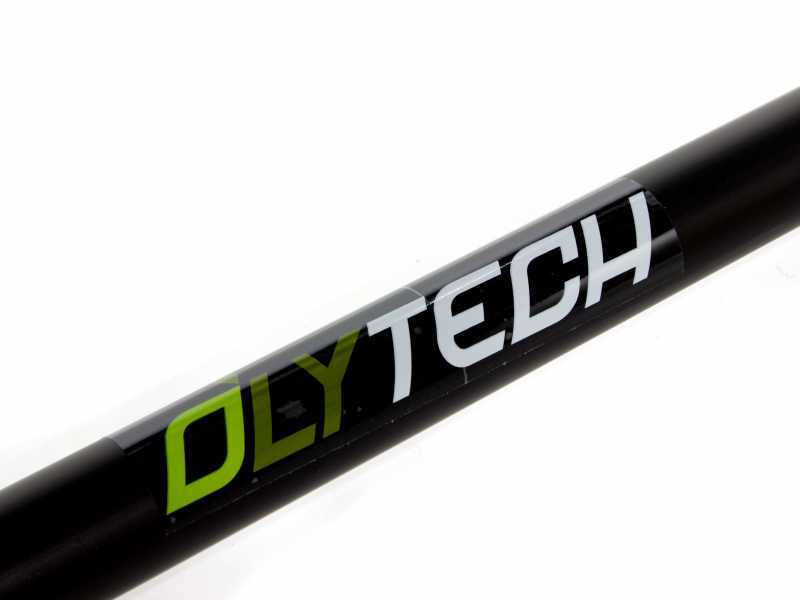

Telescopic pole

The pole is adjustable in any position between the length of 210 and 310 cm (reference to the total length of the harvester)

Thanks to the quick coupling, it will be possible to stretch the harvester pole quickly and at the desired length.

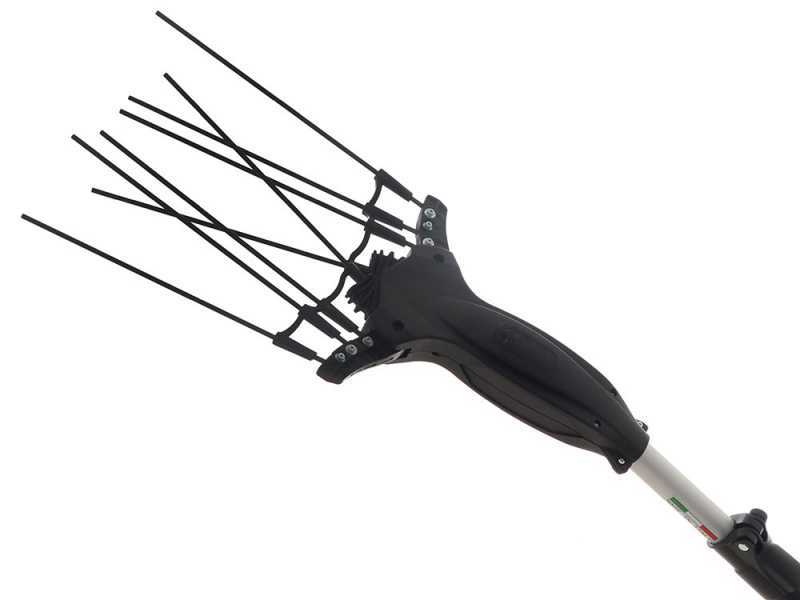

Additional features

Focus on the motor drive switch.

Focus on the professional screw power coupling.

Its main advantages include:

Insulation system from the outside of the internal parts of the head.
Head elements 4+4 flexible carbon fiber rods that are easy and quick to replace.
Electric motor: 48 V high performance and low power consumption.
Double speed levels
Motor draft control system
Power supply: electric 12 V
Ergonomic handle with switch, cable and anti-bending protection.
Hourly production: 90/120 kg/hour

Free items & Standard equipment

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.
