Weibang WB486CRC - Professional Lawn Scarifier with Moving Blades - Loncin G200F engine

Add a question
ID: K604938

EAN: 6942080930126

MPN: WBMWB486CRC

7,7/10
After-sales assistance & Spare parts
Weibang WB486CRC - Professional Lawn Scarifier with Moving Blades - Loncin G200F engine
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
Replacement sprak plugReplacement sprak plug
Foam air filterFoam air filter
Body material
Enamelled steel
Working width
46.7 cm
Rotor with blades
Heavy-duty, movable
Motor type
4-stroke
Motor brand
Loncin
Cubic capacity
196 cm³
Nominal power
5 HP
Motor Model
G200F
Max. recommended area
1200 m²
Product Features
Model:
WB486CRC
Body material:
Enamelled steel
Type:
2/4-stroke engine
Operating mode:
Spark ignition
Self-propelling:
Hand-pushed
Max. recommended area :
1200 m²
Manufacturing country:
China
Motor data
Motor brand:
Loncin
Motor Model:
G200F
Motor type:
4-stroke
Cubic capacity:
196 cm³
No. of cylinders:
1
Nominal power:
5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
3.8 L
Oil tank capacity:
0.6 L
Motor/blade drive:
Drive belt
Manufacturing country:
China
Cutting data
Working width:
46.7 cm
Body material:
Steel
Rotor type:
Rotor with moving blades
Rotor with blades:
Heavy-duty, movable
No. of blades:
28
Blade movement:
Rotating
Blade type:
28 flottanti
Blade type:
Rotor with free-swinging blades
Cutting adjustment :
Centralised
Working depth:
0-15mm
Cutting width:
46.7 cm
Equipment
Motor safety brake:
Yes
Recoil start system (with rope):
Yes
Rear wheels size:
200 mm
Front wheels size:
200 mm
Wheels mounted on ball bearings:
Double ball bearing
Wheel Type:
Rubber tyre tread
Folding/removable handle/s:
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
120x100x70 cm
Net weight:
65 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
80x75x70 cm
Gross weight (packaging included) :
58.8 Kg
Assembly time:
15 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 31/12/2024 - 03/01/2025
€ 1.211,11
Vat included
You're viewing:
Customers also viewed:
Description

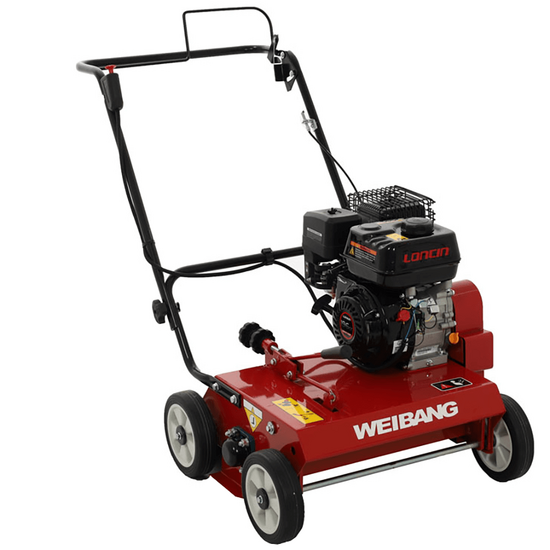

Weibang WB486CRC lawn scarifier

The Weibang WB486CRC lawn scarifier is the ideal machine for hobby use on wide lawns.

Equipped with a powerful 196 cc Loncin G200F engine.

The machine is provided with a 467 mm cutting width with 28 swinging blades that ensure high sturdiness and reliability.

Weibang lawn scarifiers allow optimal oxygenation and nutrition of the turf, cutting into the soil and collecting all the debris on the ground.

This model is provided with swinging blades that ensure an excellent working result and, as they are resistant to accidental impacts, feature greater strength and durability.

Why use a lawn scarifier:

  • Over time, turfs tend to create a layer of felt that prevent the oxygenation of the soil with the consequent suffering of the lawn.
  • It is advisable to use the lawn scarifier to remove the felt layer and create grooves on the ground that will facilitate contact with air, fertilisation and lawn reinforcement.

Ultimately, the Weibang WB486CRC guarantees excellent results on all types of terrain.

WARNING:

Aeration must be performed STRICTLY with the garden previously and abundantly watered.

* The right time for this operation is Spring, after the first mowing and depending on the area and climate (generally around March/April). For a perfect lawn care, it is highly recommended to repeat the operation in Autumn as well, thus removing the harder moss.

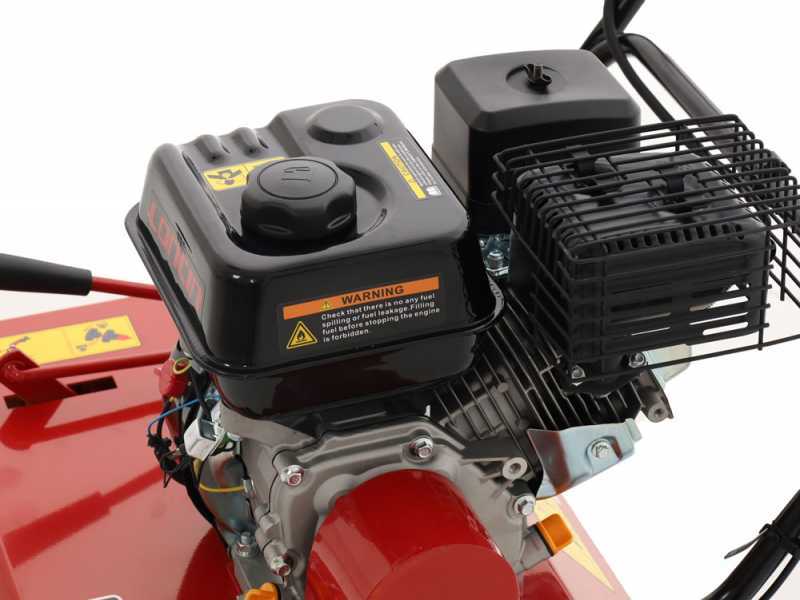

Loncin G200F 4-stroke petrol engine

The Loncin G 200 F original latest 4-stroke petrol engine with 196 cc has been designed with the ”OHV” overhead valve technology. Thanks to this mechanism, the lawn scarifier will not need much maintenance as it is much less complex than the previous DOHC technology.

Major strengths compared to the standard 2-stroke engines (still very popular on this type of machines):

  • Greater reliability
  • Easier start especially after long periods of storage
  • Higher durability
  • Lesser problems related to the preparation and to the fuel freshness
  • Lower energy consumption
  • More silent

Features:

  • Engine type: 4-Stroke, single cylinder - OHV
  • Cylinder type: cast Iron
  • Cubic capacity: 196 cc 5 Hp
  • Max. rpm: 1500rpm
  • Fuel tank capacity: 3.8 L
  • Oil tank capacity: 0.6 L

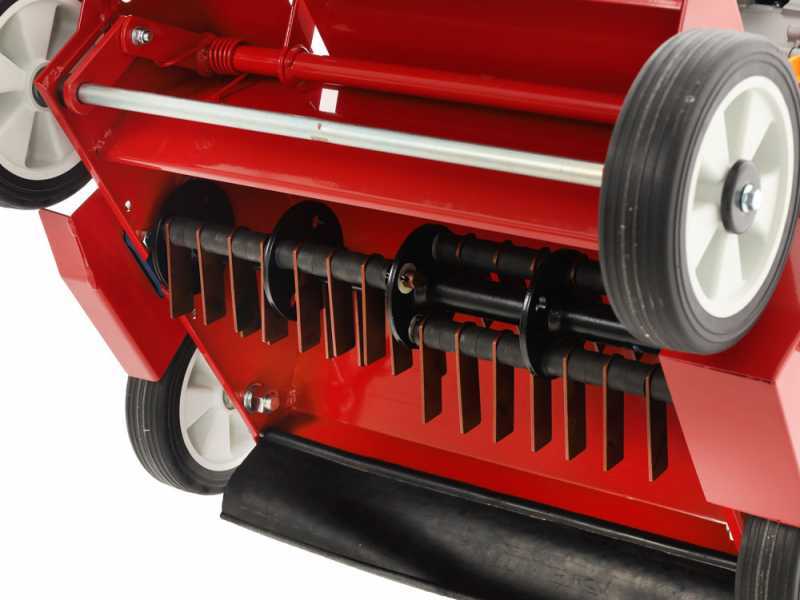

Free-swinging blades system

The heavy-duty scarifying rotor is fitted with 28 swinging blades.

- 28 FREE-SWINGING BLADES: assembled on two different supports. The free-swinging blades (rotating) are made of hardened steel.

The engine/rotor drive is belt-driven.

The housing and connection of the scarifying rotor to the frame is by means large, heavy-duty steel ball bearings.

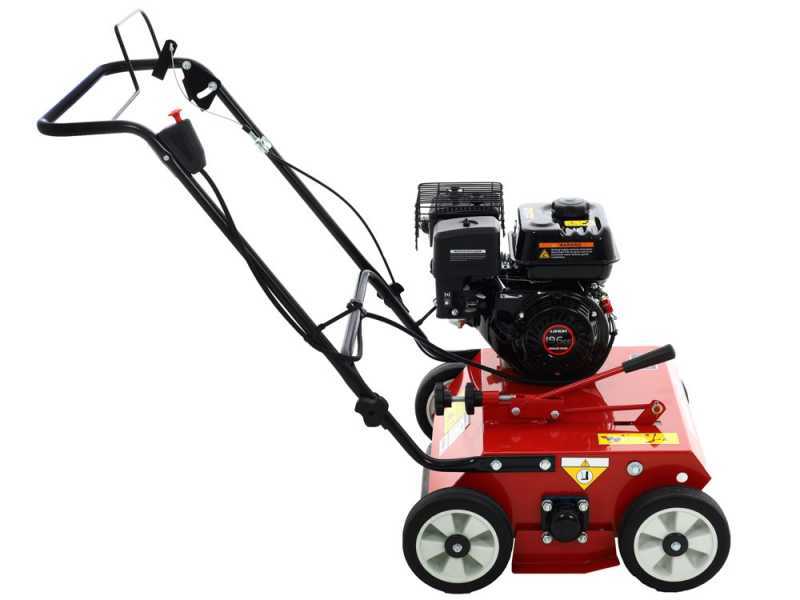

Main features

The housing is made of sheet steel and features great sturdiness.

The deflector of this model is made of sturdy metal

Sturdy wheels featuring double sealed moist resistant bearings.

Focus on the belt drive

Focus on the rotor bearings

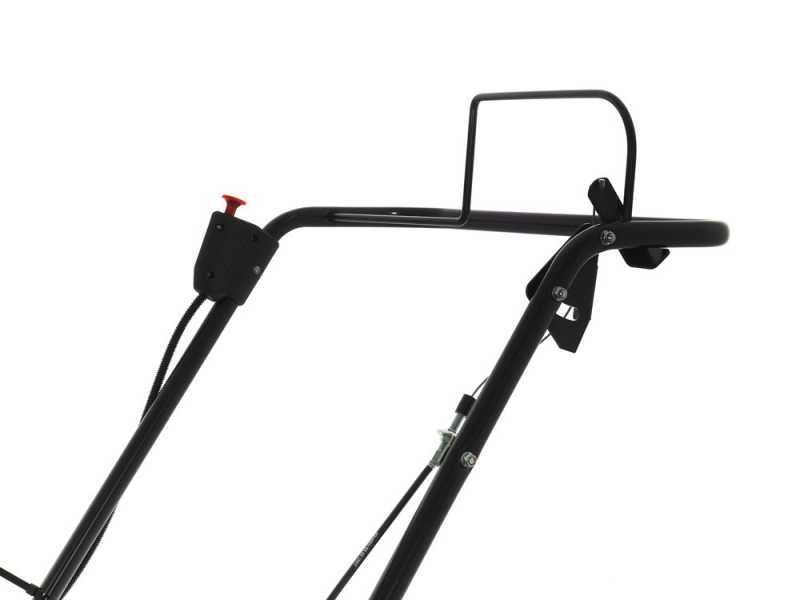

Controls and adjustments

Aerator blades engagement by means a control lever on the handlebar.

Accident prevention with motor braking system activated by means of the safety knob on the handlebar.

Adjustable working depth by means a threaded crank from 0 mm to 15 mm.

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

  • Honda GX 120/GX 160/GX 200
  • Honda GP160/GP 200
  • Loncin 120/160/196 cc
  • Axo 120/160/196 cc
  • Briggs & Stratton 950 series

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

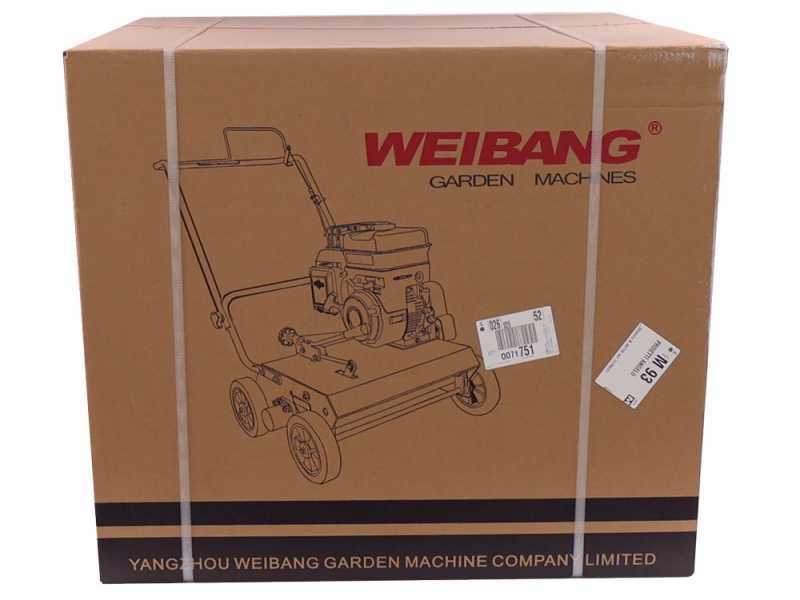

Standard equipment

The machine is shipped in its original packaging.

Instructions manual included in the package.
