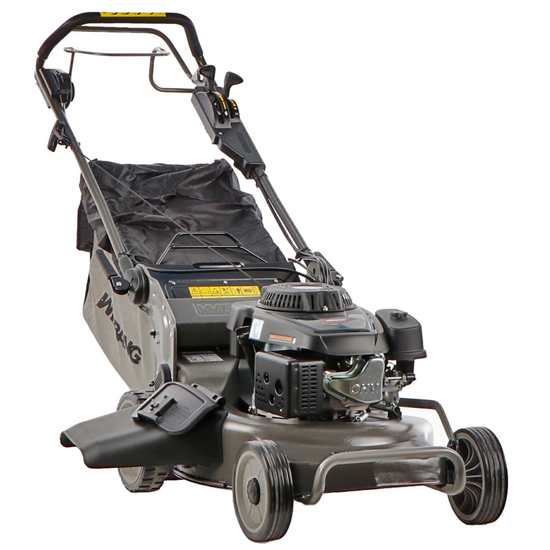

Weibang WB537SCV3B - Petrol Trailed Lawn Mower - 196cc Engine - 3 Speed - 4in1

The WB537SCV3B mower is equipped with the innovative Blade Brake Clutch System (BBC), operated through a convenient lever on the handle, which allows the blade to be quickly inserted and removed.

It offers remarkable versatility with the 4in1 system, offering various cutting options:

• Collection in a large 70 L bag
• Rear discharge
• Side discharge
• Mulching

The Weibang WB537SCV3B lawn mower model stands out in the industry for its superior features, with a cutting width of 53 cm. It has been designed to offer excellent performance and includes front-wheel drive, which minimises the effort required from the user. Built with top-quality materials, it is particularly suitable for frequent and prolonged use, ensuring effective results in the care of farmland.

Three-speed mechanical transmission, which allows the forward speed to be adapted to different ground requirements:

1. First speed: 0.8 m/s
2. Second speed: 1 m/s
3. Third speed: 1.2 m/s

The centralised cutting height adjustment, with 9 different variations between 15 mm and 85 mm, offers a precise fit for every type of lawn, simplifying work and ensuring precision with a simple movement.

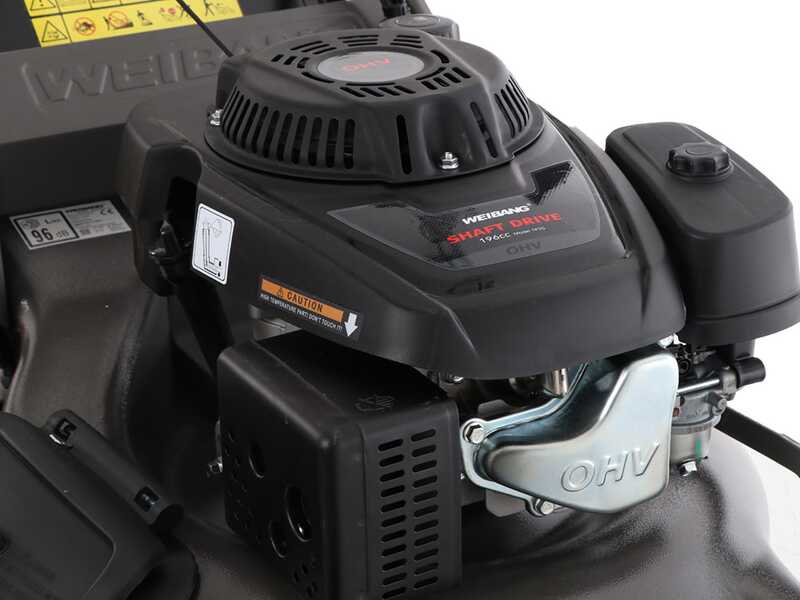

Equipped with a powerful Loncin 1P70FC engine, offering 6.5HP of rated power and a displacement of 196cc, the Weibang WB537SCV3B delivers a high level of performance, standing out for its reliability and power.

WB537SCV3B lawn mower designed for comfort and superiority: from the ergonomic, rubber-coated handlebar, which provides a comfortable and secure grip, to the large (200 mm front and 230 mm rear) wheels, which guarantee excellent manoeuvrability on different types of ground.

The 1P70FC is an air cooled 4-stroke petrol engine with aluminium cylinder.

It features 196 cc and develops a high power.

ATTENTION!

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

Focus on air filter

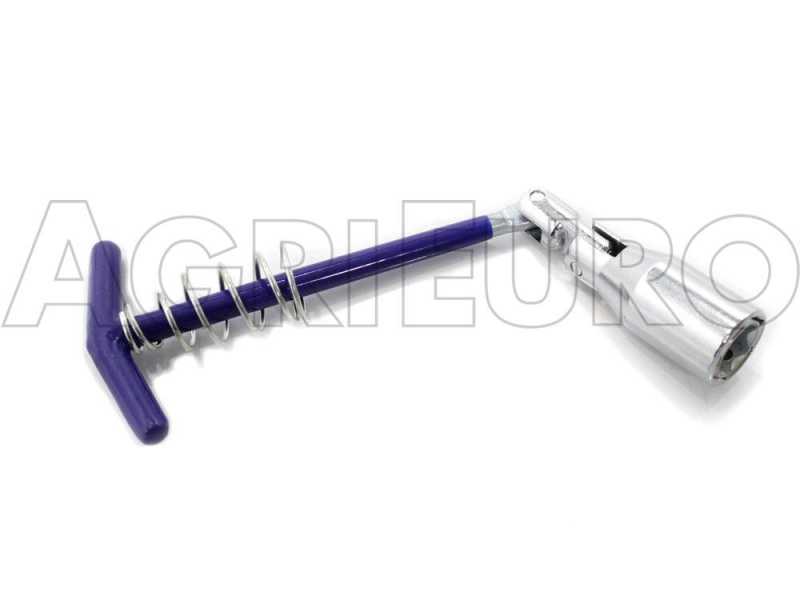

Focus on the spark plug

Nominal Power: 6.5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This figure is the one that is most widely used and publicised in the main sales channels, even if it is higher than the real power of the engine.

Actual power: 4.15 Hp (at 2800 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

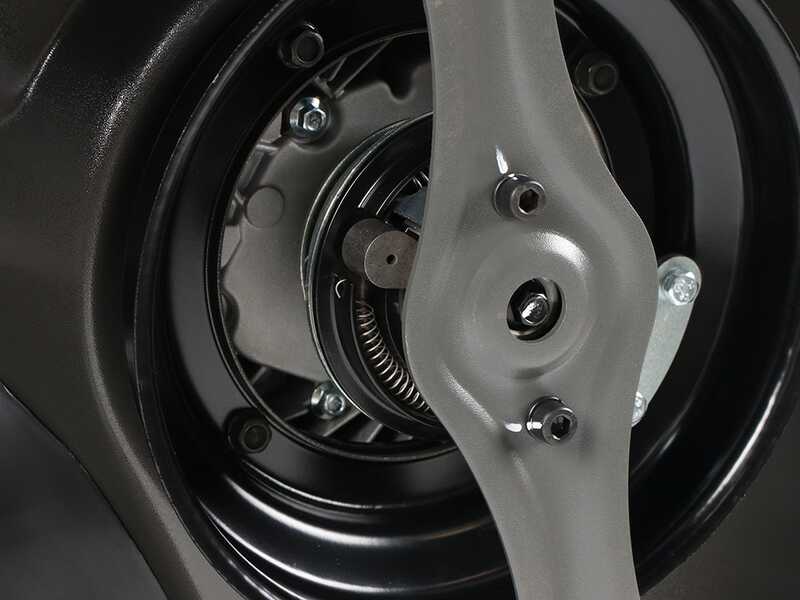

53 cm useful blade cutting width.

The mounted blade is made of hardened steel, suitable for all the 4 cutting systems the lawn mower is equipped with.:

1. Collection system with basket
2. Side discharge
3. Mulching
4. Rear discharge

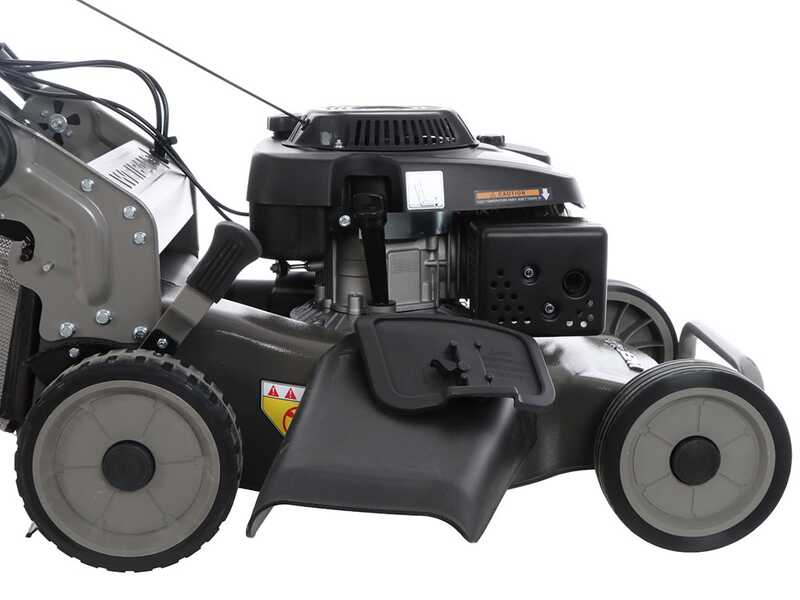

Centralised adjustment so it is possible to adjust the height of the lawn mower using a single lever.

This system allows you to vary the cutting height very quickly.

The cutting height is adjustable in 9 different positions.

Lowest cutting position: 15 mm

Highest cutting position: 85 mm

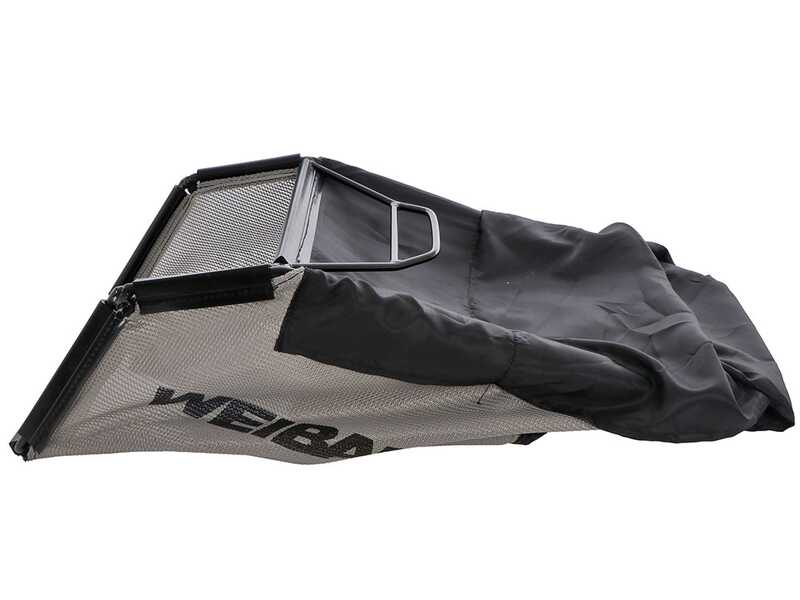

GRASS COLLECTION SYSTEM
The lawn mower is equipped with a large 70 L grass collector, easy to remove and empty.

The lower part is made of mesh. Its flexibility ensures the possibility to easily empty the grass collector when full.

Breathable but very durable bag.

Full bag dust reduction system.

Practical handle at the top of the basket to facilitate its removal.

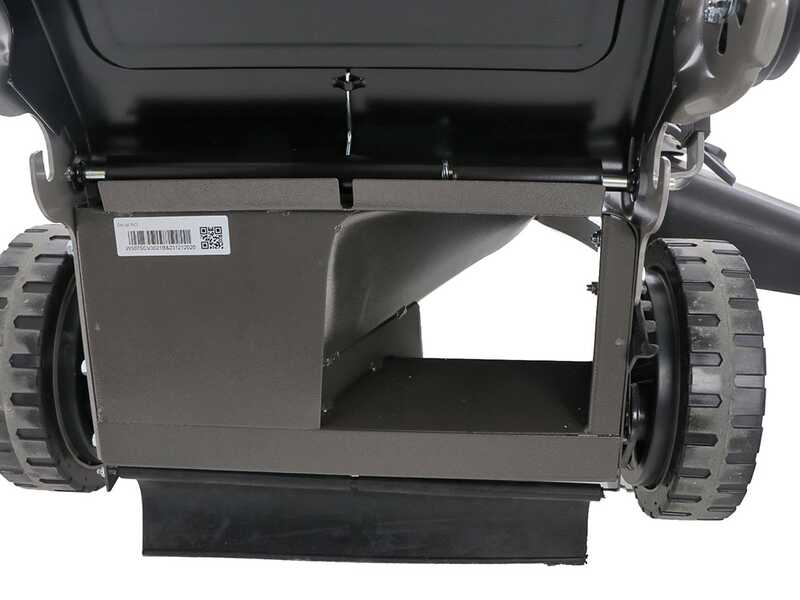

REAR DISCHARGE SYSTEM

This system allows mowing grass without using the grass collector, discharging the grass clippings directly from the back of the lawn mower.

Simply remove the grass collector and the rear discharge will automatically operate.

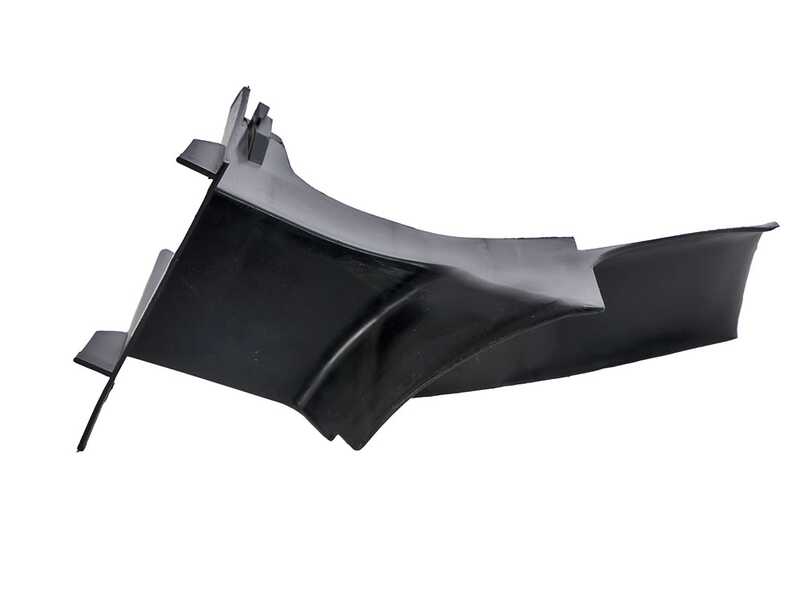

MULCHING CUTTING SYSTEM:

This system allows cutting grass without catching it inside the collector, and crushing the clippings into a fine powder before dropping them on the lawn.

How to convert the lawn mower for the mulching cutting system:

• Remove the grass collector
• Enter the supplied mulching plug
• Lower the rear deflector to operate the mulching cutting system.

MAIN SPECIFICATIONS OF THE MULCHING CUTTING SYSTEM:
This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated, and the grass needs cutting at least once a week.

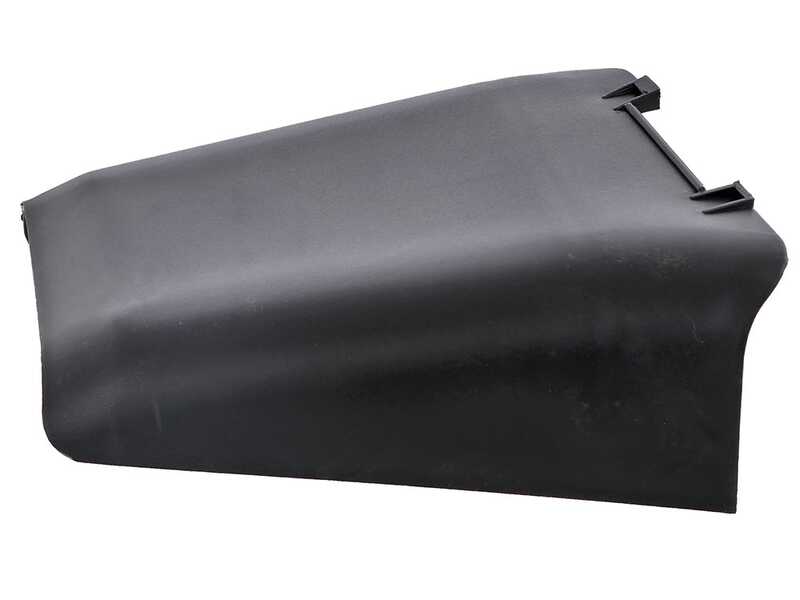

SIDE DISCHARGE SYSTEM:

This system allows mowing grass without collecting the clippings inside the grass collector (it is also possible to collect grass a bit higher than normal, due to the high disposal capacity of the side discharge deflector).

Leaving the mulching plug entered, in order not to occlude the rear discharge of the grass, simply lift the black cover on the housing side and enter the side deflector supplied with a simple gesture.

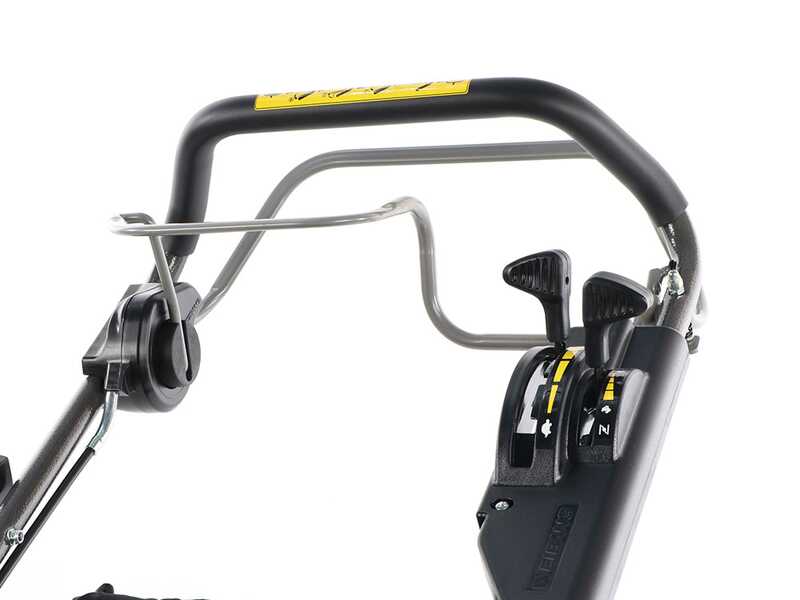

The lawn mower controls are simple, and mainly enclosed in the handlebar area.

Lever that engages the BBC (Blade Brake Clutch) allows the blade to stop while leaving the engine running and is optimal for moving the product in grass-free work areas, such as driveways. (lever in front of the handlebar)

Rear-wheel drive lever (behind the handlebar)

Engine speed throttle and lever for changing 3 gears:

1. First gear: 0.8 m/s
2. Second gear: 1 m/s
3. Third gear: 1.2 m/s

Millimetre adjustment of the handlebar for easy storage

Protection-supplied bull bar
