Description

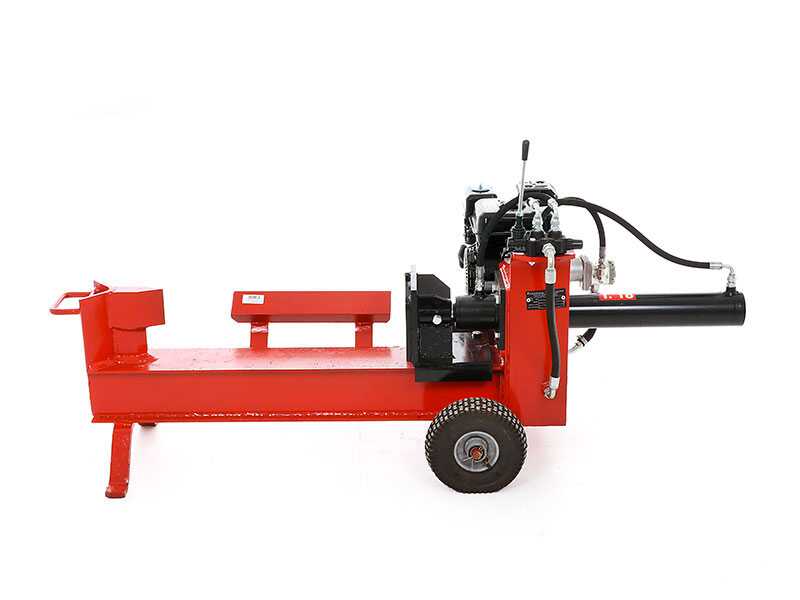

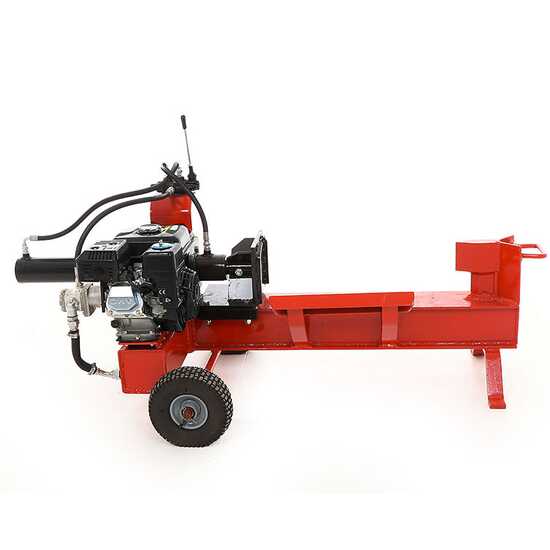

Wheeled horizontal petrol log splitter

Wheeled log splitter powered by a 4-stroke petrol engine featuring 16 tons splitting force.

SEMI PROFESSIONAL petrol log splitter that allows you to split logs efficiently, effortlessly and safely.

Powered by a petrol engine, which makes it suitable for the most difficult operations where an external power supply such as electricity or a tractor is not available.

Equipped with a handle and pneumatic wheels for easy transport.

HIGHLY-POWERFUL thanks to the 16 tons splitting force (that makes it one of the most powerful machines on the market).

HORIZONTAL STRUCTURE: it allows you to split even large-sized logs without having to lift them up (you can place them on the machine without any effort, given the low height of the support leg)

This log splitter is equipped with 16 tons splitting force.

Log diameter: up to 40 cm

Max. log length: 66 cm

Overall dimensions: 184 x 85 x 90 cm

Weight: 160 kg

Entirely made in Italy.

Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 16 Tons

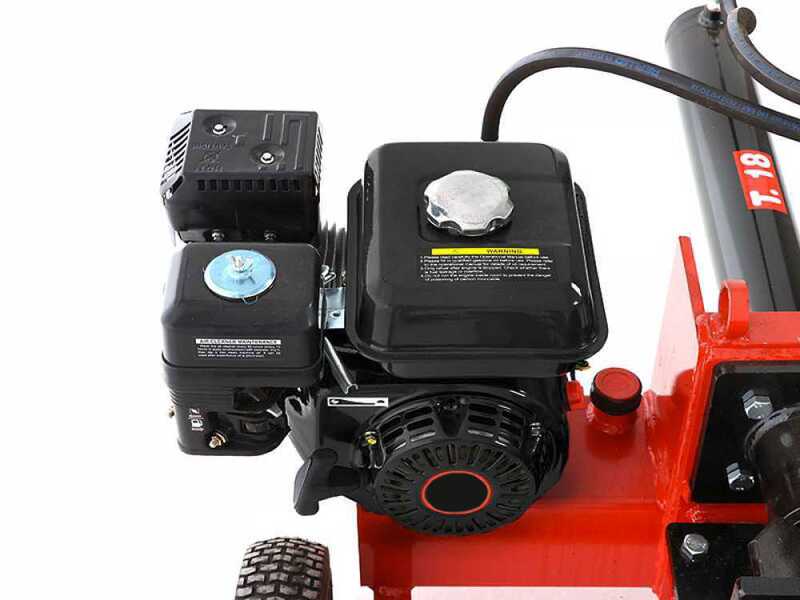

6.5 HP Loncin petrol engine

The Loncin engine features a OHV overhead valve technology with electric starting with key.

Features:

Engine type: 4 stroke 1 cylinder - OHV

Cylinder type: Aluminium

Cubic capacity: 200 cm³

Max. rpm: 3600 rpm

Focus on the recoil starter

Focus on the hydraulic pump

WARNING!

The engine is shipped WITHOUT OIL. Fill with oil before the first starting. Read the instructions manual carefully before starting the engine.

Piston and machine frame

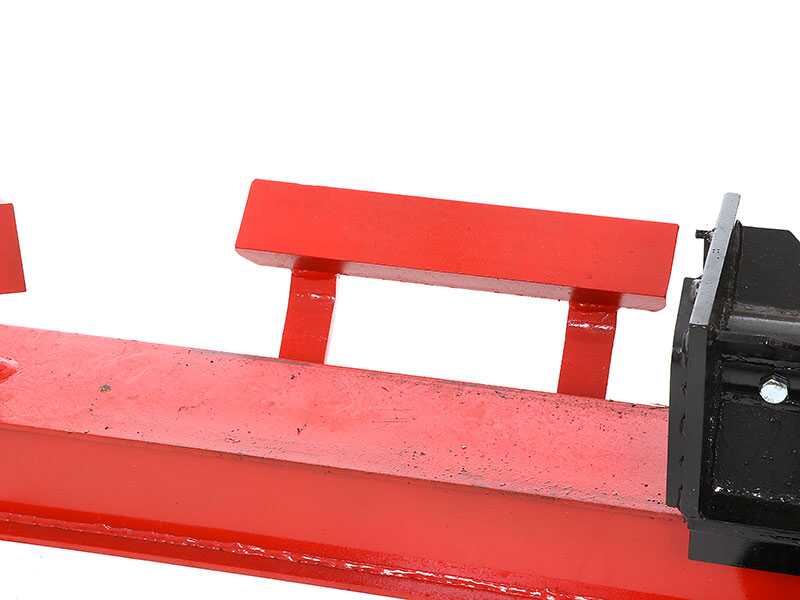

Focus on the sturdy body

Focus on the piston head.

LARGE-SIZED PISTON: 105 mm outer diameter (80 mm bore). This is another feature that proves the great sturdiness and high power of this log splitter (16 tons).

Heavy-duty platform made of thick steel, mounted on sturdy steel guides.

LARGE-SIZED HYDRAULIC PUMP:

ADVANTAGES:

- It enables the machine to reach its high splitting power (16 T)

- It gives the piston high speed

General features

Sturdy double-blade wedge for splitting the log.

The upper one more protruding, the lower one more rearward. It allows you to split even the hardest, most twisted and gnarled logs, thanks to a first penetration of the smallest and more protruding upper blade;

Pair of pneumatic transport wheels

Focus on the hook for transport

Focus on the sturdy main frame with piston guide.

Large hydraulic oil tank mounted on the pump.

Single-lever hydraulic distributor for piston operation.

Focus on the support legs

Split length: 66 cm

Size:

Width: 184 cm

Depth: 85 cm

Height: 90 cm

WEIGHT: 160 kg

Possibility to retract the piston inside the machine, unscrewing the 4 proper bolts to reduce its size during storage.

The log splitter is shipped already assembled and ready for use.

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Standard equipment

This log splitter is shipped in its original packaging.

Instructions manual included in the package.
