HOME Felling, cutting and splitting wood Log Splitters Petrol Log Splitters Horizontal Petrol Log Splitters AgriEuro Premium T-20

Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons

Semi-Pro
Questions & Answers (3)
ID: K502675

EAN: 9999237540742

AgriEuro Premium
Catalog AgriEuro Premium
9,1/10
After-sales assistance & Spare parts
33Pictures
4Videos
16Customer pics
Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons
Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons
Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons
Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons
Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons
Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons
+100 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Max. trunk diameter
50 cm
Piston stroke
66 cm
Retractable piston for transport
Yes
Motor type
4-stroke
Cubic capacity
270 cm³
Nominal power
9 HP
Nominal splitting force
20 t
Electric start
Yes
Manufacturing country
Italy
Product Features
Model:
T-20
Type:
Horizontal
Double speed:
No
Operating mode:
Spark ignition
Nominal splitting force:
20 t
Piston stroke:
66 cm
Adjustable piston stroke (for short logs):
No
Worktop log cutting:
No
Ground splitting system:
No
Electric start:
Yes
Manufacturing country:
Italy
Motor data
Motor type:
4-stroke
Cubic capacity:
270 cm³
No. of cylinders:
1
Nominal power:
9 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Manufacturing country:
China
Pump data
Oil tank:
Yes
Manufacturing country:
China
Cutting data
Max. trunk length:
66 cm
Max. trunk diameter:
50 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
No
Retaining side supports:
Yes
Trunk lifting system:
No
Retractable piston for transport:
Yes
Tractor three-point hitch:
No
Replaceable wedge guides:
No
Cartridge oil filter :
No
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Recoil start system (with rope):
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
184x90x85
Net weight:
160 Kg
Packaging:
On pallet
Gross weight (packaging included) :
170 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
10 - 12 days from purchase
Free Shipping
Free returns (up to 30 days after receipt) *
€ 2.432,83
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
You're viewing:
Customers also viewed:
Description

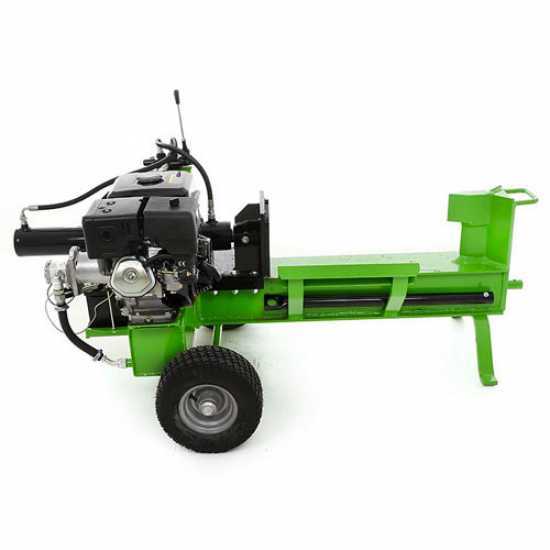

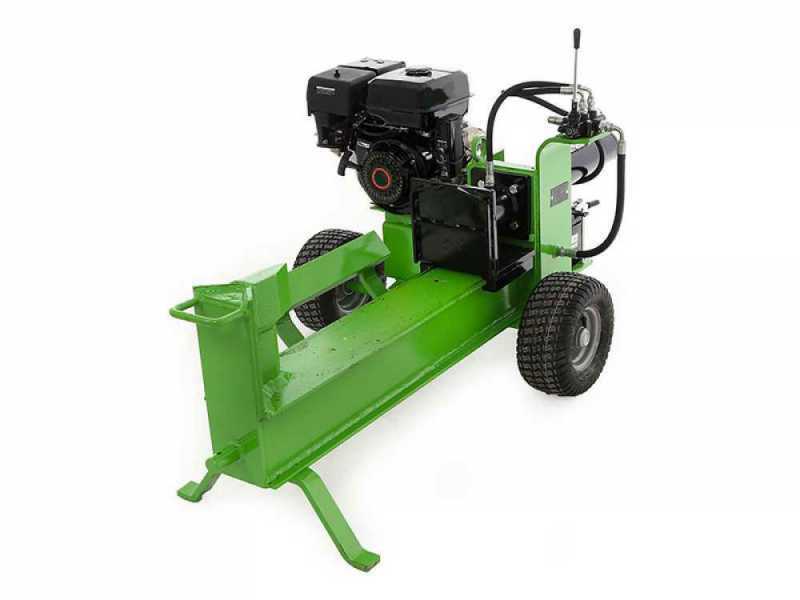

Wheeled horizontal petrol log splitter

Wheeled log splitter powered by a 4-stroke petrol engine featuring 20 tons splitting force.

SEMI PROFESSIONAL petrol log splitter that allows you to split logs efficiently, effortlessly and safely.

Powered by a petrol engine, which makes it suitable for the most difficult operations where an external power supply such as electricity or a tractor is not available.

Equipped with a handle and pneumatic wheels for easy transport.

HIGHLY-POWERFUL thanks to the 20 tons splitting force (that makes it one of the most powerful machines on the market).

HORIZONTAL STRUCTURE: it allows you to split even large-sized logs without having to lift them up (you can place them on the machine without any effort, given the low height of the support leg)

This log splitter is equipped with 20 tons splitting force.

Log diameter: up to 50 cm

Max. log length: 66 cm

Overall dimensions: 184 x 90 x 85 cm

Weight: 160 kg

Entirely made in Italy.

Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons
Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons

9 HP Loncin petrol engine

The Loncin engine features a OHV overhead valve technology with electric starting with key.

Features:

Engine type: 4-stroke 1 cylinder - OHV
Cylinder type: Aluminium
Cubic capacity: 270 cm³
Max. rpm: 3600 rpm

Focus on the recoil starter

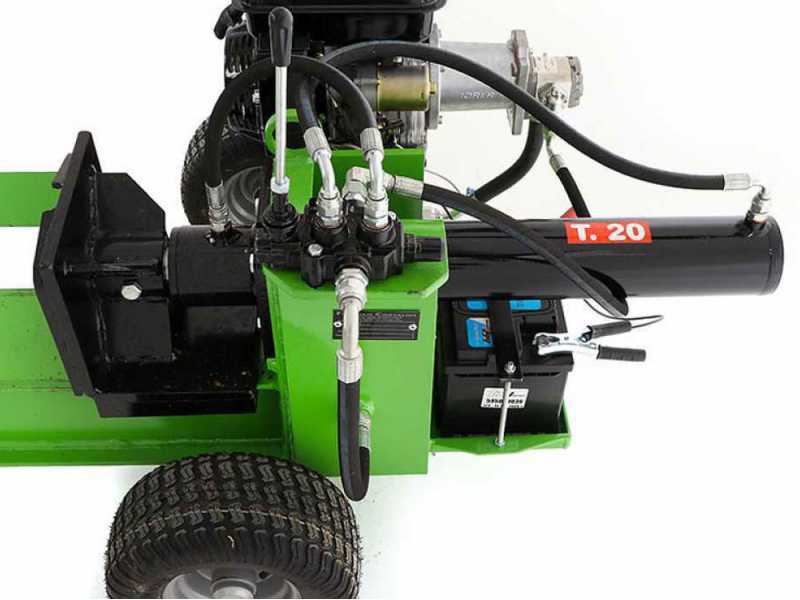

Focus on the hydraulic pump

Focus on the air filter

Focus on the electric starting with key

WARNING!
The engine is shipped WITHOUT OIL. Fill with oil before the first starting. Read the instructions manual carefully before starting the engine.

Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons
Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons

Piston and machine frame

Focus on the sturdy frame

Focus on the piston head.

LARGE-SIZED PISTON: 105 mm outer diameter (90 mm bore). This is another feature that proves the great sturdiness and high power of this log splitter (20 tons).

Heavy-duty platform made of thick steel, mounted on sturdy steel guides.

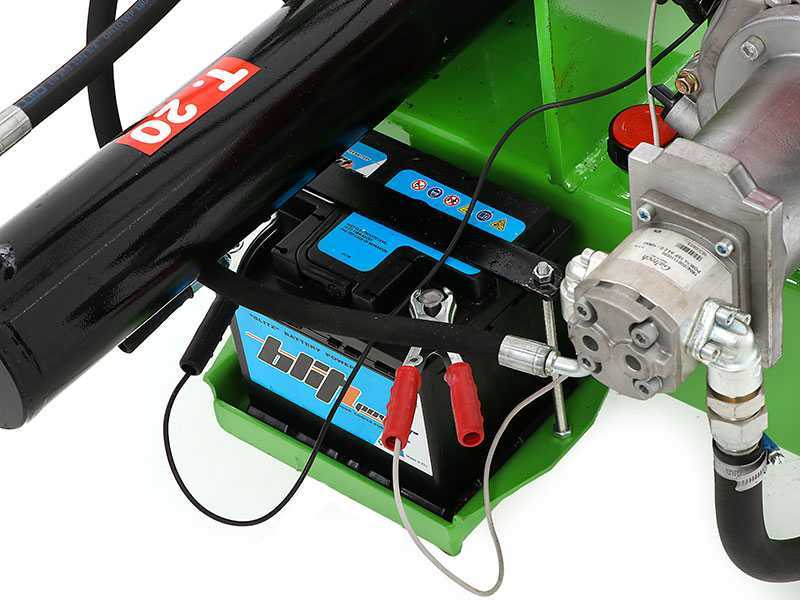

LARGE-SIZED HYDRAULIC PUMP:

ADVANTAGES:

- It enables the machine to reach its high splitting power (20 T)

- It gives the piston high speed

Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons
Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons

General features

Sturdy double-blade wedge for splitting the log.

The upper one more protruding, the lower one more rearward. It allows you to split even the hardest, most twisted and gnarled logs, thanks to a first penetration of the smallest and more protruding upper blade;

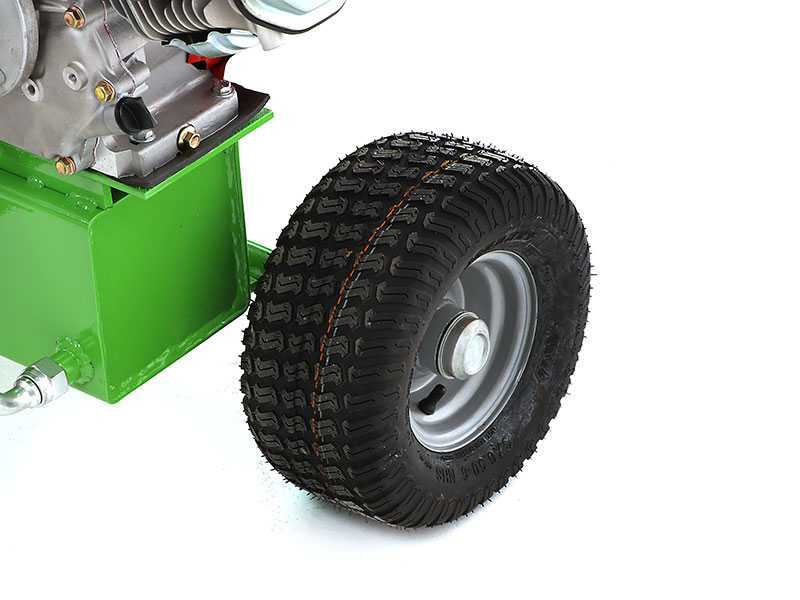

Pair of pneumatic transport wheels

Focus on the hook for transport

Focus on the sturdy main frame with piston guide.

Large hydraulic oil tank mounted on the pump.

Single-lever hydraulic distributor for piston operation.

Focus on the support legs

Split length: 66 cm

Size:

Width: 184 cm

Depth: 90 cm

Height: 85 cm

WEIGHT: 160 kg

Possibility to retract the piston inside the machine, unscrewing the 4 proper bolts to reduce its size during storage.

The log splitter is shipped already assembled and ready for use.

Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons
Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons
Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons
Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons

Standard equipment

The log splitter is shipped in its original packaging.

Instructions manual included in the package.

Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons
Wheeled Horizontal Log Splitter with 4-stroke Petrol Engine - 20 Tons
