Wortex D200/80L - Petrol garden shredder - Loncin 196 cc gasoline engine

Questions & Answers (3)
ID: K502818

EAN: 8054213015896

MPN: WP2422550

8,1/10
After-sales assistance & Spare parts
Wortex D200/80L - Petrol garden shredder - Loncin 196 cc gasoline engine
+100 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
FREE SPARK PLUGFREE SPARK PLUG
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
Foam air filterFoam air filter
Foam air filterFoam air filter
Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!
Motor type
4-stroke
Motor brand
Loncin
Motor Model
G 200
Cubic capacity
196 cm³
Nominal power
6.5 HP
Cutting Rotor Type
Heavy roller
No. of blades
2
Max. Branch Diameter
60 mm
Wood Chip size
4 - 5 cm
N° of hoppers
1
Safety button
Yes
Transmission type
Belt
Weight
85 Kg
Product Features
Model:
D200/80L
Operating mode:
Spark ignition
Hydraulic self-dragging:
No
Discharge chute:
Medium - rotating
N° of hoppers :
1
Hopper opening size (height):
45 cm
Hopper opening size (width):
40 cm
Grass collection system:
No
Electric start:
No
Safety button:
Yes
Manufacturing country:
China
Motor data
Motor brand:
Loncin G 200
Motor Model:
G 200
Motor type:
4-stroke
Cubic capacity:
196 cm³
No. of cylinders:
1
Nominal power:
6.5 HP
Rated power (HP):
5.5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Manufacturing country:
China
Transmission data
Transmission type:
Belt
Cutting data
Body material:
Hardened steel
Max. Branch Diameter:
60 mm
Cutting Rotor Type:
Heavy roller
No. of blades:
2
Blade movement:
Rotating
Counter blades:
1
Wood Chip size:
4 - 5 cm
Equipment
Recoil start system (with rope):
Yes
Front handle:
Yes
Rear wheels size:
4.10/3.5 - 4
Start safety sensor:
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Safety goggles:
Yes
Ear muffs:
yes
Safety gloves:
Yes
Spark plug wrench:
Yes
Instructions manual:
Yes
Dimensions and logistics

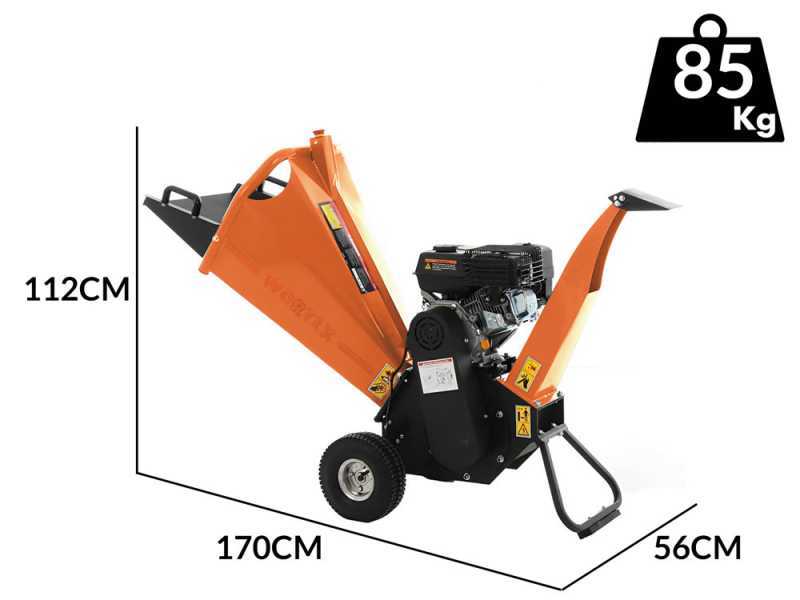

Product dimensions in cm (L x W x H):
170x56x112 cm
Net weight:
85 Kg
Packaging:
Original packaging on pallet
Original packaging/s dimensions in cm (L x W x H):
87x56x84 cm
Gross weight (packaging included) :
100 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
30 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 02/01/2025 - 07/01/2025
€ 1.140,58
Vat included
You're viewing:
Customers also viewed:
Description

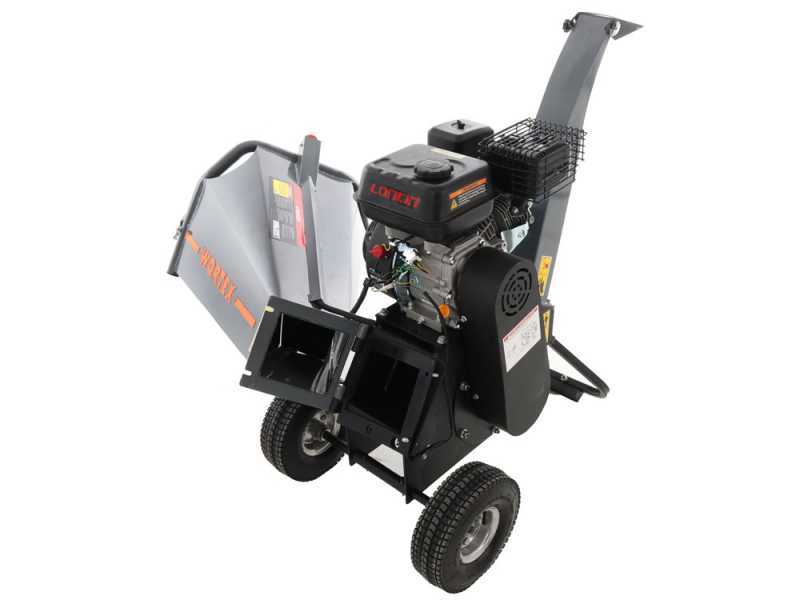

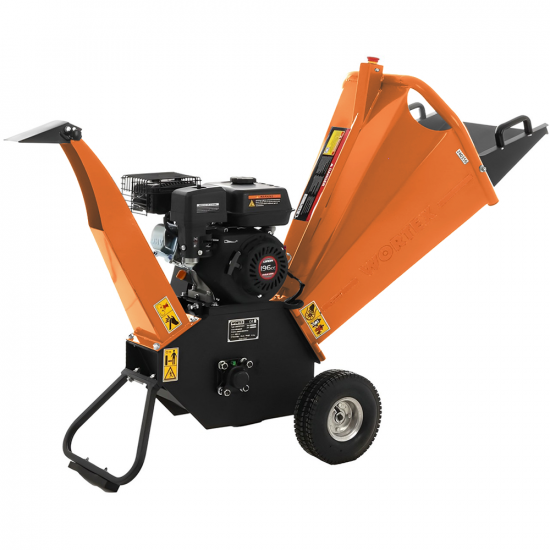

Wortex D200/80L petrol garden shredder - Loncin G 200

The Wortex D200/80L is a lightweight petrol garden shredder equipped with the 6.5 Hp Loncin G 200 engine.

The wood chipper shreds brushwood and twigs making them suitable for composting. Shredding operations also allow reducing the material decomposing time. The ideal product for shredding branches, twigs and logs, it can continuously grind wood up to 60 mm diameter.

Its quality/price ration is one of the best among its category.

The Wortex garden shredder is suitable for the maintenance of parks, gardens, etc. and can withstand heavy works.

The 196 cc Loncin engine is powerful and reliable and ensures high performance.

The large steel hopper can process even very bulky branches and leaves without having to pre-shred them. Thus, it also features a higher capacity that allows entering a large amount of material at a time.

Equipped with a 2-blade 150 mm roller cutting system that guarantees a 60 mm max. cutting diameter.

The belt drive ensures long service life and safeguards key components.

Equipped with safety a button on the feeding hopper that allows the Operator to immediately stop the machine.

Further to its high performance, this garden shredder is very easy to move around thanks to its large 10" wheels and rounded handle.

The overall weight of the unit is 85 Kg.

Hourly output: 2-3 cubic-metres/h.

Set including safety earmuffs, protective goggles and wrenches included for free.

The pictures displayed accurately represent the product, however colours may vary slightly without affecting the quality or performance of the product itself.

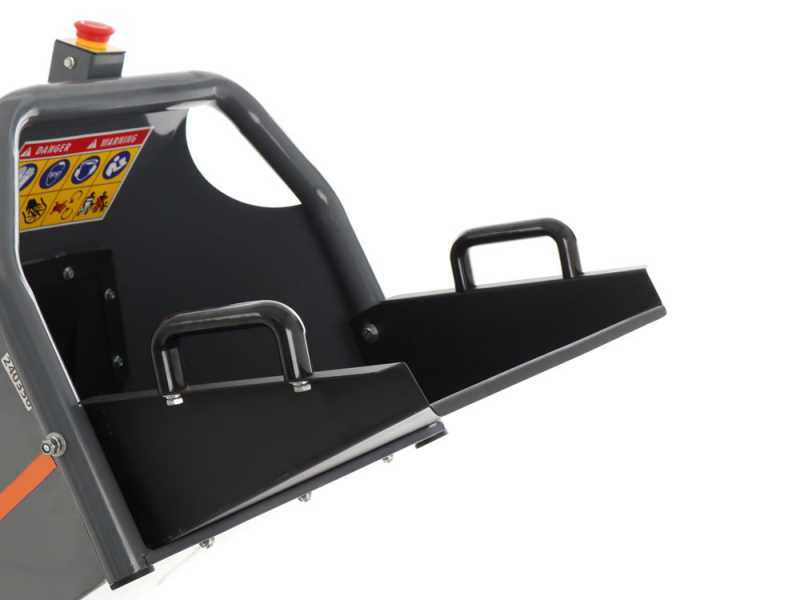

Unified hopper

The machine is able to process even very bulky branches and leaves, without having to pre-shred them.

  • UNIFIED HOPPER:

It considerably simplifies and speeds up the operations.
It avoids the Operator to separate large branches from smaller and green ones (before shredding), while each of them must be entered in their own hopper in standard garden shredders with 2 separate hoppers.

  • SELF-FEEDING:

Once introduced the branches into the hopper, the shredder pulls them inside the shredding unit autonomously thanks to the hopper vertical design. Thanks to the gravitational force, the mechanism can pull inside the branches to be shredded.

WARNING: the branches must not be too bulky because this may limit the functionality of the machine.

Black rubber protective bulkheads placed on the hopper opening.

Hopper size: (Width x Height ) 45 x 40 cm

SAFETY SISTEMS: Equipped with safety a button on the feeding hopper that ensures the possibility to immediately stop the machine when needed.

Focus on the wood chipper handle for easy transport.

The pictures displayed accurately represent the product, however colours may vary slightly without affecting the quality or performance of the product itself.

Shredding chamber and other features

The outer shredding chamber is essential and proportionate in size to the rotor it includes. It guarantees excellent productivity, as well as the durability of the system. The machine body is 100% made of steel. No plastic has been used.

The shredding unit equipped with a reinforced 150 mm dual blade roller guarantees a 60 mm cutting diameter, for processing branches, twigs and logs.

The central rotor is composed of 1 swivelling steel roller featuring 2 150 mm blades.

The dual blade system is also equipped with a counter-blade placed in the shredding chamber. Focus on the the counter-blade adjustment: the counter-blade is tilted with respect to the frame and rotor rotation direction for increasing the wood chipper shredding capacity and performance.

Reinforced blades: 2 blades fixed with 3 hardened steel bolts.

The rotor can be checked in case of clogging or cleaning the machine; just unscrew 2 bolts to open the hopper connected to the rotor.

The garden shredder is equipped with two 10” pneumatic wheels and an anti-vibration rubber-coated front support.

The discharge chute deflector can be manually adjusted.

All roller shredders like this one allow high performance by entering leafless and cleaned branches (not thick and with too twigs);
they are ideal for quite large branches and not for many thin or green branches featuring many twigs; this is because the roller system is technically unsuitable for grinding small diameters branches, or green material in general, while they really give their best with larger branches.
This is due to their less "centrifugal" power compared to standard disc and blade models, and to the "greater distance between blade and counter-blade", designed for single branches that are already well cleaned but with a large diameter.

The pictures displayed accurately represent the product, however colours may vary slightly without affecting the quality or performance of the product itself.

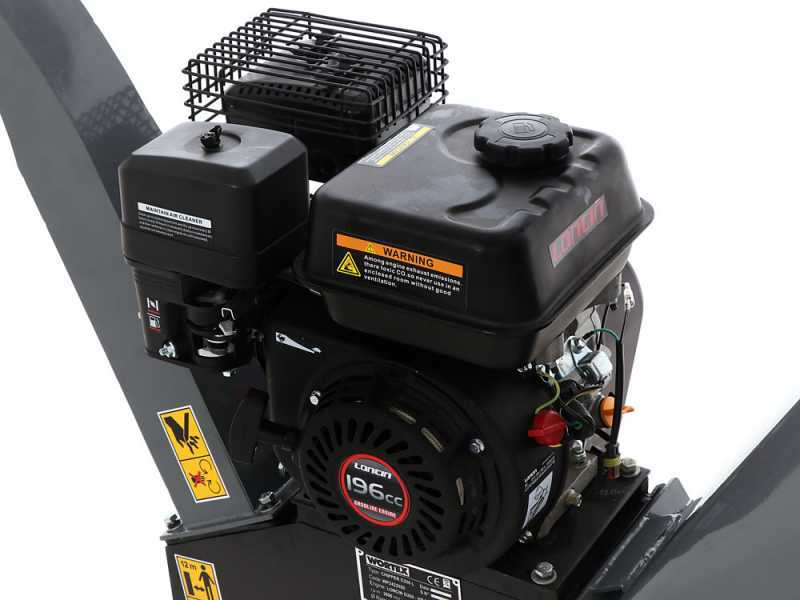

Loncin G 200 engine and intermediate belt drive with reinforced belt

The powerful and heavy-duty Loncin G 200 engine
with OHV overhead valve technology delivers 6.5 Hp power.

Features:

Engine type: 4-Stroke - OHV - single cylinder
Cylinder type: aluminium
Cubic capacity: 196 cc
Compression ratio: 8.5 : 1
Max. rpm: 3600 rpm
Torque value: 12.4 Nm / 1.26.7 kgfm / 2500 rpm
Fuel tank capacity: 3.6 L

Focus on the filter

Focus on the recoil starter

Focus on the tank

INTERMEDIATE REINFORCED BELT DRIVE.

This transmission gives the machine an extraordinary sturdiness, protecting both the motor and the internal shredding rotor from any kind of internal shock or kickback.

In case of a rotor clogging caused, for example, by a too large branch, stones, etc.. there is no risk of breaking the drive shaft and the motor, but the intermediate belt will slip or at least will brake down.

Much longer service life than the standard systems still used by all manufacturers on their petrol-powered models where the engine is directly connected to the shredding unit.

Nominal power: 6.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 5.5 Hp
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.



The engine is PROVIDED WITHOUT OIL. Please carefully read the instructions manual before starting the unit.

The pictures displayed accurately represent the product, however colours may vary slightly without affecting the quality or performance of the product itself.

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

  • Honda GX 120/GX 160/GX 200
  • Honda GP160/GP 200
  • Loncin 120/160/196 cc
  • Axo 120/160/196 cc
  • Briggs & Stratton 950 series

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

GIFT: SAFETY KIT

SAFETY KIT

Noise-cancelling earmuffs to work with maximum comfort
Hearing protection must be performed correctly in every situation. In this case, the supplied earmuffs are specifically designed to educe machine noise.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

100% cotton Agrieuro bandana

Cotton gloves with rubber ripples for comfort and a secure and stable grip on equipment.

Free items included

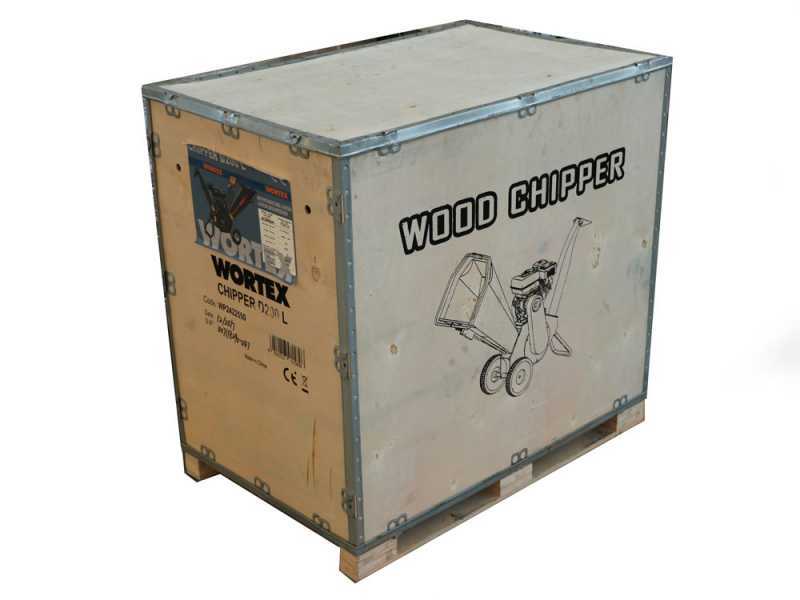

The garden shredder is shipped in a reinforced box on pallet.

The instructions manual is included in the package.

Set including safety earmuffs, protective goggles and wrenches included for free.

The pictures displayed accurately represent the product, however colours may vary slightly without affecting the quality or performance of the product itself.
