Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity

Hobby
Add a question
ID: K604508

EAN: 8054213013724

MPN: WP2421160

Wortex
Catalogue Wortex
8,1/10
After-sales assistance & Spare parts
67Pictures
1Videos
Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Special offer
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Replacement sprak plugReplacement sprak plug
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
Foam air filterFoam air filter
Foam air filterFoam air filter
Load capacity
300 Kg
Barrow body type
Extendable sides
Body tipping
Manual
Max. slope
20 %
Type
Tracked
Motor brand
Loncin
Motor Model
G200F
Motor type
4-stroke
Cubic capacity
196 cm³
Nominal power
6.5 HP
Gear shifting system
Mechanical gearbox
Gears
3+1
Assisted steering
Yes
Body dimensions
90x60x21 cm
Product Features
Model:
SFL 300
Type :
Tracked
Self-propelling:
Yes
Load capacity:
300 Kg
Max. slope:
20 %
Barrow body type:
Extendable sides
Extendable body:
✔
Body tipping:
Manual
Body dimensions:
90x60x21 cm
Extended box size:
100x84x21 cm
Effective inner height:
210 mm
Starting mode:
Recoil
Manufacturing country:
China
Motor data
Motor brand:
Loncin
Motor Model:
G200F
Motor type:
4-stroke
Cubic capacity:
196 cm³
No. of cylinders:
1
Nominal power:
6.5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
3.6 L
Manufacturing country:
China
Transmission data
Gear shifting system:
Mechanical gearbox
Transmission type:
Gears in oil bath
Gearbox:
In oil bath
No. of forward speeds:
3
No. of reverse speeds:
1
Gears:
3+1
Operating mode:
Gear lever
Equipment
Side panels hand levers:
Yes
Motor safety brake:
Yes
Box:
Extendable
Body thickness:
2 mm
Assisted steering:
Yes
Track width:
180 mm
Track length on the ground:
940 mm
Total rollers no.:
3
Recoil start system (with rope):
Yes
Free gifts/extra features
Engine oil bottle for free:
Yes
Wooden pallet (safe shipping):
Yes
Maintenance tool kit:
Yes
Instructions manual:
Yes

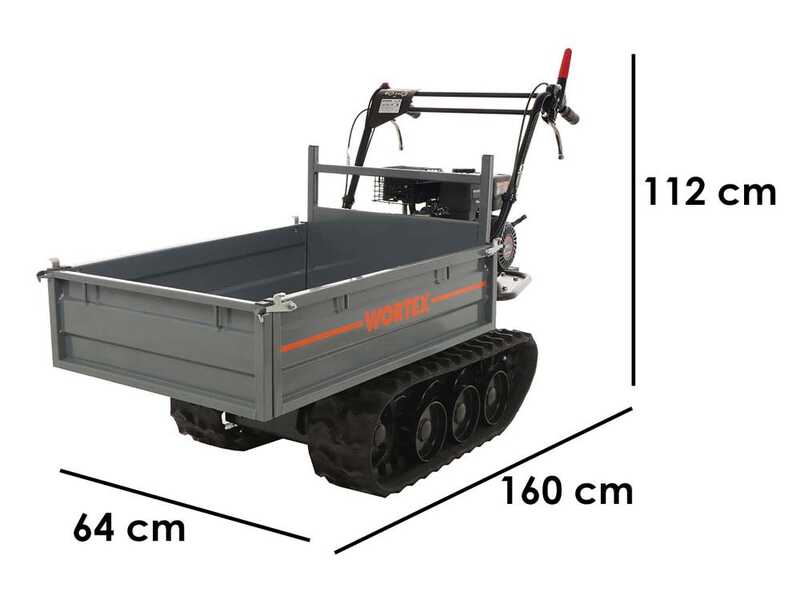

Dimensions and logistics
Product dimensions in cm (L x W x H):
160x64x112 cm
Net weight:
185 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
183x82x116 cm
Gross weight (packaging included) :
212 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 15/04/2025 - 17/04/2025
Free returns (up to 30 days after receipt) *
Lowest price:
€ 1.996,60
-3 %
€ 1.936,70
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
You're viewing:
Customers also viewed:
Description

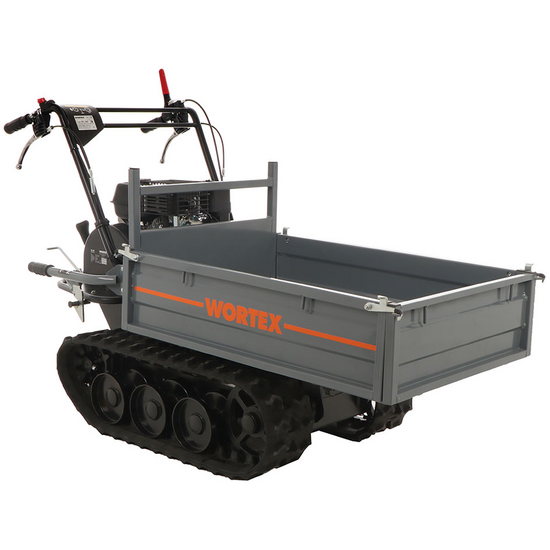

Wortex SFL 300 Tracked Power Barrow

The Wortex SFL 300 tracked power barrow is a very robust machine suitable for transporting all types of material in agriculture, construction and forestry.

The extendable body increases the carrying space available for loading materials. The manual tipping also makes unloading much easier. The robust steel frame and the gearbox with three forward and one backward gears make this power barrow a versatile and high-performing machinery.

It has a maximum load capacity of 300 Kg.

Thanks to its tracks and to the Loncin engine this model is able to carry loads also when moving the unit on slopes, thus being an indispensable tool for each type of transport.

The machine is powered by Euro 5 Loncin G200F engine of 196 cc. It has a rated power output of 6.5 HP.



Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity

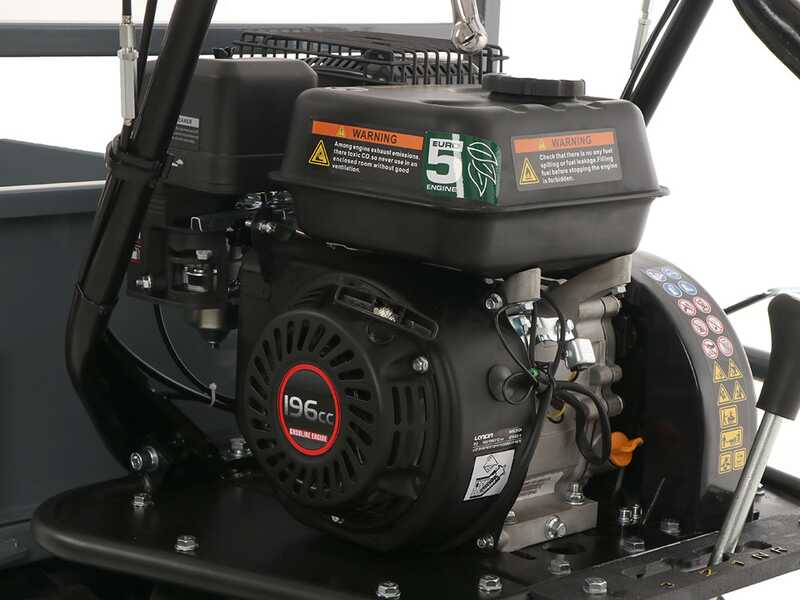

Euro 5 Loncin G200F Engine

The Loncin G200F engine is suitable for jobs where it is required high power due to its high displacement of 196 cc.

Features:

Engine type
Single-cylinder 4-stroke - OHV
Cylinder type:
Cast Iron
Cubic Capacity:
196 cm³
Fuel:
Petrol
Detail of the air filter.

Four-Stroke petrol engine of the latest generation with overhead valve “OHV” technology.

Easy recoil start, thanks to the automatic fuel priming system.

ATTENTION The engine is PROVIDED WITHOUT OIL. Make sure to carefully read the instructions manual before starting the unit.

Nominal Power: 6.5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Effective power: 5 Hp
It corresponds to the real power expressed at the motor shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the speed of rotation provided.

Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity

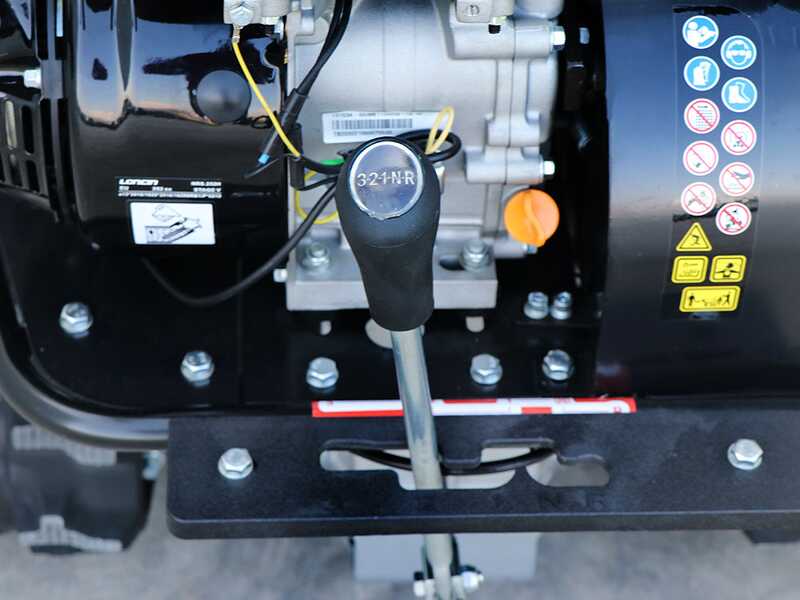

Gearbox, Parking Brake and Transmission

Gearbox: large, reliable and accurate.

Speeds:
3 forward gears
1 reverse gear

Parking brake:
connected to the gearbox, for greater stability and safety.
These are automatically activated when the controls are released (if the machine is left in neutral position, even on a steep slope, it remains perfectly locked).

Transmission:
Sturdy and resistant, it allows managing the steering by acting on the single track, deactivating its rotation.

The machine is supplied by the manufacturer with transmission oil level. Anyway, oil levels must ALWAYS be checked before operating the unit as specified in the instruction and maintenance manual.

Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity

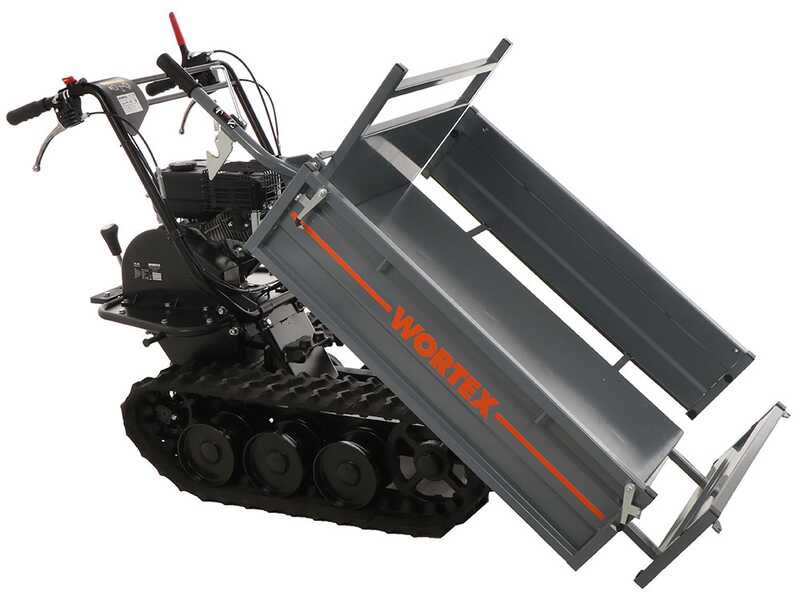

Extendable Tipping Skip

Skip made in high-resistance steel, is reinforced with tubular cross members in the lower part, which make it suitable for any load or stress. The loading platform is at the minimum distance from the ground to facilitate the operations of loading / unloading.

The loading capacity can be significantly increased due to the extensible side panels.
Thus, in addition to the standard wing nut screws placed under the body, the power barrow is provided with sturdy hinges, which tighten the side panels to one another.

An example of use is for carrying and transport wood.

Barrow dimensions 900x600x210 mm

Extended barrow dimensions: 1000x840x210 mm

Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity

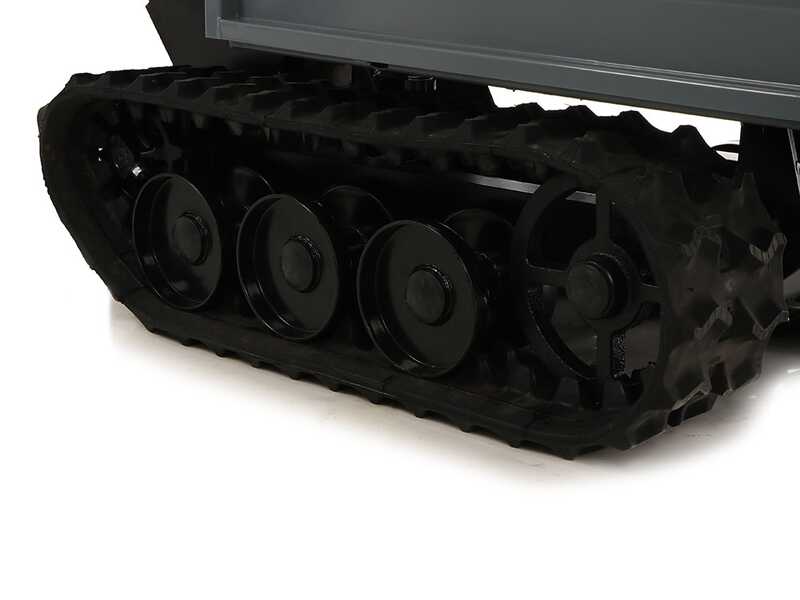

Tracks and body

Track structure: sturdy and over-sized. Both the height and the length is greater than the average of the wheelbarrows on the market of the same size. The drive wheel is made of cast iron / steel. The perfect front / rear balance ensures the distribution of loads and a perfect adherence to the ground. The rollers are self-cleaning.

Unlike other power barrows, this one is provided with 3 rollers and the protection on the track is made of a solid steel-reinforced frame.

Focus on the rear part of the track with "tank shaped” sharp upper corner that allows the shredder to easily climb steps or other obstacles.

Track Width: 180 mm

Total track length 94 cm

Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity

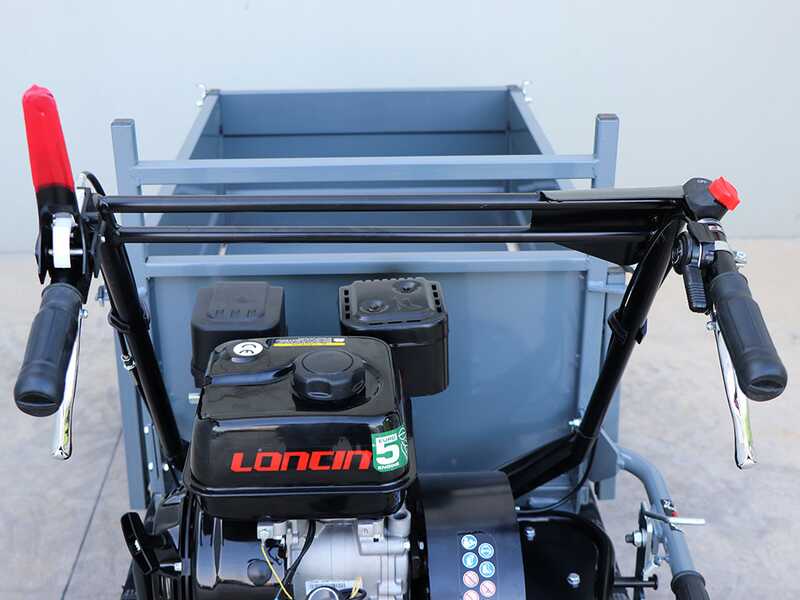

Controls

Controls: easy to operate and ergonomic, they offer precision and controllability in the work

Large red lever for activating the motion, which also functions as a handbrake if released.

The two lower levers are for steering, left and right respectively.

The steering can be adjusted depending on the control lever and it allows moving smoothly. By partially pulling one or the other lever also the steering of the affected track, right or left, will be partial.

Throttle lever

Power switch

Body release lever

Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

  • Honda GX 120/GX 160/GX 200
  • Honda GP160/GP 200
  • Loncin 120/160/196 cc
  • Axo 120/160/196 cc
  • Briggs & Stratton 950 series

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity

Free Items Included

The power barrow is provided in its original packaging .

Instruction manual and set of wrenches for adjusting and assembly

Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
Wortex SFL 300 Tracked Power Barrow - Extendable body with 300 Kg load capacity
