Zanon Murcielago R AL300 - 210/340 cm Electric Lithium Battery-powered Olive Harvester - 50.4V 15.9 Ah

Add a question
ID: K601756

EAN: N/A

MPN: N/A

8,0/10
After-sales assistance & Spare parts
Zanon Murcielago R AL300 - 210/340 cm Electric Lithium Battery-powered Olive Harvester - 50.4V 15.9 Ah
Special offer
FREE
Multi-purpose Lithium spray grease - 400 mlMulti-purpose Lithium spray grease - 400 ml
Noise-canceling earmuffsNoise-canceling earmuffs
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Head material
Aluminium
Motion
Double side
Speed (bpm)
980 bpm
Max. prongs opening
50 cm
Pole material
Aluminium
Telescopic pole
Max. length
340 cm
Motor type
Induction
Voltage
50.4 V
Nominal power (W)
600 W
Motor speed levels
2
Motor type
Battery-powered
Battery type
Li-Ion
Backpack battery
No. of batteries
1
Battery Amperes
15.9 Ah
Carbon prongs
Manufacturing country
Italy
Product Features
Model:
Murcielago R AL300
Backpack battery:
Use:
For olive harvester only
Power supply:
Lithium battery
Head material:
Aluminium
Type:
Li-ion battery-powered
Items included:
Battery and battery charger included
Motor position:
Up - on the head
Motion:
Double side
Speed (bpm):
980 bpm
"Wave" prongs:
No
No. of prongs:
4+4
Prongs length:
32 cm
Prongs material:
Carbon
Carbon prongs:
Max. prongs opening:
50 cm
Lubrication type:
Grease-lubricated
Min. length:
210 cm
Max. length:
340 cm
Pole material:
Aluminium
Adjustable head:
no
Removable harvesting head for direct use:
No
Induction motor (brushless):
Max. power even with low battery:
Yes
Energy Saving System:
Yes
Pole type:
Telescopic
Manufacturing country:
Italy
Motor data
Motor brand:
Zanon
Motor position:
On the head
Motor type:
Battery-powered
Motor type :
Induction
Battery type:
Li-Ion
Motor speed levels:
2
Nominal power (W):
600 W
Power supply:
Lithium-ion battery-powered
Fuse:
Yes
Voltage:
50.4 V
Battery Amperes:
15.9 Ah
No. of batteries:
1
Working autonomy:
8 h
Motor power:
50.4 V
Charging time:
7.5 h
Manufacturing country:
Italy
Equipment
Extension pole :
210-340 cm
Telescopic pole:
Free gifts/extra features
Ear muffs:
yes
Prongs/rods:
2
Prongs/rods:
2
Tool case:
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
340x35x16 cm
Net weight:
2.3 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
218x37x22 cm
Gross weight (packaging included) :
6.4 Kg
Assembly time:
5 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 03/04/2025 - 09/04/2025
Lowest price:
€ 2.613,40
-15 %
€ 2.221,74
Vat included
Available versions
You're viewing:
Customers also viewed:
Description

Zanon Murcielago R AL300 Lithium Battery-operated Olive Harvester

The Zanon Murcielago R AL300 harvester is a high-performance tool offered by Zanon for olive harvesting. This model stands out for its power and harvesting capacity, making it an ideal choice for professional operators and olive-growing enthusiasts.

The Murcielago R AL300 olive harvester is equipped with a powerful electric motor with an output of 600W and a voltage of 50.4V. This high power makes it possible to effectively shake olive trees, facilitating fast and efficient olive harvesting.

One of the distinguishing features of this harvester is the telescopic pole provided. This adjustable pole makes it easy to adapt the length of the harvester to different heights of olive trees, ensuring optimal access to the olives. In addition, the telescopic pole helps to reduce operator fatigue during work.

The Murcielago R AL300's shaking system is designed to reduce olive throwing. Thanks to an innovative patented system, the opposite inclined movement simulates the flight of the Murcielago bat, helping to harvest olives more efficiently and minimising the risk of damage to olives or trees.

In terms of service life, the harvester is powered by a high-quality lithium-ion battery. This powerful battery provides excellent autonomy during work, allowing it to be used for an extended period without having to interrupt the activity for recharging.

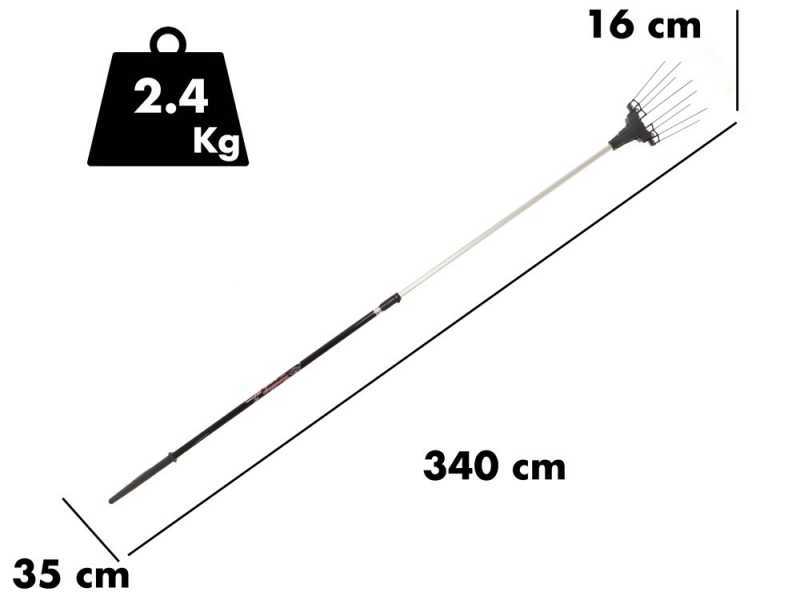

Convenience and comfort are further ensured by the product's light weight. Weighing only 2.4 kg, the operator can easily handle the instrument without excessive fatigue.

The Zanon Murcielago R AL300 harvester has been designed with a focus on durability. The transmission has a closed gearbox with lubricated special steel gears mounted on bearings, guaranteeing perfect transmission and a long service life.

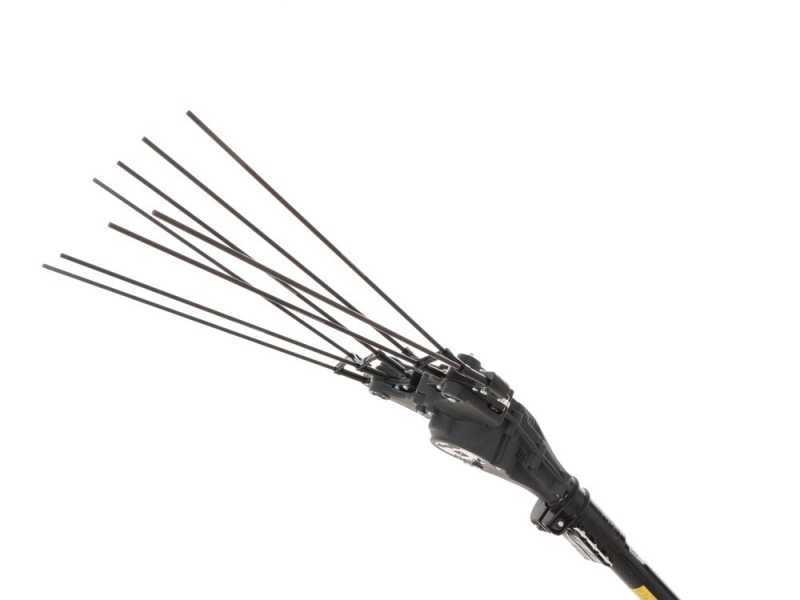

Head and Prong Motion

The ZANON olive harvester has 4+4 quick-replacement carbon harvesting rods on the head.

The arms therefore carry a total of 8 carbon fiber rods with easy replacement, the entire propulsion and transmission unit is hermetically sealed, without any possibility of penetration of external agents inside. This ensures continuity of operation and an almost non-existent maintenance. The prongs are more than 32 cm to allow you to enter deep into the plant.

There is double speed

Compared to its older brothers "Karbonium" and "Albatros" the motion is not opposed, which is why it is able to increase the amount of harvesting but increases its vibrations

Technical details of the head:

  • 35 cm cutting width.
  • Productivity: 100/180 kg/hour.
  • Shakes per minute: 980/850.

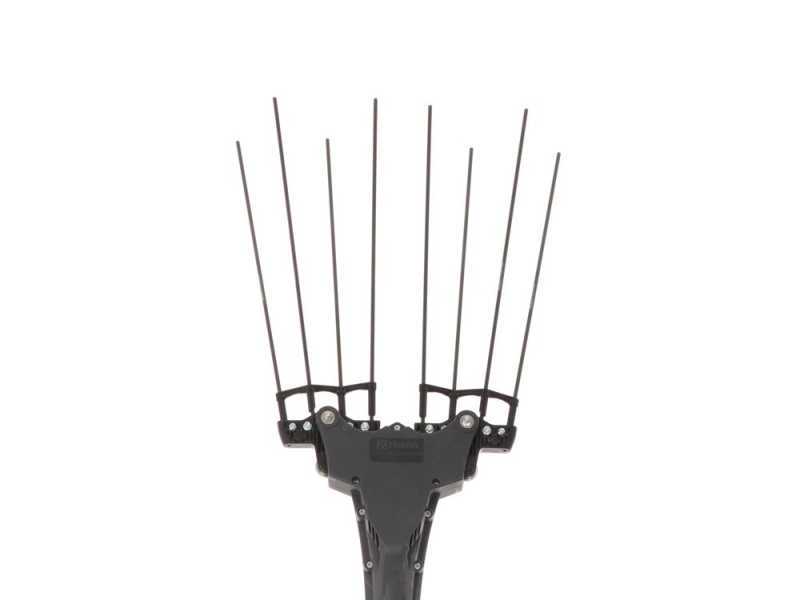

Energy-saving Electric Motor

The Murcielago R boasts a closed box drive with special steel lubricated gears mounted on bearings and a robust frame that ensures perfect transmission and durability.

The machine is powered by a Drive 1504.S lithium battery that can be easily transported thanks to the practical backpack supplied

Engine running with direct current at 50.4v.

There are 2 speeds 980-850 bpm.

New 600W BRUSHLESS engine

Equipped with an electronic control unit complete with thermal and absorption protections.

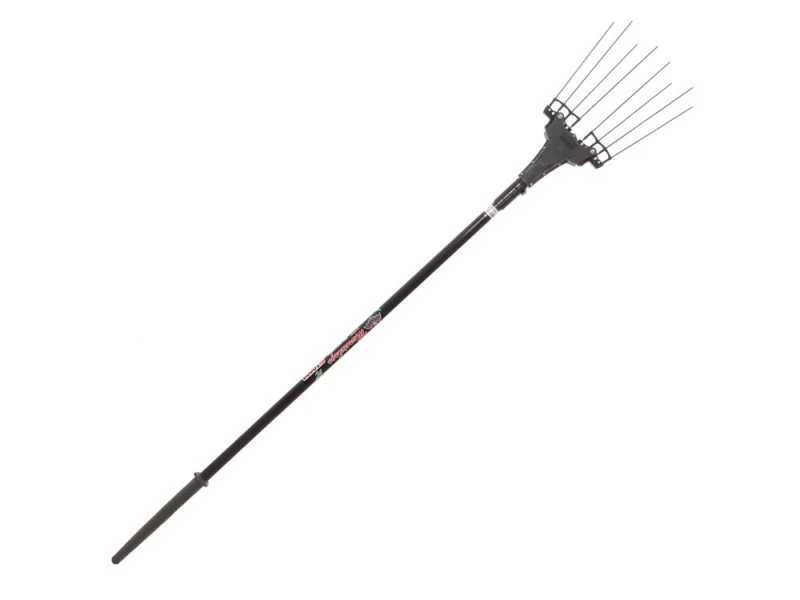

Telescopic Pole

The pole is adjustable in any position between the length of 210 and 340 cm (reference to the total length of the harvester)

Thanks to the quick coupling,it will be possible to stretch the harvester pole quickly and at the desired length.

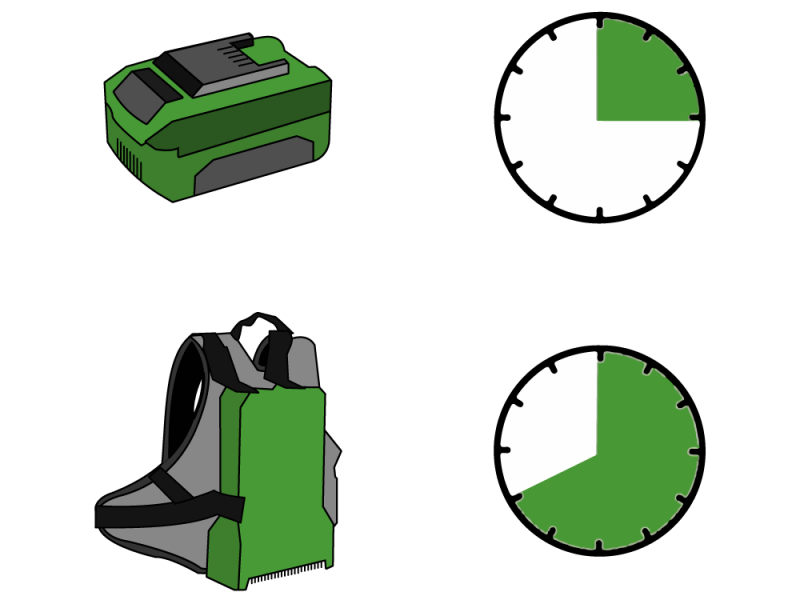

about the autonomy of lithium batteries

When using a harvester, the choice of battery depends on the practical needs of the user. The main differences between a base-mounted battery and a backpack battery concern freedom of movement and autonomy. The base-mounted battery is more manoeuvrable and lighter, but offers reduced autonomy. In contrast, the backpack provides longer working sessions, although it can be bulkier in tight spaces.
Base-mounted lithium-ion batteries offer greater freedom of movement. The lack of cumbersome cables improves agility when working between trees, making the harvester easier to manoeuvre. They are generally lighter than the backpak once, reducing operator fatigue, and make it easier to transport the device. In addition, handling is more intuitive, not requiring additional equipment such as a backpack. On the downside, however, they have a very limited autonomy and often cannot do a full day's work on their own.
On the other hand, lithium backpack batteries, while adding a certain amount of bulk, allow for greater energy capacity, extending the operational life of the harvester without the need for frequent recharging or battery changes. Their higher capacity allows long working sessions without interruption. In addition, shifting the weight of the battery to the back reduces the direct load on the arm and body, better balancing the overall weight of the equipment.
However, backpack batteries can be less ergonomic and uncomfortable in tight spaces or during quick movements between trees, and the presence of the cable can be an obstacle or obstruction during operation. Finally, the constant carrying of the backpack may cause more fatigue in the long run than an integrated solution in the product base.

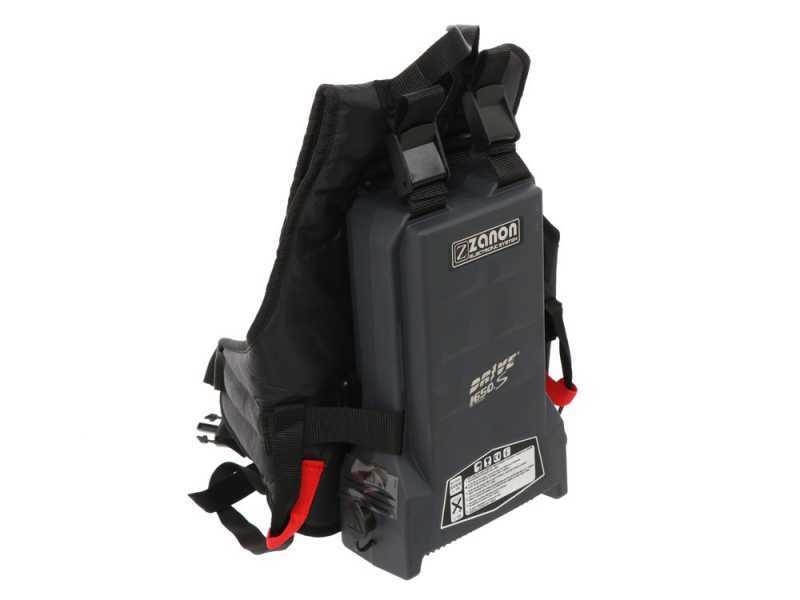

Zanon LI-ion Drive 1650.S Multifunctional Battery

The included battery incorporates latest-generation technology and sophisticated control electronics. The DRIVE .S range allows you to power all tools from “highend” line by Zanon Electronic System.

You can constantly check the battery level on the dedicated display. The backpack, equipped with an adjustable belt and a resting hook, allows optimal weight distribution and ergonomics, guaranteeing maximum freedom of movement. DRIVE.S is eco-friendly, eliminates exhaust emissions and limits noise pollution and is up to 70% recyclable.

Thanks to this battery you can work half a day without too many difficulties; here are the main features:

  • Voltage: 50.4V
  • Amperage: 15.9Ah
  • Weight: 4.8 Kg

Complimentary backpack to comfortably transport the battery

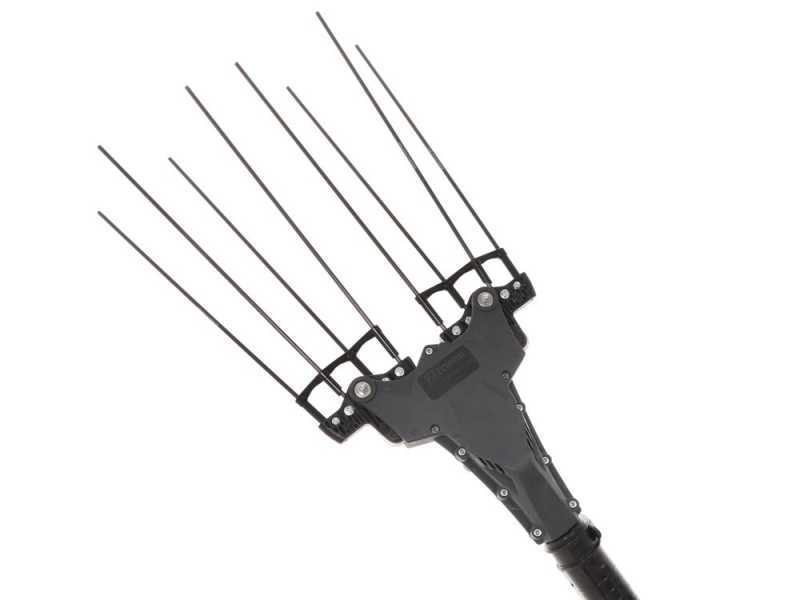

Additional Features

Focus on the motor drive switch.

Focus on the professional screw power coupling.

Its main advantages include:

  • Head elements 4+4 flexible carbon fiber rods that are easy and quick to replace.
  • Electric motor: 600W 50.4V high performance and low power consumption.
  • Non-opposing motion
  • Power supply: electrical
  • Ergonomic handle with switch, cable and anti-bending protection.
  • Productivity: 100/180 kg/hour
Free items & Standard equipment

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.

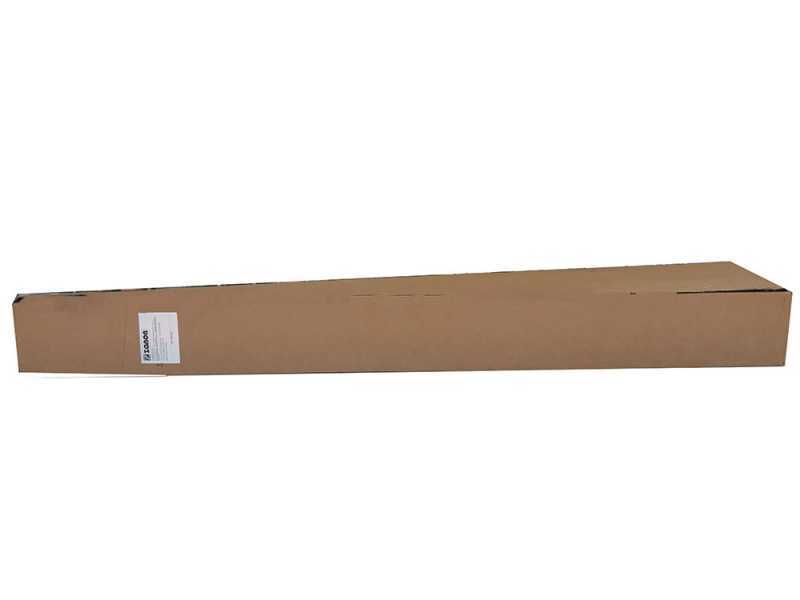

Standard Equipment

The olive harvester is shipped in its original packaging.

The package includes:

  • Instruction manual;
  • Backpack, battery of 50.4 V 14.5 Ah with connection cable;
  • Charger;
