Description

AgriEuro LLM200 tractor-mounted grader blade - 200 cm blade

The AgriEuro LLM200 tractor-mounted grader blade is mainly designed for levelling bumps in the soil to avoid water stagnation and wasted irrigation,

as well as recovering soil areas from ditches quickly and accurately.

It is also useful for clearing snow in yards and large areas.

The machine is equipped with 3-point hitch and sturdy quick-release devices for avoiding loosing the working speed and ensuring the Operator’s safety.

The blade can rotate 360° thanks to a screw system on serrated locking plates, allowing the soil to be moved sideways.

Furthermore, thanks to the 5-position slewing ring, the blade can be extended laterally, allowing the equipment to operate beyond the track of the tractor where you don’t need to or can’t go over with the tractor.

Main features:

Wear-resistant interchangeable steel blade
3-Point hitch
Removable end plates
Adjustable removable stand
Rotating blade and slewing ring

Made in Italy

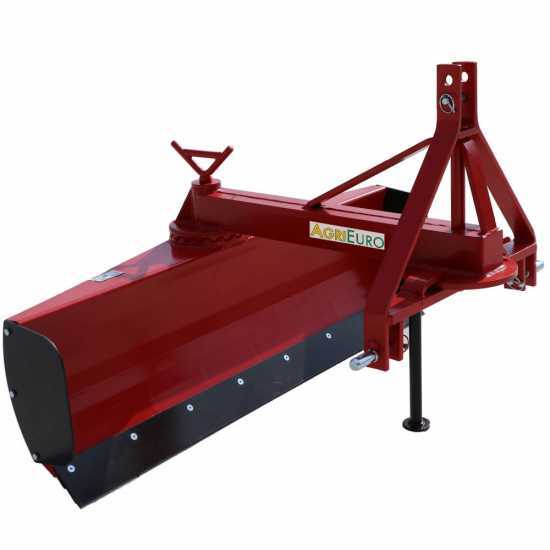

AgriEuro LLM200 Tractor-mounted Grader Blade - Medium Series - Swivel Ring and Rotating Blade

Frame angle with adjustable slewing ring and 360° rotating blade

The grader blade allows the Operator to level the soil with extreme ease and can be adjusted according to the needs.

The grader blade allows you to easily level the ground as the blade can rotate 360° thanks to a screw system on serrated locking plates and it is also possible to move the implement sideways thanks to a 5-position system, allowing the frame to pivot on one side or the other with a simple movement.

This last movement allows the grader blade to move out of the tractor track, enabling it to reach difficult areas such as ditches, walls or boundaries with plants.

Focus on the straight blade positioned behind and sideways to the tractor.

Focus on the pivot pin grease nipple
