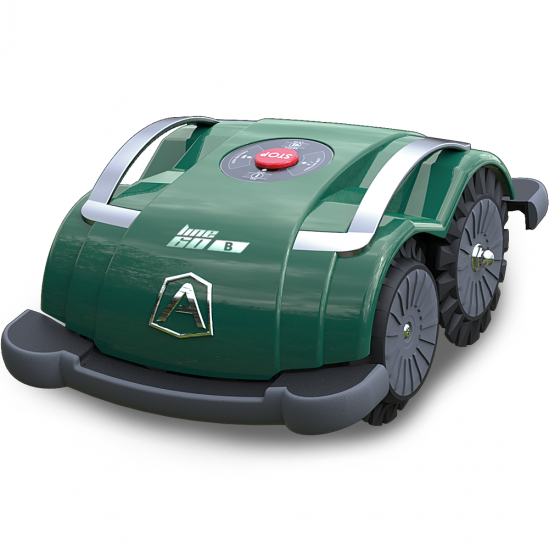

Ambrogio L60 Elite S+ - Robot Lawn Mower without Perimeter Wire - No Need for Installation

Without the need to install any perimeter wire, the Ambrogio L60 ELITE S+ robot is an ideal solution for the care of small areas.

Equipped with a 25.9 V 7.5 Ah lithium battery, it offers a cutting autonomy of about 180 minutes and a charging time of about 180 minutes.

Recommended for use on areas up to 400 m².

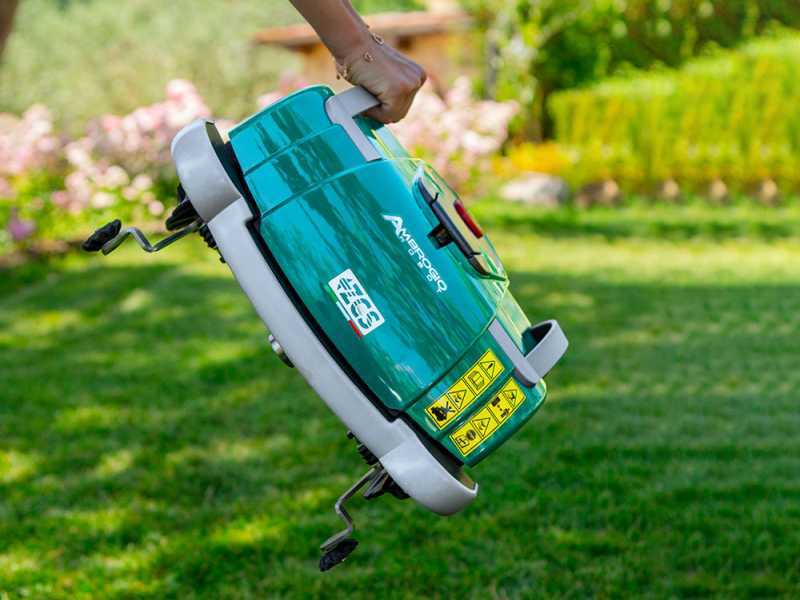

The robot's ease of use allows it to be put into operation immediately and moved between different areas or gardens without difficulty.

Thanks to its ability to recognise and work exclusively on grass surfaces, the robot moves autonomously, following a random path instead of predetermined lines.

In addition, Bluetooth connectivity allows the robot to be controlled remotely via the 'Ambrogio Remote' App, available for smartphones. Users can easily customise settings, schedule cutting times and even guide the robot directly via the App.

Equipped with 4-wheel drive, the robot can tackle slopes of up to 50% without loss of speed or power and without risk of tipping over.

The robot's durable steel blade allows a cutting width of 25 cm and an adjustable height of up to 48 mm, which can be extended to 42 mm with the appropriate spacer.

Built-in sensors enable the robot to recognise dangerous slopes and modify its trajectory to avoid tipping or malfunctioning, even in the event of sudden changes in gradient of more than 25%. This includes the presence of trees with their stems gradually rising from the ground, or other similar obstacles.

The product's numerous sensors include:

• Eco Mode Sensor: to detect already mowed areas;
• ZGS sensor: to detect turf and identify gullies;
• Anti-tilting sensor;
• Lifting sensor;
• Front and rear mechanical bumper.

The quality of the materials and sturdy construction of Ambrogio Robots place them among the best on the market.

The interaction with your Ambrogio robotic lawn mower has never been so easy and fun.

Free to download it from Google Play Store and Apple Store. Thanks to the "Ambrogio Remote” App, it is possible to take advantage of a number of extra functions like:

• Set the PIN code to use the robot in complete safety (only where required);
• Start and stop the robot;
• Operate the robot lawn mower with a delayed start;
• Control the robotic lawn mower during the mowing operations;
• Change the status of the sensors;
• View the status, alarms, and any possible errors of the robot.

The product is delivered ready to use, and you can start it autonomously. Indeed, even the most inexperienced user who has never seen this type of product will be able to start operating the Ambrogio L60 Elite S+ robot lawn mower without perimeter wire by following the instructions in the user manual.

The Operator will just need to place the robotic cutting device on the lawn that needs to be mowed, ensuring that the lawn is delimited by paved surface and / or barriers such as fences, walls, and so on.

This robot lawn mower is ideal for every user.

From now on:

• You will be fully aware of the product you've purchased, having a thorough knowledge of its specifications and features.
• You will be able to use your robot lawn mower independently, without the need of constant support from a technician, and ask for assistance even in case of small issues.
• You will save time and money compared to other robot lawn mowers.

Main technical features:

• Cutting motor: Brushless
• Traction Motor: Brushless
• Battery voltage: 25.9 V
• Battery capacity: 7.5 Ah
• Running time: 180 minutes
• Charging Time: 180 minutes
• Speed: 18 m/min
• Noise level: 65 dB
• Anti-theft system: Settable PIN
• Weight: 8.6 Kg

The robot with the active chasm sensor requires a curb of at least 5 cm and a step at least 5 cm deep. Curbs less than 5 cm wide or steps less than 5 cm deep must be protected with additional paving or alternatively protected by placing bows in the ground so that the robot hits them and changes direction.

If there is a perimeter wall in your garden that delimits the work area, it must always be 9 cm high. In case of lower walls, the area must be protected with arches or suitable paving.

• Patented ZGS sensor (Zucchetti Grass Sensor):
  • Sensor that detects turfs: it detects the presence of grass, or if it encounters an obstacle, it randomly changes trajectory and starts off again in the new direction;
  • Recognition of chasm: (Step detection): it allows the mower robot to change direction if there are sudden differences in height, such as steps or pools.
• Eco Mode Sensor, which allows recognising the area that has been already mowed: (Blade modulation) this function allows adjusting the blade cutting speed depending on the effort that is met during the mowing operations: this ensures reduced consumptions, noise. In contrast, it allows increasing the cutting surface and the running time.
• Tipping sensor: it detects slopes that cannot be tackled and results in its reversal in order to avoid tipping or malfunctioning;
• Lifting sensor: if the robot is lifted manually or if both wheels end up in holes the robot shuts down, it must then be started manually;

Easy and immediate battery charging thanks to the hidden charging system protected by a IP21 cover located on top.

Detail of the control panel.

CUTTING SPECIFICATIONS:

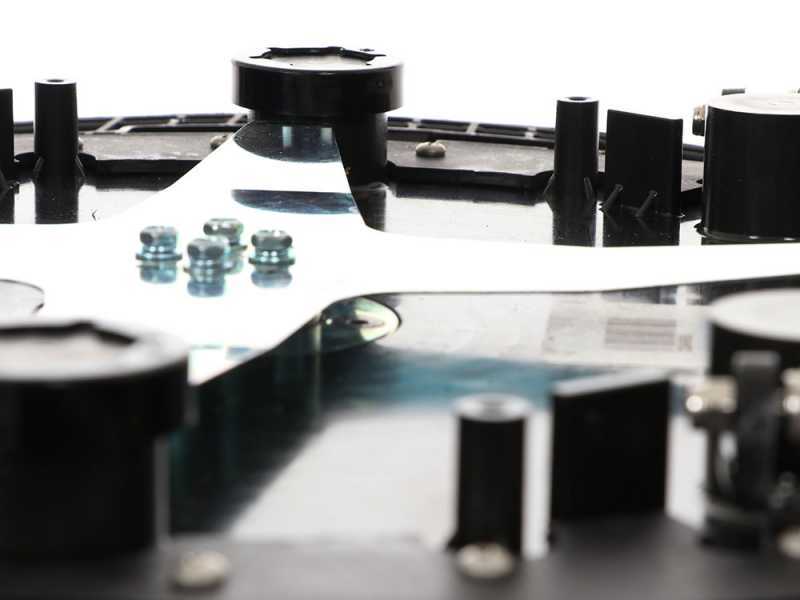

• Mulching: Blade for mulching cutting system. This system allows finely shredding the grass clippings without having to collect them in a grass collector. Grass decomposes naturally, water and nutritional substances returns to soil for a wonderful, healthy lawn! The mulching system allows distributing grass clippings evenly for a fertilised, healthy lawn.
• Max. cutting area: 400 s.q. m.
• 25 cm cutting width
• Maximum slopes: 50%

The Ambrogio L60 ELITE S+ robot lawn mower without perimeter wire perfectly cuts grass of any type and works in random mode without following any precise guidelines.

It guarantees a perfect and optimal grass cut between 42 mm and 48 mm (adjustable with the supplied blade spacer). The four-tip blade gives the lawn an even and uniform appearance

Large high-grip wheels that do not damage the lawn and the 4WD 4-wheel drive (guarantees operation in gardens with steep slopes) make this robot a high-quality product.
