Ceccato Triton Mega Monster - Professional wheeled garden shredder - Honda GX690 engine

Questions & Answers (1)
ID: K600370

EAN: 9999991090569

MPN: TRICMMON

8,5/10
After-sales assistance & Spare parts
Ceccato Triton Mega Monster - Professional wheeled garden shredder - Honda GX690 engine
Special offer
+20 sold
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
Motor type
4-stroke
Motor brand
Honda
Motor Model
GX 690
Cubic capacity
688 cm³
Nominal power
22.1 HP
Cutting Rotor Type
Knives + hammers
No. of blades
2
No. of hammers
24
Max. Branch Diameter
150 mm
Wood Chip size
2 - 3 cm
N° of hoppers
1
Safety Lever
Yes
Upper discharge system
Discharge chute rotation
Manual
Electric start
Yes
Independent Oil Tank
Yes
No. of rollers
One
Reverse
Self-propelling
Transmission type
Belt
Roller drive type
Hydraulic
Tow hook
Yes
Weight
740 Kg
Manufacturing country
Italy
Product Features
Model:
Mega Monster GX390 on cart
Operating mode:
Spark ignition
Independent Oil Tank :
Yes
Hydraulic self-dragging:
Yes
Self-feeding roller system:
Hydraulic
Anti-jam system:
Yes
Discharge chute:
High - rotating
N° of hoppers :
1
Hopper opening size (height):
56 cm
Hopper opening size (width):
96 cm
Self-propelling:
Electric start:
Yes
Foldable:
Yes
No. of rollers:
One
Reverse:
Safety Lever:
Yes
Tow hook:
Yes
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor Model:
GX 690
Motor type:
4-stroke
Cubic capacity:
688 cm³
No. of cylinders:
1
Nominal power:
22.1 HP
Rated power (HP):
17.4 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
6.1 L
Manufacturing country:
Japan
Transmission data
Transmission type:
Belt
Roller drive type:
Hydraulic
Cutting data
Body material:
Enamelled steel
Max. Branch Diameter:
150 mm
Cutting Rotor Type:
Knives + hammers
No. of blades:
2
No. of hammers:
24
Blade movement:
Rotating
N° of chopper blades:
24
Counter blades:
2
Wood Chip size:
2 - 3 cm
Equipment
Discharge chute rotation:
Manual
Electric start with key :
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
320 x 160 x 220 cm
Net weight:
740 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
200 x 160 x 215 cm
Gross weight (packaging included) :
795 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 07/04/2025 - 11/04/2025
Lowest price:
€ 15.090,58
-7 %
€ 13.961,02
Vat included
TOP QUALITYTOP QUALITY
You're viewing:
Customers also viewed:
Description

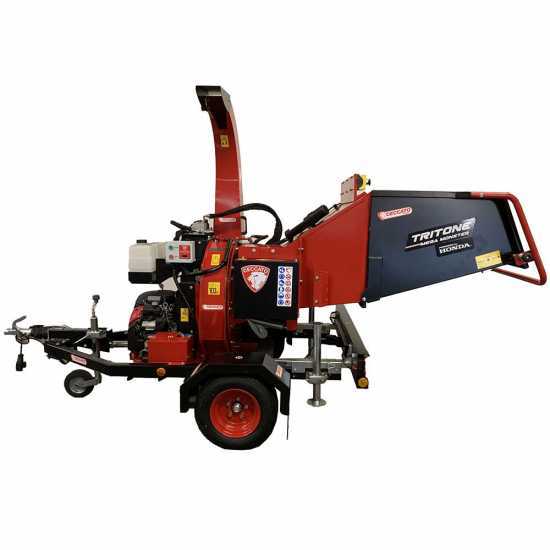

Tritone Mega Monster GX690 wheeled petrol garden shredder

The Ceccato Tritone Mega Monster is a heavy-duty wheeled garden shredder, powered by a HONDA GX 690 engine, specifically intended for shredding large quantities of vegetable waste. This wood chipper is a top-of-the-range model and it is equipped with self-feeding roller, operated by an hydraulic pump, for drawing the branches and vegetable waste into the large hopper that guarantees a high ease of use.

The machine can shred branches of up 150 mm diameter.

The cutting rotor is 30 mm large.

The discharge chute can rotate 180° and it is 2 m high, which allows discharging wood chips into trailers or boxes.

The wood chipper is powered by a Honda GX690 4-stroke petrol single-cylinder engine.

The garden shredder is provided with a 3-belt drive system that transfer motion from the engine to the cutting rotor. Furthermore, it is equipped with 2 counter-blades for high shredding performance. The machine is fitted with a round-shaped sieve that sieves the wood chips. It is fitted with 3 large pneumatic wheels. One wheel is swivelling and can be adjusted by means a drawbar to facilitate manual movement.

The road trolley is approved up to 80 km/h with braking system.

The large rotor is highly thick compared to the Mega Monster series.

Tritone Mega Monster Honda GX690 is compliant with all the CE safety standards.

APPROVED FOR USE ON THE ROAD.


Warning: Like all wood chippers and garden shredders, it is not suited for shredding grass, leaves, pine needles, etc. (it is intended to shred branches, but it can also grind leaves, needles and others)

Garden shredders intended use:
- The wood chipper must grind only green branches and not dried ones (which would limit its shredding capacity and lead to quick deterioration of the blades);
- The branches must be preferably long, smooth and not knobby (otherwise the cutting diameter would be reduced);
- The branch cutting diameter indicated is the maximum, so it is advised not to shred larger branches. In this case it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to the amounts of wood (e.g: oak, olive, plum and peach are hardwood and can reduce the cutting capacity of the wood chipper);

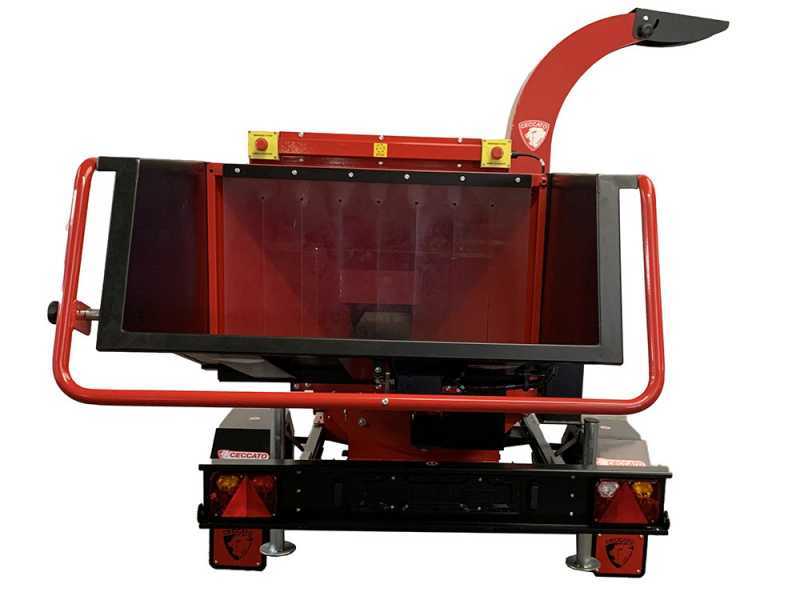

Self-feeding roller

The Tritone Mega Monster is a heavy-duty petrol garden shredder provided with self-feeding roller and operated by a hydraulic pump.

Self-feeding rollers speed adjustment: simply adjust the rotation speed by turning the knob on the engine hydraulic variator to adjust the operating speed according to the thickness of the branches and vegetable waste to be shredded.

Wood anti-clogging system: in case the rotor gets over-stressed or stops while processing the wood, the Operator has to move the lever on the hopper (red round lever). Indeed, this lever acts on the motor hydraulic valves and reverses the rotor rotation direction unlocking it.

Hopper lever operating positions: the red round lever around the hopper operates like a 3-position switch. Pushing it down operates the self-feeding roller in its standard forward rotary motion, allowing branches to be drawn into the hopper. Pulling it back reverses the direction of rotation allowing you to operate the anti-clogging system. The rotor in central position doesn’t rotate as this is its rest position.

Electronic NO-STRESS system: the NO-STRESS control unit controls the machine self-feeding rollers both for starting the unit and in case of emergency. It will be possible to start the engine only after having pushed the START button.

Here below the main features of this wood chipper:

- Self-feeding rollers engagement for shredding
- (Safety) immediate stop system
- Reverse function for removing clogs.

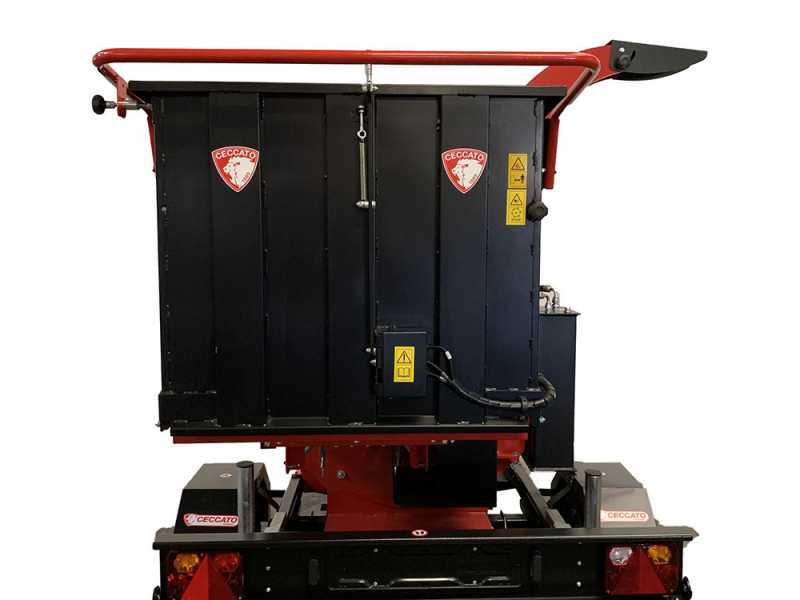

Unified hopper

The machine is equipped with a large steel hopper, 96 cm wide and 56 cm high, able to process even very bulky branches and leaves, without having to pre-shred them. Thus, it also features a higher capacity that allows entering a large amount of material at a time.

The hopper can be folded for transport or storage so as to take up little space.

Focus on the transparent rubber bulkheads placed on hopper opening.

Brand-new E-STOP system. In case of emergency, press the 2 red alarm buttons above the hopper; this will immediately stop the rotor, the self-feeding rollers (regardless the position of the control bar) and the engine.

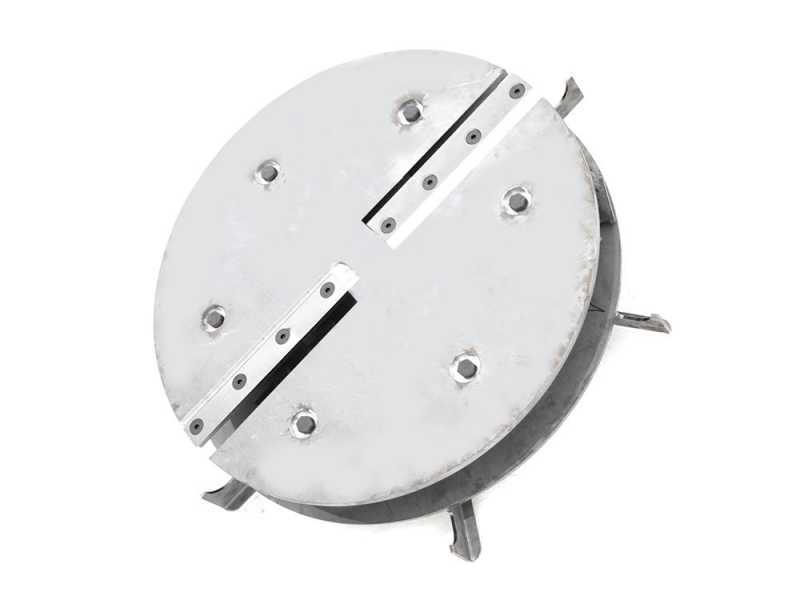

Cutting rotor

The rotor is composed of highly-thick 2 steel flywheels firmly assembled together.

These then represent a sturdy unit (the main component of the garden shredder) of truly superior size, strength and performance, with 600 mm diameter.

This rotor is therefore one of the sturdiest and largest rotors on the market.

Equipped with 2 large shredding blades. They pre-shred the wood into the hopper reducing it in coarse wood chips.

The large door of the rotor unit is equipped with 2 sturdy interchangeable counter-blades. These act as counter-blades to the 2 main blades and perform a scissor effect at the first cut of the branch entered into the hopper, thus ensuring high cutting performance.

Equipped with 24 hardened steel shredding hammers (or blades) rotating at high speed. Thanks to their centrifugal motion they reduce the material in small wood chips.

The cutting unit is 30 mm thick.

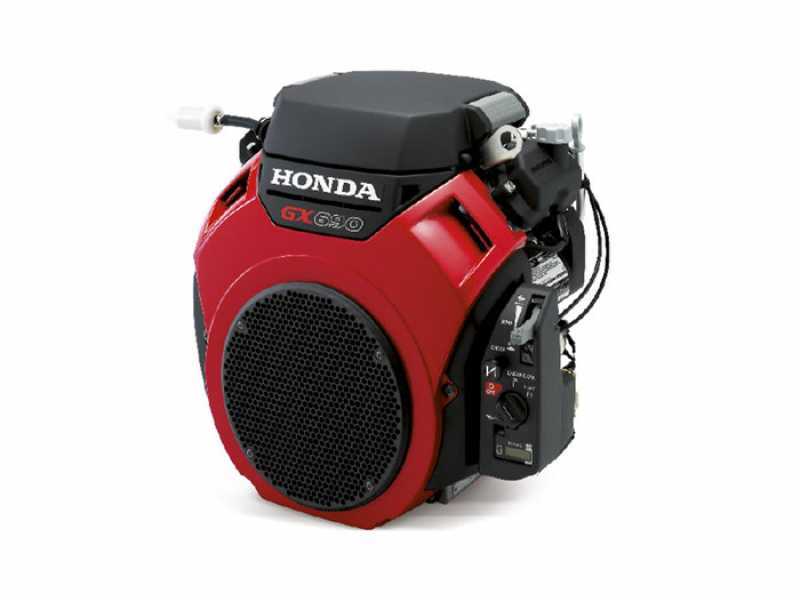

Honda GX 690 engine

The Honda GX 690 is a latest generation 4-stroke twin-cylinder engine, one of the most powerful on the market, featuring the OHV (overhead valve) technology.

Features:

Engine type: 4-Stroke Twin-cylinder - OHV
Cylinder type: cast Iron
Cubic capacity: 688 cm³
Compression ratio: 9.3 : 1
Max. rpm: 3600 rpm
Torque value: 48.3 Nm / 4.93 kgfm / 2500 rpm
Fuel tank capacity: 6.1 L

Electric motor (with electric start). It operates the electronic controller. The engine alternator will keep the battery charged.

The Honda “GX” series is designed for highly-professional use in building and agricultural field for generators, welders and many others, standing out for the high reliability and durability over time.

This model, intended for industry use, ensure excellent and long-lasting performance.

Focus on the air filter.

Focus on the air, speed and hour counter adjustment (once operated the engine, the counter will calculate the running time).

WARNING!

The engine is PROVIDED WITHOUT OIL. Please carefully read the instructions manual before starting the unit.

Nominal power: 22.1 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers. This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 17.4 Hp
* It refers to the real power of the engine. This is the power indicated as official in the manual or in the technical data of the engine manufacturer.

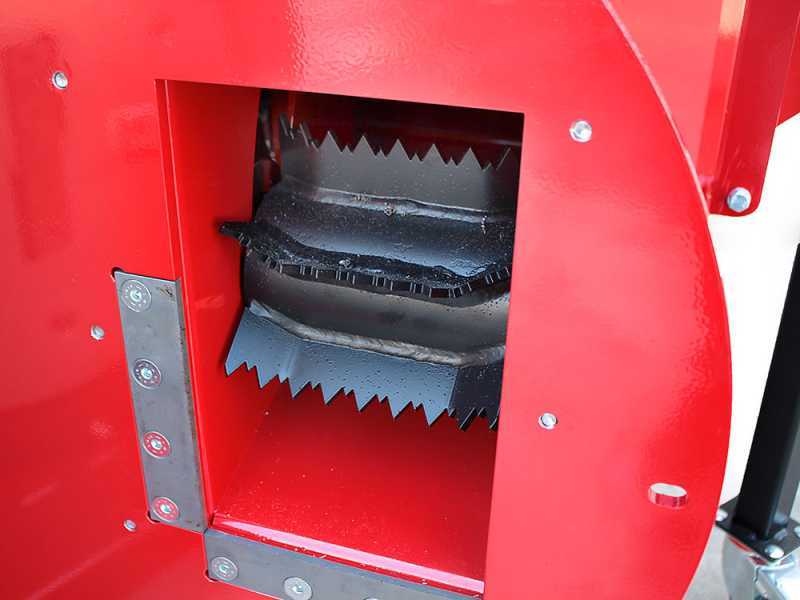

Shredding chamber

The outer shredding chamber (the largest and sturdiest in its category) is proportionate to the rotor it includes. It is wide and features a round-shape, ensuring excellent productivity, as well as the durability of the system.

The machine structure is 100% made of steel. No plastic has been used.

The high steel thickness of the shredding chamber proves the high quality and sturdiness of the machine.

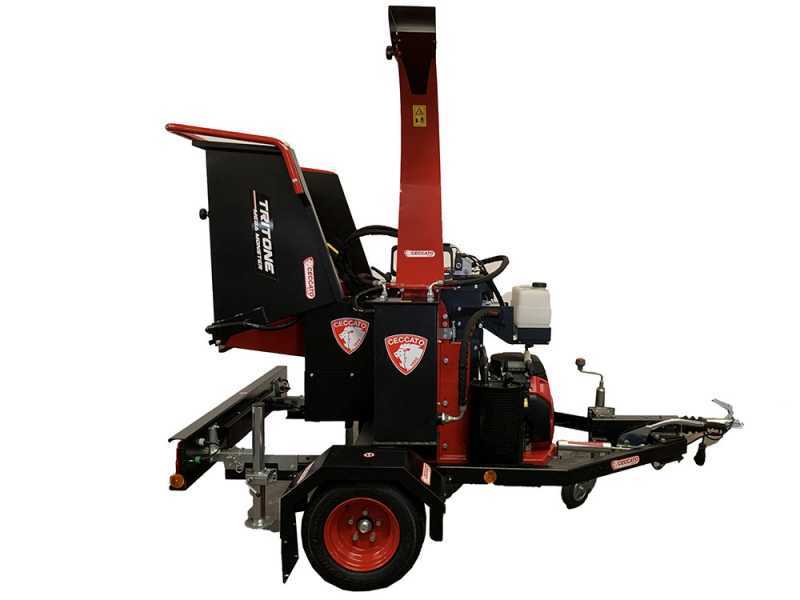

180° rotating discharge chute

Provided with 180° rotating discharge chute.

Simply rotate the lever and then the chute by means the 2 handles placed in the lower part of the chute.

As the discharge chute is 2 m high, this allows it to discharge the wood chips directly into the tractor or lorry trailer.

The inclination of the discharge chute is also adjustable in order to control the distance of the discharged shredded material.

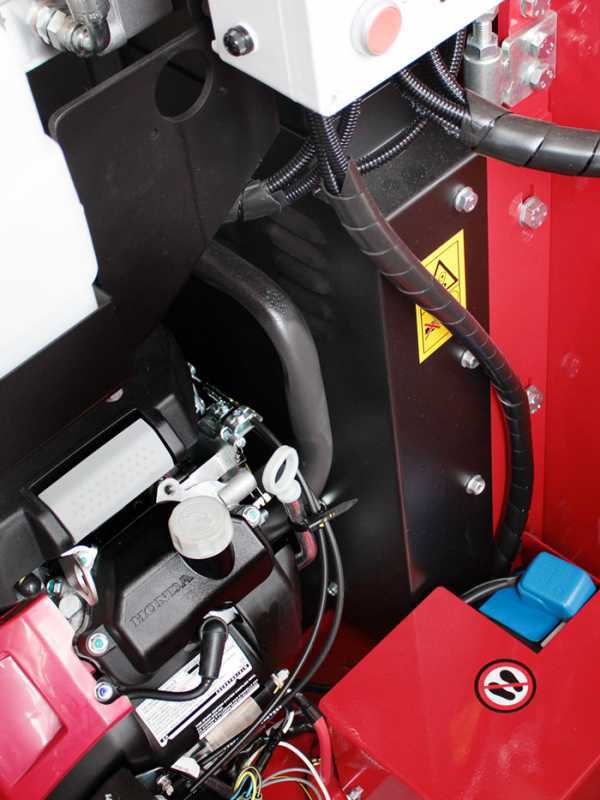

3-belt drive with reinforced belts

This 3-belt drive with reinforced belts gives the machine an extraordinary sturdiness, protecting both the engine and the internal shredding rotor from any kind of internal shock or kickback.

Much longer service life than the traditional systems still used by all manufacturers with the engine directly connected to the shredding unit.

The hydraulic pump drive is belt-driven too.

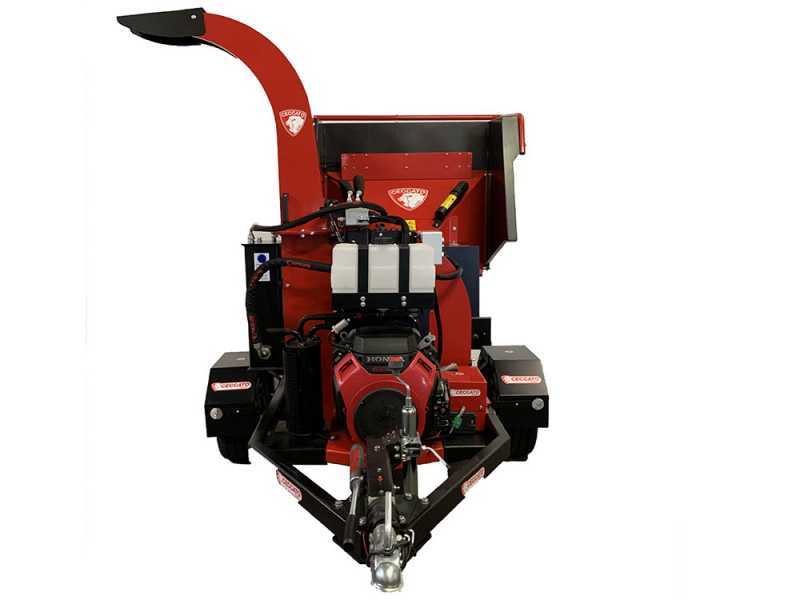

Easy transport and other features

The hopper can be folded for easy transport and storage.

Two large rear wheels and a drawbar with tow hitch allow easy transport of the machine in private areas. These features makes the machine easy to move both manually and by means a tractor, a riding-on mower or a car.

Furthermore, the garden shredder is also provided with a front third wheel.

Furthermore, the hopper is equipped with a pole placed on the side to ensure greater stability both during use and maintenance operations that require opening the shredding chamber.

The wood chipper is equipped with a hook to be moved using forklifts or hoists.

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

Free items included

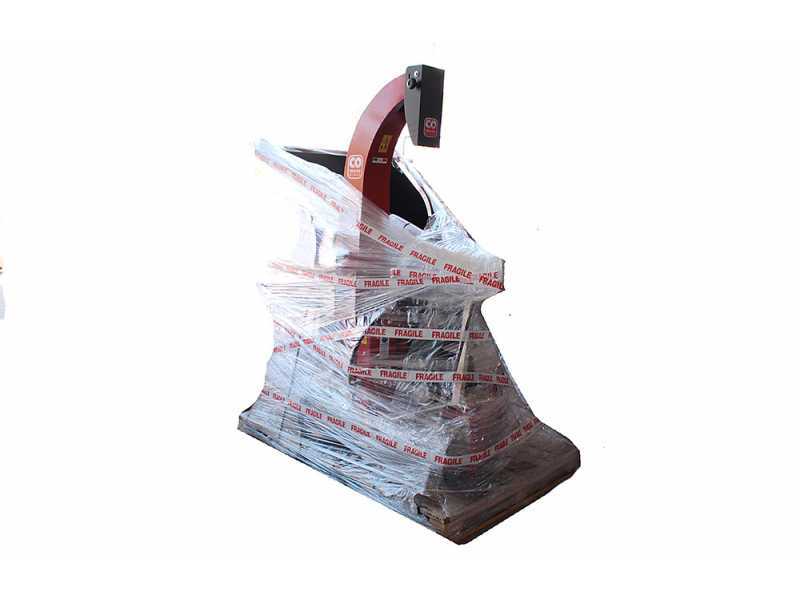

The garden shredder is shipped on pallet.

Instructions manual and wrench for tightening the bolts are included in the package.

Engine maintenance and instructions manual included.

WARNING: the engine is provided without oil. Check the oil level before the first start.
