Famag Grilletta IM 10S/230 10 Speed HH - 10 kg high hydration spiral mixer with lifting head

Questions & Answers (7)
ID: K603865

EAN: 8051764071395

MPN: IM10/S/10V/HH

10,0/10
After-sales assistance & Spare parts
Famag Grilletta IM 10S/230 10 Speed HH - 10 kg high hydration spiral mixer with lifting head
+900 sold
FREE
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
High-hydration
Mixing head type
Tilting
Dough Capacity
10 Kg
Tank capacity
13.5 L
Speed levels
10
hydration max
95 %
Soft doughs
Medium doughs
Hard doughs
Minimum dough
0.5 Kg
Operating mode
Single-phase 230 V
Nominal power
0.5 HP
Motor type
Induction
Speed reverser
Yes
Offset breaker bar
Yes
Compact for countertop use
Recommended for
High-hydration pizza
Recommended for
High-hydration bread
Recommended for
Brioche
Recommended for
Gnocchi
Recommended for
Leavened desserts
Recommended for
Pandoro
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Warranty
3 years
Manufacturing country
Italy
Product Features
Model:
IM 10S/230 10 Velocità HH
Body material:
Enamelled steel
Typology :
Tilting head
High-hydration:
Soft doughs:
Medium doughs:
Hard doughs:
Mixing head type:
Tilting
Dough Capacity:
10 Kg
hydration max:
95 %
Speed levels:
10
Tank capacity:
13.5 L
Bowl diameter:
28 cm
Bowl height:
22 cm
Operating mode:
Single-phase 230 V
Hourly output:
30 kg/h
Minimum dough:
0.5 Kg
Spiral - rpm (min):
90 rpm
Spiral - rpm (max):
320 rpm
Bowl - rpm (min):
9 rpm
Bowl - rpm (max):
30 rpm
Speed reverser:
Yes
Offset breaker bar:
Yes
Warranty:
3 years
Dough mixing time:
Standard
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
0.5 HP
Nominal power (W):
370 W
Transmission data
Transmission type:
Chain + Belts
Cutting data
Recommended for:
High-hydration pizza
Recommended for:
High-hydration bread
Recommended for:
Brioche
Recommended for:
Gnocchi
Recommended for:
Leavened desserts
Recommended for:
Pandoro
Recommended for:
Pizza
Recommended for:
Bread
Recommended for:
Focaccia bread
Recommended for:
Breadsticks
Recommended for:
Piadina
Recommended for:
Taralli
Recommended for:
Biscuits
Recommended for:
Egg mixtures
Recommended for:
Fresh pasta
Equipment
CE-compliant safety switch:
CE-compliant
Electronic timer:
No
Rotating Bowl:
Stainless steel
Rotating spiral arm:
stainless steel
Lifting safety grid:
Stainless steel
Free gifts/extra features
Apron:
Yes
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
52x24,5x43 cm
Net weight:
36 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
56x29x44.5 cm
Gross weight (packaging included) :
37.2 Kg
Assembly time:
Assembled
Prompt Delivery
46 items in stock
Free Shipping
Estimated delivery: 09/04/2025 - 11/04/2025
Suggested price:
€ 1.414,77
€ 1.273,29
Vat included

You're viewing:
Customers also viewed:
Description

Famag Spiral Mixer

The Famag spiral mixer is one of the smallest counter-top machines available on the market.

The Famag IM10 S 10V HH with high hydration (65% to 100%), is a product of small overall dimensions, even though it stands out for the high power and efficiency, while maintaining low consumption and low noise. The IM 10 S 10V HH model is provided with 10 speed levels to process dough according to your needs.

The Famag kneading machine is ideal for making different types of dough, especially soft dough such as bread, pizza, pastry, piada, and many others.

IM10 S 10V HH, is mainly used in the kitchen, but is also suitable for small professional doughs.

The machine will be supplied with a specially curved central bar, which allows the processing of smaller dough, improving its capacity.

The machine is equipped with a latest-generation Brushless motor that guarantees low consumption and very high thermal efficiency.

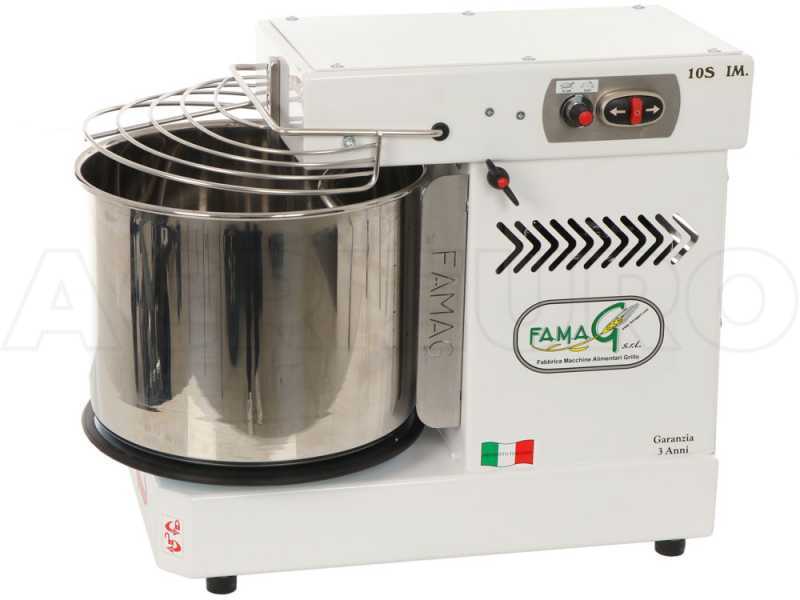

Main features

The Famag spiral mixer is made of thick steel, whose main function is to eliminate vibrations during processing. The transmission is chain-driven, with excellent strength and durability.

The Famag IM 10 S 10V HH spiral mixer is provided with curved-shaped offset breaker bar.

All the components directly touching the dough are made of INOX stainless steel:

  • Bowl
  • Safety grid
  • Spiral

Stainless steel raising protection grid

The special shape of the spiral makes it possible to reduce processing times to a minimum without overheating the dough.

The kneading machine is equipped with 10 speed levels that allow you to rotate the bowl and spiral both counter-clockwise and clockwise.

Technical specifications

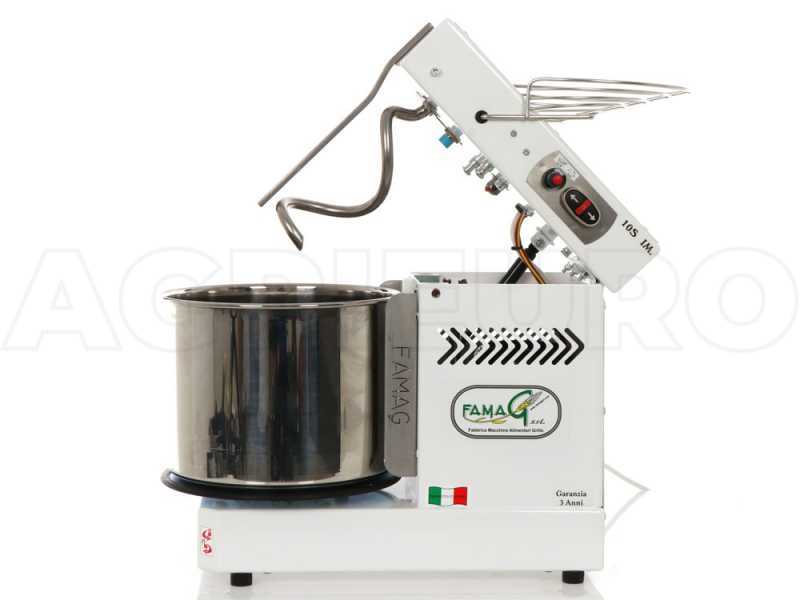

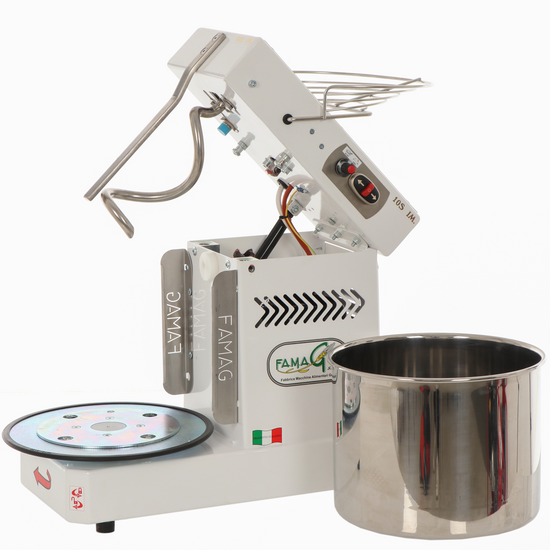

One of the most important new features of the Famag IM10 S 10V HH is the possibility of having a raising head, so that the stainless steel bowl can be easily removed with a simple locking system. This important feature makes it convenient to remove the processed dough from the bowl and also makes it easier to clean the bowl.

Additionally, the Famag IM 10 S 10V HH features the following characteristics:

  • Tilting
  • Removable bowl
  • 10 speeds
  • Suitable for medium to high hydration dough (65 to 100%)
  • Specially curved central offset breaker bar
  • Dough capacity 0.5 Kg to 10 Kg
  • Grid bowl and spiral made of stainless steel
  • Single-phase electric motor 230 V
  • 0.5 Hp power

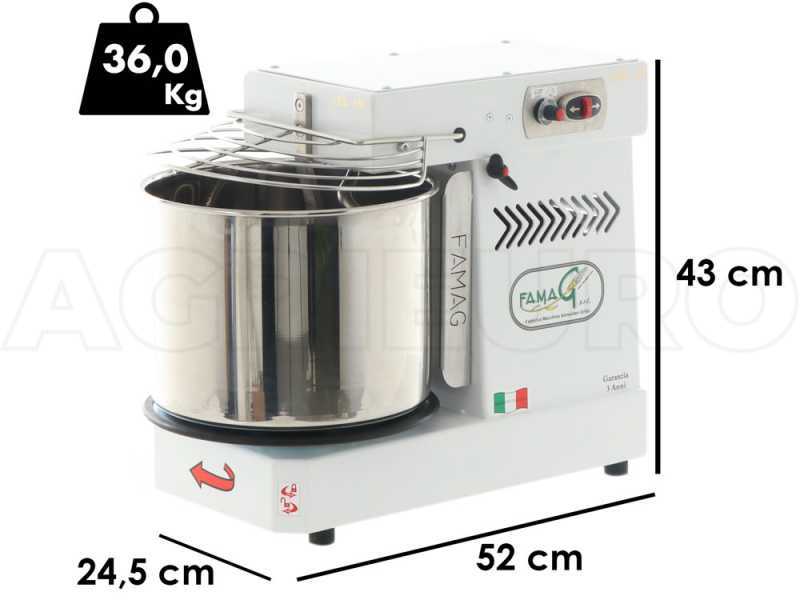

  • Dimensions: 52x24.5x43 cm
  • Weight: 36 Kg
  • Spiral revolutions: 90 to 320 rpm
  • Bowl size: 280 x 220 mm (13 L)
  • Electronic speed direction reversal
  • Schuko cable (135 cm total length)

Provided with latest-generation Brushless motor!

Free items & Standard equipment

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

Free items included

The spiral mixer is shipped in its original packaging together with the instructions manual.

Included in the package is a comfortable Famag branded Chef’s apron and a recipe book.
