Famag IM 10/230 1 Speed Red - Spiral Mixer 10 Kg

Add a question
ID: K500519

EAN: 8051764070336

MPN: IM10/230 ROSSO

10,0/10
After-sales assistance & Spare parts
Famag IM 10/230 1 Speed Red - Spiral Mixer 10 Kg
Special offer
FREE
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
Tarpaulin cover and storageTarpaulin cover and storage
Dough Capacity
10 Kg
Tank capacity
13 L
Speed levels
1
hydration max
65 %
Medium doughs
Hard doughs
Minimum dough
0.5 Kg
Operating mode
Single-phase 230 V
Nominal power
0.5 HP
Motor type
Induction
Offset breaker bar
Yes
Compact for countertop use
Recommended for:
Pizza
Recommended for:
Bread
Recommended for:
Focaccia bread
Recommended for:
Breadsticks
Recommended for:
Piadina
Recommended for:
Taralli
Recommended for:
Biscuits
Recommended for:
Egg mixtures
Recommended for:
Fresh pasta
Warranty
3 years
Manufacturing country
Italy
Product Features
Model:
IM10 230 ROSSA
Body material:
Enamelled steel
Typology :
Benchtop
Medium doughs:
Hard doughs:
Mixing head type:
Fixed
Dough Capacity:
10 Kg
hydration max:
65 %
Speed levels:
1
Tank capacity:
13 L
Bowl diameter:
28 cm
Bowl height:
22 cm
Operating mode:
Single-phase 230 V
Flour quantity:
7 Kg
Water quantity:
3.5 L
Hourly output:
31.5 kg/h
Minimum dough:
0.5 Kg
Spiral - rpm (min):
80 rpm
Spiral - rpm (max):
80 rpm
Bowl - rpm (min):
10 rpm
Bowl - rpm (max):
10 rpm
Offset breaker bar:
Yes
Warranty:
3 years
Dough mixing time:
Standard
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
0.5 HP
Nominal power (W):
370 W
Manufacturing country:
Italy
Transmission data
Transmission type:
Chain + Belts
Cutting data
Recommended for::
Pizza
Recommended for::
Bread
Recommended for::
Focaccia bread
Recommended for::
Breadsticks
Recommended for::
Piadina
Recommended for::
Taralli
Recommended for::
Biscuits
Recommended for::
Egg mixtures
Recommended for::
Fresh pasta
Equipment
CE-compliant safety switch:
CE-compliant
Electronic timer:
No
Rotating Bowl:
Stainless steel
Rotating spiral arm:
stainless steel
Central breaker bar:
Stainless steel
Lifting safety grid:
Stainless steel
24 V electric system:
Yes
Free gifts/extra features
Apron:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
54x29x43 cm
Net weight:
37 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
55x30x45 cm
Gross weight (packaging included) :
39 Kg
Assembly time:
Assembled
Prompt Delivery
5 items in stock
Free Shipping
Estimated delivery: 07/01/2025 - 13/01/2025
Lowest price:
€ 828,06
-3 %
€ 802,90
Vat included

Available versions
You're viewing:
Customers also viewed:
Description

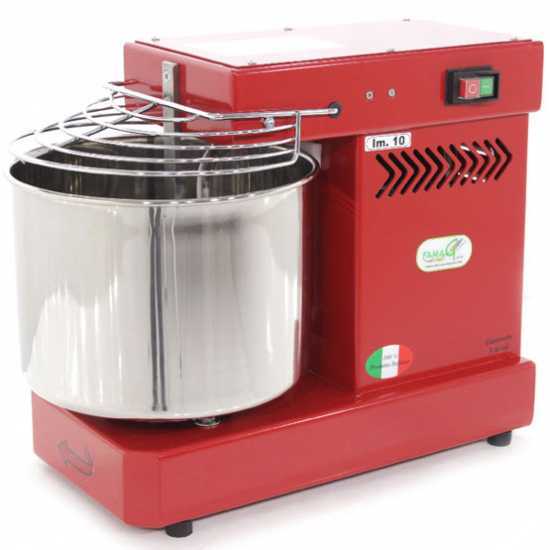

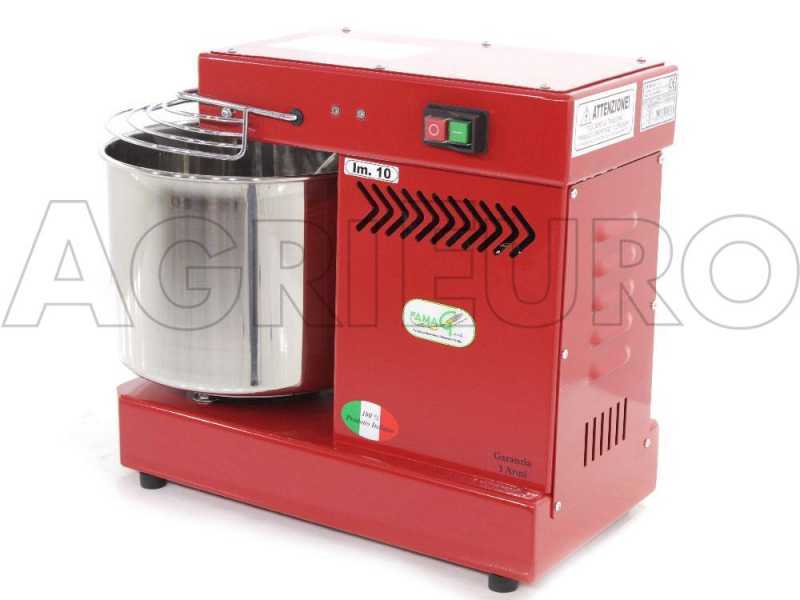

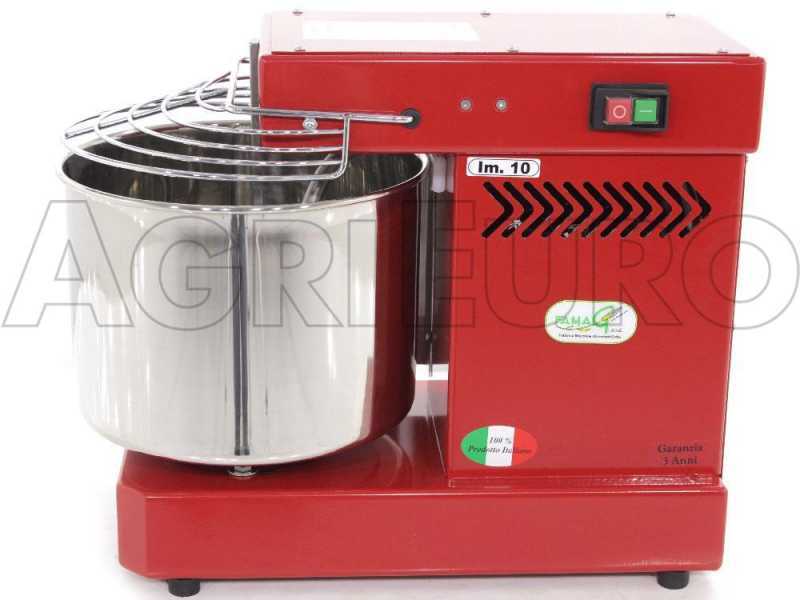

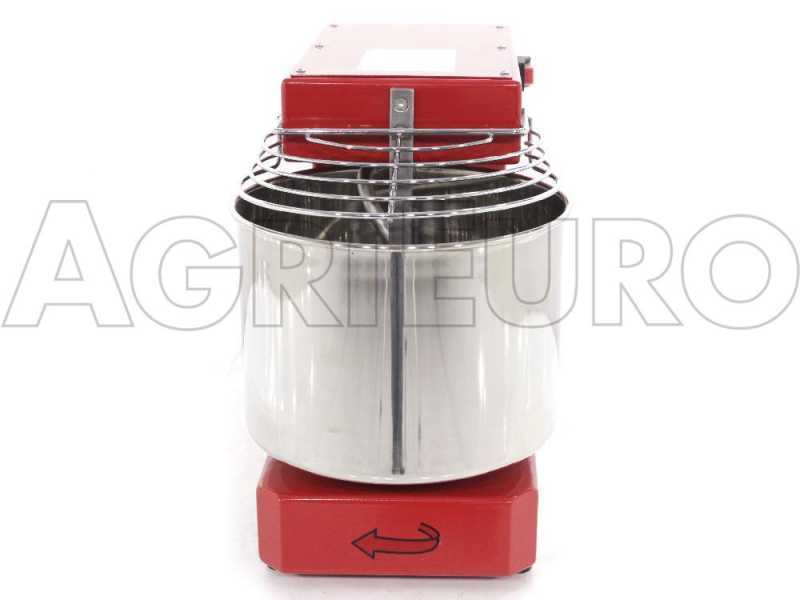

Famag IM10 Red heavy-duty spiral dough mixer

The Fa.M.A.G. IM10 Red dough mixer is one of the smallest benchtop machines you can find on the market.

This model is entirely coated with red paint, the only exceptions being the stainless steel dough processing components.

Despite its size, it is very powerful and effective and has low consumption and noise levels. This spiral mixer features a fixed dough-kneading head. Designed for family use as well as small dough production in cafés, delis and pizza shops.

This spiral mixer is unique on the market because, although it only takes up little space, it can contain up to 7 kg of flour mixed with 3,5 litres of water.

Perfect for hard, soft and elastic dough (for bread, focaccia or flat bread, pizza, pasta, cookies, cakes) and for special flour dough such as gluten, double-milled durum wheat, durum wheat, stone-ground flour and so on.

Entirely made in Italy, which translates to reliable and high-quality materials and manufacturing.

This model is perfect for home kitchen work, but it is also suitable for business productions.


NOTE:

This mixer is provided with specifically curved-shaped New central shaft, which also allows processing smaller quantities of dough (improving the results in terms of kneading processing).

Main features

The IM10 dough mixer features a fixed kneading head and can process up to 10 kg of dough.

The spiral mixer frame is made of high-thickness steel to cancel vibration during operation. The transmission system consists of a chain and two highly resistant, durable and effective Polyurethane belts.

This new professional dough kneader by Famag features a stainless steel central dough-anchoring pin.

All of the components that touch the dough are made of stainless steel:

  • the bowl
  • the spiral mixing arm
  • the protection grid
  • the central pin

Stainless steel protection grid that can be lifted.

The special spiral arm shape allows speeding up the job and prevents the dough from overheating

Coated with food-safe epoxy powder paint

Technical features

  • Dough capacity: 10 Kg
  • Flour: 7 kg
  • Water: 3.5 L
  • Bowl: 280 x 210 mm
  • Dough quantity per hour: 31.5 kg/h
  • Minimum dough guaranteed: 0.5 kg
  • Motor power: 0.75 hp
  • Consumption: 350 Watt
  • Inner wiring: 24 V (low voltage)
  • CE compliant accident prevention system
  • CE compliant safety microswitch
  • Power supply: 230 V - 50 Hz
  • CE compliant
  • Weight: 37 kg
  • Bowl size: 280 x 220 mm (13 L)
  • Schuko plug
Free items & Standard equipment

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

COMPLIMENTARY: professional protection and storage cover cloth

Essential for protecting your machine when stored.

This cloth is fast and easy to apply; within seconds your machine is protected from dust and humidity.

Easy to fold and store inside its own box packaging with minimal space required!

Gifts and extra features

The spiral dough kneader will be shipped in its original packaging along with the instructions manual and recipe book.

The package includes a free Famag-branded apron.
