Famag IM 20/230 10 Speed - Spiral Mixer 18 Kg

Questions & Answers (4)
ID: K600404

EAN: 8051764071203

MPN: IM20/230/10VEL

10,0/10
After-sales assistance & Spare parts
Famag IM 20/230 10 Speed - Spiral Mixer 18 Kg
+100 sold
FREE
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
Tarpaulin cover and storageTarpaulin cover and storage
Dough Capacity
20 Kg
Tank capacity
21 L
Speed levels
10
hydration max
75 %
Medium doughs
Hard doughs
Minimum dough
1 Kg
Operating mode
Single-phase 230 V
Nominal power
1.0 HP
Motor type
Induction
Electronic timer
Yes
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Warranty
3 years
Manufacturing country
Italy
Product Features
Model:
IM 20/230 10 Velocità
Body material:
Enamelled steel
Typology :
Wheeled
Medium doughs:
Hard doughs:
Mixing head type:
Fixed
Dough Capacity:
20 Kg
hydration max:
75 %
Speed levels:
10
Tank capacity:
21 L
Bowl diameter:
36 cm
Bowl height:
24 cm
Operating mode:
Single-phase 230 V
Flour quantity:
12 Kg
Water quantity:
6 L
Hourly output:
54 kg/h
Minimum dough:
1 Kg
Spiral - rpm (min):
80 rpm
Spiral - rpm (max):
200 rpm
Bowl - rpm (min):
10 rpm
Bowl - rpm (max):
25 rpm
Warranty:
3 years
Dough mixing time:
Standard
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
1.0 HP
Nominal power (W):
750 W
Power supply:
220 V electric
Manufacturing country:
Italy
Transmission data
Transmission type:
Oversized double chain
Cutting data
Recommended for:
Pizza
Recommended for:
Bread
Recommended for:
Focaccia bread
Recommended for:
Breadsticks
Recommended for:
Piadina
Recommended for:
Taralli
Recommended for:
Biscuits
Recommended for:
Egg mixtures
Recommended for:
Fresh pasta
Equipment
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Electronic timer:
Yes
Rotating Bowl:
Stainless steel
Rotating spiral arm:
stainless steel
Central breaker bar:
Stainless steel
Lifting safety grid:
Stainless steel
24 V electric system:
Yes
Free gifts/extra features
Apron:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
66x38x70 cm
Net weight:
65 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
66x40x71 cm
Gross weight (packaging included) :
70 Kg
Assembly time:
Assembled
Prompt Delivery
6 items in stock
Free Shipping
Estimated delivery: 10/04/2025 - 14/04/2025
Suggested price:
€ 1.559,95
€ 1.403,95
Vat included

You're viewing:
Customers also viewed:
Description

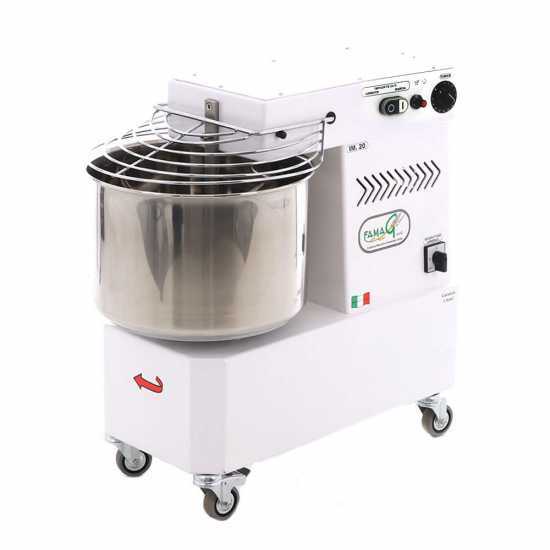

Famag IM20 professional 10-speed spiral mixer

The Fa.M.A.G. IM20 10V 10-speed spiral mixer is very sturdy and reliable. Mainly suitable for professional purposes.

Main features:

  • timer
  • 10 speed levels
  • wheels and braking system

The spiral mixer combines bi power and efficiency with low consumption and low noise.

With fixed head, it is designed for companies that need a reliable and sturdy machine thanks to the internal transmission with highly resistant double chain.

This spiral dough mixer is particularly suitable for professional catering, delis, pizza shops and any other work place where dough is produced in small loafs at a time.

It can work with 12 kg of dry flour mixed with 6 liters of water.

Perfect for hard, soft and elastic dough (for bread, focaccia or flat bread, pizza, pasta, cookies, Christmas cake) and for special flour dough such as gluten, double-milled durum wheat, durum wheat, stone-ground flour and so on.

The speed control system allows choosing from 10 rotation speed levels for easy professional dough production.

The lower speed is similar to that of the standard single speed models.
The variator allows to accelerate the rotation of the spiral and bowl in higher speeds which are applied on dough that is not excessively hard.

Entirely made in Italy, which translates to reliable and high-quality materials and manufacturing.

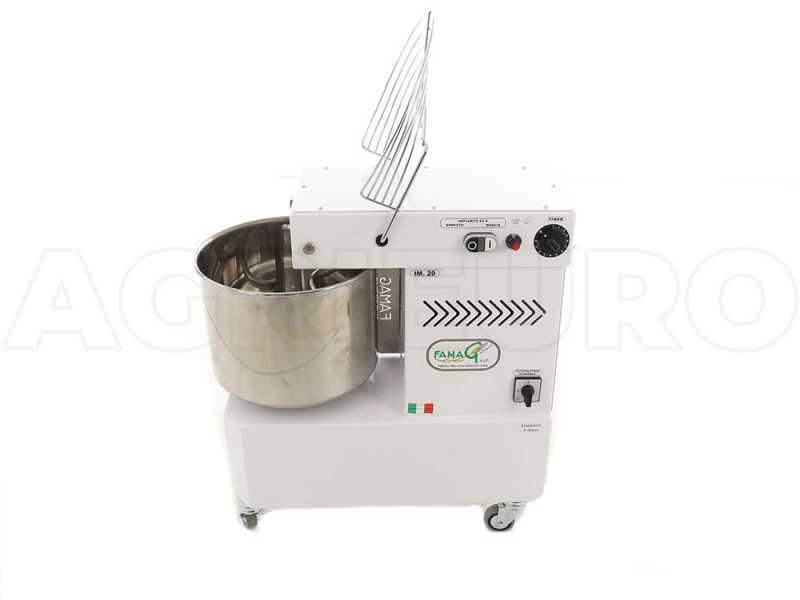

Main features

The IM18 10V dough mixer features a fixed kneading head, 10 speed levels and a timer. Selecting the desired speed and setting the timer is easy thanks to the controls on the side of the machine.

The spiral mixer frame is made of high-thickness steel to cancel vibration during operation. The transmission system consists of a highly resistant, durable and effective double chain.

The dough mixer timer has two possible work configurations:

  • manual mode requires the operator to stop the machine
  • countdown timer mode allows setting the kneading time from 1 to 60 minutes and the kneader will stop by itself

The special shape of the spiral enables to reduce the processing times to minimum without heating up the dough.

All the components that touch the dough are made of stainless steel:

  • the bowl
  • the spiral mixing arm
  • the protective grid
  • the central rod

Stainless steel protection grid

Equipped with 4 360° rotatable wheels. The front ones are fitted with brake.

Epoxy powder painting for food

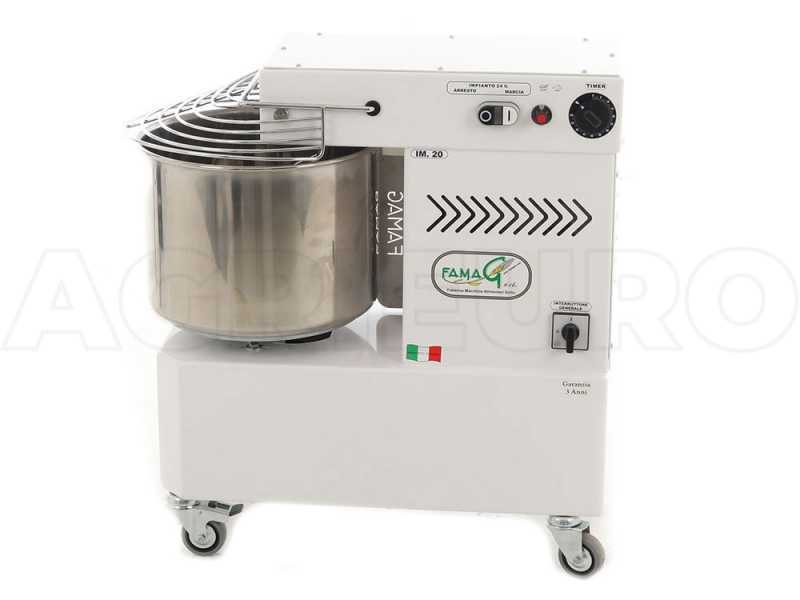

Technical features

  • Dough capacity: 18 kg
  • Speed levels: 10
  • Flour: 12 kg
  • Water: 6 l
  • Bowl size: 360 x 240 mm (23 L)
  • Dough quantity per hour: 54 kg/h
  • Minimum dough guaranteed: 1 kg
  • Motor power: 1 hp
  • Consumption: 750 Watt
  • Inner wiring: 24 V (low voltage)
  • CE compliant accident prevention system
  • CE compliant safety micro switch
  • Power supply: 230 V - 50 Hz
  • CE compliant
  • Weight: 65 kg

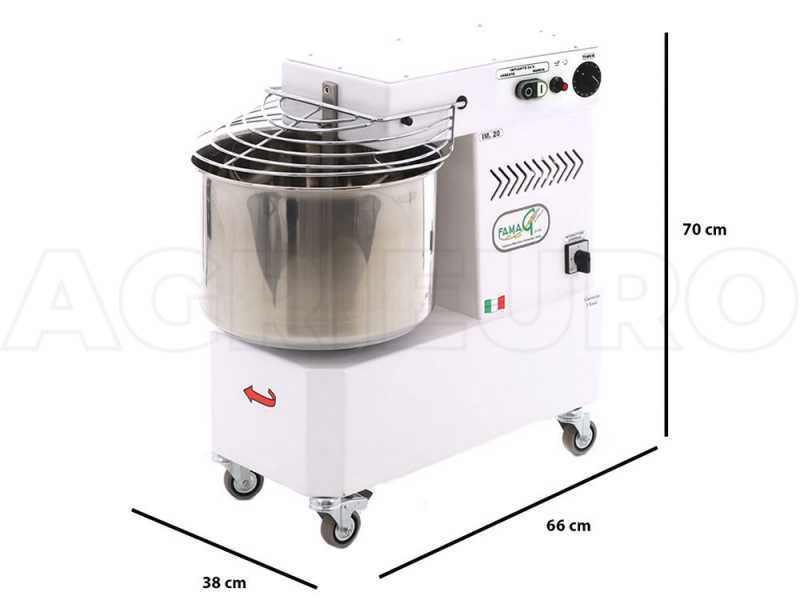

  • Dimensions: 66 x 38 x 70 cm
  • Wheels and braking system
  • Schuko plug
  • Coated with food-safe epoxy powder paint
Free items & Standard equipment

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

Complimentary: Heavy-duty Protective Cover Cloth

Essential for protecting your machine when not in use.



This cover cloth is quick and easy to apply; in a few seconds, your machine will be protected against dust and humidity.

It is equipped with an elastic band on the lower edge to perfectly fit the machine.

Easy to fold and store in its box and space-saving!

Gifts and extra features

The spiral dough kneader will be shipped in its original packaging along with the instructions manual.
