Famag IM 20/400 New 2-Speed - 18 kg three-phase spiral mixer

Add a question
ID: K600405

EAN: 8051764071210

MPN: IM20/400/2VEL

10,0/10
After-sales assistance & Spare parts
Famag IM 20/400 New 2-Speed - 18 kg three-phase spiral mixer
+50 sold
FREE
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
Tarpaulin cover and storageTarpaulin cover and storage
Dough Capacity
18 Kg
Tank capacity
21 L
Speed levels
2
hydration max
70 %
Medium doughs
Hard doughs
Minimum dough
1 Kg
Operating mode
Three-phase 400 V
Nominal power
1.0 HP
Motor type
Induction
Electronic timer
Yes
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Warranty
3 years
Manufacturing country
Italy
Product Features
Model:
IM 20/ 400 New 2 speeds
Body material:
Enamelled steel
Typology :
Wheeled
Medium doughs:
Hard doughs:
Mixing head type:
Fixed
Dough Capacity:
18 Kg
hydration max:
70 %
Speed levels:
2
Tank capacity:
21 L
Bowl diameter:
36 cm
Bowl height:
24 cm
Operating mode:
Three-phase 400 V
Flour quantity:
12 Kg
Water quantity:
6 L
Hourly output:
54 kg/h
Minimum dough:
1 Kg
Spiral - rpm (min):
80 rpm
Spiral - rpm (max):
160 rpm
Bowl - rpm (min):
10 rpm
Bowl - rpm (max):
20 rpm
Warranty:
3 years
Dough mixing time:
Standard
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
1.0 HP
Nominal power (W):
750 W
Power supply:
400 V electric
Manufacturing country:
Italy
Transmission data
Transmission type:
Oversized double chain
Cutting data
Recommended for:
Pizza
Recommended for:
Bread
Recommended for:
Focaccia bread
Recommended for:
Breadsticks
Recommended for:
Piadina
Recommended for:
Taralli
Recommended for:
Biscuits
Recommended for:
Egg mixtures
Recommended for:
Fresh pasta
Equipment
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Electronic timer:
Yes
Rotating Bowl:
Stainless steel
Rotating spiral arm:
stainless steel
Central breaker bar:
Stainless steel
Lifting safety grid:
Stainless steel
24 V electric system:
Yes
Free gifts/extra features
Apron:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
66x38x70 cm
Net weight:
65 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
66x40x71 cm
Gross weight (packaging included) :
70 Kg
Assembly time:
Assembled
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 08/05/2025 - 12/05/2025
Suggested price:
€ 1.634,30
€ 1.470,87
Vat included

You're viewing:
Customers also viewed:
Description

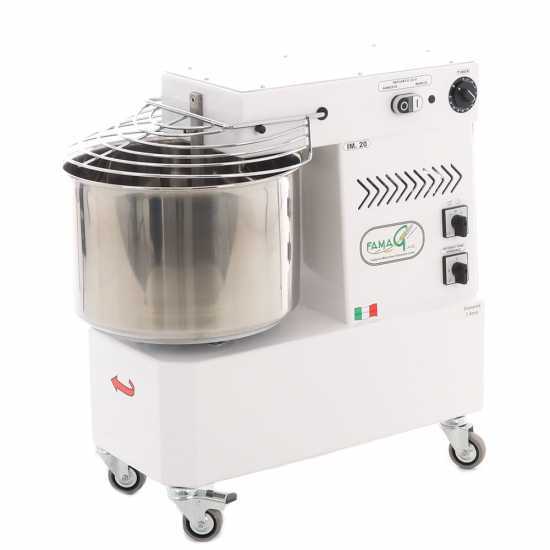

Famag IM 20 New professional spiral mixer - 400 V

The Fa.M.A.G. IM 20 New 2-speed spiral mixer is suitable to prepare several types of dough, mainly for the soft ones like bread, pizza, cakes, piadinas and so on.

This machine is especially suitable for professional catering, delis, pizzerias and for all those companies who need to process small quantities of dough at a time.

Main features of the FAMAG IM20 New:

  • timer
  • 2 speed levels
  • wheels and braking system

The frame of the spiral mixer is made of thick steel to eliminate vibrations during the processing while the transmission is made of highly resistant, efficient and reliable double chain.

This machine is equipped with automatic locking system that stops the machine functioning if the stainless steel grid is lifted during the use.

The model is provided with timer and 360° rotatable wheels with brake system for the transport.

The components that are involved in the processing are made of stainless steel. The painting is electrostatic with epoxy powder for food.

Maximum dough capacity: 18 kg

Fully made in Italy, a guarantee of reliability and quality in materials and construction.

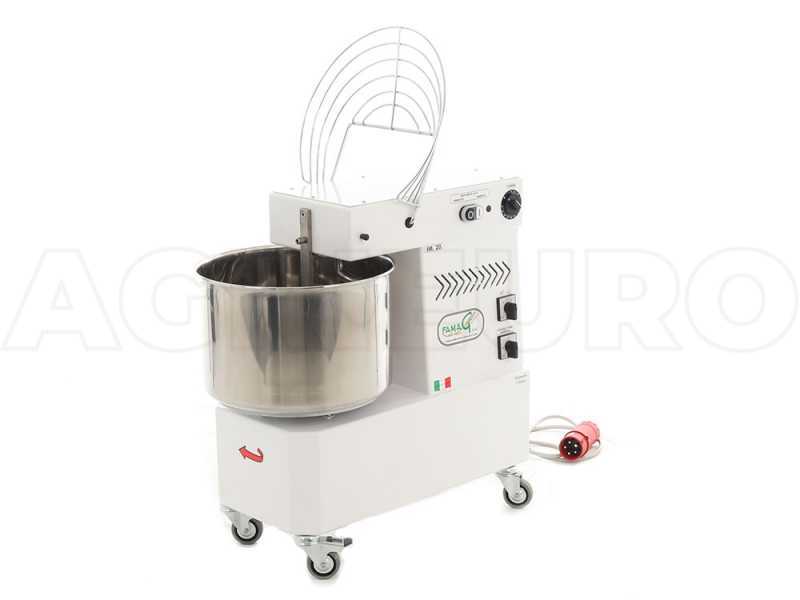

Main features

The spiral mixer frame is made of high-thickness steel to cancel vibration during operation. The transmission system consists of a highly resistant, durable and effective double chain.

The special shape of the spiral enables to reduce the processing times to minimum without heating up the dough.

Stainless steel protection grid

All the components that touch the dough are made of stainless steel:

  • the bowl
  • the spiral mixing arm
  • the protective grid
  • the central rod

Equipped with 360° rotatable wheels. The front ones are fitted with brake.

Double speed: low or fast speed - the first one (low) is used to better collect the flour in the mixer, helping the gluten mesh to form. The second helps to dry the dough and speed up the work.

Epoxy powder painting for food

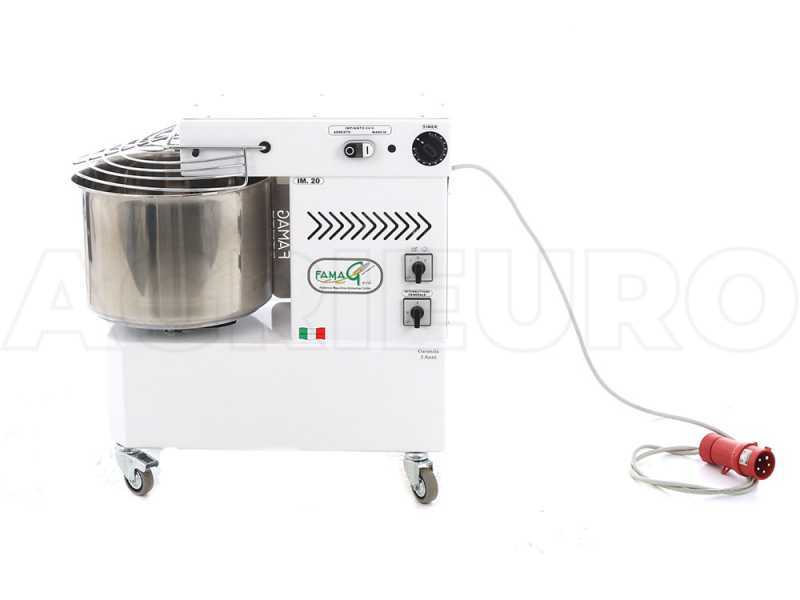

Technical features

This mixer is the ideal product for any type of hard, soft, elastic dough (bread, focaccia, pizza, pasta, biscuits, panettone) and for special flour dough such as gluten, re-milled semolina, durum wheat, stone-ground flour, etc.

  • Dough capacity: 18 kg
  • Speed levels: 10
  • Flour: 12 kg
  • Water: 6 l
  • Bowl size: 360 x 240 mm (23 L)
  • Dough quantity per hour: 54 kg/h
  • Minimum dough guaranteed: 1 kg
  • Motor power: 1 hp
  • Consumption: 750 Watt
  • Inner wiring: 24 V (low voltage)
  • CE compliant accident prevention system
  • CE compliant safety micro switch
  • Power supply: 400 V - Three-phase
  • CE compliant
  • Weight: 65 kg

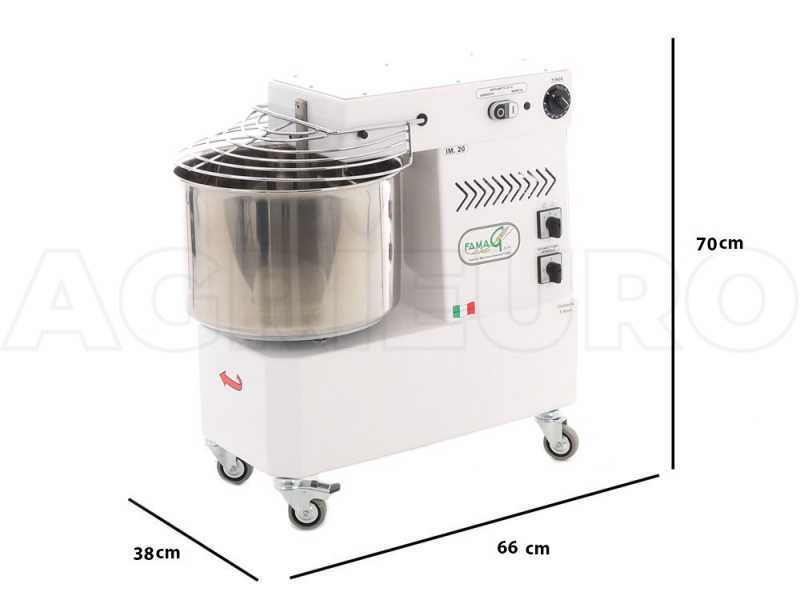

  • Dimensions: 66 x 38 x 70 cm
  • Wheels and braking system
  • Coated with food-safe epoxy powder paint

This spiral mixer is equipped with 360° rotatable wheels with brake system.

It enables to prepare up to 18 kg dough at once.

Free items & Standard equipment

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

Complimentary: Heavy-duty Protective Cover Cloth

Essential for protecting your machine when not in use.



This cover cloth is quick and easy to apply; in a few seconds, your machine will be protected against dust and humidity.

It is equipped with an elastic band on the lower edge to perfectly fit the machine.

Easy to fold and store in its box and space-saving!

Heavy-duty cover for covering and storage

Fundamental to protect your machine when is not in use.

This cover is fast and easy to place: only few seconds to protect your machinery from dust and humidity.

It has been specifically designed to perfectly fit with small machines.

Easy to bend and put away thanks to its small overall size!
