Fimar 12SR - Spiral mixer with tilting head - Three-phase

Add a question
ID: K609180

EAN: 8050247108788

MPN: IM12SRN0405T

8,1/10
After-sales assistance & Spare parts
Fimar 12SR - Spiral mixer with tilting head - Three-phase
FREE
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
Mixing head type
Tilting
Dough Capacity
12 Kg
Tank capacity
16 L
Speed levels
1
Bowl type
Stainless steel removable bowl
hydration max
65 %
Medium doughs
Hard doughs
Minimum dough
3 Kg
Operating mode
Three-phase 400 V
Nominal power
1 HP
Motor type
Induction
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Manufacturing country
Italy
Product Features
Model:
12SR - 400V
Body material:
Enamelled steel
Typology :
Tilting head
Medium doughs:
Hard doughs:
Mixing head type:
Tilting
Dough Capacity:
12 Kg
hydration max:
65 %
Speed levels:
1
Tank capacity:
16 L
Bowl type:
Stainless steel removable bowl
Bowl diameter:
32 cm
Bowl height:
21 cm
Operating mode:
Three-phase 400 V
Flour quantity:
8 Kg
Water quantity:
4 L
Hourly output:
36 kg/h
Minimum dough:
3 Kg
Spiral - rpm (min):
90 rpm
Spiral - rpm (max):
90 rpm
Dough mixing time:
Standard
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
1 HP
Nominal power (W):
750 W
Power supply:
400 V electric
Transmission data
Transmission type:
Chain
Cutting data
Recommended for:
Pizza
Recommended for:
Bread
Recommended for:
Focaccia bread
Recommended for:
Breadsticks
Recommended for:
Piadina
Recommended for:
Taralli
Recommended for:
Biscuits
Recommended for:
Egg mixtures
Recommended for:
Fresh pasta
Equipment
CE-compliant safety switch:
CE-compliant
Rotating Bowl:
Stainless steel
Rotating spiral arm:
stainless steel
Central breaker bar:
Stainless steel
Free gifts/extra features
Apron:
Yes
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
63,2x32x75/93,2 cm
Net weight:
61 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
70x46x89 cm
Gross weight (packaging included) :
66 Kg
Assembly time:
Assembled
15 - 20 days from purchase
Free Shipping
€ 1.241,68
Vat included
You're viewing:
Customers also viewed:
Description

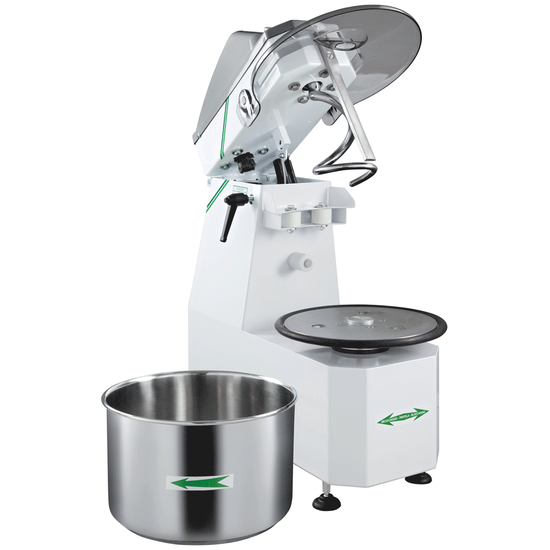

FIMAR 12SR mixer with tilting head

The Fimar 12SR spiral mixer is a robust and versatile machine designed to make various types of dough, ideal for bread, pizza and piadinas.

Equipped with a tilting head and a removable 16-litre tank (320 mm in diameter and 210 mm high), it ensures excellent processing capacity with cycles of up to 12 kg of dough. This model offers an hourly output of 36 kg/h, thanks to 0.75 kW power and a motor with a constant speed of 90 rpm. It is suitable for use in both craft workshops and professional catering environments.

The structure of the Fimar 12SR is coated with scratch-resistant paint, ensuring resistance and durability even in intensive environments. The parts in contact with the dough, such as the bowl, spiral and dough splitter rod, are made of stainless steel, a quality material that guarantees hygiene and resistance to corrosion. The machine includes a smoked polycarbonate lid with safety microswitch, which prevents accidental activation during use, making the mixer safe and conforming to professional standards.

The compact size (632 x 320 x 750-932 mm in height) and the weight of 61 kg make the Fimar 12SR easy to place in different work areas, combining efficiency and robustness.

Main features:

  • Power: 0.75 kW (1 HP) for a constant 90 rpm.
  • Tank capacity: 16 L, for cycles up to 12 kg of dough.
  • Stainless steel frame and scratch-resistant paint.
  • Tilting head and removable tank for easy cleaning.
  • Safety: safety microswitch and smoked polycarbonate cover

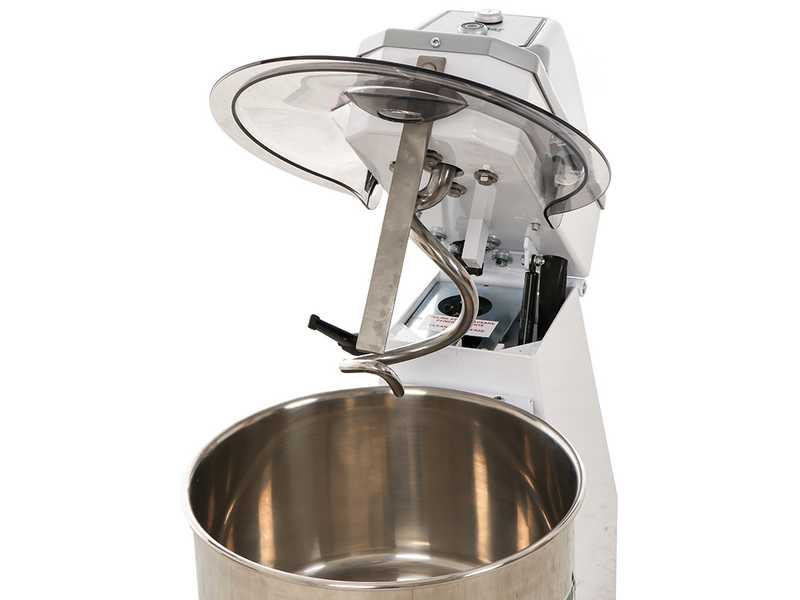

Tilting Head and Removable Tank

This machine is equipped with a lifting head and removable tank, two key features designed to facilitate and increase cleaning and dough processing efficiency.

To unlock the head, simply unscrew the side lever of the mixer.

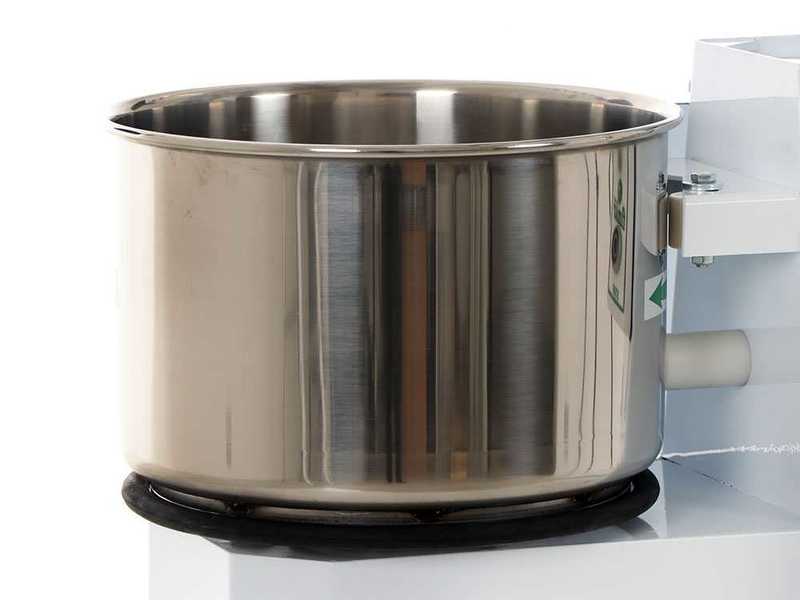

Easily removable bowl: it can be easily removed releasing the locking system at the bottom of the bowl, thus allowing for a practical dough transport and easy cleaning.

To unlock the tank, simply unscrew its base until it releases.

Main Features

The Fimar 12SR mixer is especially suitable for making soft doughs with good hydration.

The powerful 1 HP motor allows it to tackle any dough.

Equipped with an automatically activated emergency stop when the lid is lifted.

All components coming into contact with the dough are made of 304 stainless steel:

  • Tank
  • Spiral
  • central dough splitting rod

The special spiral shape minimises processing time without overheating the dough.

Scratch-proof and non-toxic paint.

Grey polycarbonate lid.

Technical Specifications

List of some of the machine's main features:

  • 1HP motor (750W)
  • 16 L tank (Ø 320xh210 mm)
  • Spiral speed: 90 rpm
  • Hourly production: 36 Kg/h
  • Dough per cycle: 12 Kg
  • Dimensions: 63.2x32x75/93.2 cm
  • Net weight: 61 Kg
  • Power supply: 380-415V ~ 50/60 Hz

The machine is equipped with a 5-pin CEE plug for three-phase current.

Speed selector.

Polymer rollers to ensure smooth running of the tank.

Free items & Standard equipment

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

Standard Equipment

The spiral mixer is shipped in its original packaging along with the instructions manual.

CEE socket for three-phase current
