Fimar 18SB - Spiral Mixer - Three-phase - 18 Kg - 2 Speeds

Add a question
ID: K609097

EAN: 8055385431668

MPN: IM18SBN0V405T

8,1/10
After-sales assistance & Spare parts
Fimar 18SB - Spiral Mixer - Three-phase - 18 Kg - 2 Speeds
FREE
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
Dough Capacity
18 Kg
Tank capacity
22 L
Speed levels
2
Bowl type
Stainless steel fixed bowl
hydration max
75 %
Medium doughs
Hard doughs
Minimum dough
4 Kg
Operating mode
Three-phase 400 V
Nominal power
1 HP
Motor type
Induction
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Manufacturing country
Italy
Product Features
Model:
18SB three-phase 2-speed
Body material:
Enamelled steel
Typology :
Standard
Medium doughs:
Hard doughs:
Mixing head type:
Fixed
Dough Capacity:
18 Kg
hydration max:
75 %
Speed levels:
2
Tank capacity:
22 L
Bowl type:
Stainless steel fixed bowl
Bowl diameter:
36 cm
Bowl height:
21 cm
Operating mode:
Three-phase 400 V
Flour quantity:
12 Kg
Water quantity:
6 L
Hourly output:
54 kg/h
Minimum dough:
4 Kg
Spiral - rpm (min):
90 rpm
Spiral - rpm (max):
180 rpm
Dough mixing time:
Standard
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
1 HP
Nominal power (W):
750 W
Power supply:
400 V electric
Transmission data
Transmission type:
Chain
Cutting data
Recommended for:
Pizza
Recommended for:
Bread
Recommended for:
Focaccia bread
Recommended for:
Breadsticks
Recommended for:
Piadina
Recommended for:
Taralli
Recommended for:
Biscuits
Recommended for:
Egg mixtures
Recommended for:
Fresh pasta
Equipment
CE-compliant safety switch:
CE-compliant
Rotating Bowl:
Stainless steel
Rotating spiral arm:
stainless steel
Central breaker bar:
Stainless steel
Free gifts/extra features
Apron:
Yes
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes

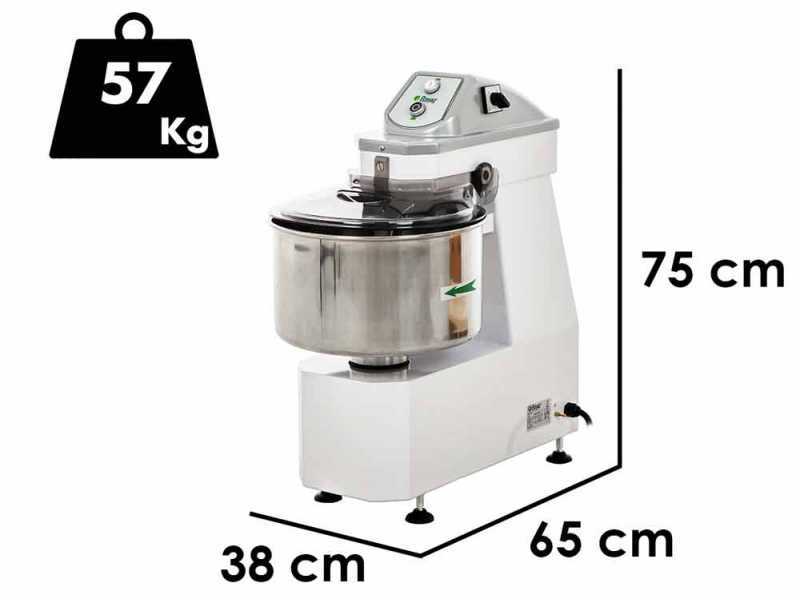

Dimensions and logistics
Product dimensions in cm (L x W x H):
65,3x38x75 cm
Net weight:
57 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
70x46x89 cm
Gross weight (packaging included) :
70 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 12/03/2025 - 14/03/2025
€ 1.174,18
Vat included
You're viewing:
Customers also viewed:
Description

FIMAR 18SB Spiral Mixer

The Fimar 18SB spiral mixer is a professional machine suitable for preparing soft doughs like bread, pizza and piadinas.

Its sturdy structure is coated with scratch-resistant paint, guaranteeing a long service life. All parts in contact with food, such as the tank, spiral and dough-splitting rod, are made of stainless steel, ensuring maximum hygiene and resistance to wear.

With an 18 kg dough capacity per cycle, this mixer is ideal for bakeries, pizzerias and pastry shops with a 54 kg/h output.

The Fimar 18SB mixer is equipped with a 0.75 kW motor, providing a 90 and 180 rpm speed, offering more flexibility depending on the type of dough.

Its compact size facilitates its inclusion in any working environment, while its 57 kg weight ensures stability during use.

The Fimar 18SB is equipped with a safety microswitch on the tank cover, made of polycarbonate, which protects the operator during use.

Main features:

  • Power: 0.75 kW/1 kW
  • Dough capacity: 18 kg per cycle
  • Hourly production: 54 kg/h
  • Bowl size: 22 L (ø 360 x 210 mm)
  • Size: 653 x 380 x 750 mm

The Fimar 18SB spiral mixer is an efficient solution for optimising production processes in the kitchen, ensuring smooth and precise results in every work cycle.

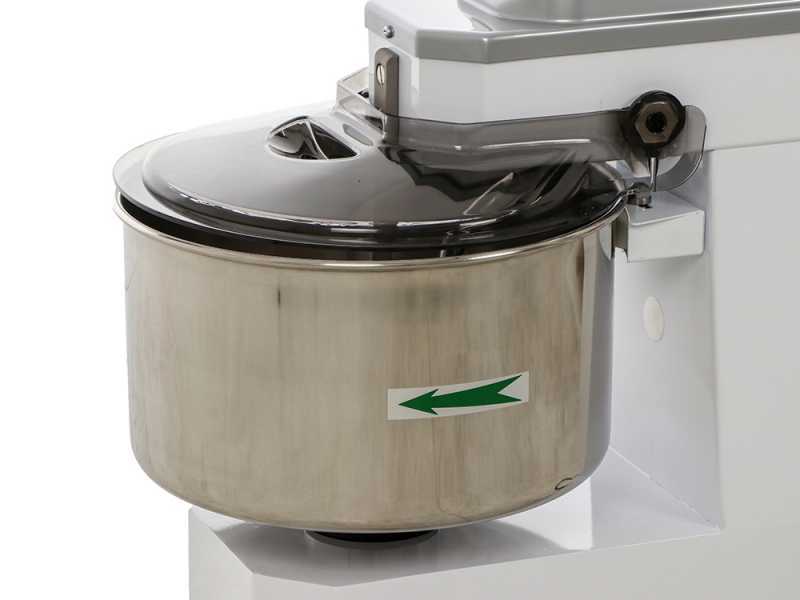

Main Features

The Fimar 18SB mixer is especially suitable for making soft doughs with good hydration.

Its powerful motor allows it to tackle any dough.

Motor power

  • Speed one: 0.75hp - 90 rpm
  • speed two: 1hp - 180 rpm

Safety microswitch fitted on transparent lid.

Scratch-proof and non-toxic paint.

Food-contact parts made of stainless steel.

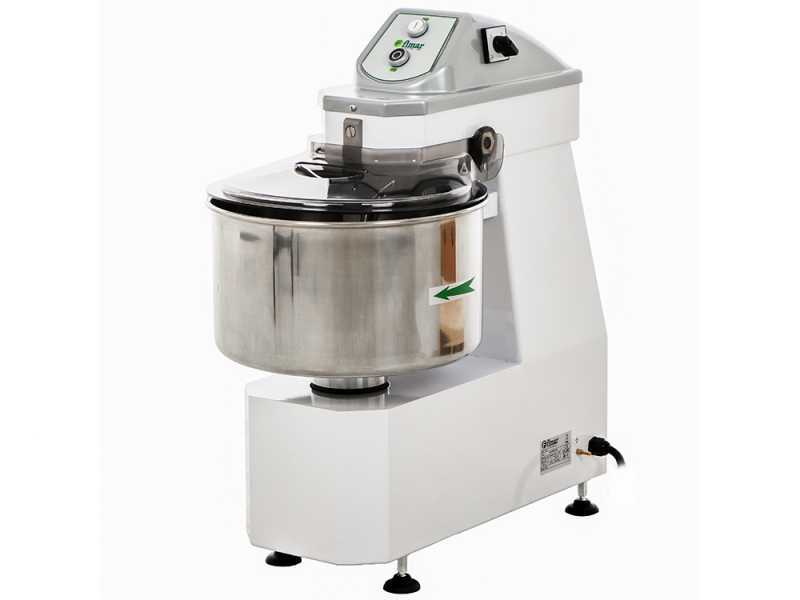

Technical Specifications

Listed below are some of the main features of the machine:

  • 1HP motor (750W)
  • 22 L tank (Ø 360xh210 mm)
  • Spiral speed: 90–180 rpm
  • Hourly production: 54 Kg/h
  • Dough per cycle: 18 Kg
  • Size: 65,3x38x75 cm
  • Net weight: 57 Kg
  • Power supply: 380-415V ~ 50/60 Hz

The machine is equipped with a 5-pin EEC plug for three-phase current.

Speed selector.

Polymer rollers to ensure smooth running of the tank.

Free items & Standard equipment

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

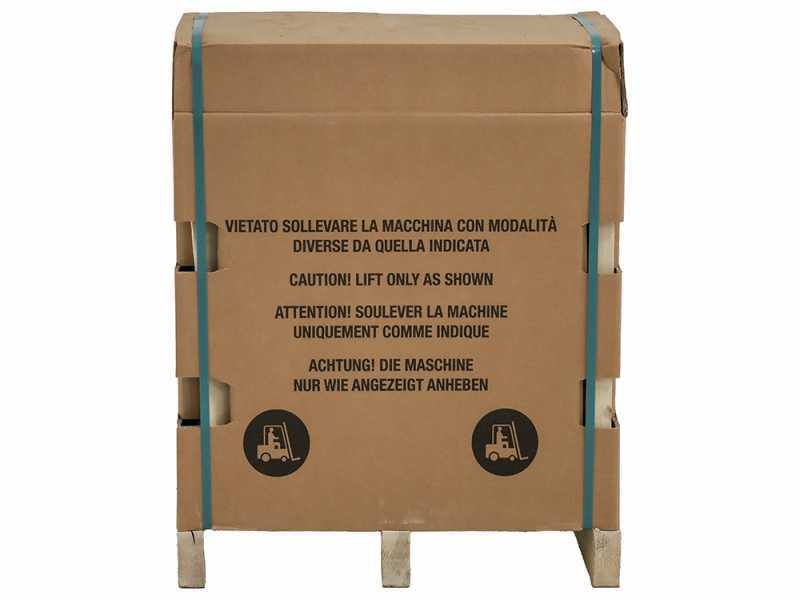

Standard Equipment

The spiral mixer is shipped in its original packaging along with the instructions manual.

CEE socket for three-phase current
