Fimar 18SR - Spiral mixer with tilting head

Add a question
ID: K609182

EAN: 8050247560241

MPN: IM18SRN0235M

8,1/10
After-sales assistance & Spare parts
Fimar 18SR - Spiral mixer with tilting head
FREE
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
Mixing head type
Tilting
Dough Capacity
18 Kg
Tank capacity
22 L
Speed levels
1
Bowl type
Stainless steel removable bowl
hydration max
65 %
Medium doughs
Hard doughs
Minimum dough
4 Kg
Operating mode
Single-phase 230 V
Nominal power
1 HP
Motor type
Induction
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Manufacturing country
Italy
Product Features
Model:
18SR monofase
Body material:
Enamelled steel
Typology :
Tilting head
Medium doughs:
Hard doughs:
Mixing head type:
Tilting
Dough Capacity:
18 Kg
hydration max:
65 %
Speed levels:
1
Tank capacity:
22 L
Bowl type:
Stainless steel removable bowl
Bowl diameter:
36 cm
Bowl height:
21 cm
Operating mode:
Single-phase 230 V
Flour quantity:
12 Kg
Water quantity:
6 L
Hourly output:
54 kg/h
Minimum dough:
4 Kg
Spiral - rpm (min):
90 rpm
Spiral - rpm (max):
90 rpm
Dough mixing time:
Standard
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
1 HP
Nominal power (W):
750 W
Power supply:
220 V electric
Transmission data
Transmission type:
Chain
Cutting data
Recommended for:
Pizza
Recommended for:
Bread
Recommended for:
Focaccia bread
Recommended for:
Breadsticks
Recommended for:
Piadina
Recommended for:
Taralli
Recommended for:
Biscuits
Recommended for:
Egg mixtures
Recommended for:
Fresh pasta
Equipment
CE-compliant safety switch:
CE-compliant
Rotating Bowl:
Stainless steel
Rotating spiral arm:
stainless steel
Central breaker bar:
Stainless steel
Free gifts/extra features
Apron:
Yes
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
65,3x38x75/95,1 cm
Net weight:
66 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
70x46x89 cm
Gross weight (packaging included) :
76 Kg
Assembly time:
Assembled
15 - 20 days from purchase
Free Shipping
€ 1.353,26
Vat included
You're viewing:
Customers also viewed:
Description

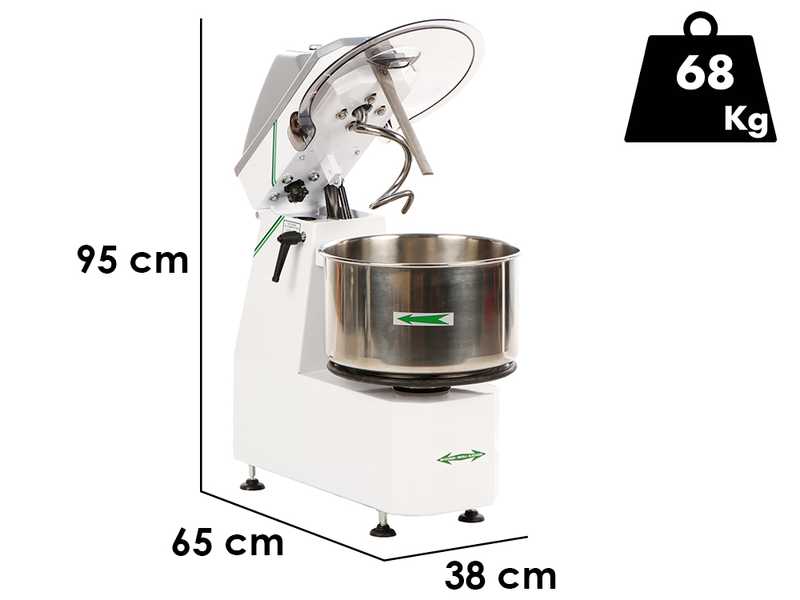

FIMAR 18SR mixer with tilting head

The Fimar 18SR spiral mixer with tilting head and removable bowl is a versatile and reliable machine designed for intensive production of dough for products such as bread, pizza and piadina.

With a dough capacity per cycle of 18 kg, this mixer is ideal for bakeries, pizzerias and pastry shops. The 0.75 kW (1 HP) motor guarantees high efficiency, while the 90 rpm rotation speed ensures a uniform dough quality. The three-phase power supply allows installation in various types of business.

The structure is coated with a scratch-resistant paint, which offers strength and durability, while the parts in contact with food, including the bowl, spiral and splitting rod, are made of high-quality stainless steel. This combination of materials ensures hygiene and a long service life.

The tank has a capacity of 22 litres and dimensions of ø 360 x 210 mm, ideal for supporting high workloads. The mixer is equipped with a safety microswitch on the lid (made of smoked polycarbonate) supplied as standard for additional protection during use.

With compact dimensions and a net weight of 68 kg, this kneader is also easy to position and move in a professional environment

Main features:

  • Engine power: 0.75 kW (1 HP)
  • Tank capacity: 22 L (ø 360 x 210 mm)
  • Speed: 90 rpm
  • Safety: microswitch and polycarbonate cover

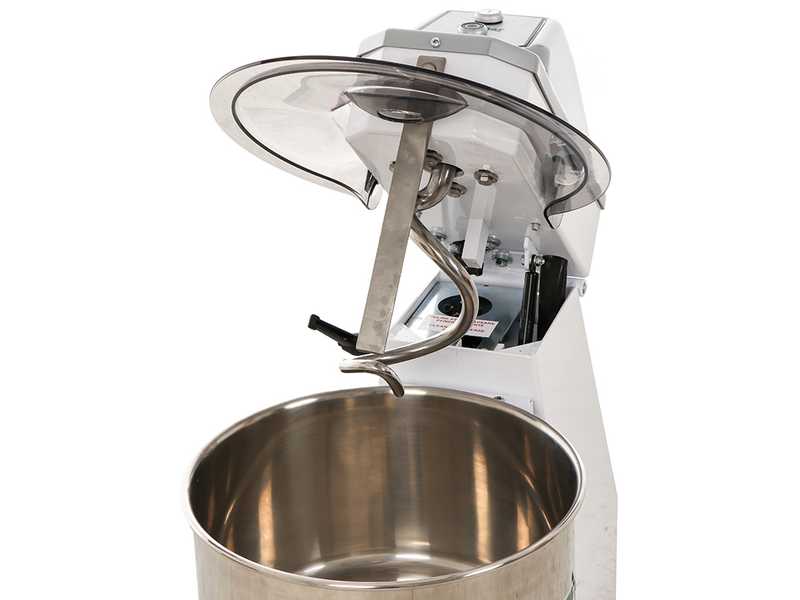

Tilting Head and Removable Tank

This machine is equipped with a lifting head and removable tank, two key features designed to facilitate and increase cleaning and dough processing efficiency.

To unlock the head, simply unscrew the side lever of the mixer.

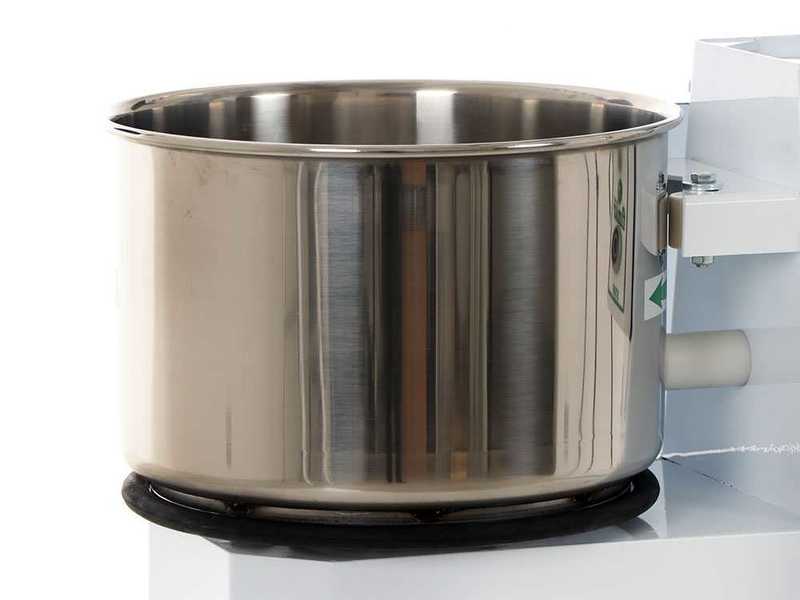

Easily removable bowl: it can be easily removed releasing the locking system at the bottom of the bowl, thus allowing for a practical dough transport and easy cleaning.

To unlock the tank, simply unscrew its base until it releases.

Main Features

The Fimar 18SR mixer is especially suitable for making soft doughs with good hydration.

The powerful 1 HP motor allows it to tackle any dough.

Equipped with an automatically activated emergency stop when the lid is lifted.

All components coming into contact with the dough are made of 304 stainless steel:

  • Tank
  • Spiral
  • central dough splitting rod

The special spiral shape minimises processing time without overheating the dough.

Scratch-proof and non-toxic paint.

Grey polycarbonate lid.

Technical Specifications

List some of the machine's main features:

  • 1HP motor (750W)
  • 22 L tank (Ø 360xh210 mm)
  • Spiral speed: 90 rpm
  • Hourly production: 54 Kg/h
  • Dough per cycle: 18 Kg
  • Dimensions: 65.3x38x75/95,1 cm
  • Net weight: 68 Kg
  • Power supply: 220-240 V ~ 50/60 Hz

The machine is equipped with a Shuko socket for single-phase current.

Polymer rollers to ensure smooth running of the tank.

Free items & Standard equipment

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

Standard Equipment

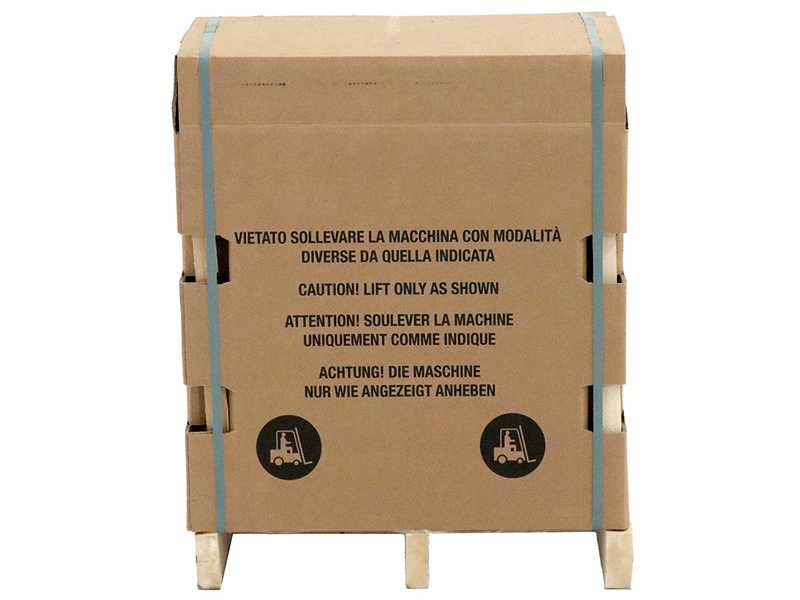

The spiral mixer is shipped in its original packaging along with the instructions manual.

Schuko socket for single-phase current
