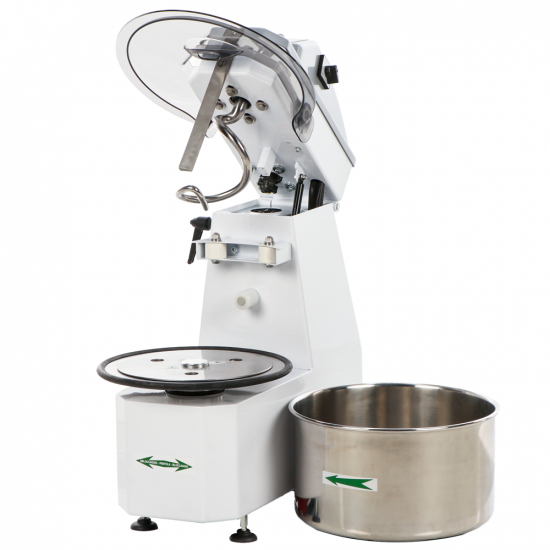

Fimar 18SR - Spiral Mixer with Tilting Head - Three-phase - 2 Speeds

Add a question
ID: K609110

EAN: 8055385430623

MPN: IM18SRN0V405T

8,1/10
After-sales assistance & Spare parts
Fimar 18SR - Spiral Mixer with Tilting Head - Three-phase - 2 Speeds
FREE
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
Mixing head type
Tilting
Dough Capacity
18 Kg
Tank capacity
22 L
Speed levels
2
Bowl type
Stainless steel removable bowl
hydration max
75 %
Medium doughs
Hard doughs
Minimum dough
4 Kg
Operating mode
Three-phase 400 V
Nominal power
1 HP
Motor type
Induction
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Manufacturing country
Italy
Product Features
Model:
18SR - 400V - 2V
Body material:
Enamelled steel
Typology :
Tilting head
Medium doughs:
Hard doughs:
Mixing head type:
Tilting
Dough Capacity:
18 Kg
hydration max:
75 %
Speed levels:
2
Tank capacity:
22 L
Bowl type:
Stainless steel removable bowl
Bowl diameter:
36 cm
Bowl height:
21 cm
Operating mode:
Three-phase 400 V
Flour quantity:
12 Kg
Water quantity:
6 L
Hourly output:
54 kg/h
Minimum dough:
4 Kg
Spiral - rpm (min):
90 rpm
Spiral - rpm (max):
180 rpm
Dough mixing time:
Standard
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
1 HP
Nominal power (W):
750 W
Power supply:
400 V electric
Transmission data
Transmission type:
Chain
Cutting data
Recommended for:
Pizza
Recommended for:
Bread
Recommended for:
Focaccia bread
Recommended for:
Breadsticks
Recommended for:
Piadina
Recommended for:
Taralli
Recommended for:
Biscuits
Recommended for:
Egg mixtures
Recommended for:
Fresh pasta
Equipment
CE-compliant safety switch:
CE-compliant
Rotating Bowl:
Stainless steel
Rotating spiral arm:
stainless steel
Central breaker bar:
Stainless steel
Free gifts/extra features
Apron:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
65,3x38x75/95,1 cm
Net weight:
68 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
70x46x89 cm
Gross weight (packaging included) :
70 Kg
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 17/04/2025 - 22/04/2025
€ 1.436,41
Vat included
You're viewing:
Customers also viewed:
Description

FIMAR 18SR Dough Mixer with Tilting Head

The Fimar 18SR spiral mixer is a professional machine designed for producing soft doughs such as bread, pizza and piadina dough.

This model is equipped with a tilting head and a removable tank, features that facilitate cleaning and dough handling. With a 22 litre tank capacity and 18 kg maximum dough per cycle, it is ideal for bakeries, pizzerias and artisan shops.

The structure of the mixer is coated with scratch-resistant paint, while the parts that are in contact with the dough, such as the tank, spiral and dough-splitting rod, are made of stainless steel to ensure maximum hygiene and durability.

Additionally, the tank lid is made of grey polycarbonate, providing a safe view of the dough during processing. The inclusion of a safety micro-switch on the lid ensures high operational protection.

This mixer features two adjustable speeds, with a spiral rotation speed ranging from 90 to 180 rpm. This feature allows precise and even dough control. The motor power is either 0.55 or 0.75 kW based on the selected speed.

Its compact size, together with its 68 kg net weight, make it manoeuvrable and easy to place in any workshop.

With its state-of-the-art technical features and sturdy frame, the Fimar 18SR spiral mixer is a reliable choice for those who require high performance, precision and user-friendliness when processing different types of dough. It is an ideal investment for professionals who value quality and durability.

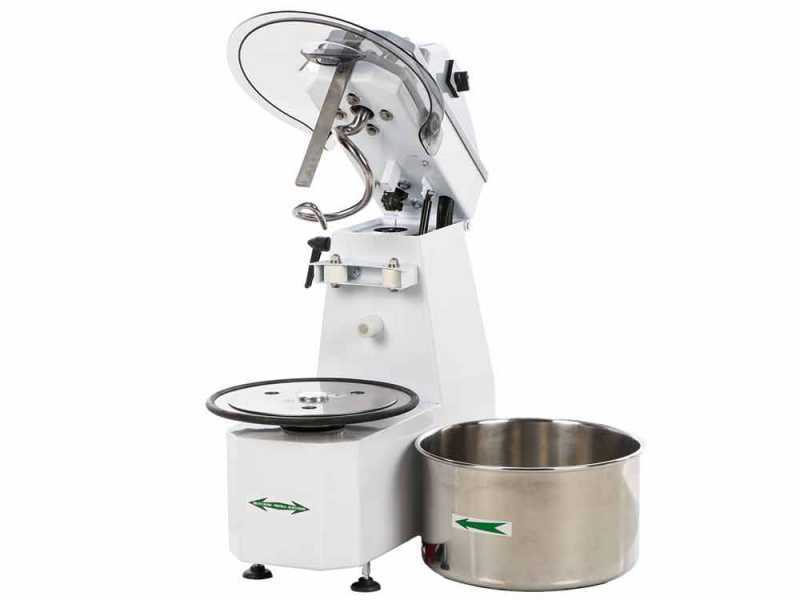

Tilting Head and Removable Tank

This machine is equipped with a lifting head and removable tank, two key features designed to facilitate and increase cleaning and dough processing efficiency.

To unlock the head, simply unscrew the side lever of the mixer.

Easily removable bowl: it can be easily removed releasing the locking system at the bottom of the bowl, thus allowing for a practical dough transport and easy cleaning.

To unlock the tank, simply unscrew its base until it releases.

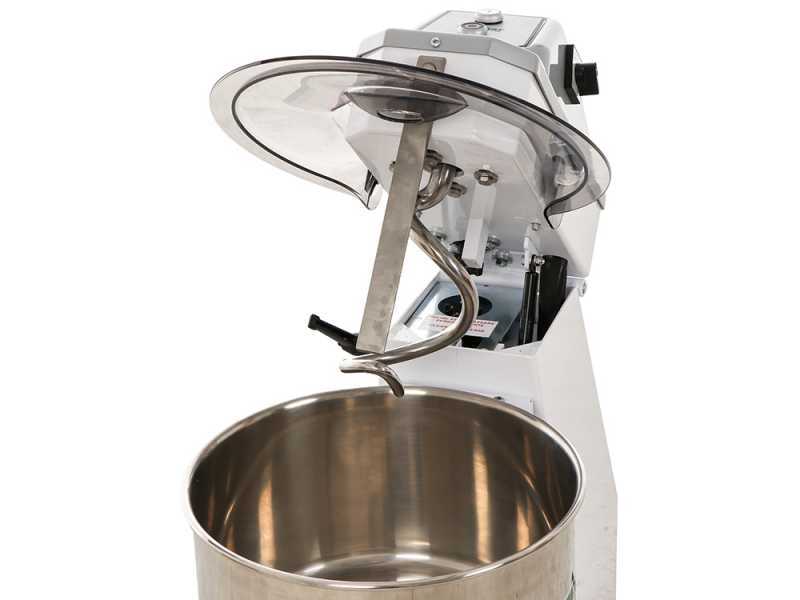

Main Features

The Fimar 18SR mixer is especially suitable for making soft doughs with good hydration.

Its powerful motor allows it to tackle any dough.

Motor power

  • Speed one: 0.75 hp - 90 rpm
  • speed two: 1 hp - 180 rpm

Equipped with an automatically activated emergency stop when the lid is lifted.

All components coming into contact with the dough are made of 304 stainless steel:

  • Tank
  • spiral
  • central dough splitting rod

The special spiral shape minimises processing time without overheating the dough.

Scratch-proof and non-toxic paint.

Grey polycarbonate lid.

Technical Specifications

Listed below are some of the main features of the machine:

  • 1HP motor (750W)

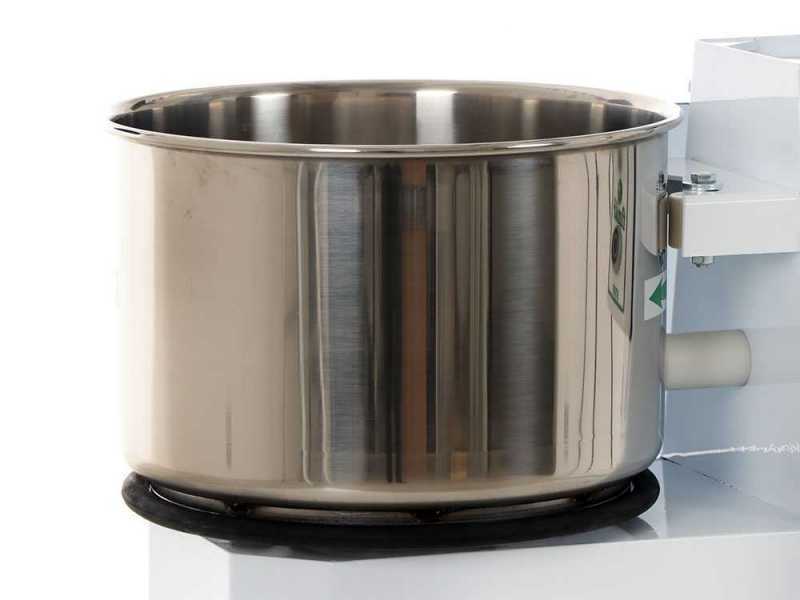

  • 22 L tank (Ø 360xh210 mm)
  • Spiral speed: 90–180 rpm
  • Hourly production: 54 Kg/h
  • Dough per cycle: 18 Kg

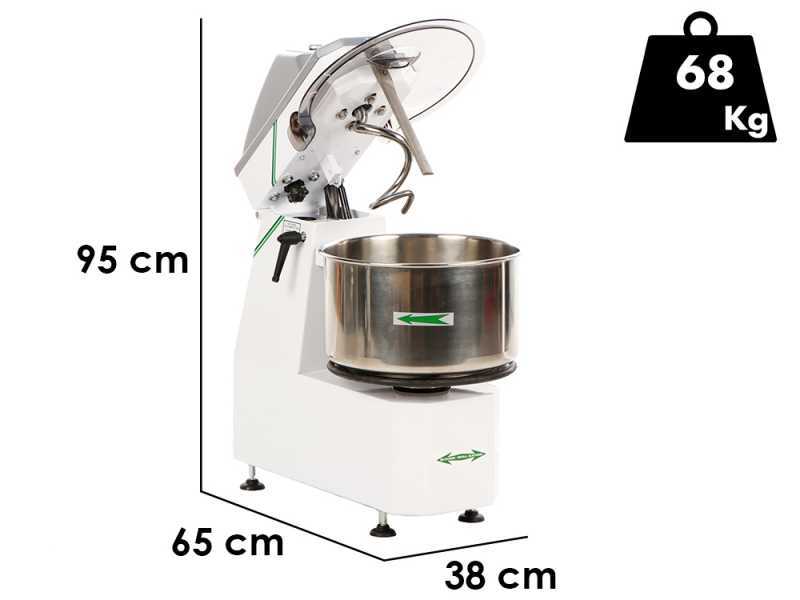

  • Size: 65.3x38x75/95,1 cm
  • Net weight: 68 Kg
  • Power supply: 380-415V ~ 50/60 Hz

The machine is equipped with a 5-pin EEC plug for three-phase current.

Speed selector.

Polymer rollers to ensure smooth running of the tank.

Free items & Standard equipment

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

Standard Equipment

The spiral mixer is shipped in its original packaging along with the instructions manual.

CEE socket for three-phase current
