GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor

Hobby
Questions & Answers (2)
ID: K502847

EAN: 8053435092968

GeoTech
Catalogue GeoTech
8,9/10
After-sales assistance & Spare parts
28Pictures
5Videos
23Customer pics
GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor
GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor
GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor
GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor
GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor
GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor
+300 sold
FREE
Bottle of 600 ml "COMPRIX" professional oilBottle of 600 ml "COMPRIX" professional oil
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
24 L
Max. operating pressure
10 bar
Air intake flow
210 L/min
Cylinder head rpm
2800 RPM
Lubrication
Oil
Pump type
Single-stage
Nominal power
2.5 HP
Operating mode
Single-phase 230 V
Product Features
Model:
AC 24.10.25C
Air compressor type 2:
Oil-lubricated coaxial
Air compressor type:
Horizontal
Operating mode:
Single-phase 230 V
Max. operating pressure:
10 bar
Number of tanks:
1
Air compressor tank:
24 L
Noise level:
97 LwA
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
2.5 HP
Power supply:
220 V electric
Pump data
Pump brand:
GeoTech
Model:
AC 24.8.25C
Air intake flow:
210 L/min
Pump type:
Single-stage
Lubrication:
Oil
No. of cylinders:
1
Cooling manifold:
No
Manufacturing country:
China
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
2800 RPM
Equipment
No. of outlet couplings:
2
Rear wheels size:
120 mm
Rubber-coated soft grip:
Yes
Lifting handle:
No
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
50x30x54
Net weight:
19 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
58x26x56
Gross weight (packaging included) :
21 Kg
Assembly time:
5 minutes
Out of stock
Notify me when available
Free Shipping
Free returns (up to 30 days after receipt) *
Suggested price:
€ 230,72
€ 173,04
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!

You're viewing:
Customers also viewed:
Description

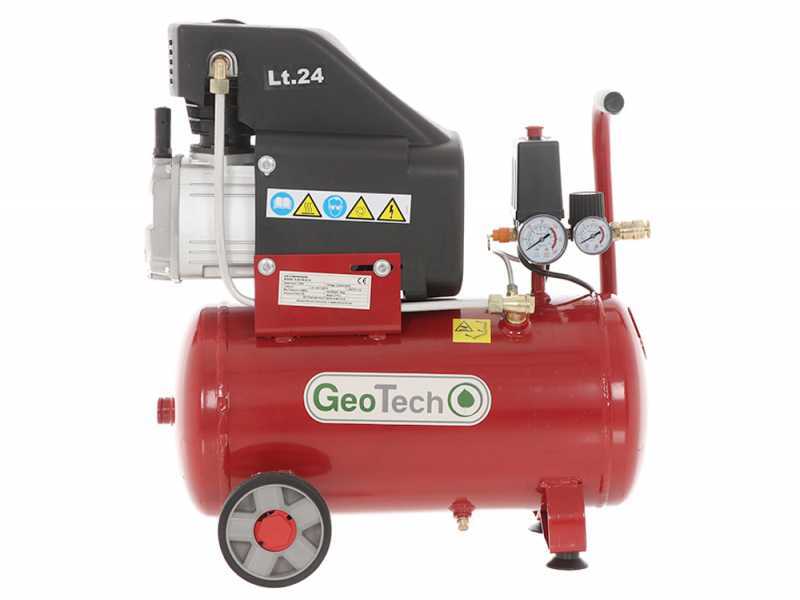

GeoTech AC 24.10.25C - Air Compressor 24 L 2.5 Hp

AC 24.10.25C Air Compressor
Main features:

AC = Air compressor

24 = 24 L tank

10 = 10 bar Maximum tank pressure

25 = 2.5 Hp Motor power

C = Copper Adder

The GeoTech AC 24.10.25C air compressor is regarded as a top-quality choice among hobbyists looking for a cost-effective, lightweight and high-performing equipment.

Powered by a 2.5 Hp electric motor, this air compressor features a compressed air suction capacity of 210 L/min. It is capable of reaching a maximum pressure of 10 bar.

It comes with a large compressed air storage tank of 24 L. The air compressor weighs 19 Kg and can be easily transported thanks to its wheels and the upper handle.

Copper-coated motor housing.

GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor
GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor

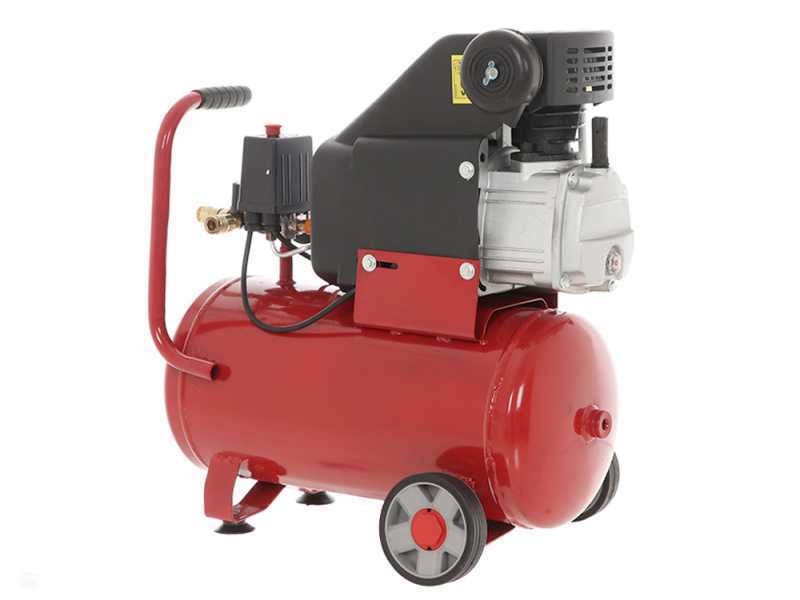

Technical features

Pumping unit type: coaxial - with lubricating oil

Air intake flow: 210 L/min

Maximum pressure: 10 bar

Average operating pressure: 8 bar

Electric motor power: 2.5 Hp

Tank: 24 L


Overall dimensions:
- Width: 500 mm
- Height: 300 mm
- Depth (or thickness): 540 mm

Weight: 19 kg

The air compressor comes with a copper-coated motor housing, which sets it apart from other low-cost air compressor models that feature an aluminium motor housing.
This type of housing proves to be more efficient, being able to supply more power with the same amount of power.

GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor
GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor

Controls and other features

The air compressor features easy and user-friendly controls, which are divided into:

Power switch

Output air pressure gauge and tank air pressure gauge

2 Female outlet fittings

Pressure adjusting knob

Ergonomic transport handle

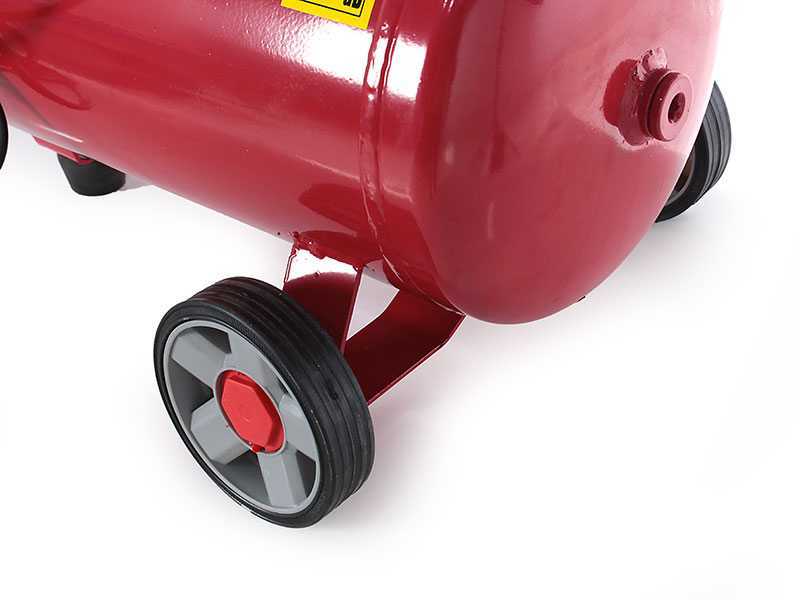

120 mm diameter wheels in sturdy plastic

Anti-vibration rubber pad

Condensate drain valve

Schuko plug

GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor
GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor
Free items & Standard equipment

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint

  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.

  • Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations
GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor
GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor

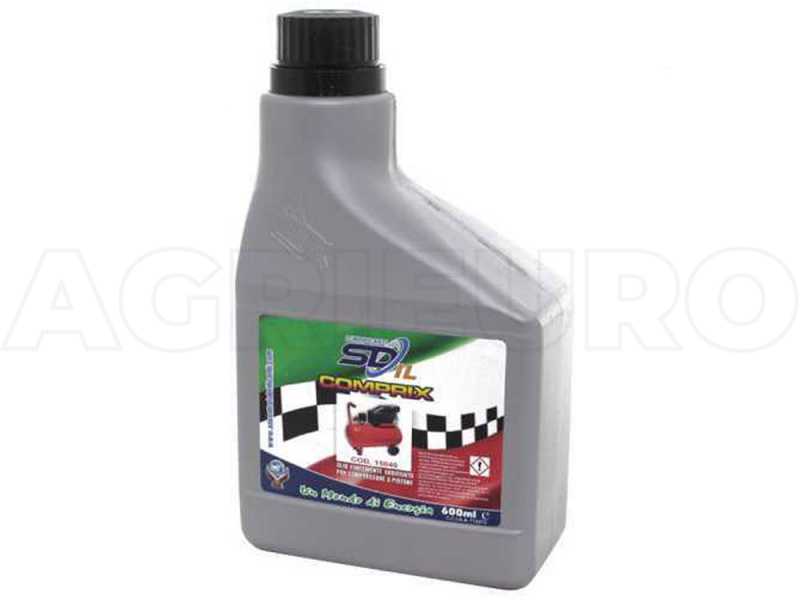

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor
GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.

GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor
GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor GeoTech AC 24.10.25C - 24L Electric Air Compressor Compressed Air - 2.5 Hp Motor
