GeoTech S-AC 24.8.10 - Silenced Electric Air Compressor - Oilless 24 L - 1HP motor

Questions & Answers (14)
ID: K502183

EAN: 8053435093293

8,9/10
After-sales assistance & Spare parts
GeoTech S-AC 24.8.10 - Silenced Electric Air Compressor - Oilless 24 L - 1HP motor
+1000 sold
FREE
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
24 L
Max. operating pressure
8 bar
Air intake flow
165 L/min
Cylinder head rpm
1440 RPM
Lubrication
Oil-less
Pump type
Single-stage
Silenced
Yes
Nominal power
1.0 HP
Operating mode
Single-phase 230 V
Product Features
Model:
S-AC 24.8.10
Air compressor type 2:
Oilless
Air compressor type:
Horizontal
Operating mode:
Single-phase 230 V
Max. operating pressure:
8 bar
Number of tanks:
1
Air compressor tank:
24 L
Noise level:
79 dBA
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
1.0 HP
Silenced:
Yes
Power supply:
220 V electric
Manufacturing country:
China
Pump data
Pump brand:
GeoTech
Model:
S-AC 24.8.10
Air intake flow:
165 L/min
Pump type:
Single-stage
Lubrication:
Oil-less
No. of cylinders:
1
Cooling manifold:
No
Manufacturing country:
China
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
1440 RPM
Equipment
No. of outlet couplings:
2
Rear wheels size:
120 mm
Rubber-coated soft grip:
Yes
Lifting handle:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Quick reduction coupling:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
55x36x57
Net weight:
17 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
57x25x58
Gross weight (packaging included) :
19 Kg
Assembly time:
5 minutes
Prompt Delivery
75 items in stock
Free Shipping
Estimated delivery: 05/05/2025 - 07/05/2025
Suggested price:
€ 228,44
€ 171,33
Vat included
You're viewing:
Customers also viewed:
Description

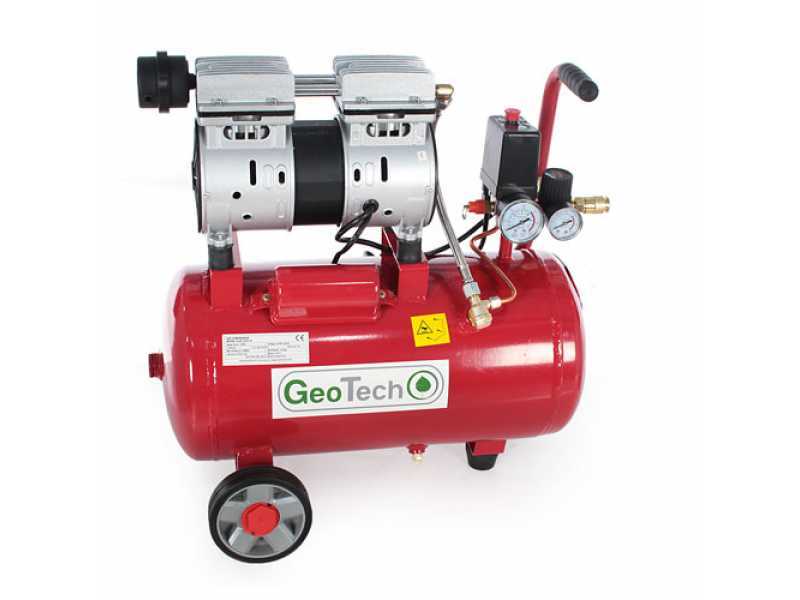

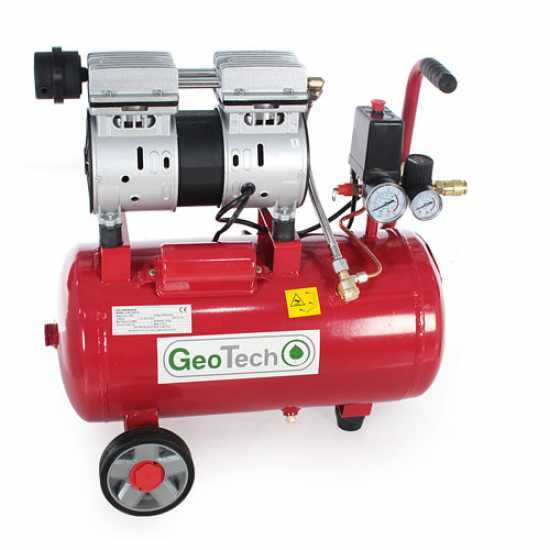

GeoTech S-AC 24.8.10 Electric Air Compressor - 24 L - 1.0 HP - oilless

S-AC 24.8.10 Air Compressor
Main features:

S = SILENT (silenced, 79 dB only, with oil-free cylinder head)

AC = Air compressor

24 = 24 L tank

8 = 8 bar Maximum pressure

10 = 1.0 Hp Motor power

The GeoTech S-AC 24.8.10 air compressor is regarded as a top-quality choice among hobbyists looking for a lightweight, silent, and high-performing equipment.

Powered by a 1.0 Hp electric motor, this air compressor features a compressed air suction capacity of 165 L/min. It is capable of reaching a maximum pressure of 8 bar.

It comes with a large-sized compressed air storage tank of 24 L. The air compressor weighs 17 Kg and can be easily transported thanks to its wheels and the upper handle.

Maintenance operations are also reduced, as no control or topping up of lubricating oil is required, as well as the transportability of these compressors, since there is no risk of oil leakage even when the air compressor is laid down on its side, for example to load it into the trunk of a car.

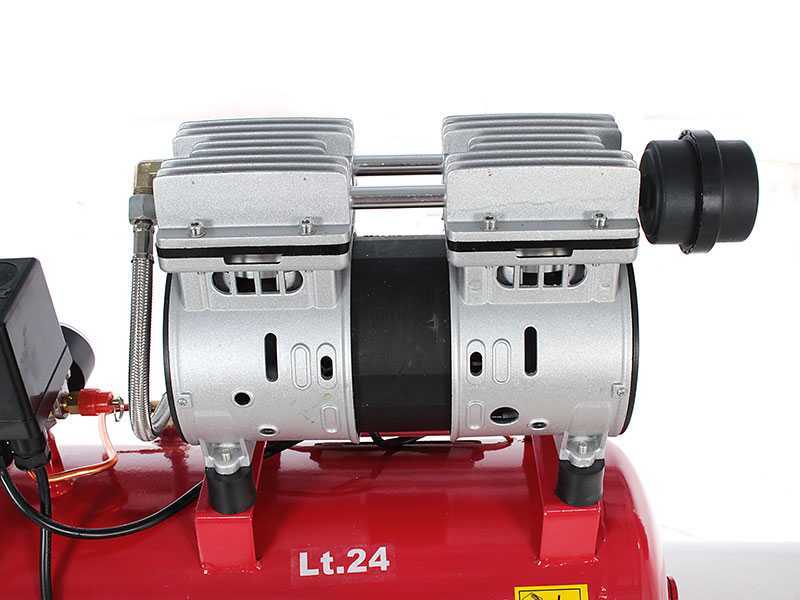

Technical features

Pumping unit type: coaxial - oil free

Air intake flow: 165 L/min

Pressure: 8 bar

Electric motor power: 1.0 Hp

Tank: 24 L

SILENCED: only 79 dB (A)/7 m

Designed to overcome the issue related to the noise emissions while operated in working areas. This range of compressors stands out on the market for the reduced noise emissions.

Overall dimensions:
- Width: 550 mm
- Height: 360 mm
- Depth (or thickness): 360 mm

Weight: 17 kg

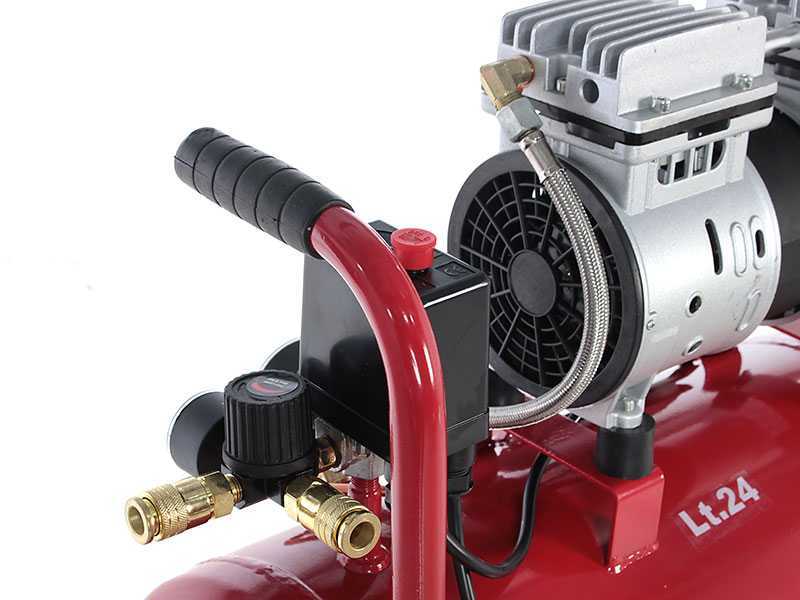

Controls and other features

The air compressor features easy and user-friendly controls, which are divided into:

Power switch

Output air pressure gauge and tank air pressure gauge

2 Female outlet fittings

Pressure adjusting knob

Ergonomic transport handle

Large wheels in sturdy plastic

Anti-vibration rubber pad

Condensate drain valve

Schuko plug

Free items & Standard equipment

COMPLIMENTARY: Oilless Air Compressor Maintenance Kit

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet coupling. It allows easily connecting the units to hoses with female quick joint.

  • Quick male joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (it also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

Standard equipment

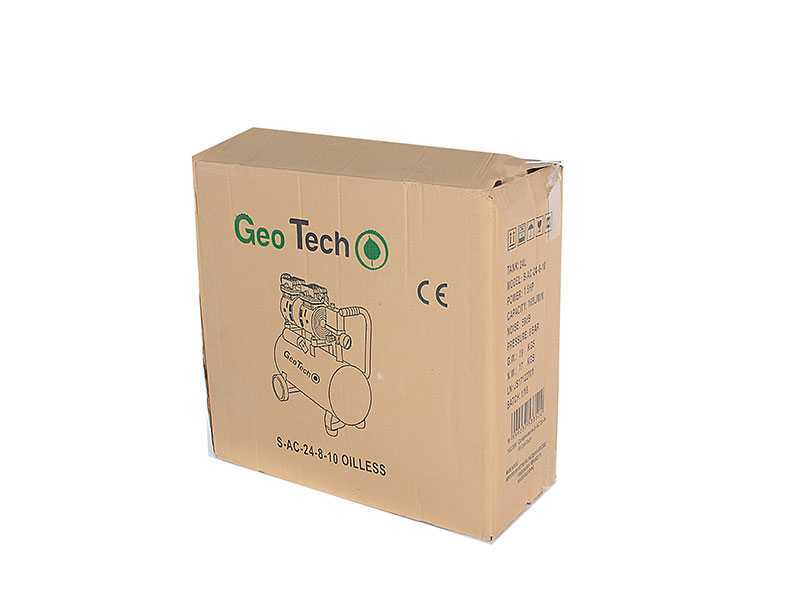

The air compressor is shipped in its original packaging.

Instruction manual is included.
