GeoTech S-AC50V-10-15C - Oilless Electric Air Compressor - 1.5 Hp Motor - 50 L Vertical Silenced

Questions & Answers (18)
ID: K502310

EAN: 8053435093071

8,9/10
After-sales assistance & Spare parts

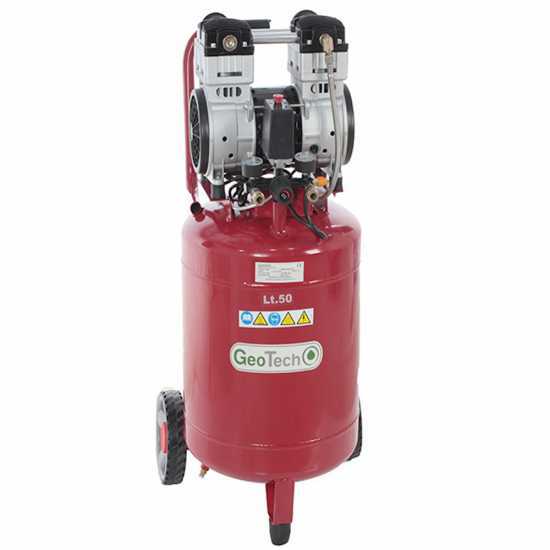

GeoTech S-AC50V-10-15C - Oilless Electric Air Compressor - 1.5 Hp Motor - 50 L Vertical Silenced
+400 sold
FREE
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
50 L
Max. operating pressure
10 bar
Air intake flow
200 L/min
Cylinder head rpm
1440 RPM
Lubrication
Oil-less
Pump type
Single-stage
Nominal power
1.5 HP
Operating mode
Single-phase 230 V
Product Features
Model:
S-AC50V-10-15
Air compressor type:
Vertical
Operating mode:
Single-phase 230 V
Max. operating pressure:
10 bar
Number of tanks:
1
Air compressor tank:
50 L
Noise level:
57 dBA
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
1.5 HP
Power supply:
220 V electric
Pump data
Pump brand:
GeoTech
Model:
SAC50V-10-15C
Air intake flow:
200 L/min
Pump type:
Single-stage
Lubrication:
Oil-less
No. of cylinders:
2
Cooling manifold:
No
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
1440 RPM
Equipment
No. of outlet couplings:
2
Lifting handle:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
45x45x98 cm
Net weight:
45 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
45x45x92 cm
Gross weight (packaging included) :
45 Kg
Unloading with hydraulic tail lift:
No
Assembly time:
5 minutes
Prompt Delivery
23 items in stock
Free Shipping
Estimated delivery: 25/04/2025 - 29/04/2025
Suggested price:
€ 401,26
€ 300,95
Vat included
You're viewing:
Customers also viewed:
Description

GeoTech S-AC50V-10-15C Electric Air Compressor

S-AC50V-10-15C Air Compressor
Main features:

S- Silenced 79 dB

AC (Air intake flow 200 L/min)

50 - Tank capacity in litres 50 L

V - Vertical tank

10 - Pressure 10 Bar

15 - 1.5 Hp Pumping unit

C - Copper Adder

The GeoTech S-AC50V-10-15C air compressor can be used for many different applications. It is the ideal tool for hobbyists to carry out small household jobs.

Its compact size allows for an easy storage.

It mounts an electric motor with a power of 1.5 Hp. This air compressor features a compressed air suction capacity of 200 L/min and can reach a maximum pressure of 10 bar.

It comes with a large-sized compressed air storage tank of 50 L. The air compressor weighs 45 Kg and can be easily transported thanks to the practical upper handle.

Suitable for a number of applications:

  • Air blowing
  • Inflation
  • Air brushing
  • Nailing - Stapling
  • Spraying treatments
  • Painting
  • Professional painting
  • Screw driving

Thanks to its special technology, the GeoTech air compressor's noise emissions are extremely low (only 79 dB (A)), ideal for domestic works.

Copper-coated motor housing

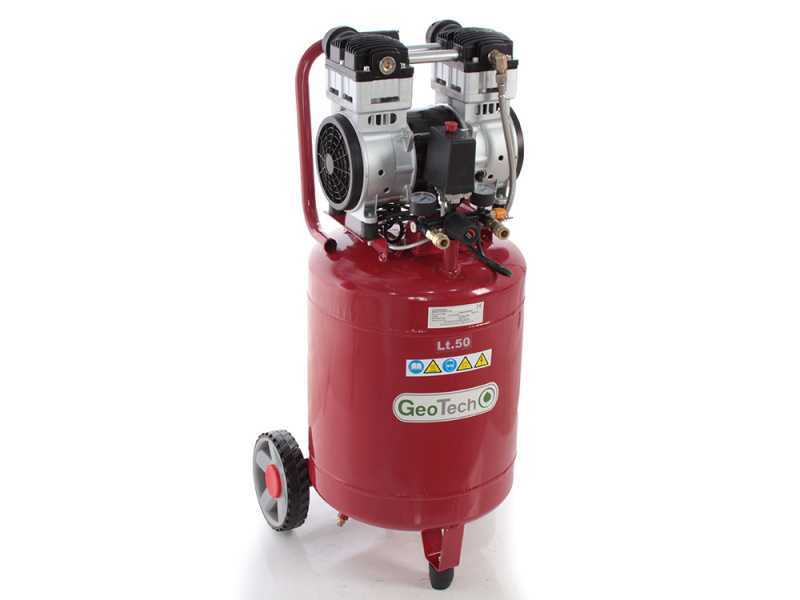

Technical features

Air intake flow: 200 L/min

Pumping unit type: coaxial oil-free

Pressure: 10 bar

Electric motor power: 1.5 Hp

Tank: 50 L

Dimensions:
- Width: 450 mm
- Height: 1000 mm
- Depth (or thickness): 400 mm

Weight: 45 kg

The air compressor features a copper motor housing that makes it stand out from the economic ones, which are provided with aluminium coating.
This type of winding stands out to be more efficient, resulting in higher power featuring the same power requirements.

The twin-cylinder oil-free cylinder head of this air compressor stands out for a number of features.

Anti-vibration pads

Double air filter

Large heat sinks

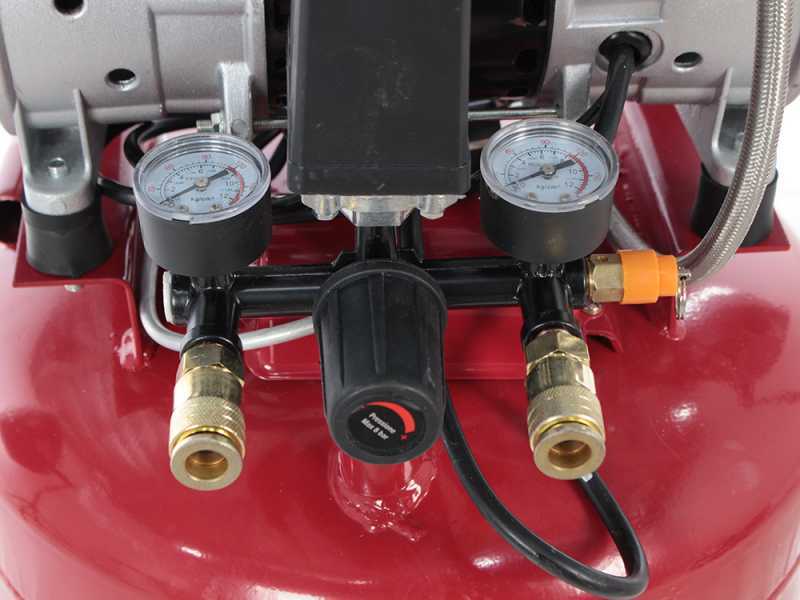

Controls

The GeoTech S-AC50V-10-15C features easy and user-friendly controls, which are divided into:

Power switch

Tank air pressure gauge

Output air pressure gauge

Air compressor female outlet fittings

Pressure adjusting knob

Other features

Schuko plug

Rubber wheels

Ergonomic handle for transportation

Anti-vibration rubber pads

Tank with condensate drain valve

Free items & Standard equipment

COMPLIMENTARY: Oilless Air Compressor Maintenance Kit

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet coupling. It allows easily connecting the units to hoses with female quick joint.

  • Quick male joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (it also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
