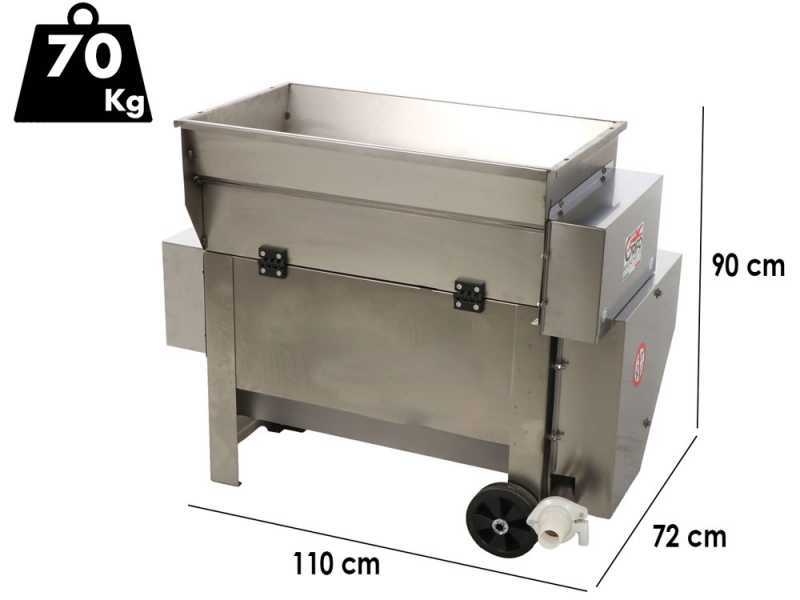

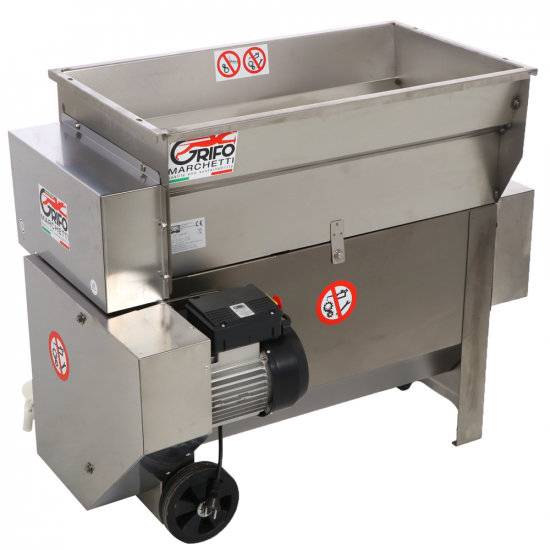

Grifo DVEP20IR - Stainless steel electric destemmer with pump and rollers

Grifo 's professional destemmer with opening tank, model DVEP20IR, is designed to offer good performance in the wine industry, while maintaining constant efficiency over time.

High Production Capacity: This model is capable of producing around 2,000 kg/h, distinguished by its high efficiency and ability to handle demanding workloads.

Robust construction: Made entirely of stainless steel, this destemmer guarantees high durability and strength, keeping its performance intact over time

Spacious cargo tank: The large, well-designed loading trough greatly simplifies loading operations, making it easier to tip crates.

Efficient Separation of Grapes and Stalk: Thanks to the destemming system with stainless steel shaft and grid, this model ensures precise separation of the grapes from the stalks, guaranteeing the quality of the wine making process.

High-quality pump: The must is pumped to the barrel through a generously sized stainless steel pump, ensuring a constant flow.

Powerful Electric Motor and Versatile Mechanisms: The destemmer is equipped with an electric motor that guarantees optimal and reliable performance. The lateral transmission, with belts and chains, feeds various mechanisms, including the upper auger, the destemming shaft and the lower auger for dragging the crushed grapes, ensuring efficient process management.

Ease of Cleaning and Maintenance: The removable grill and the folding opening are designed for easy and thorough cleaning, greatly simplifying the operation. The design of the model requires constant but simple maintenance.

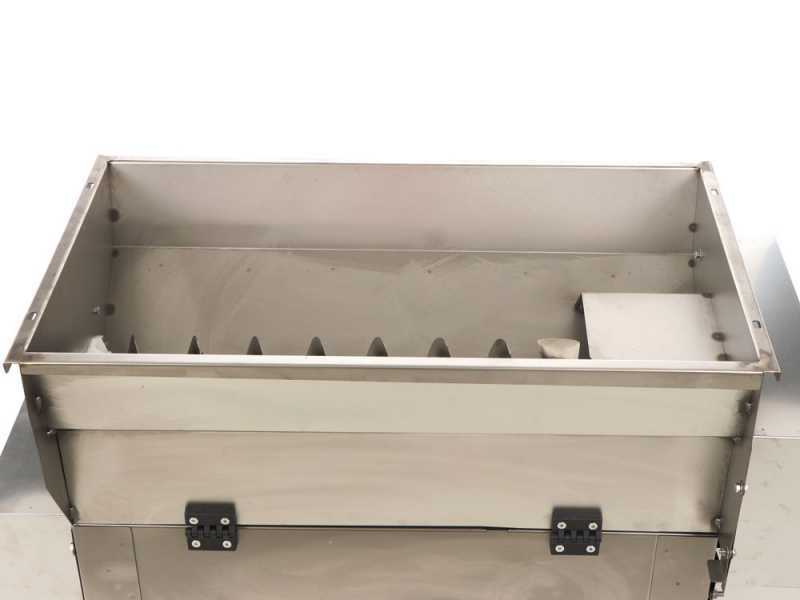

The hopper is an essential component of this machine, playing a crucial role in the destemming process.

This width (87 x 50 cm) makes it easier to use, facilitating the tipping of grape crates into it, reducing the risk of overflowing bunches outside.

Detail of the screw convey or that gently and efficiently receives the grapes in the lower part of the machine

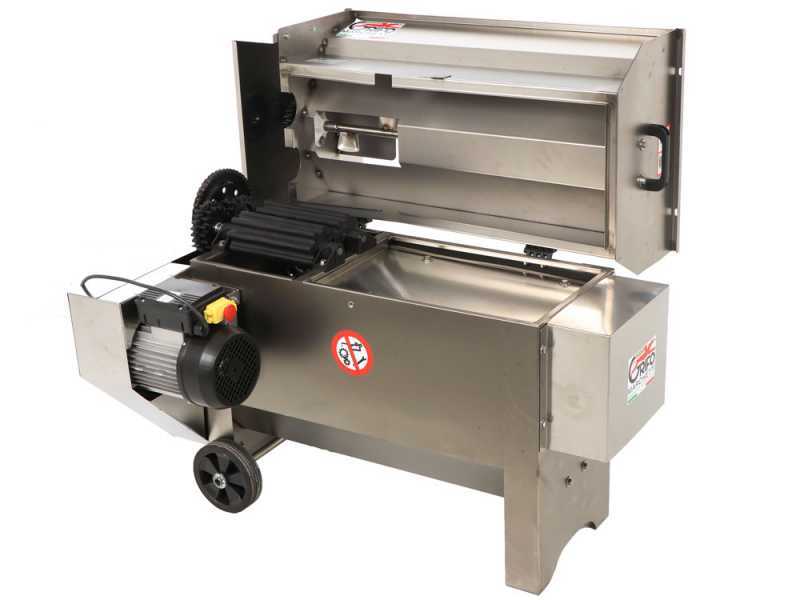

Pre-processing rollers performing the first crushing.

The destemmer is equipped with a pair of counter-rotating pre-processing rollers. They carry out an initial processing of the grape berries, performing an ‘initial crushing’ action that generates small cracks that facilitate the outflow of the first must.

But the great innovation that makes this semi-centrifugal destemmer unique is that the rollers are made of food-grade solid rubber, and not plastic or aluminium like other solutions on the market. The rigidity of plastic or aluminium rollers tends to break the grapes more, with the risk of higher final acidity of the wine.

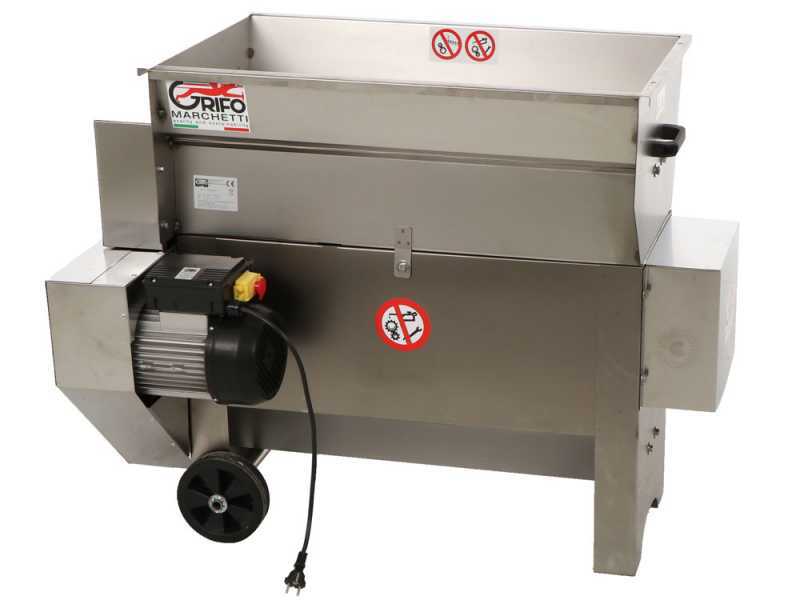

2 Hp electric induction engines, which allows all the various mechanisms to be operated with a greater power margin than the destemmer actually absorbs in all its functions.

Equipped with a red STOP emergency button, compliant with CE safety regulations

Engine specifications:

Motor power: 2 Hp

Motor Speed: 1400 rpm

Electric voltage and frequency: 230 V - 50 Hz

Pump head: 4 m

Pump diameter: 60 mm

The side chain drive transmits the rotary motion from the motor to:

- the upper screw conveyor
- The intermediate rotor
- The pre-processing rollers
- The lower drive screw to the pump
- The pump

Side protecting carter, made of Stainless steel.

The belt drive has the advantage of making a slight friction effect in the event of a blockage in the machine itself.

Detail of the gear drive to the pre-machining rollers.

This model only mounts high-density nylon gears.

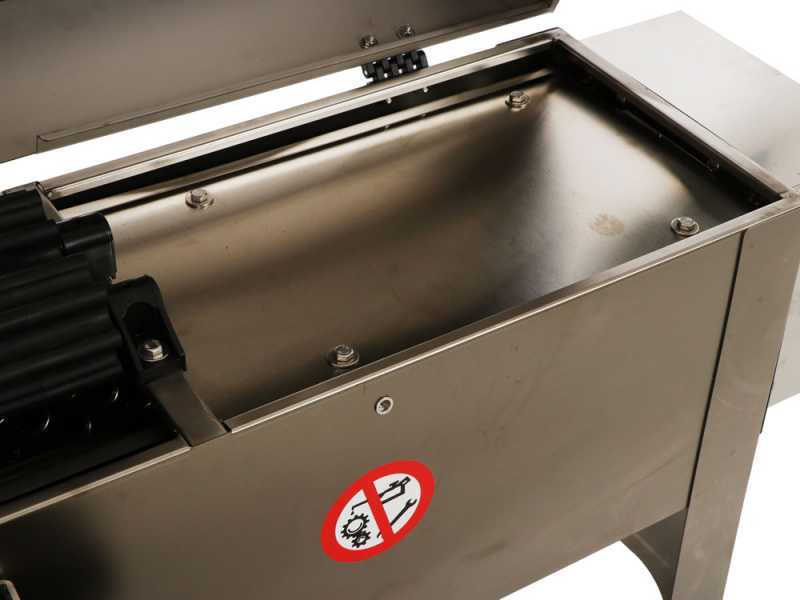

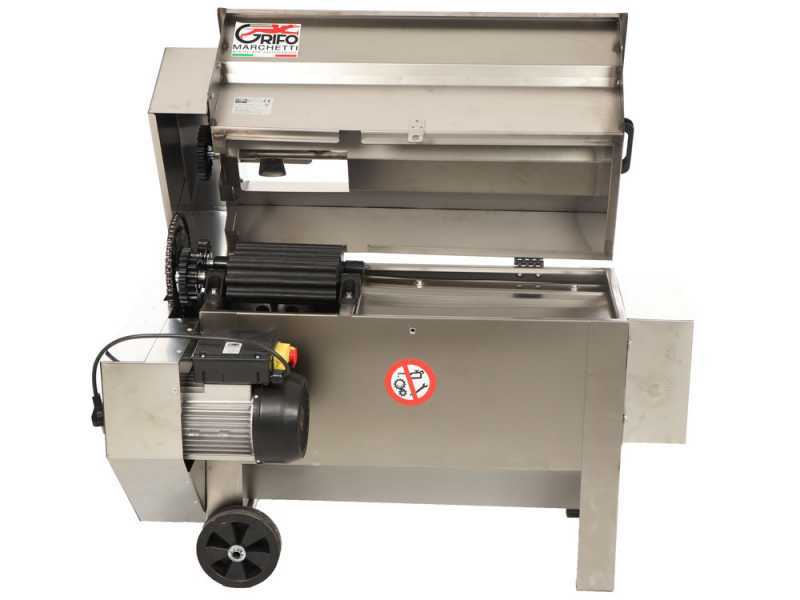

This centrifugal destemmer is equipped with a two-component frame that can be opened in an instant by means of the special closing hook.

Advantages:

- it can be inspected immediately during use (to intervene in the event of any blockages, to remove foreign bodies that may have accidentally entered the machine)

- higher level of hygiene, allowing thorough cleaning and washing of the machine before and after destemming.

Detail of the opening catch

Details of the hinges.

The sieve can be removed with extreme ease for cleaning operations, thanks to the guides that also act as protection for the sieve itself.

Detail of the rotor with steel paddles which carries out the destemming process (by pressing the grapes onto the sieve).

Upper stainless steel sieve attachment detail. It is equipped at the bottom with the two guides on which the sieve is fixed and on which it slides when removed. This platform, as well as acting as a solid support for the sieve, closes it at the top, ensuring that all the grape bunches that enter the sieve are perfectly processed, remaining well concentrated inside the sieve and consequently pushed towards it by the rotating vane rotor.

Top-quality, large-size pump made of STAINLESS STEEL, suitable for pumping all grapes and must to the vat.

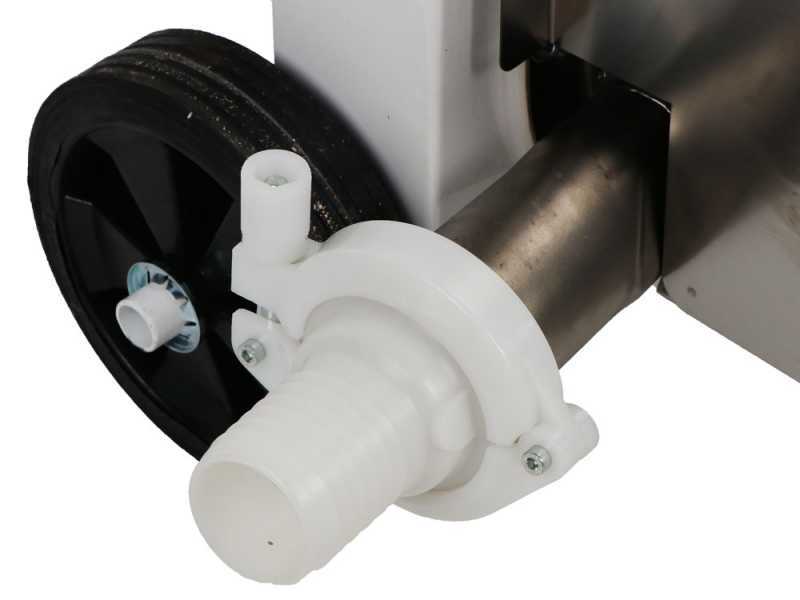

Detail of the pump fitted with a gasketed garolla connection.

Large wheels to allow easy motion and transport

Transporting handle

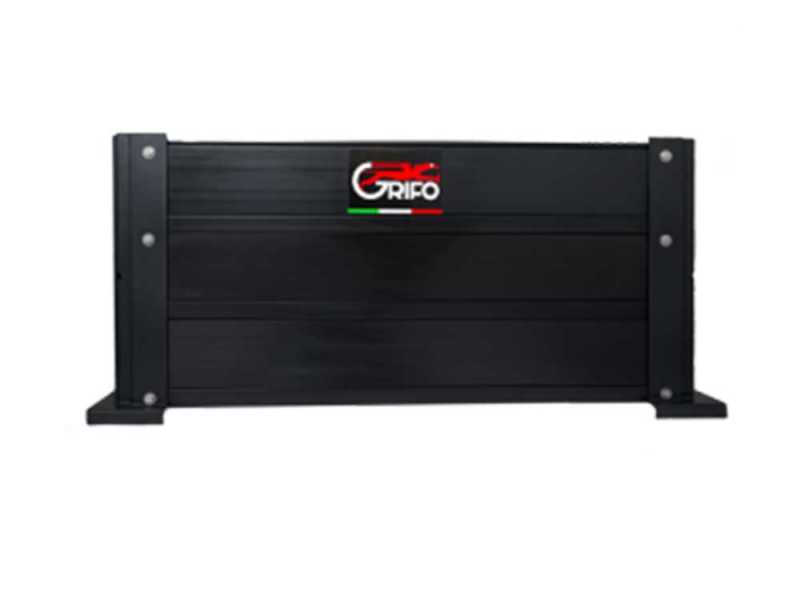

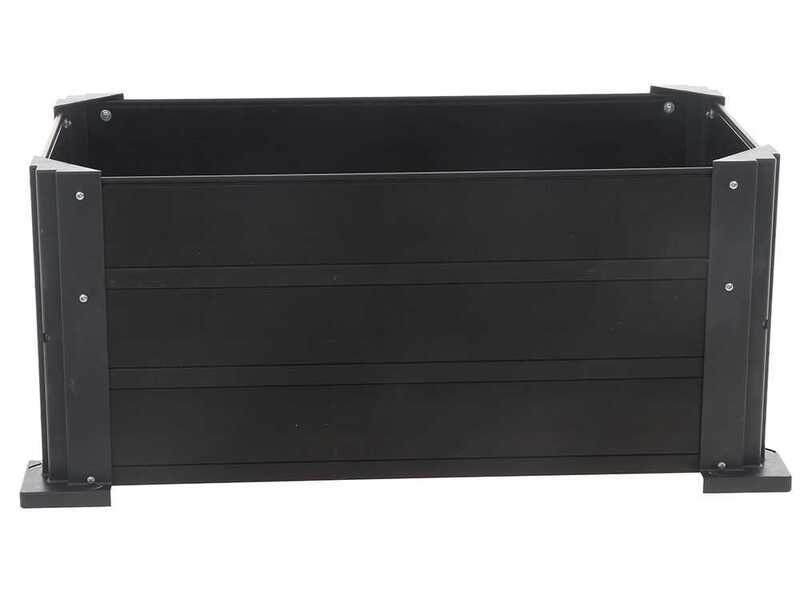

Compatible with Grifo DVEP20 and DVEP20I destemmers.

Designed to have an excellent grip on any machine in order to prevent accidents during machine operation.

Easy to use. Just place it on the machine's hopper edge.

It is shipped disassembled in its original packaging with fasteners.
