Seven Italy GHR 20 - Spiral mixer - 400V - With wheels and timer

Add a question
ID: K600185

EAN: 8034135311092

8,9/10
After-sales assistance & Spare parts
Seven Italy GHR 20 - Spiral mixer - 400V - With wheels and timer
FREE
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
Mixing head type
Tilting
Dough Capacity
17 Kg
Tank capacity
21 L
Speed levels
1
hydration max
65 %
Medium doughs
Hard doughs
Minimum dough
2 Kg
Operating mode
Three-phase 400 V
Nominal power
0.75 HP
Motor type
Induction
Recommended for:
Pizza
Recommended for:
Bread
Recommended for:
Focaccia bread
Recommended for:
Breadsticks
Recommended for:
Piadina
Recommended for:
Taralli
Recommended for:
Biscuits
Recommended for:
Egg mixtures
Recommended for:
Fresh pasta
Warranty
2 years
Manufacturing country
Italy
Product Features
Model:
GHR 20
Body material:
Enamelled steel
Typology :
Wheeled
Medium doughs:
Hard doughs:
Mixing head type:
Tilting
Dough Capacity:
17 Kg
hydration max:
65 %
Speed levels:
1
Tank capacity:
21 L
Operating mode:
Three-phase 400 V
Flour quantity:
10.3 Kg
Water quantity:
6.7 L
Hourly output:
55 kg/h
Minimum dough:
2 Kg
Spiral - rpm (min):
85 rpm
Spiral - rpm (max):
85 rpm
Warranty:
2 years
Dough mixing time:
Standard
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
0.75 HP
Nominal power (W):
550 W
Power supply:
400 V electric
Manufacturing country:
Italy
Transmission data
Transmission type:
Chain
Cutting data
Recommended for::
Pizza
Recommended for::
Bread
Recommended for::
Focaccia bread
Recommended for::
Breadsticks
Recommended for::
Piadina
Recommended for::
Taralli
Recommended for::
Biscuits
Recommended for::
Egg mixtures
Recommended for::
Fresh pasta
Equipment
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Electronic timer:
No
Rotating Bowl:
Stainless steel
Rotating spiral arm:
stainless steel
Central breaker bar:
Stainless steel
Lifting safety grid:
Stainless steel
Free gifts/extra features
Apron:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
65x43x75 cm
Net weight:
70 Kg

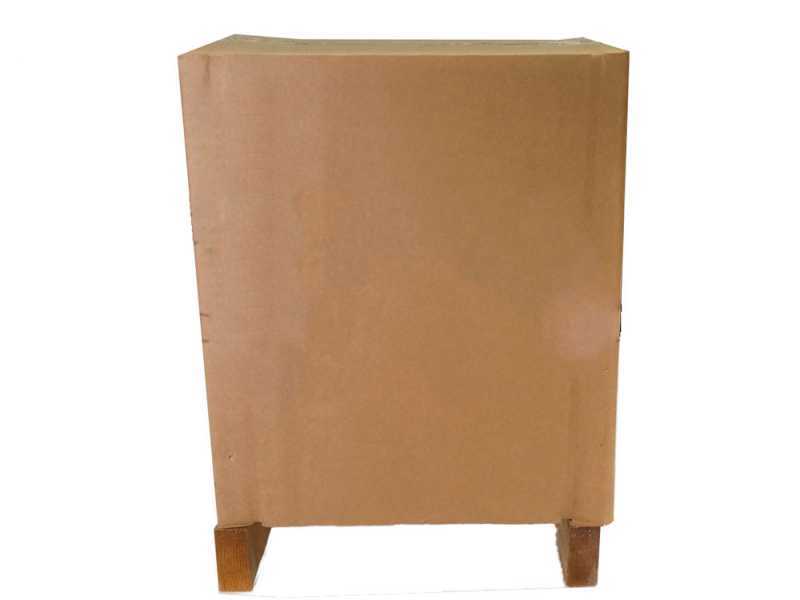

Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
75x45x85 cm
Gross weight (packaging included) :
81 Kg
Assembly time:
5 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 03/10/2024 - 07/10/2024
€ 1.519,56
VAT Included
You're viewing:
Customers also viewed:
Description

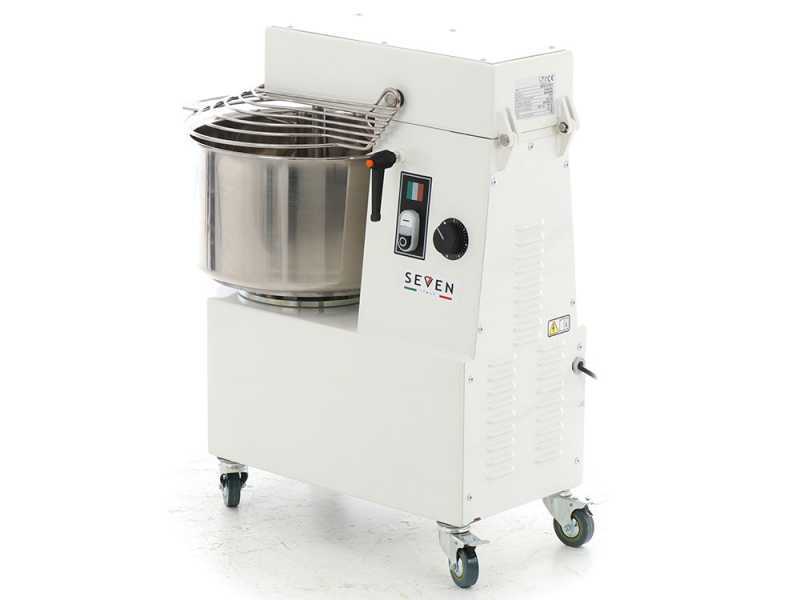

Seven Italy GHR 20 professional spiral mixer

The heavy-duty Seven Italy GHR 20 spiral mixer is a professional machine suitable for the preparation of doughs for professional purposes and in private kitchens.

The three-phase spiral mixer is therefore especially suitable for the professional market, delis, pizzerias and for all those companies that need to make quite a big quantity of dough all at once.

The spiral mixer with raising head works with 2 combined rotations:

1. the bowl rotates on itself with regular motor;
2. the spiral hook rotates on its axis;

The special shape of the spiral and rotating plate enable to obtain a perfectly mixed dough.

The transmission and the chain with geared motor in oil bath require very low maintainance and ensure minimum noise.

This spiral kneader makes excellent dough for all kinds of products, such as bread, fresh hand-made pasta or fresh egg pasta, pizza, focaccia bread (flat bread), cookies, cakes (for example Christmas cake). Perfect for hard, soft and elastic dough, both sweet and savoury up to 65% hydration.

Entirely made in Italy, which translates to reliable and high-quality materials and manufacturing.

This machine is powered by a three-phase motor.

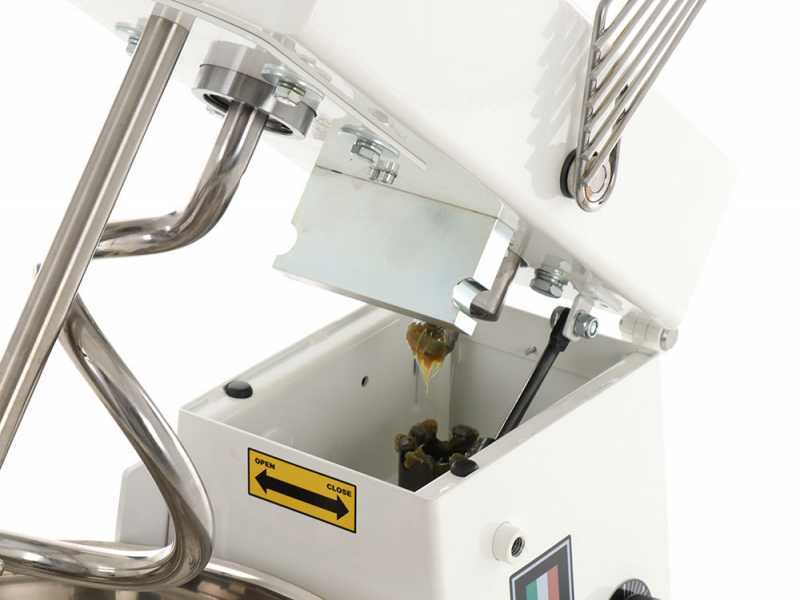

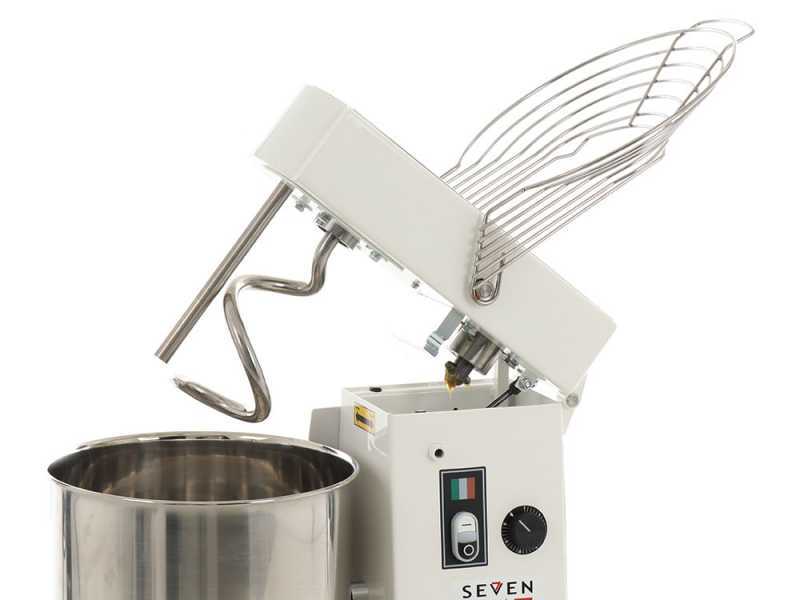

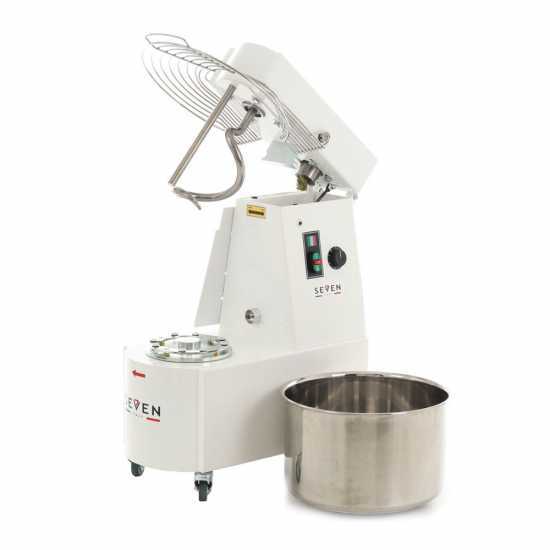

Raising head and removable bowl

The GHR series spiral dough mixers are equipped with raising heads and removable bowls. These special features make it very easy to clean the mixer and process the dough.

To unlock the head, it is enough to press the levers on the sides of the machine.

The bowl can be easily removed by releasing the bowl base. This option allows carrying the dough inside the bowl and simplifies cleaning operations.

To release the bowl, simply unscrew the bowl base until it detaches.

Main features

The GHR 20 spiral mixer features a fixed kneading head and easy and user-friendly controls.

Fitted with timer. it can be activated by means of a double ON/OFF switch located in the front side of the machine. The spiral mixer can be manually switched on and off or it switches off automatically once the TIMER ends.

The spiral mixer frame is made of high-thickness steel to cancel vibration during operation. The transmission system consists of a chain and a geared motor in oil bath to ensure performances and silence.

Equipped with emergency stop that actives automatically by lifting the grid.

The 4 swiveling wheels equipped with 2 brakes can be removed.

All of the components that touch the dough are made of 304 stainless steel:

  • the bowl
  • the spiral mixing arm
  • the protection grid
  • the central pin

Stainless steel protection grid, that can be lifted.

The special spiral arm shape allows speeding up the job and prevents the dough from overheating.

Technical features

  • Dough capacity: 17 kg
  • Flour: 10.3 kg
  • Water: 6.7 l
  • Bowl: 400x260 mm
  • Dough quantity per hour: 55 kg/h
  • Minimum dough guaranteed: 2 kg
  • Speed: 1
  • Motor power: 0.75 hp
  • Consumption: 550 Watt
  • Spiral revolutions: 85 RPM
  • Bowl revolutions: 10
  • 24 V Inner wiring (low voltage)
  • CE compliant accident prevention system
  • CE compliant safety microswitch
  • Power supply: 230 V
  • CE compliant
  • Weight: 69 kg
  • Dimensions: 43 x 65 x 75 cm
  • Cables for three-phase connection
Free items & Standard equipment

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

Gifts and extra features

The spiral mixer will be shipped in its original packaging along with the instructions manual.
