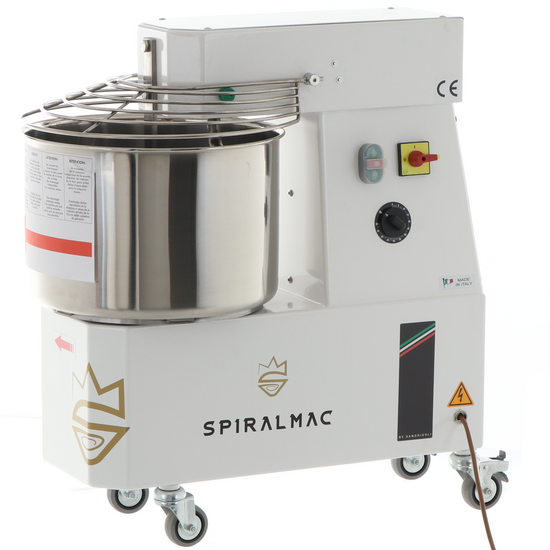

SPIRALMAC SV20HH - High hydration spiral mixer - Three-phase - 2 speeds - 20 Kg

Add a question
ID: K603267

EAN: 9999991095168

MPN: 02-SV20DH-B

7,8/10
After-sales assistance & Spare parts
SPIRALMAC SV20HH - High hydration spiral mixer - Three-phase - 2 speeds - 20 Kg
FREE
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
High-hydration
Dough Capacity
20 Kg
Tank capacity
24 L
Speed levels
2
hydration max
90 %
Soft doughs
Medium doughs
Hard doughs
Operating mode
Three-phase 400 V
Nominal power
2 HP
Motor type
Induction
Electronic timer
Yes
Recommended for
High-hydration pizza
Recommended for
High-hydration bread
Recommended for
Brioche
Recommended for
Gnocchi
Recommended for
Leavened desserts
Recommended for
Pandoro
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Warranty
2 years
Manufacturing country
Italy
Product Features
Model:
SV20HH trifase
Body material:
Enamelled steel
Typology :
Wheeled
High-hydration:
Soft doughs:
Medium doughs:
Hard doughs:
Mixing head type:
Fixed
Dough Capacity:
20 Kg
hydration max:
90 %
Speed levels:
2
Tank capacity:
24 L
Operating mode:
Three-phase 400 V
Flour quantity:
13 Kg
Water quantity:
7 L
Hourly output:
60 kg/h
Spiral - rpm (min):
100 rpm
Spiral - rpm (max):
210 rpm
Bowl - rpm (min):
10 rpm
Bowl - rpm (max):
20 rpm
Warranty:
2 years
Dough mixing time:
Standard
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
2 HP
Nominal power (W):
1500 W
Power supply:
400 V electric
Transmission data
Transmission type:
Chain
Cutting data
Recommended for:
High-hydration pizza
Recommended for:
High-hydration bread
Recommended for:
Brioche
Recommended for:
Gnocchi
Recommended for:
Leavened desserts
Recommended for:
Pandoro
Recommended for:
Pizza
Recommended for:
Bread
Recommended for:
Focaccia bread
Recommended for:
Breadsticks
Recommended for:
Piadina
Recommended for:
Taralli
Recommended for:
Biscuits
Recommended for:
Egg mixtures
Recommended for:
Fresh pasta
Equipment
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Electronic timer:
Yes
Rotating Bowl:
Stainless steel
Rotating spiral arm:
stainless steel
Central breaker bar:
Stainless steel
Lifting safety grid:
Stainless steel
24 V electric system:
Yes
Free gifts/extra features
Apron:
Yes
Instructions manual:
Yes
Dimensions and logistics

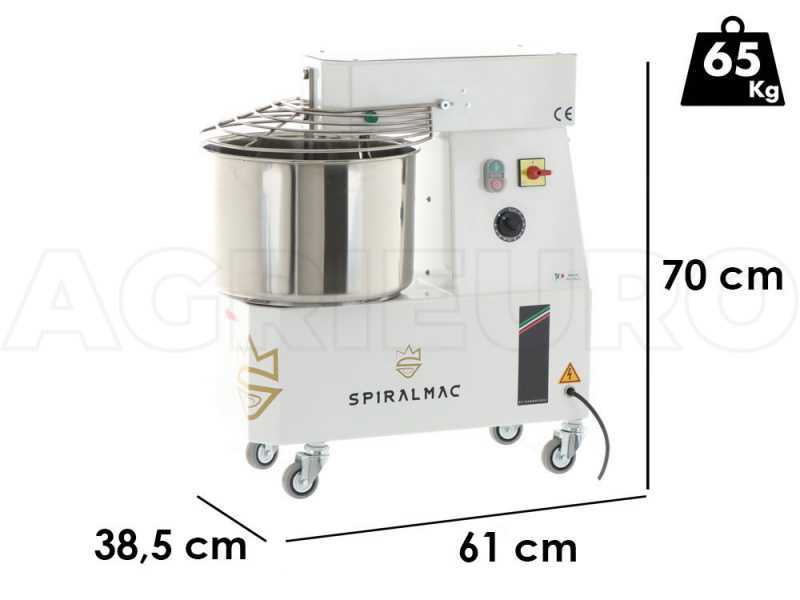

Product dimensions in cm (L x W x H):
61x38,5x70 cm
Net weight:
65 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
70x40x80 cm
Gross weight (packaging included) :
70.5 Kg
Assembly time:
Assembled
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 15/04/2025 - 17/04/2025
€ 1.390,66
Vat included
You're viewing:
Customers also viewed:
Description

PIRALMAC SV20 2VEl. HH Three-phase High-hydration Spiral Mixer - 2 hp 20 Kg

The SPIRALMAC SV20 2VEL HH spiral mixer is designed to satisfy a type of customer who wants an effective and long-lasting product.

Mechanically manufactured according to the most advanced techniques, it stands out for its robustness, fast mixing times and excellent results in a well-oxygenated product.

The transmissions are silent and at the same time powerful.

The minimum dough weight is 4 kg for normal dough (bread, pizza), 4.5 ⁄ 5 KG for high-hydration dough (cakes).

The exact position of the central bar in relation to the spiral and the bowl and spiral revolutions' ratio ensure doughs of an optimal dough in terms of consistency, oxygenation and a final product of greater volume.

SPIRALMAC SV20 2Vel spiral mixer HH is equipped with:

  • stainless steel protection grid
  • central stainless steel breaker bar
  • excellent spiral speed
  • exceptional hourly yield
  • 2 speeds
  • 90% hydration

The SPIRALMAC SV20 2-Speed HH, is used in the kitchen, in small bakeries and culinary workshops, to make high-quality dough with extreme simplicity, even thanks to a 24 L bowl, functionality for professional use.


All SPIRALMAC spiral mixers are equipped with the following features, which make the product among the best mixers on the market:

  • Oversized motor power to process any type of dough without any difficulty, even the most demanding dough processing
  • Oversized chain for greater reliability and durability
  • Drive with oil-bath gear motor, which results in high power, sturdiness, reliability and, quietness
  • EC-compliant 24 V PROFESSIONAL power supply
  • All the components of the machine are MADE IN ITALY to guarantee a very high-quality product.

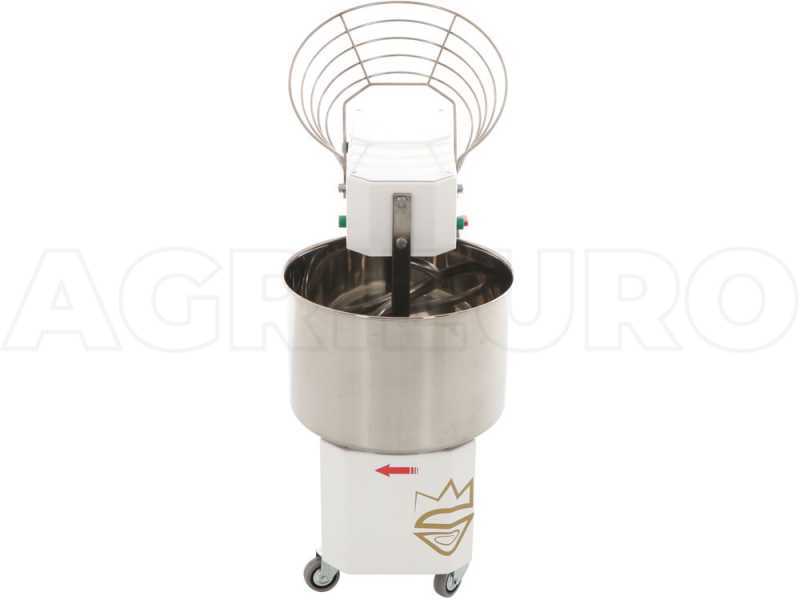

Main Features

SPIRALMAC SV20 2Vel spiral mixer The HH spiral mixer is one of the best bench top machines, which allow you to work even the most complex doughs in the best possible way.

SV20 2 vel model The HH, part of the home line, despite its small size can work complex doughs, which require greater hydration, in the best possible way. Conceived and designed as the best spiral mixers, the SV20 is suitable for both excellent domestic use and extraordinary heavy-duty use.

The extreme attention to the smallest details makes the machine reliable, silent and with low consumption. Strong and resistant, excellent to prepare baked goods, doughs and confectionery products.

The SPIRLMAC SV20 2vel The SPIRLMAC SV20 has a maximum flour capacity of 13 Kg, an hourly production of 60 Kg/h and 10-20 bowl revs, making it a simple and usable machine for professional use.

Intended for professional kitchens but also in small bakeries.

It also features the option to rotate the spiral at a maximum of 100-210 rpm.

This spiral mixer is equipped with automatic stop device that stops its running when the stainless steel grid is raised during use.

The chain drive it is strong and durable.

All the components directly touching the dough are made of INOX stainless steel.

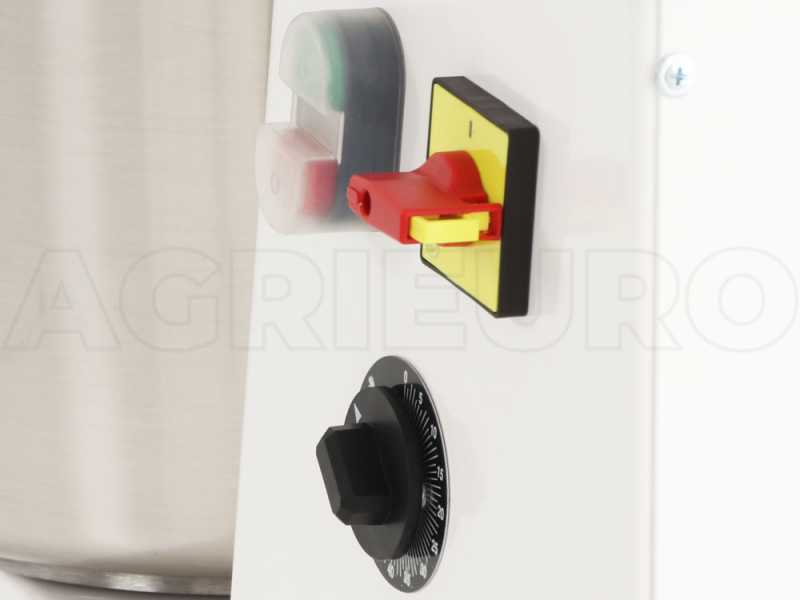

Technical Specifications

  • Dough capacity: 20 KG
  • Flour: 13 kg
  • Water: 7 L
  • Engine power: 1.5 hp
  • "CE”-compliant safety system
  • “CE” safety micro-switch
  • Power supply: 380 V
  • CE Certification
  • Weight: 65 kg
  • Size: 61x38, 5x70 cm
Free items & Standard equipment

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

Free Items included

The spiral mixer is shipped in its original packaging together with the instruction manual.
